ABB 3ADT310500R0102 SDCS-PIN-205A Power Interface Board
Manufacturer: ABB
Condition: Brand New
Lead Time: In Stock
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Hot Selling Models
- Recommended Products
Overview
- Use the board only in the applicable 400/500 V DCS converter current group.
- Match C1 or C2 construction and the existing SDCS-PIN-20x revision.
- Do not substitute an older board for a later B revision.

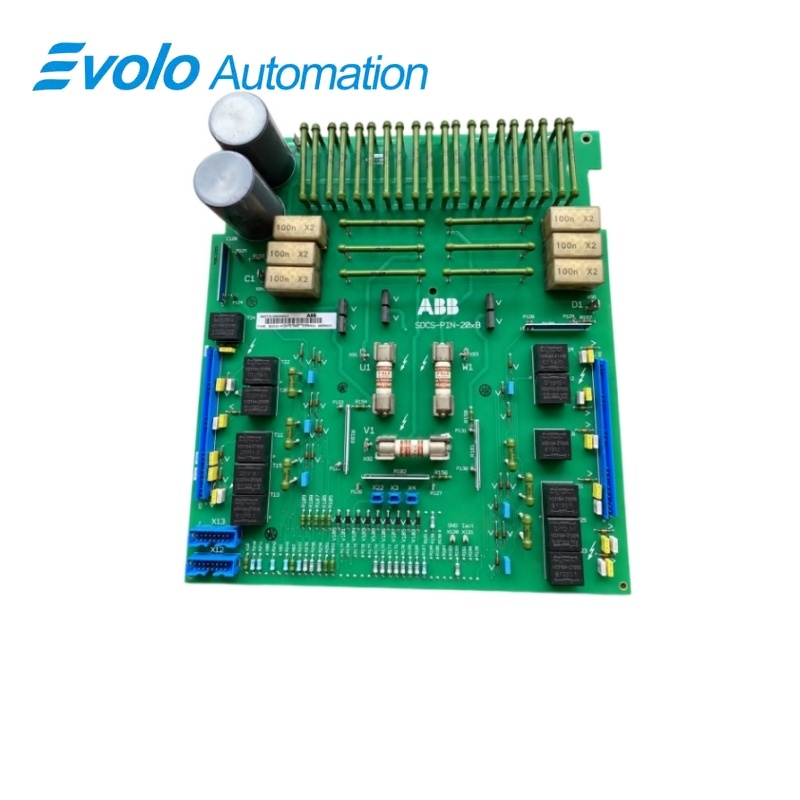

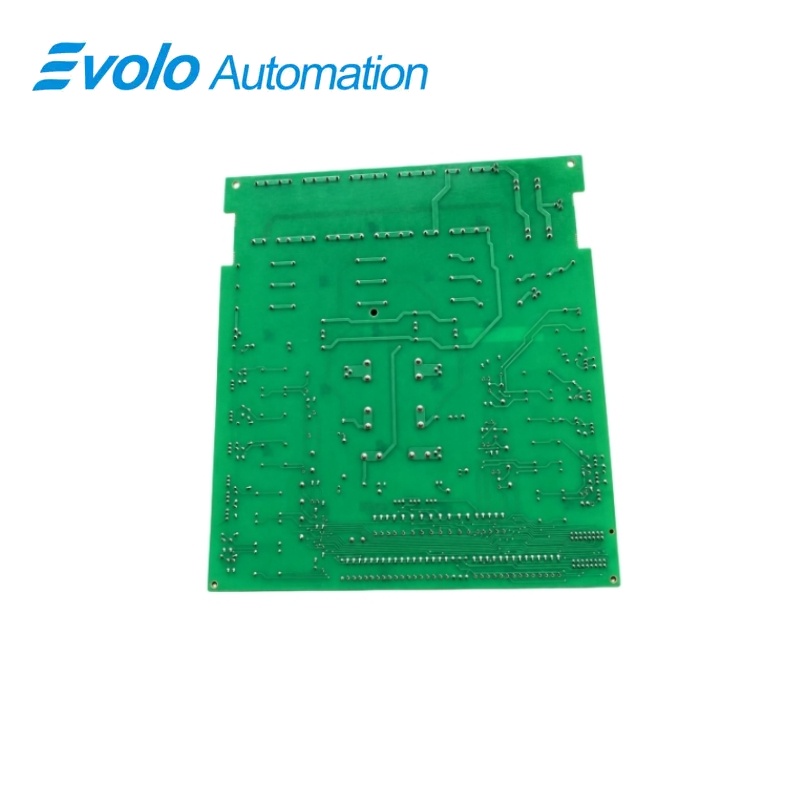

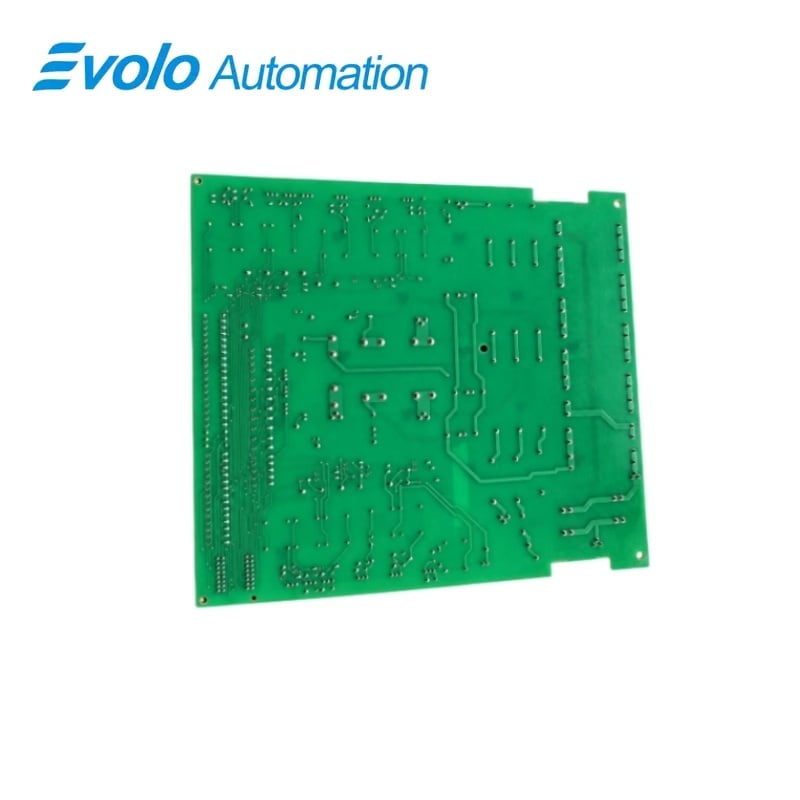

ABB 3ADT310500R0102 SDCS-PIN-205A Power Interface Board
Power interface board for ABB DCS converter modules, integrating firing-pulse, measurement and thyristor-protection circuits.
At a Glance
| Brand | ABB |
|---|---|
| Model | 3ADT310500R0102 |
| Product Type | Power interface board |
| Core Function | Thyristor firing, measurement and protection interface |
| Compatible Series | DCS 500 / DCS 600 converter modules |
Exact Board Identity
Match 3ADT310500R0102 with the SDCS-PIN-205A designation and installed revision.
Converter Rating Match
Confirm the 400/500 V converter class and applicable DC current group.
Revision Control
Compare the installed SDCS-PIN-20x revision because replacement compatibility is one-directional.
Product Overview
ABB 3ADT310500R0102 is the SDCS-PIN-205A power interface board used in DCS converter hardware. It combines thyristor firing-pulse generation, armature-current measurement, voltage sensing and protection functions on one assembly.
The SDCS-PIN-20x family is used in DCS converter module construction types C1 and C2. Correct replacement depends on the converter voltage class, current rating and the installed board revision.
Key Functions
Firing-Pulse Interface
Pulse-transformer circuits deliver the thyristor firing signals for the converter power stage.
Current and Voltage Measurement
The board measures armature current and high-ohmic AC and DC voltage while providing current scaling and zero-current detection.
Power-Stage Protection
RC snubber circuits, an RCD network and protected voltage-measuring paths support thyristor and overvoltage protection.
Official Specifications
| Converter Voltage Class | 400/500 V AC |
|---|---|
| Converter DC Current Coverage | 100 A to 700 A, according to converter construction |
| Firing-Pulse Circuit | Pulse-transformer output circuits |
| Armature-Current Measurement | Integrated current-measurement path |
| Thyristor Protection Network | Parallel RC snubbers and RCD network |
| Voltage Measurement | High-ohmic AC and DC sensing |
| Rated-Current Scaling | Burden-resistor scaling network |
| Zero-Current Detection | Dedicated detection circuit |
| Voltage-Type Coding | Hardware-coded voltage identification |
| Heat-Sink Temperature Input | PTC sensor interface |
| Protected Fuse Positions | F101, F102 and F103 |
| Fuse Specification | Bussmann KTK-R-6A, 600 V |
| Board Layout Size | 253 x 280 mm |
| Three-Phase Field Supply | Same board used without modification |
Frequently Asked Questions
Can 3ADT310500R0102 be used in both C1 and C2 DCS converter constructions?
The SDCS-PIN-20x power-interface family is used in both C1 and C2 converter-module constructions.
Which converter ratings should be checked before installing 3ADT310500R0102?
Match the board to a 400/500 V converter and the applicable 100 A to 700 A DC current group.
How does 3ADT310500R0102 deliver firing signals to the thyristors?
Pulse-transformer circuits transmit the firing pulses to the converter power stage.
Which measurements are handled by 3ADT310500R0102?
The board measures armature current together with high-ohmic AC and DC voltage signals.
How does 3ADT310500R0102 receive heat-sink temperature information?
A dedicated interface accepts the signal from a PTC heat-sink temperature sensor.
Which protective fuses are associated with 3ADT310500R0102?
Fuse positions F101 through F103 use Bussmann KTK-R-6A 600 V fuses.
What revision check is needed when replacing 3ADT310500R0102?
Confirm the installed SDCS-PIN-20x revision because newer B revisions can replace earlier boards but the reverse substitution is not permitted.
