Emerson A6312-8 8TE Dual-Channel Speed and Key Monitor
Manufacturer: Emerson
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
AMS 6500 MACHINERY PROTECTION
A6312-8 8TE Dual-Channel Speed and Key Monitor
Official-source product identification, application guidance and ordering checks for A6312-8.
At a Glance
| Brand | Emerson (EPRO) |
|---|---|
| Model | A6312-8 |
| Product Type | 8TE Dual-Channel Speed and Key Monitor |
| Core Function | Speed, phase/key, zero-speed and rotation-direction monitoring in the 8TE format. |
| Application / Compatible Series | AMS 6500 machinery protection |
Verified identification

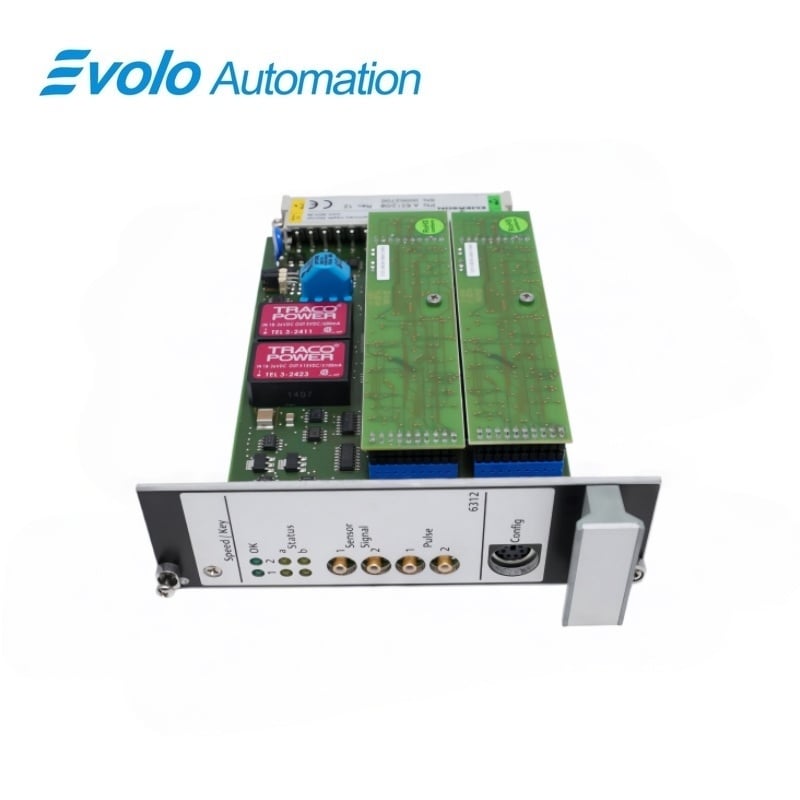

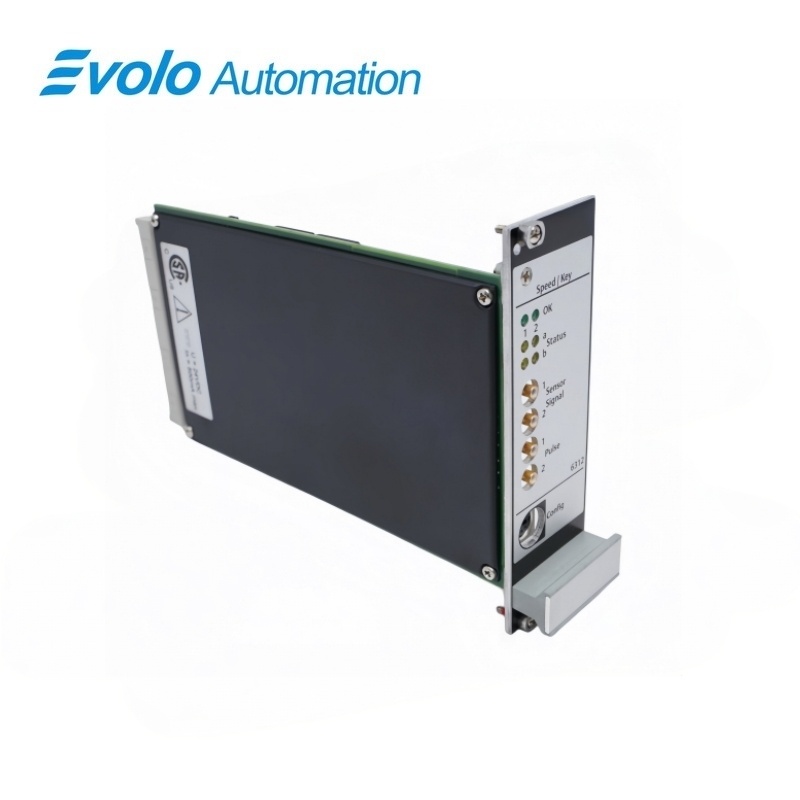

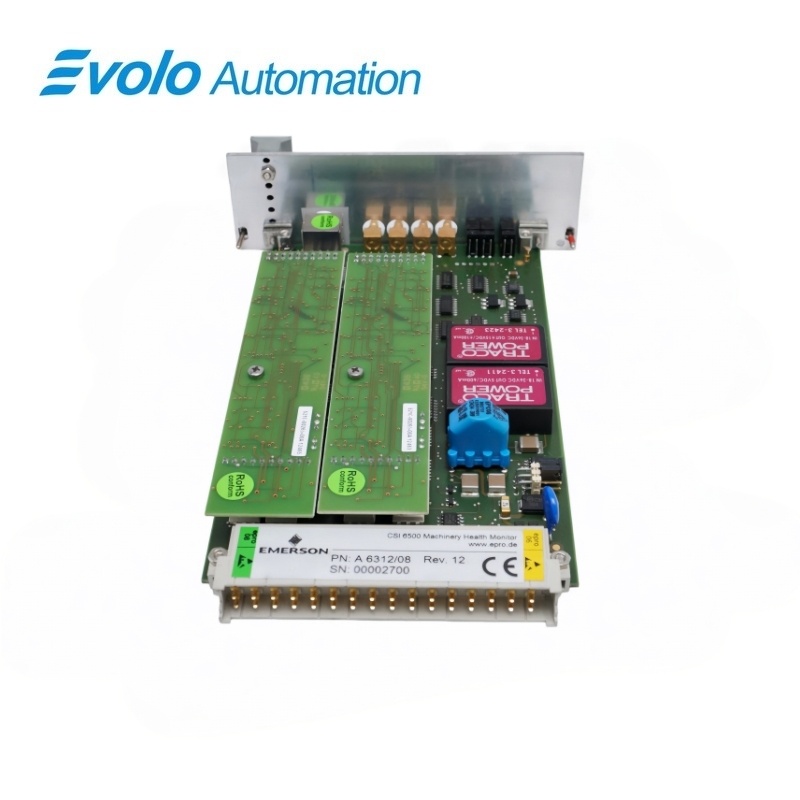

A6312-8 is identified by the complete manufacturer model and the photographed unit.
Application focus
A6312-8 is intended for speed, phase/key, zero-speed and rotation-direction monitoring in the 8TE format.
Ordering control
A6312-8 should be matched by the full nameplate, hardware revision and installed configuration.
Product Overview
Emerson A6312-8 is the 8TE version of the dual-channel Speed and Key Monitor specified for use with AMS 6500 systems.
The module monitors speed, phase/key, zero speed and direction of rotation from two independent eddy-current inputs. Official specifications include a 0–20 kHz input range, up to 65,535 rpm and configurable redundant tachometer switchover.
Key Functions
Speed and Direction Measurement
Processes pulse trains from a toothed wheel, keyway or gear to measure forward/reverse speed and detect rotation direction.
Key and Zero-Speed Monitoring
Accepts phase/key signals and configurable zero-speed timing for supported machine-protection applications.
Redundant Tachometer Mode
Can switch from a primary to a backup tachometer when the documented gap-voltage and pulse-comparison conditions are met.
Official Specifications
| Rack version | 8TE module for AMS 6500 systems |
|---|---|
| Inputs | 2 independent eddy-current differential inputs |
| Input range | 0 to ±27.3 VDC |
| Frequency / speed | 0–20,000 Hz; up to 65,535 rpm |
| Operating temperature | 0–65 °C |
| Speed and Direction Measurement | Processes pulse trains from a toothed wheel, keyway or gear to measure forward/reverse speed and detect rotation direction. |
| Key and Zero-Speed Monitoring | Accepts phase/key signals and configurable zero-speed timing for supported machine-protection applications. |
| Redundant Tachometer Mode | Can switch from a primary to a backup tachometer when the documented gap-voltage and pulse-comparison conditions are met. |
| Redundancy Mode | Redundant |
| Measurement Principle | Eddy current |
| Input Channel Count | 2 |
| Input Sensor Type | Eddy-current differential |
| Rotation Direction Detection | Supported |
Official source: Emerson Protection Cards for AMS 6500 Classic Systems — A6312/A6312-8. Commercial stock, warranty and shipping statements are seller terms.
Frequently Asked Questions
What compatibility checks apply when integrating A6312-8 with AMS 6500 machinery protection?
It is intended for AMS 6500 machinery protection.
What engineering application is A6312-8 intended to support as an 8TE Dual-Channel Speed and Key Monitor?
Speed, phase/key, zero-speed and rotation-direction monitoring in the 8TE format.
What should a commissioning engineer inspect before installing A6312-8?
Match the installed 6422/6423/6424/6425 probe and CON converter. Record trigger marks, speed range and key/phase mode.
How should speed and direction measurement be checked during maintenance of A6312-8?
Processes pulse trains from a toothed wheel, keyway or gear to measure forward/reverse speed and detect rotation direction.
What design information about key and zero-speed monitoring is required for A6312-8?
Accepts phase/key signals and configurable zero-speed timing for supported machine-protection applications.
Which redundant tachometer mode details should engineers confirm for A6312-8?
Can switch from a primary to a backup tachometer when the documented gap-voltage and pulse-comparison conditions are met.
Which documented ordering details prevent a mismatch for A6312-8?
The unit should be matched by the full nameplate, hardware revision and installed configuration.
Compatibility & Ordering Notes
Compatibility checklist for A6312-8
- Confirm A6312-8 and the 8TE AMS 6500 format.
- Match the installed 6422/6423/6424/6425 probe and CON converter.
- Record trigger marks, speed range and key/phase mode.
- Verify alarm, zero-speed and redundant-tach settings.
