Emerson A6220 Dual-Channel Shaft Eccentricity Monitor
Manufacturer: Emerson
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
AMS 6500 MACHINERY PROTECTION
A6220 Dual-Channel Shaft Eccentricity Monitor
Official-source product identification, application guidance and ordering checks for A6220.
At a Glance
| Brand | Emerson (AMS/EPRO) |
|---|---|
| Model | A6220 |
| Product Type | Dual-Channel Shaft Eccentricity Monitor |
| Core Function | Low-speed shaft bow and eccentricity monitoring below 600 rpm. |
| Application / Compatible Series | AMS 6500 machinery protection |
Verified identification

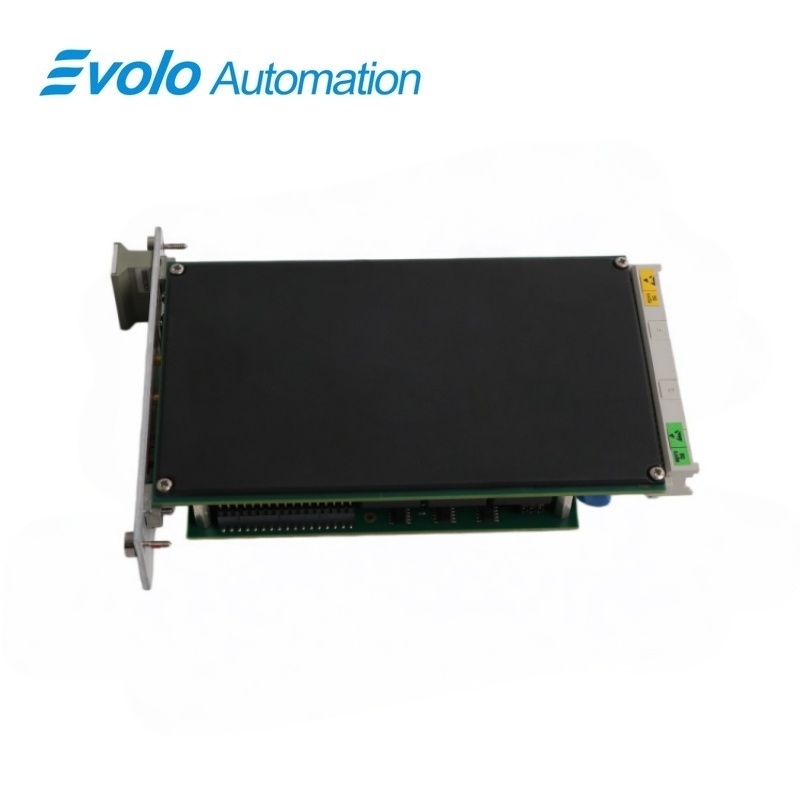

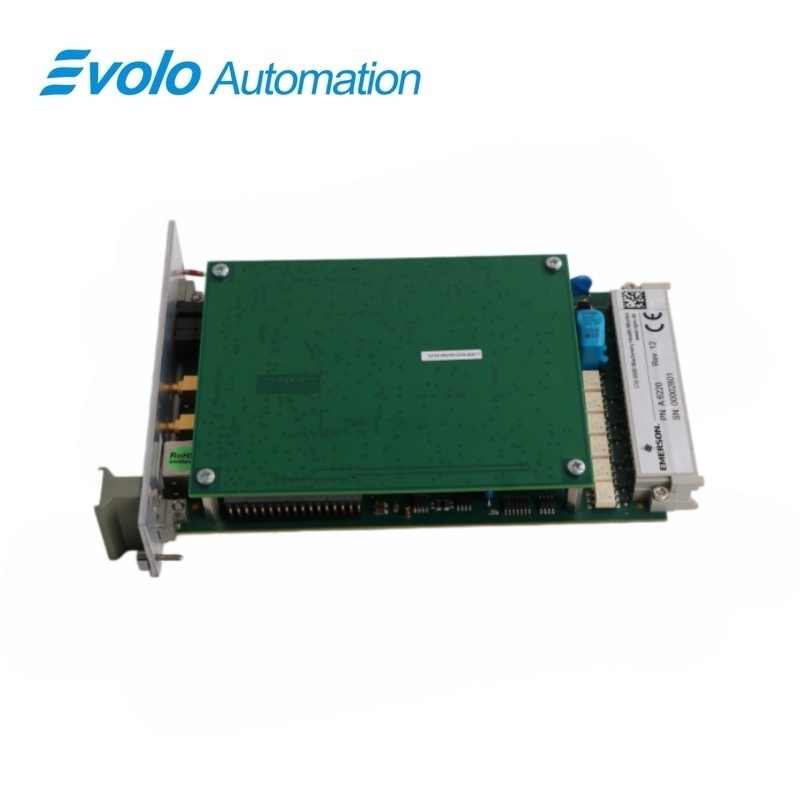

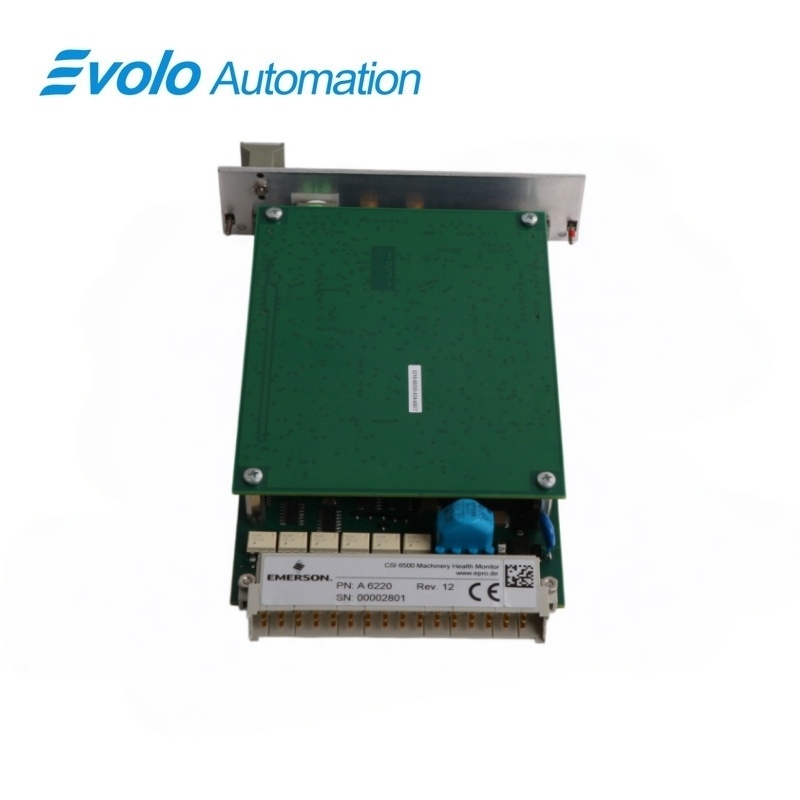

A6220 is identified by the complete manufacturer model and the photographed unit.
Application focus
A6220 is intended for low-speed shaft bow and eccentricity monitoring below 600 rpm.
Ordering control
A6220 should be matched by the full nameplate, hardware revision and installed configuration.
Product Overview
Emerson A6220 is a dual-channel shaft-eccentricity monitor for AMS 6500 machinery protection systems.
The monitor measures low-speed shaft bow or eccentric movement with supported eddy-current probes and CON converters, comparing configured values with alert and danger setpoints. Emerson documents peak-to-peak, minimum/maximum and continuous-gap measurement modes.
Key Functions
Low-Speed Eccentricity Monitoring
Measures shaft movement associated with bow or eccentricity during slow roll and other applicable low-speed conditions.
Configurable Measurement Modes
Supports hot-configurable peak-to-peak, minimum/maximum and continuous-gap measurements for each channel.
Machinery Protection Outputs
Provides buffered and proportional outputs while evaluating channel health and configured alarm limits.
Official Specifications
| Inputs | 2 independent eddy-current differential inputs |
|---|---|
| Supported probes | 6422, 6423, 6424 and 6425 with CON converter |
| Frequency range | 0.017–70 Hz (102–4,200 rpm) |
| Measuring range | 0–400 mV peak minimum range to 0–8,000 mV peak maximum range |
| Operating temperature | 0–65 °C |
| Low-Speed Eccentricity Monitoring | Measures shaft movement associated with bow or eccentricity during slow roll and other applicable low-speed conditions. |
| Configurable Measurement Modes | Supports hot-configurable peak-to-peak, minimum/maximum and continuous-gap measurements for each channel. |
| Machinery Protection Outputs | Provides buffered and proportional outputs while evaluating channel health and configured alarm limits. |
| Input Frequency Range | 017–70 Hz |
| Measurement Principle | Eddy current |
| Alert Threshold | Configurable |
| Input Channel Count | 2 |
| Input Sensor Type | Eddy-current differential |
Official source: Emerson Protection Cards for AMS 6500 Classic Systems — A6220. Commercial stock, warranty and shipping statements are seller terms.
Frequently Asked Questions
Which AMS 6500 machinery protection systems are compatible with A6220?
It is intended for AMS 6500 machinery protection.
What operating task is A6220 designed to perform as a Dual-Channel Shaft Eccentricity Monitor?
Low-speed shaft bow and eccentricity monitoring below 600 rpm.
What installation interfaces need confirmation before using A6220?
Match each 642x probe with its CON converter and cable. Verify eccentricity target, slow-roll range and sensitivity.
Which low-speed eccentricity monitoring details should engineers confirm for A6220?
Measures shaft movement associated with bow or eccentricity during slow roll and other applicable low-speed conditions.
How does A6220 handle configurable measurement modes?
Supports hot-configurable peak-to-peak, minimum/maximum and continuous-gap measurements for each channel.
What should technicians verify about machinery protection outputs when commissioning A6220?
Provides buffered and proportional outputs while evaluating channel health and configured alarm limits.
Which nameplate and revision details should buyers verify before ordering A6220?
The unit should be matched by the full nameplate, hardware revision and installed configuration.
Compatibility & Ordering Notes
Compatibility checklist for A6220
- Confirm the A6220 card and AMS 6500 rack position.
- Match each 642x probe with its CON converter and cable.
- Verify eccentricity target, slow-roll range and sensitivity.
- Record gap, peak-to-peak, alert and danger settings.
