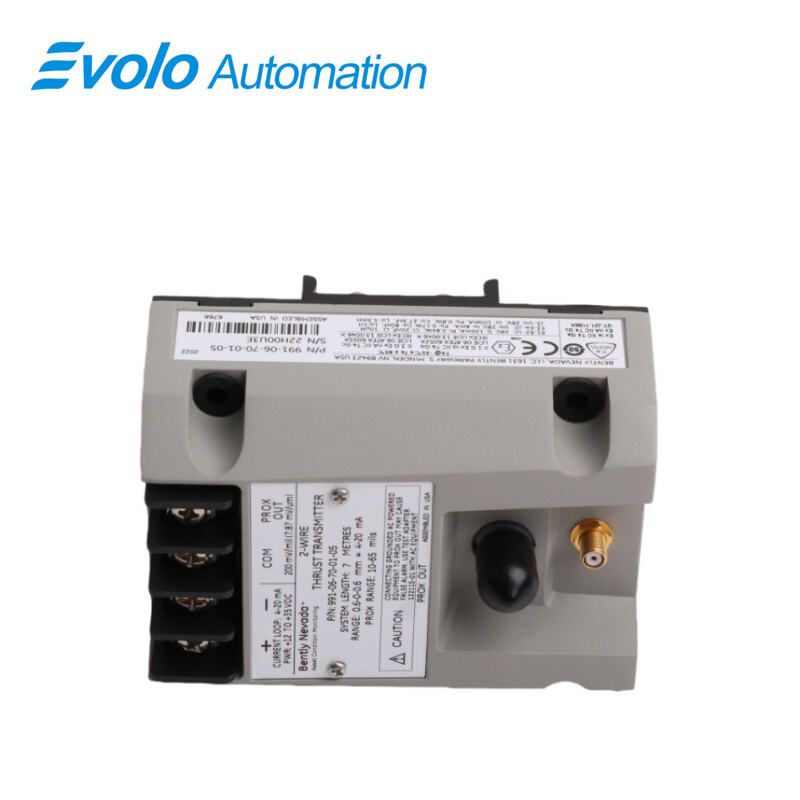

991-06-70-01-05 Thrust Transmitter

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	991-06-70-01-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 991-06-70-01-05 Thrust Transmitter is designed for automated machinery applications such as centrifugal air compressors small pumps motors and fans, providing a 4 to 20 mA proportional axial displacement signal to control systems. The 991-06-70-01-05 accepts input from a 3300 NSv Proximity Probe and extension cable, with full-scale measurement of 0.6-0-0.6 mm and linear range of 0.25 to 1.65 mm (10 to 65 mils). Its 7.0 meter system length allows flexible installation while DIN-rail clips support easy mounting. Operating from -35°C to +85°C with CSA Division 2, ATEX Zone 0/2, and ABS maritime approvals, the 991-06-70-01-05 functions reliably in harsh environments. Powered by +12 to +35 VDC with maximum loop resistance of 1,000 Ω, the transmitter delivers accurate 4–20 mA output with 10 kΩ PROX OUT impedance calibrated for 10 MΩ load. Non-isolated PROX OUT and COM terminals allow dynamic vibration and gap voltage diagnostics. The 991-06-70-01-05 features potted construction for high humidity, a Power-up Inhibit circuit to prevent transient errors, and Not OK/Signal Defeat circuitry to avoid false alarms, supporting reliable automated monitoring and precise machinery protection in compact installations.

Applications

Applications in Centrifugal Compressor Monitoring
The 991-06-70-01-05 Thrust Transmitter is widely used in centrifugal air compressors, motors, fans, and small pumps to provide automated monitoring of axial shaft displacement. With a full-scale range of 0.6-0-0.6 mm, linear range of 0.25 to 1.65 mm (10 to 65 mils), and compatibility with 3300 NSv Proximity Probes, the 991-06-70-01-05 delivers precise static and dynamic axial position data for control and predictive maintenance systems. Its 7.0 meter system length and DIN-rail mounting option enable flexible installation in tight machinery spaces.

Applications in Automated Control Systems
The 991-06-70-01-05 provides a 4 to 20 mA proportional output signal, integrating seamlessly into automated machinery control loops for vibration monitoring, shaft thrust control, and Keyphasor-based speed measurement. With operating temperatures from -35°C to +85°C, CSA Division 2, ATEX Zone 0/2, and ABS maritime approvals, the 991-06-70-01-05 ensures reliable performance in harsh environments for continuous automated operation.

Specifications

Competitive Advantage

Competitive Advantage in Accuracy and Reliability
The 991-06-70-01-05 maintains accurate measurements with input from a 3300 NSv Proximity Probe and extension cable, 10 kΩ PROX OUT impedance calibrated for 10 MΩ load, and current limiting at 23 mA. Power-up Inhibit circuitry and Not OK/Signal Defeat functionality prevent false alarms, ensuring dependable automated monitoring even under line voltage transients or faulty probe conditions.

Competitive Advantage in Integration and Maintenance Efficiency

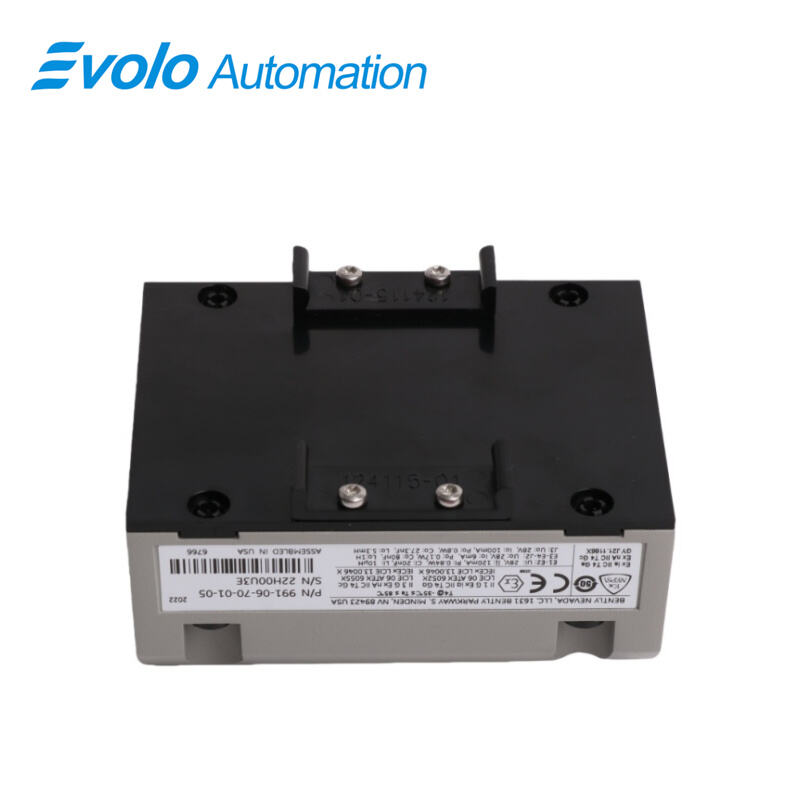

The 991-06-70-01-05 features potted construction for high humidity conditions, flexible mounting with DIN-rail clips or bulkhead screws, and a 7.0 meter system length, simplifying installation in automated machinery. Compatibility with 3300 NSv Proximity Probes and standard control systems reduces downtime, enables predictive maintenance, and supports efficient integration into compact industrial automation environments.
