Overview
Place of Origin: |
USA |
Brand Name: |
Woodward |
Model Number: |
9907-205 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model |
9907-205 |
|
Product Type |
Hand Held Programmer |
|
Series |
MSLC Master Synchronizer and Load Control |
|
Dimensions |
30.5 × 9.5 × 21 cm |
|
Weight |
0.98 kg |
|
Interface Type |
Hand-held portable programmer |
|
Communication Interface |
RS-422 |
|
Input Voltage |
7–28 VDC |
|
Electrostatic Discharge |
15 kV |
|
Max Nodes per Bus |
20 (+40 to +85 °C) |
|
Maximum Stub Length |
600 mm (0 to +70 °C) |
|
Use Case |
System setup, calibration, and troubleshooting |
Description

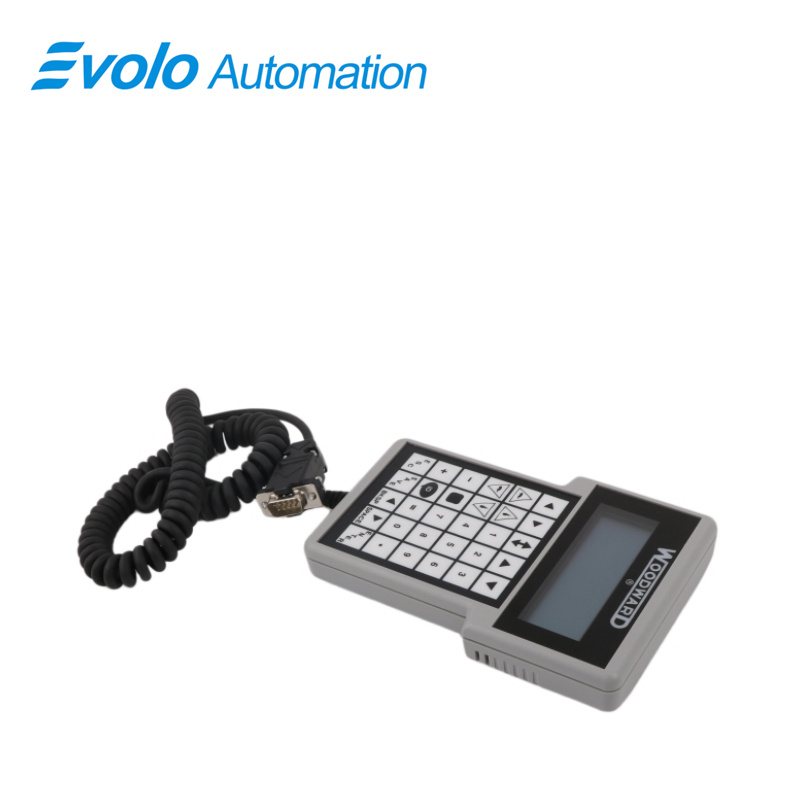

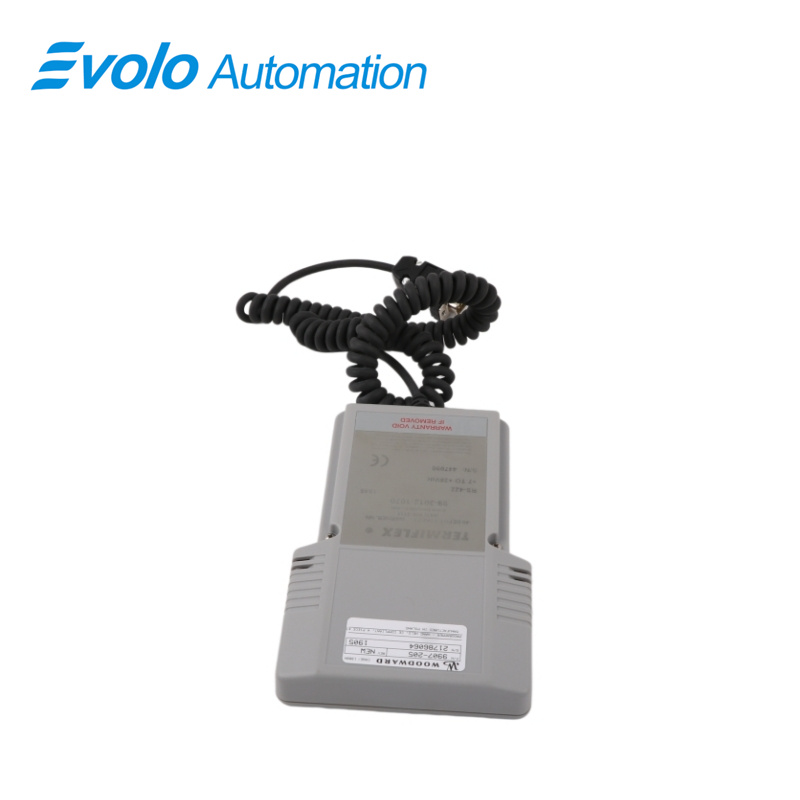

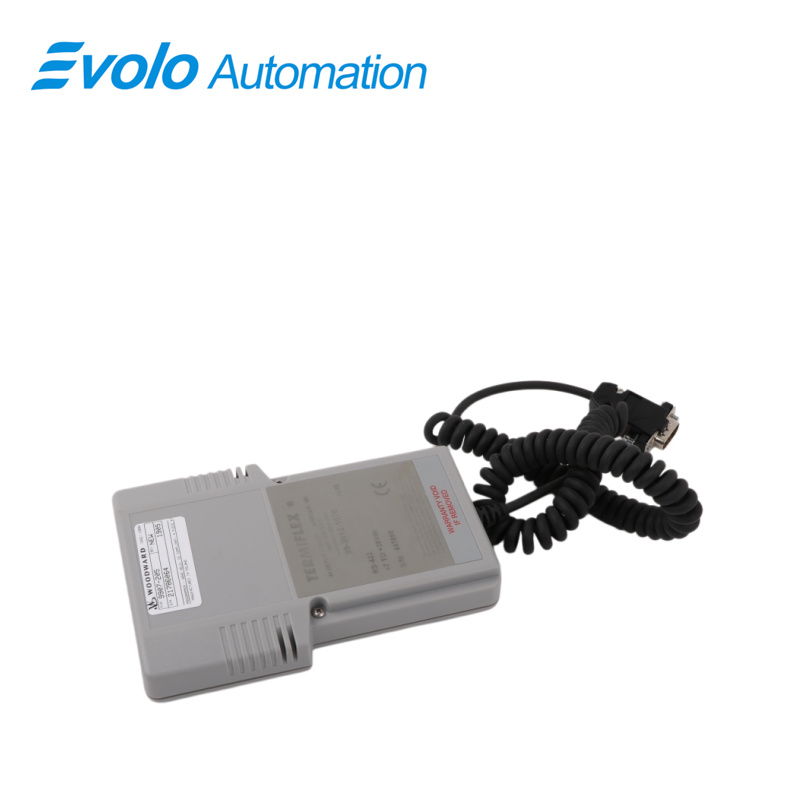

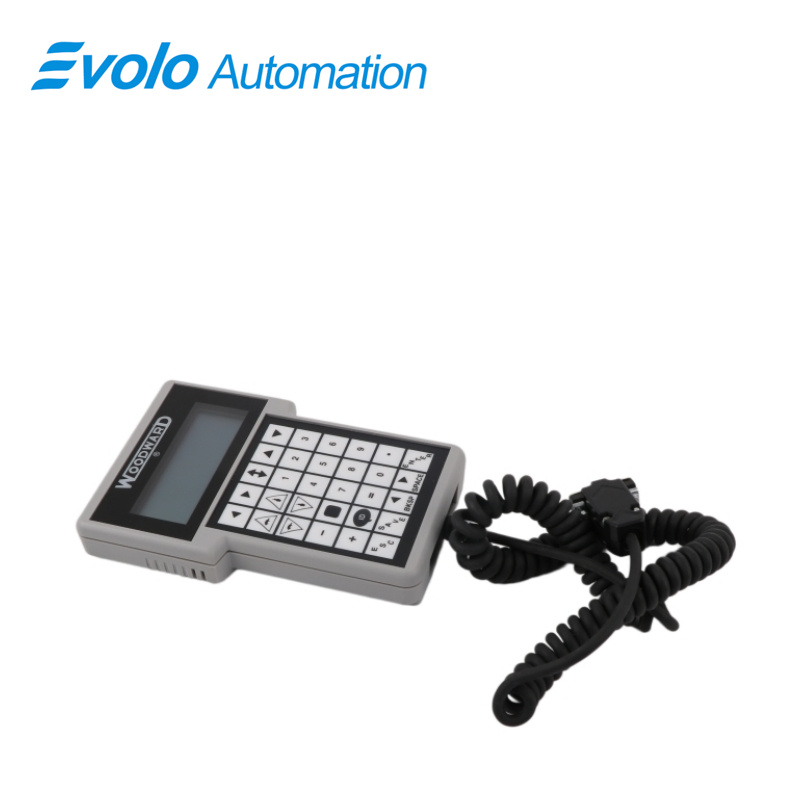

The 9907-205 is a hand held programmer, part of Woodward’s MSLC product family used in multi-generator and utility-interactive power systems. It is constructed as a portable, hand-held interface device intended for direct connection to MSLC control modules and used for adjusting and monitoring the 721 control during setup and maintenance.
Applications
Power Plants: Adjust MSLC/DSLC generator synchronization and load control parameters.
Diesel Power Plants: Tune and diagnose parallel diesel generator governor systems.
Thermal Power Plants: Configure steam turbine speed and power factor control points.
Petrochemical Plants: Set and monitor gas engine actuator operation for compressors.
Shipbuilding Industry: Commission and troubleshoot marine propulsion and emergency control systems.
Functions
Synchronization
Utility load sensing
Control capabilities over import and export load levels
Power factoring
Master process control
Operational Benefits and Diagnostics
Designed as the MSLC Hand Held Programmer module, it allows operators to:
Monitor standard generator parameters.
Run diagnostics on contact switches and analog input/output ports.
Facilitates reduced installation and troubleshooting time by allowing users to set up control functionality and specifications before powering up the system.
Troubleshooting and Calibration
FAQ
Q: What type of interface is 9907-205?
A: The interface type is a portable handheld programmer.
Q: What communication interface does 9907-205 use?
A: It uses an RS-422 communication interface.
Q: What is the input voltage range of 9907-205?
A: The input voltage range is 7–28 VDC.
Q: What level of electrostatic discharge (ESD) can 9907-205 withstand?
A: It can withstand 15 kV electrostatic discharge.
Q: What is the maximum branch length of 9907-205 at 0 to +70°C?
A: The maximum branch length is 600 mm.
