Overview
Place of Origin: |
USA |
Brand Name: |
Woodward |
Model Number: |
9907-029 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model |
9907-029 |
|
Product Type |
SPM-A Synchronizer |
|
Dimensions |
31.5 × 21 × 4.7 cm |
|
Weight |
1.76 kg |
|
Frequency Range |
50–60 Hz |
|
Phase Angle Limit |
±10° |
|
Voltage Matching |
1% |
|
Input Voltage |
115–230 VAC |
|
Input Voltage Tolerance |
±10% |
|
Power Consumption |
5W (operational) |
|
Output Type |
High impedance (2301 load sharing); Low impedance (2301A/EPG/2500 load sharing) |
|
Terminal Type |
Screw Clamp Terminals |
|
Voltage Category |
High Voltage |
Description

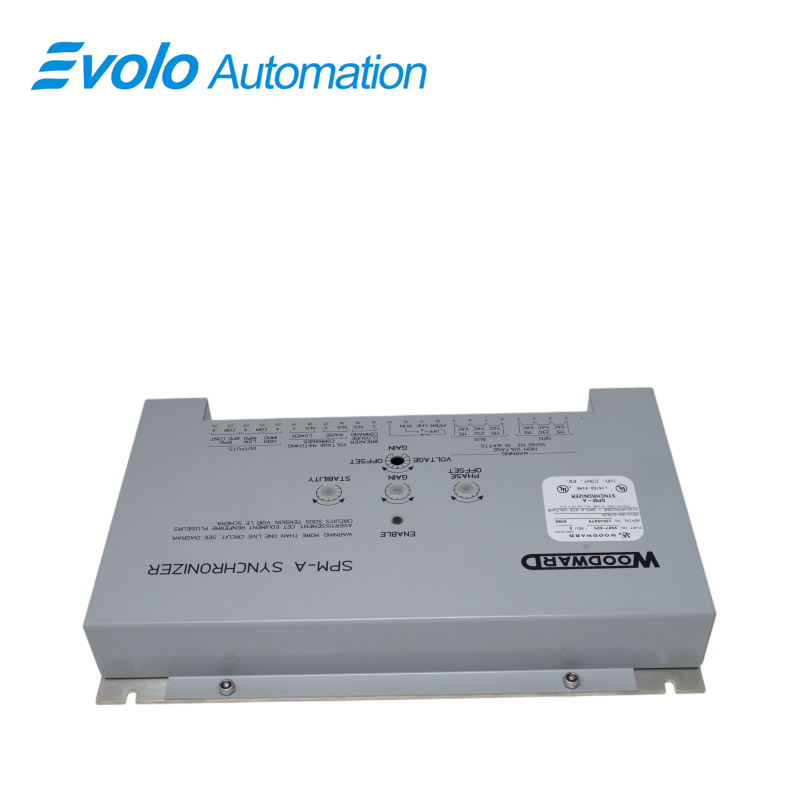

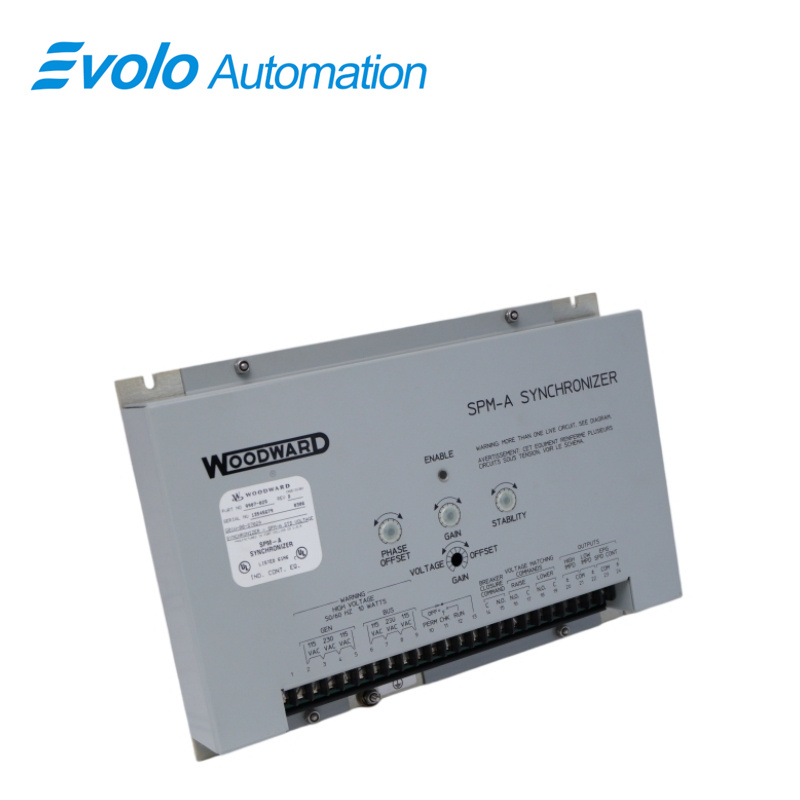

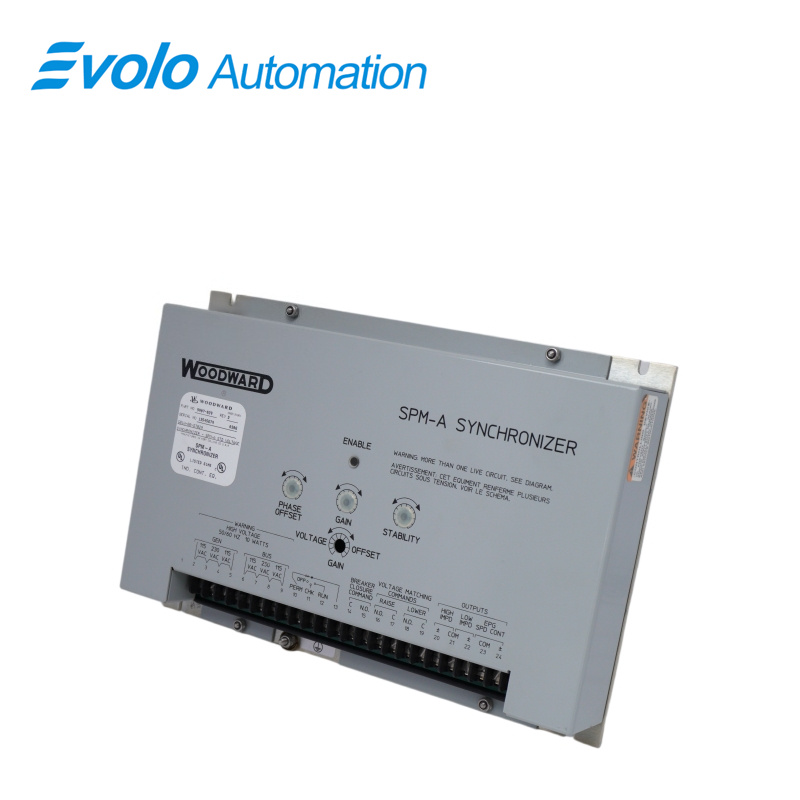

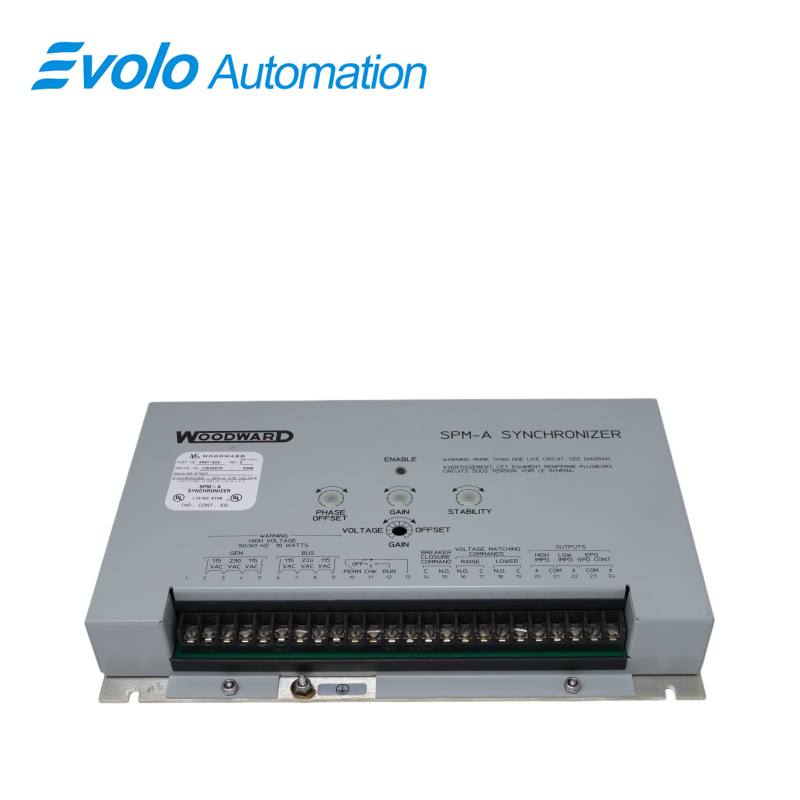

The Woodward 9907-029 is a SPM-A Synchronizer used to automatically match generator frequency and phase before paralleling with other power systems. It is commonly used with Woodward 2301, 2301A, and Electrically Powered Governor (EPG) load sharing control systems to ensure stable and precise grid connection.
Applications
Power Plants: Control generator voltage, frequency, and phase for fast grid synchronization.
Diesel Power Plants: Manage multi-unit speed bias and parallel operation.
Thermal Power Plants: Control turbine speed and phase to reduce breaker closing impact.
Petrochemical Plants: Coordinate gas turbine generator networks for compressors.
Substations: Control synchronization for multi-source power switching.
Troubleshooting
Voltage Sync Timeout: Verify that the incoming high voltage is within the 115 to 230 V AC range and check if the 1 percent voltage matching threshold requires manual governor bias adjustments.
Phase Breaker Not Closing: Inspect the phase angle limit loop; ensure the generator frequency is close enough to the bus frequency to let the module pull the phase angle within plus or minus 10 degrees.
FAQ
Q: What is the input voltage of 9907-029?
A: The allowable input voltage range is 115–230 VAC.
Q: What is the phase angle limit of 9907-029?
A: The phase angle limit range is ±10°.
Q: What is the voltage matching accuracy of 9907-029?
A: The voltage matching accuracy can reach 1%.
Q: What is the operating power consumption of 9907-029?
A: The rated operating power consumption is 5 W.
Q: What type of terminal connection is used in 9907-029?
A: It uses screw clamp terminals.
