Overview
Place of Origin: |
USA |
Brand Name: |
Woodward |
Model Number: |
9905-068 2301A |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model |
9905-068 2301A |
|
Product Name |
Load Sharing and Speed Control Module |
|
Channels |
2 channels |
|
External Power Supply |
20–40 VDC |
|
Power Consumption |
< 15 W |
|
Frequency Input Range |
0.1 Hz–10 kHz |
|
Signal Conditioning |
Integrated signal conditioning & filtering |
|
Channel LED Indicators |
Yes (per channel) |
|
MR Mode Input |
±5 mV to ±50 Vpp (auto-adaptive amplitude) |
|
Digital Mode Input |
0–30 VDC (TTL / CMOS / NPN / PNP compatible) |
|
Minimum Pulse Width |
10 µs |
|
Current Transformer Input |
0–5 A RMS (max 7 A RMS) |
|
Operating Temperature |
-40°C to +85°C |
|
Signal Status Indicator |
Green LED per channel (signal detected) |
|
Dimensions |
38.7 × 18.1 × 6.35 cm |
|
Weight |
1.8 kg |
|
Series |
2301A |
Description

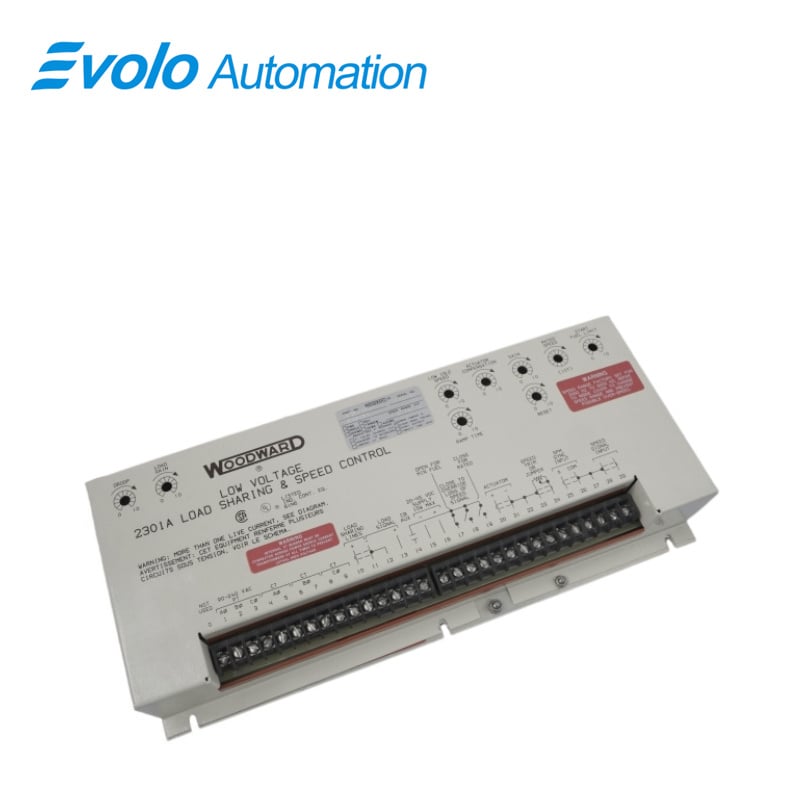

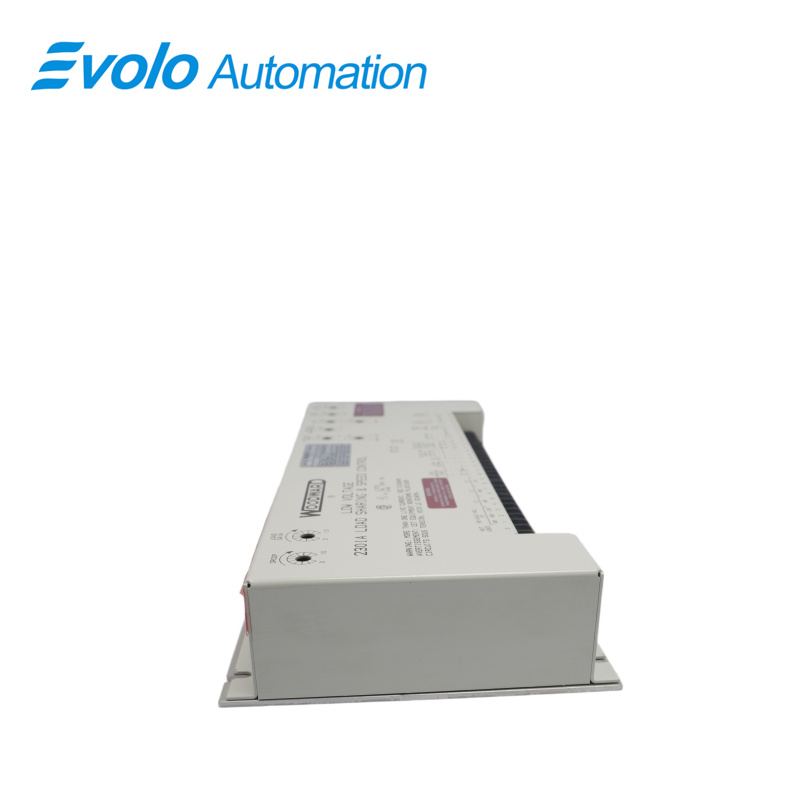

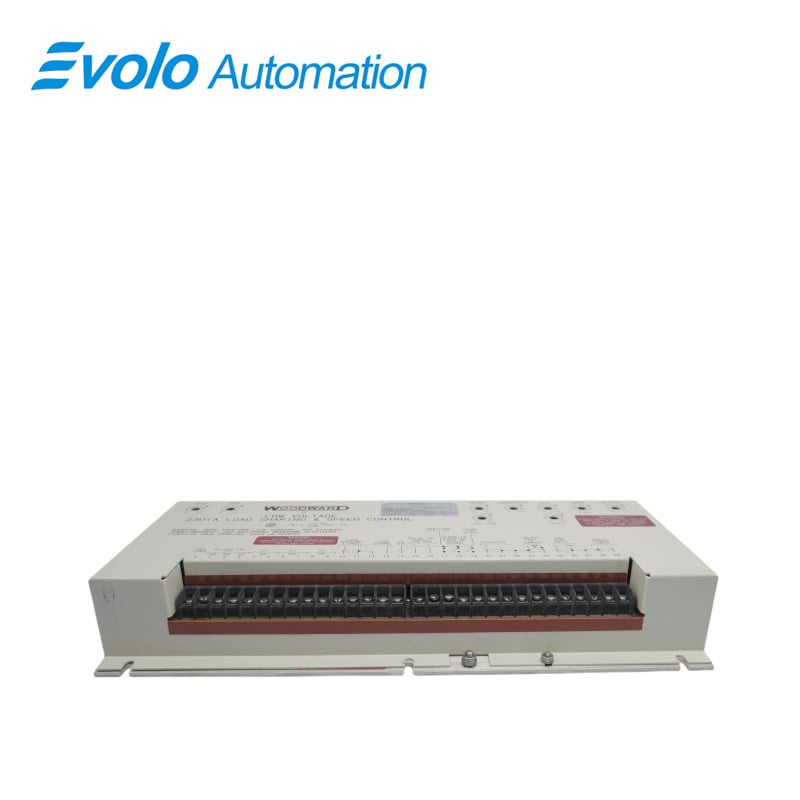

The Woodward 9905-068 2301A is a Load Sharing and Speed Control Module in the 2301A series of controllers. This module is mainly used for generator sets driven by diesel engines, gasoline engines, steam turbines, or gas turbines, and is responsible for controlling the speed of the prime mover and realizing isochronous load distribution when multiple units are connected to the grid.
Applications
Diesel Generator Plants: Enables stable power sharing in multi-generator systems.
Biomass Gas Turbine Plants: Monitors turbine speed across full operating range.
Marine Shipbuilding Plants: Ensures reliable control in harsh marine environments.
Rail Transit Equipment Plants: Supports multiple speed sensors for locomotive systems.
Features and Capabilities
1.Load Sharing and Speed Control
Precise Control: Ensures accurate load sharing among multiple generators
Versatility: Suitable for various types of engines and turbines, including diesel, gasoline, steam, and gas.
2.Installation and Operation:
User Manual: Contains detailed instructions for safe installation and operation.
safety Protocols: Emphasizes adherence to safety guidelines to avoid accidents and equipment damage.
Special Note
Check current transformer phase by measuring the load signal between terminals -11 and +13 with the prime mover stopped, in isochronous mode, and the generator near full load. If correction is needed, test all three CTs and record the required voltage data.
If the engine does not reach the rated no-load speed, check the control and adjust the actuator compensation, gain, and reset potentiometers.
FAQ
Q: How many channels does 9905-068 2301A have?
A: The device has 2 channels.
Q: What is the allowable external power supply input for 9905-068 2301A?
A: The external power supply range is 20–40 VDC.
Q: What is the frequency input range of 9905-068 2301A?
A: Its frequency input range is 0.1 Hz–10 kHz.
Q: What is the operating power consumption of 9905-068 2301A?
A: Its full-load operating power consumption is less than 15 W.
Q: What is the allowable operating temperature range of 9905-068 2301A?
A: Its operating ambient temperature range is -40°C to +85°C.
