Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
8C-TAOXA1 51307135-175 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Part Number |
8C-TAOXA1 51307135-175 |
|
Part Type |
Analog Output Module |
|
Dimensions |
14.5 x 12 x 6.5 cm |
|
Weight |
0.22 kg |
|
Redundancy |
Non-redundant |
|
Coating |
Yes |
|
Output Type |
4–20 mA |
|
Output Channels |
16 |
|
Output Ripple |
<100 mV peak-to-peak (at power line frequency across 250 Ω load) |
|
Output Temperature Drift |
0.005% of Full Scale / °C |
|
Output Current Linearity |
±0.05% of Full Scale nominal |
|
Load Resistance |
50–800 Ω (24 V supply: 22–28 VDC) |
|
Voltage Rating |
24 V DC |
|
Module Current Rating |
205 mA |
|
Resolution |
±0.05% of Full Scale |
|
Calibrated Accuracy |
±0.2% of Full Scale (25°C, including linearity) |
|
Output Current Range |
2.9 mA to 21.1 mA |
|
Maximum Output Compliant Voltage |
16 V (24 V supply: 22–28 VDC) |
|
Maximum Open Circuit Voltage |
22 V |
|
Response Time |
<80 ms (settles within 1% of final value) |
|
Switchover Gap (0 mA) |
10 ms maximum (redundancy only) |
|
Module Removal/Insertion Under Power |
Supported |
Description

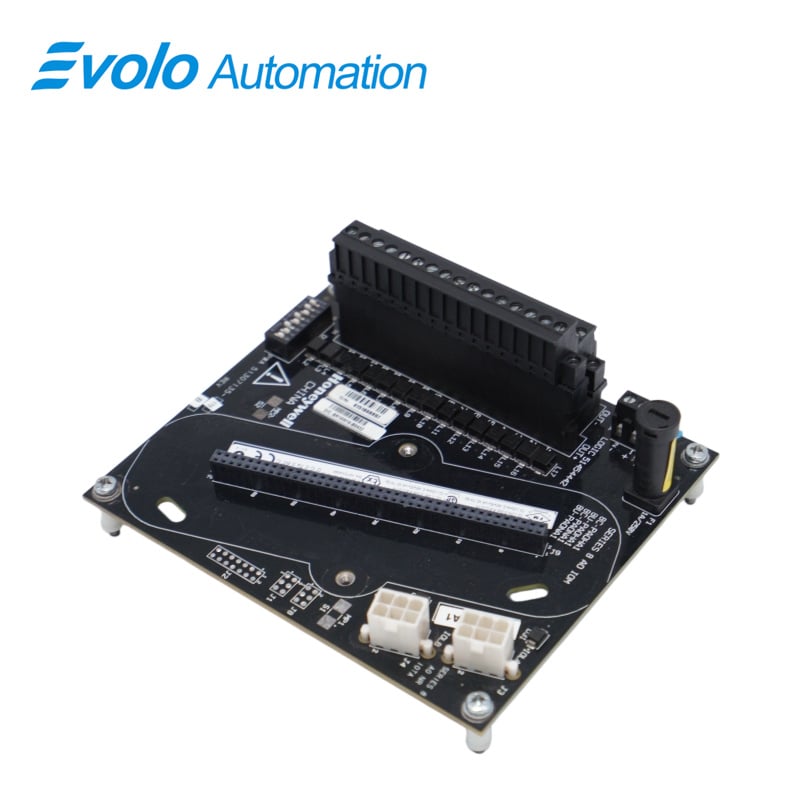

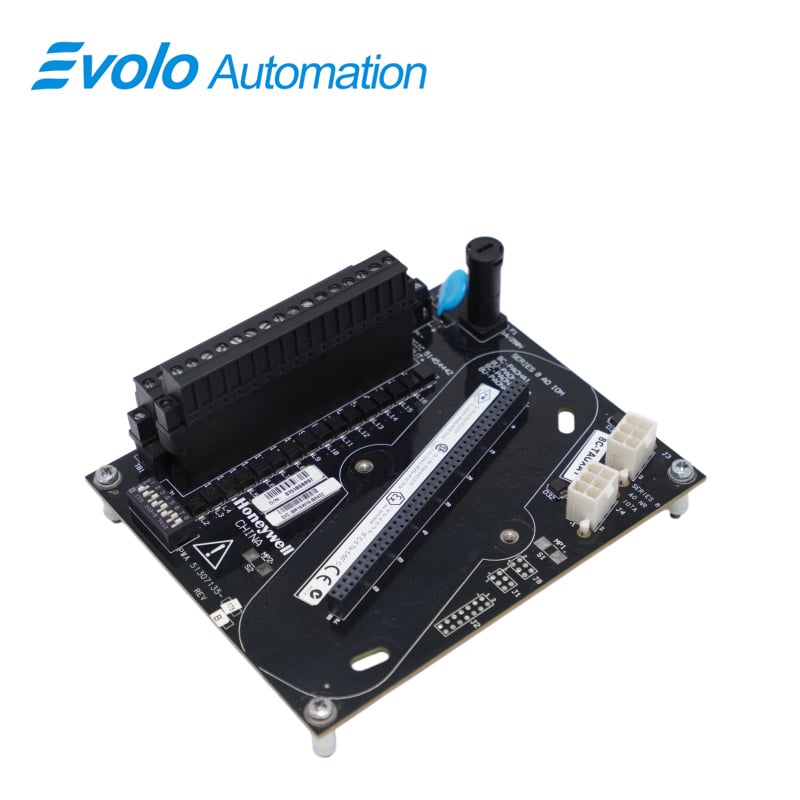

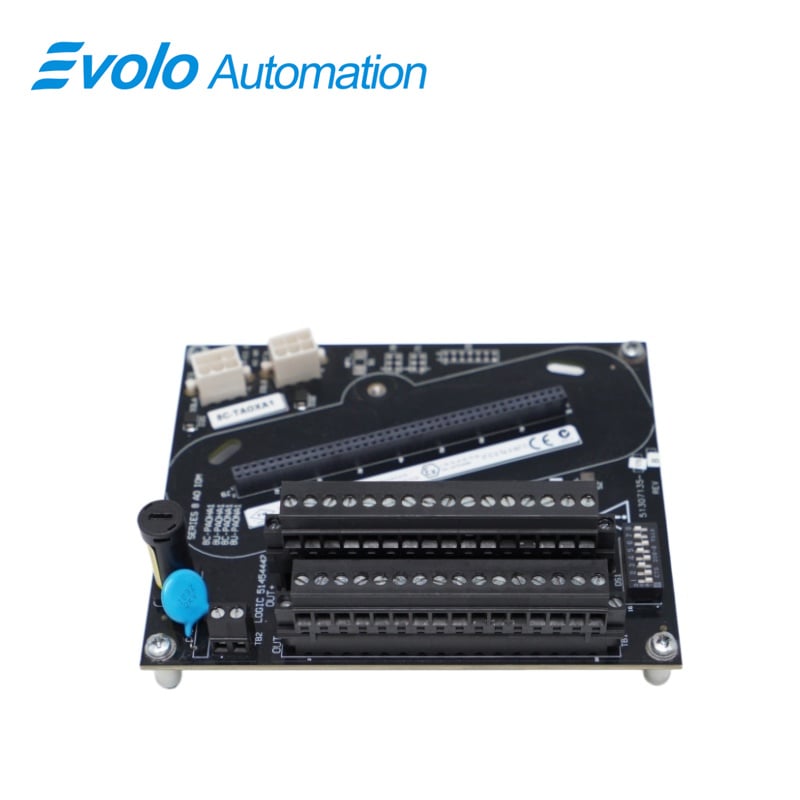

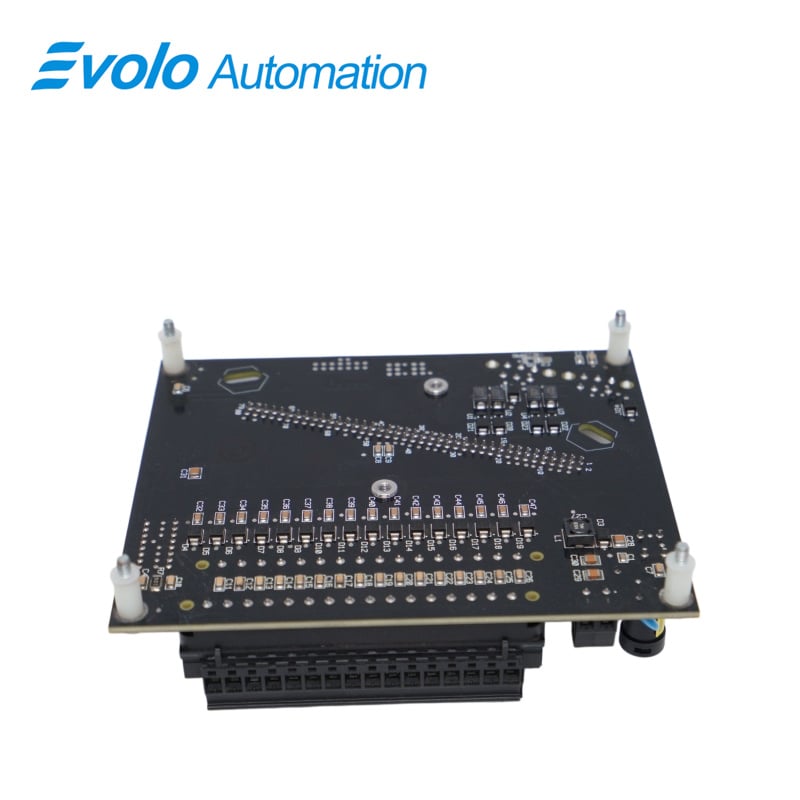

The 8C-TAOXA1 51307135-175 is a non-redundant Analog Output Module. This vertically mounted module provides the underlying hardware interface, power distribution path, and network communication signals for analog output modules plugged into the base.
Applications
Oil refinery plant: controls furnace fuel valves with stable analog output in harsh temperature environments.
Fine chemical plant: coated protection resists corrosive gases, ensuring reliable signal transmission in chemical areas.
Thermal power plant: high-density channel design supports multiple turbine auxiliary actuators while saving cabinet space.
Pulp and paper mill: maintains stable tension control in humid and chemical splash environments.
Large fertilizer plant: fast signal response supports high-speed closed-loop control in synthesis process systems.
Notable Features
Extensive self-diagnostics
Optional redundancy
HART-capable, multivariable devices
Safe-state (FAILOPT) behaviors configurable on a per channel basis
FAQ
Q: What channels does 8C-TAOXA1 51307135-175 have and does it support redundancy?
A: 16 channels, non-redundant, coated.
Q: What are the output specification and ambient accuracy of 8C-TAOXA1 51307135-175?
A: Supports 4–20 mA (actual range 2.9~21.1 mA), accuracy ±0.2% F.S.
Q: What are the operating voltage and module current of 8C-TAOXA1 51307135-175?
A: Operating voltage 24 V DC, rated current 205 mA.
Q: What are the load resistance and maximum open-circuit voltage of 8C-TAOXA1 51307135-175?
A: Load resistance 50–800 Ω, maximum open-circuit voltage 22 V.
Q: What is the signal response time of 8C-TAOXA1 51307135-175?
A: Less than 80 ms (<80 ms).
