Overview
Place of Origin: |
USA |
Brand Name: |
Woodward |
Model Number: |
5466-352 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Model |
5466-352 |
|
Type |
Netcon CPU-040 Module |
|
Dimensions |
2.5 × 24.5 × 26.1 cm |
|
Weight |
0.88 kg |
|
Supply Voltage |
10–32 VDC |
|
Analog Inputs |
4 channels (12-bit resolution) |
|
Analog Outputs |
2 channels (12-bit resolution) |
|
Digital I/O |
8 inputs / 8 outputs |
|
Operating Temperature |
-40°C to +85°C |
|
Communication Protocols |
Modbus RTU, CANopen |
|
System Level |
2.08 Control System |
|
Mounting Type |
Panel mount |
|
Reset Function |
Manual reset |
|
Indicators |
LED indication |
|
Special Feature |
Fiber optic coder |
Description

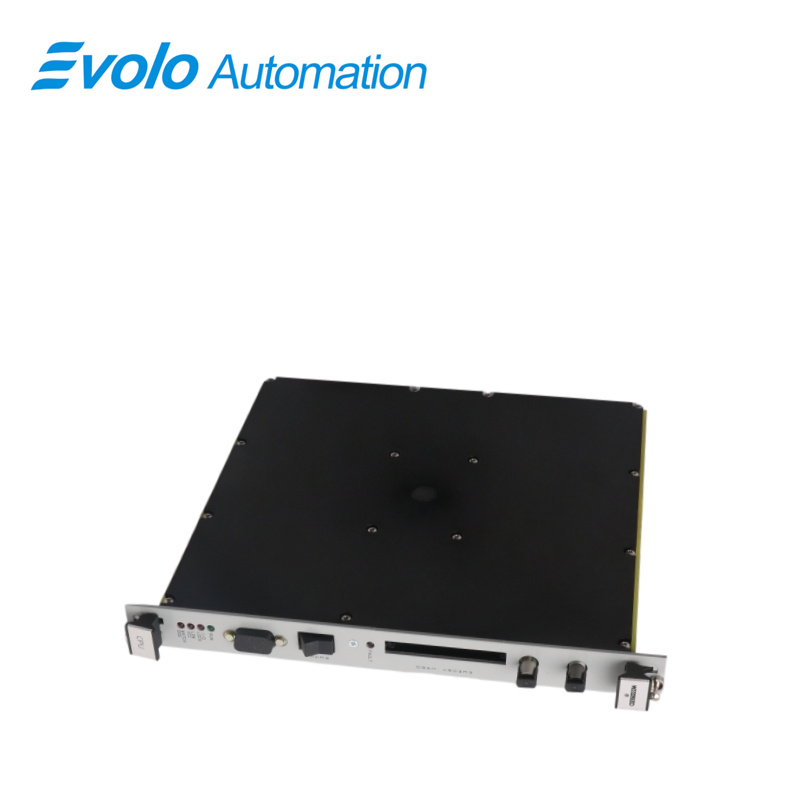

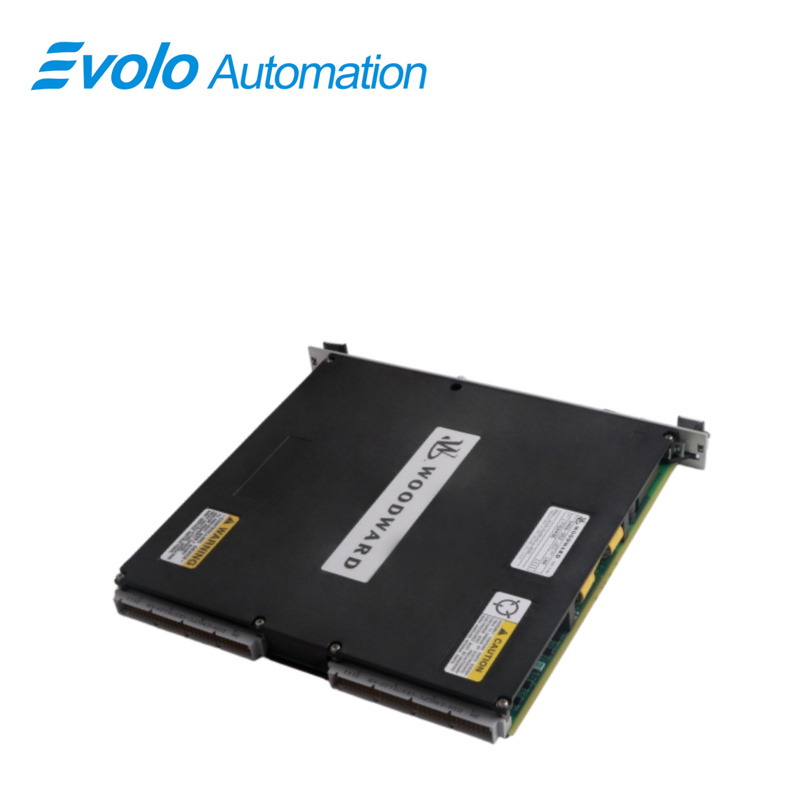

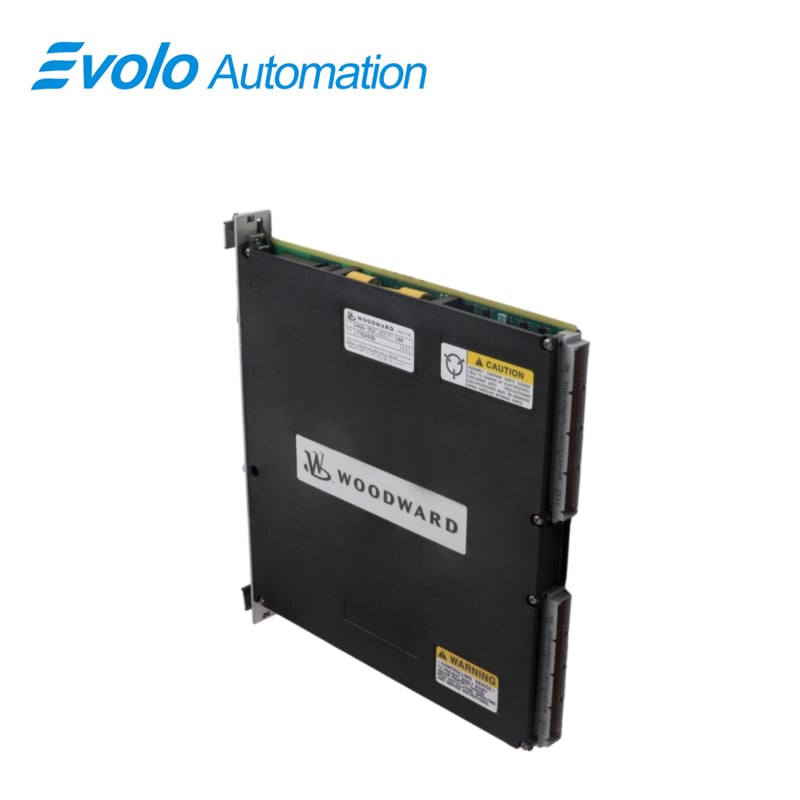

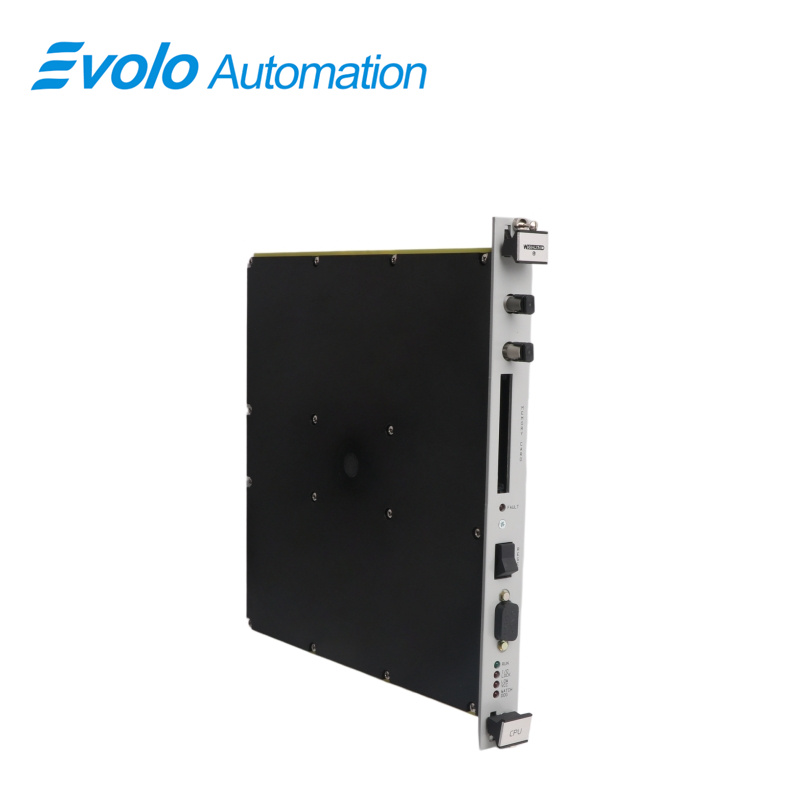

The Woodward 5466-352 is a Netcon CPU-040 module that functions as the central processing unit(CPU) within the Micronet system.It is responsible for managing critical functions and communication processes within the system, ensuring reliable performance for industrial applications.
Applications
Thermal power plant: Core controller for turbine and boiler auxiliary systems, managing fuel and speed regulation via analog control channels.
Heavy chemical plant: Installed in distributed control cabinets, supporting wide DC supply for stable operation during power fluctuations.
Substation / power distribution: Used in local transformer and breaker panels, with strong EMI resistance via fiber-based encoder interface.
Water treatment plant: Applied in pumping and dosing stations, compact integrated I/O enables standalone closed-loop control without extra modules.
Features
Adaptable: Supports a variety of industrial control needs with a comprehensive feature set, making it suitable for diverse applications.
Communicative: Integrates seamlessly into existing systems thanks to multiple communication protocols, facilitating easy connection and data exchange.
Flexible: Offers a range of analog and digital I/O options for versatile signal processing, allowing for custom configurations.
Programmable: Enables custom programming for specific application needs, enhancing functionality and user control.
FAQ
Q: What supply voltage range does the 5466-352 support?
A: Supply voltage range is 10–32 VDC.
Q: How many digital I/O points does the 5466-352 include?
A: Includes 8 digital input points and 8 digital output points.
Q: How many analog input channels and what resolution does the 5466-352 provide?
A: Includes 4 analog input channels with 12-bit resolution.
Q: What communication protocols does the 5466-352 support?
A: Supports Modbus RTU and CANopen communication protocols.
Q: What special functional component is included in the 5466-352?
A: Equipped with a fiber optic coder.
