5466-258 Discrete I/O Module

Overview

Place of Origin:	USA
Brand Name:	Woodward
Model Number:	5466-258
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Functional Description

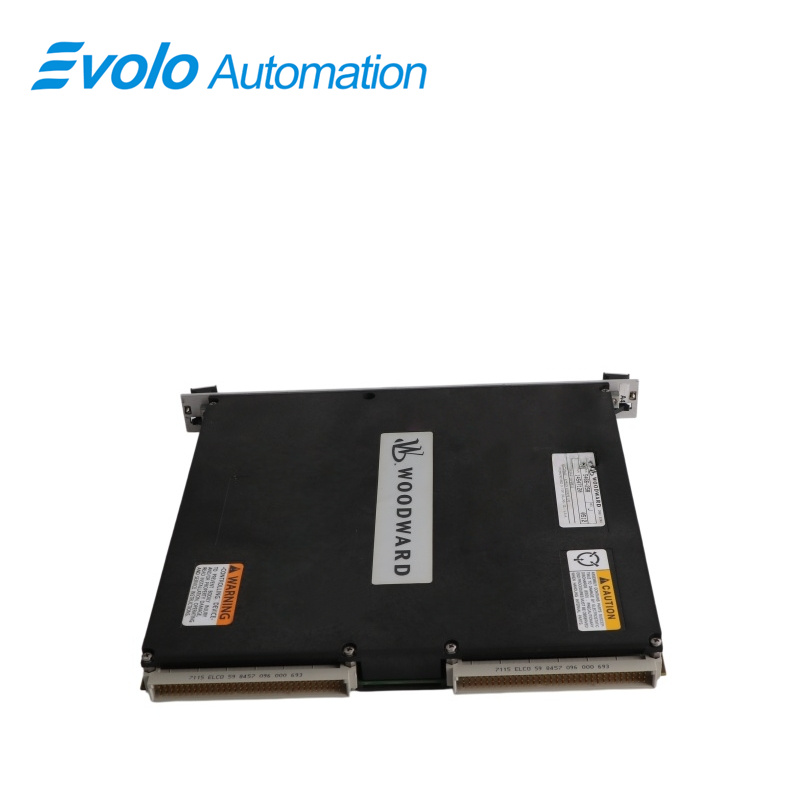

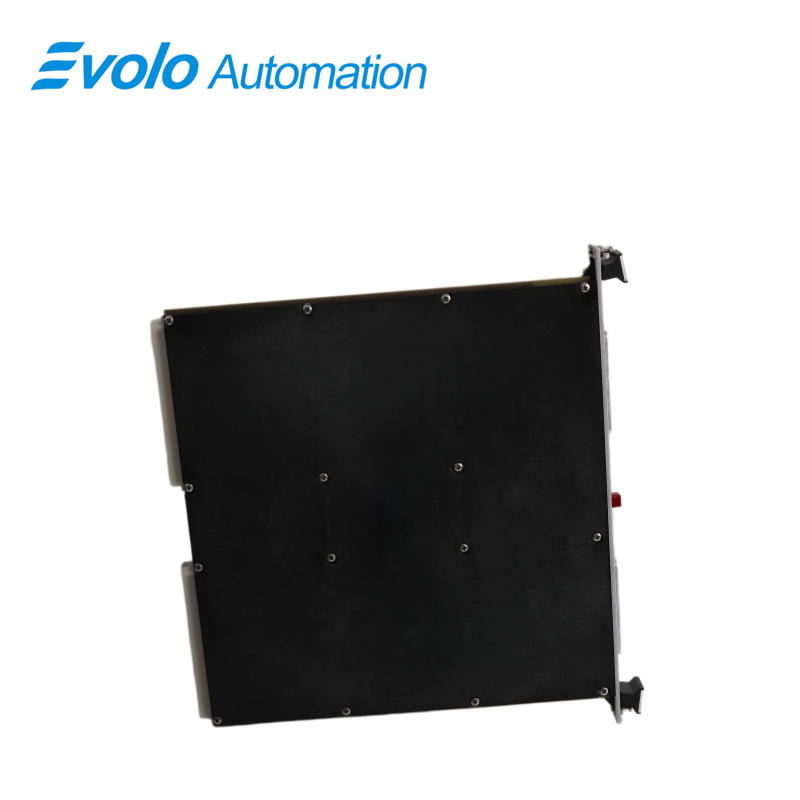

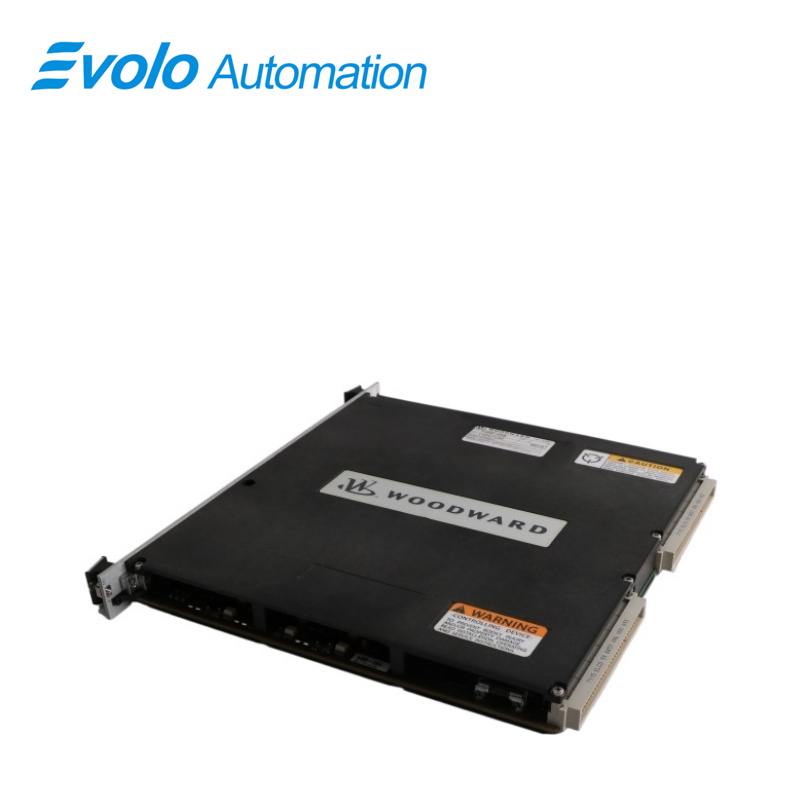

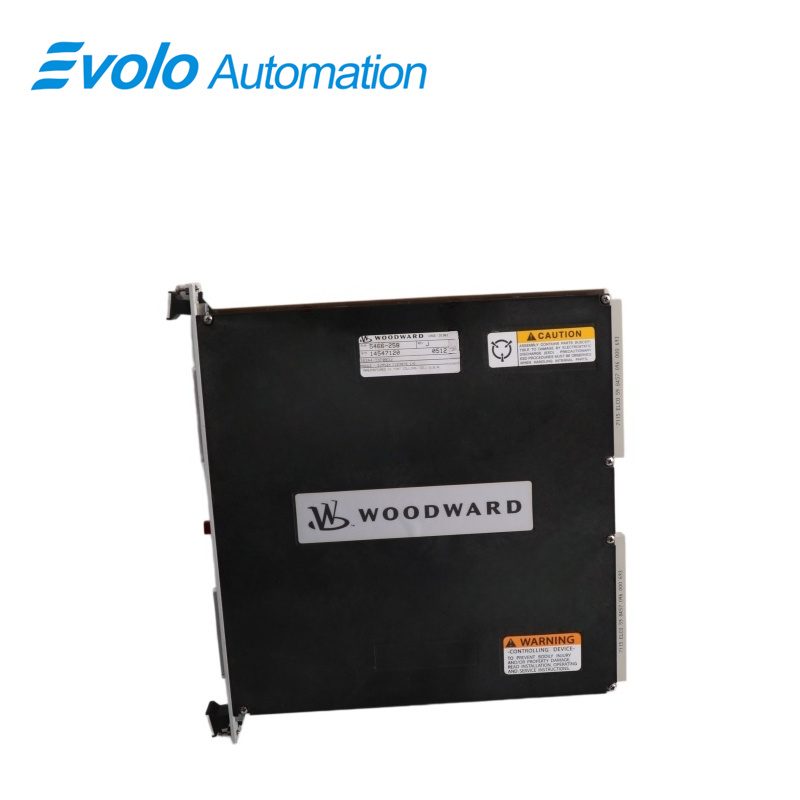

5466-258 is a Discrete I/O Module developed by Woodward. The modules are inserted into card guides in the control's chassis and connected to the motherboard. Two screws, one at the top and one at the bottom of the front panel, hold the modules in place. There are also two handles at the top and bottom of the module that when toggled (pushed outward), move the modules out just far enough for the boards to disengage the motherboard connectors.

Applications

Thermal power plant: Used in turbine control for coordinated valve and interlock operation in MicroNet systems.

Heavy chemical plant: Installed in compressor control racks with wide-range DC input for stable operation.

Automotive assembly plant: Used in multi-station control panels with DIN rail mounting for compact wiring.

Water treatment plant: Used in pump and dosing systems for monitoring with low power consumption.

Features

MicroNet Digital Control Series: This series is renowned for its modular design, flexible configuration, and high performance, and is widely used in various industrial control systems.

48 Inputs/24 Outputs: Provides a rich number of I/O points to meet diverse application needs.

Multiple Communication Protocols: Supports multiple communication protocols for easy integration with other devices.

High Reliability: Employs industrial-grade components for high reliability.

Installation

Connect the input module to the network and 24 Vdc power, then mount it on a DIN rail. Inputs may use internal +24 V or an external 24 V supply.

Set node address using rotary switches. Faulty nodes can be replaced online without breaking the network cable.

To replace a node, remove terminal blocks and module from the DIN rail, set the new node address to match, then reinstall and reconnect terminals.

Finally, reset the node via the application program to restore communication and clear the no-message fault.

FAQ

Q: How many input and output channels does the 5466-258 include?
A: Includes 48 input channels and 24 output channels.

Q: What power is required for the 5466-258 to operate at 24 VDC?
A: Required power is 6.5 W.

Q: What mounting method does the 5466-258 use?
A: Uses DIN rail mount.

Q: What chassis systems is the 5466-258 compatible with?
A: Compatible with MicroNet and Vertex-Pro chassis systems.

Q: What is the operating temperature range of the 5466-258?
A: Operating temperature range is 0–55°C.
