Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330101-00-08-05-02-00 |
Minimum Order Quantity: |
1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Unthreaded Length Option : |
0 in |
|
Overall Case Length Option : |
8 in |
|
Total Length Option: |
0.5 meter (1.6 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Dimension: |
1.5x1.2x58cm |
|
Weight: |
0.04kg |
Description

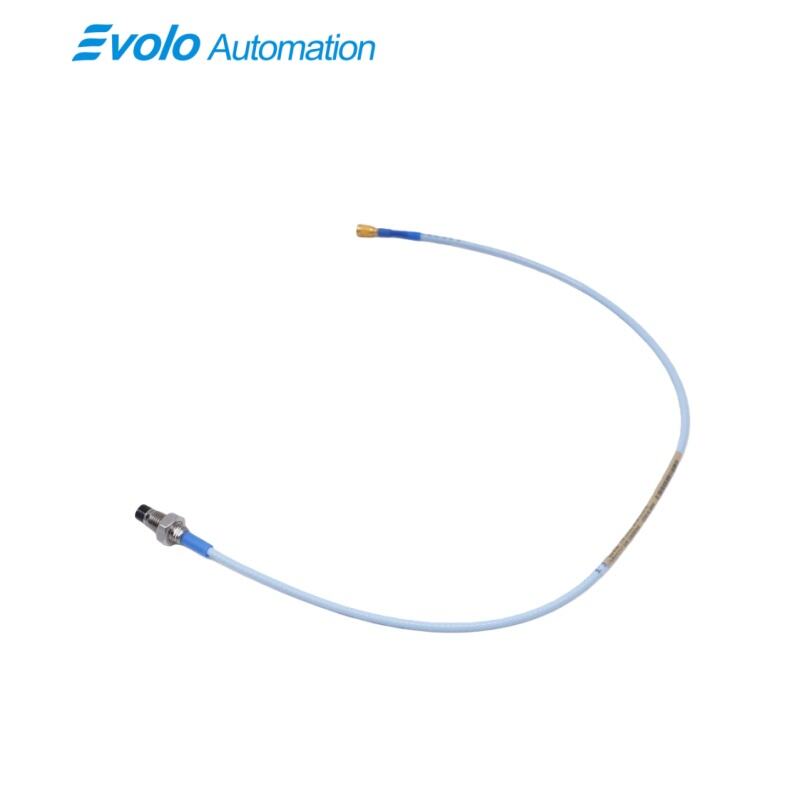

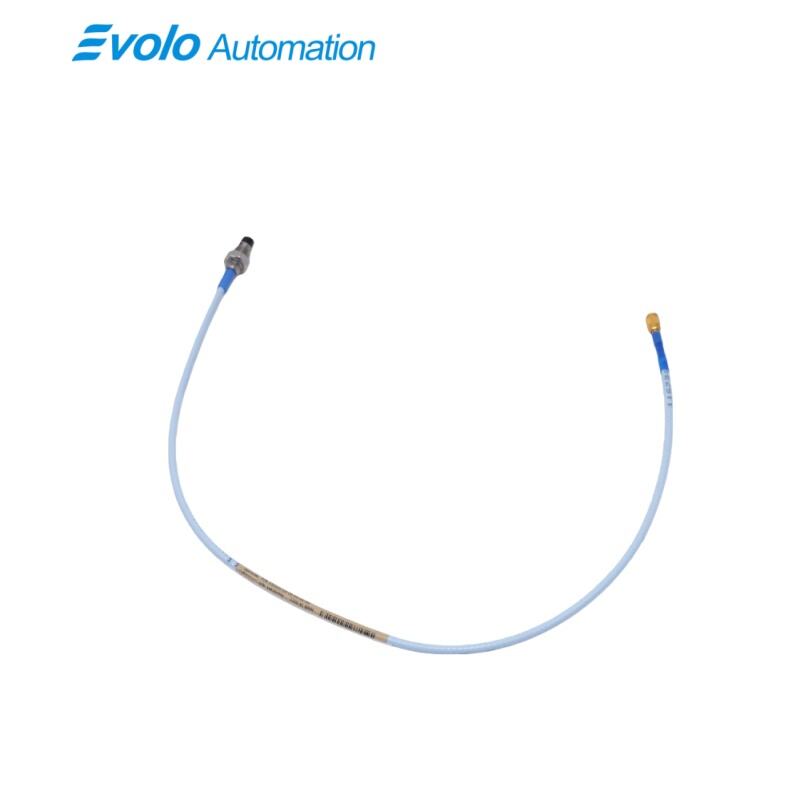

The 330101-00-08-05-02-00 3300 XL 8 mm Proximity Probes are high-precision non-contact eddy current sensors designed for continuous condition monitoring and machinery protection in critical industrial applications. As a core element of proximity transducer systems, the 3300 XL 8 mm Proximity Probes provide an output signal that is directly proportional to the distance between the probe tip and a conductive target surface, enabling accurate measurement of shaft displacement and vibration.
Engineered using a proven eddy current operating principle, the 3300 XL 8 mm Proximity Probes deliver stable, linear, and repeatable measurement performance for both static and dynamic monitoring tasks. These probes are widely applied for radial vibration measurement, axial (thrust) position monitoring, and phase reference signal generation in rotating machinery. With their defined linear measurement characteristics, the 3300 XL 8 mm Proximity Probes support early detection of mechanical issues such as imbalance, misalignment, bearing wear, and thermal growth, helping operators prevent unplanned downtime and equipment damage.
Applications
The 330101-00-08-05-02-00 3300 XL 8 mm Proximity Probes are applied for continuous radial vibration and shaft displacement monitoring in rotating machinery such as turbines, compressors, pumps, and motors, enabling early identification of mechanical faults within critical equipment.
In harsh industrial environments with wide temperature variations, the 3300 XL 8 mm Proximity Probes provide stable and accurate measurement performance, supporting reliable machinery condition monitoring in industries such as oil and gas, power generation, chemical processing, and mining.
The 3300 XL 8 mm Proximity Probes are used in monitoring systems requiring seamless integration with existing proximity transducer components, allowing straightforward installation with standard extension cables and secure ClickLoc connectors in both new and retrofit applications.
Specifications
|
Operating Temperature Range: |
-42°C to +180°C (-62°F to+351°F) |
|
Linear Range: |
5 mm |
|
Output Resistance: |
50 Ω |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage. |
|
Power: |
Requires -17.5 Vdc to -26 Vdc |
|
Probe Tip Material: |
Polyphenylene sulfide (PPS) |
|
Probe Case Material: |
AISI 303 or 304 stainless steel(SST) |
Competitive Advantage
1. High-Precision and Stable Measurement Performance
The 3300 XL 8 mm Proximity Probes deliver linear, low-noise output signals with controlled supply sensitivity, ensuring accurate and repeatable displacement measurements under varying operating conditions.
2. Rugged Construction for Industrial Reliability
With a stainless steel probe case and PPS probe tip, the 3300 XL 8 mm Proximity Probes offer excellent resistance to corrosion, temperature extremes, and mechanical stress, supporting long service life in demanding industrial environments.
3. Certified Safety and System Compatibility
The 3300 XL 8 mm Proximity Probes carry CSA, ATEX, and IECEx approvals for hazardous area use and are fully compatible with standard extension cables and monitoring electronics, simplifying installation and ensuring compliance across global applications.
