Overview
Place of Origin: |
USA |
Brand Name: |
Woodward |
Model Number: |
5462-744 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Model |
5462-744 |
|
Product Type |
I/O Module |
|
Dimensions |
15.2 × 6.4 × 5.1 cm |
|
Weight |
1.361 kg |
|
Input Voltage (Nominal) |
24 VDC (18–36 VDC range) |
|
Input Current |
1.0 A @ nominal voltage |
|
Output Voltage |
24 VDC |
|
Output Current |
3.0 A per module |
|
Operating Temperature |
-20°C to +60°C |
|
Storage Temperature |
-40°C to +85°C |
|
Relative Humidity |
5%–95% RH (non-condensing) |
Description

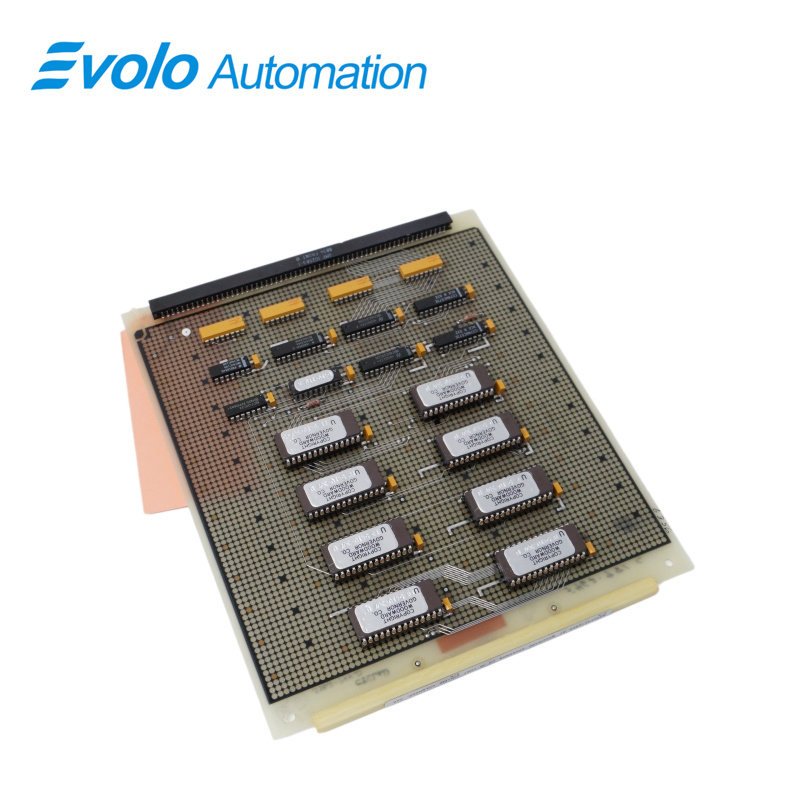

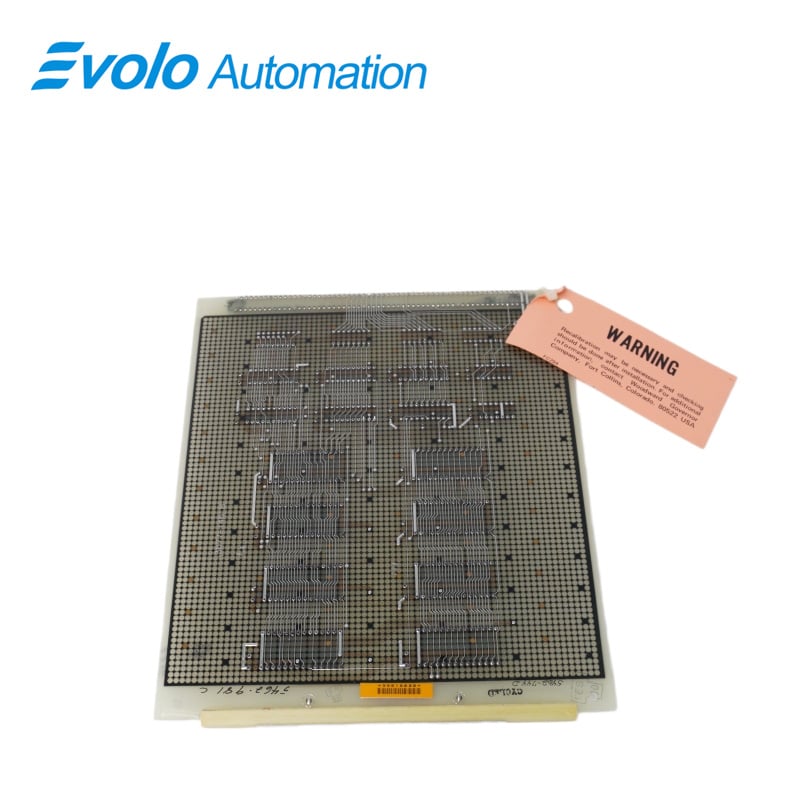

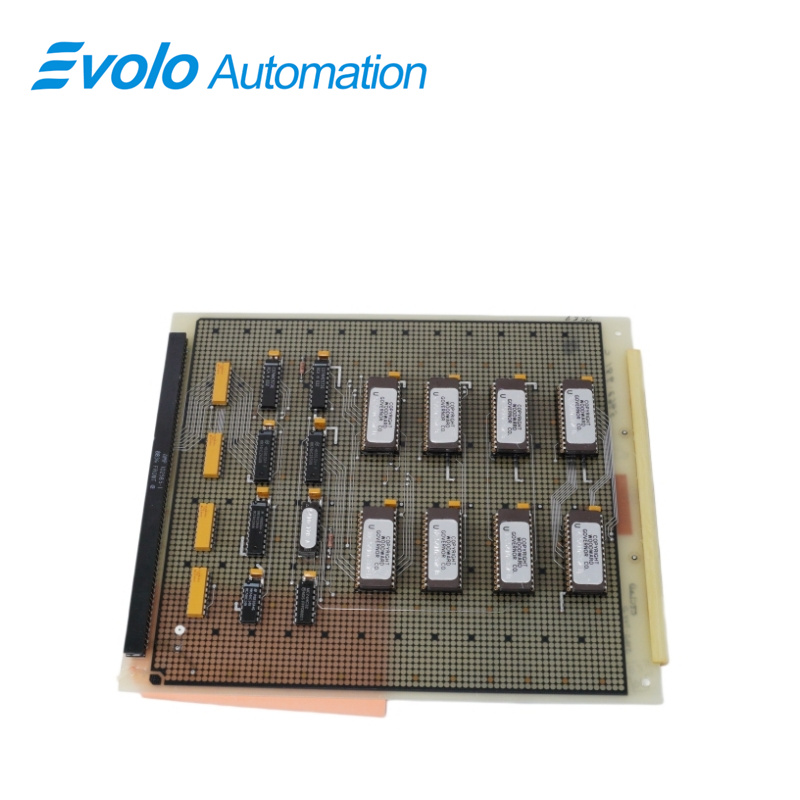

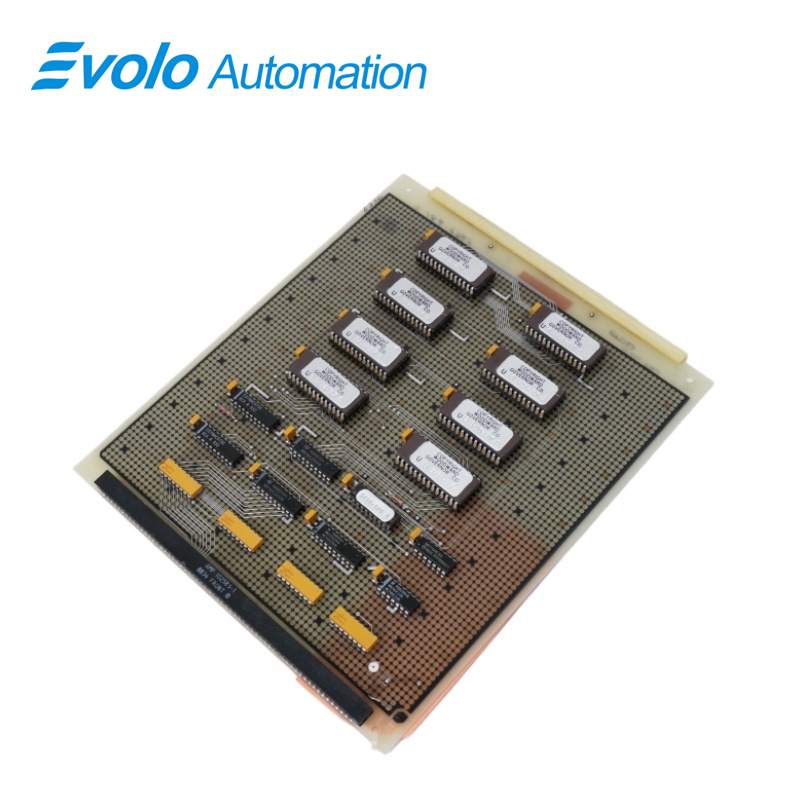

The Woodward 5462-744 is an I/O module. In industrial automation control systems, it is primarily used for data transmission and reception, responsible for receiving on/off status or operating signals from field machines and various devices.
Applications
Automotive assembly plants: Used in robotic arms and conveyor control boxes, providing stable power for sensors, switches, and small solenoid valves.
Fine chemical plants: Used in distributed I/O power nodes, supporting long-distance networks and preventing signal loss from voltage drops.
Photovoltaic cell plants: Used in clean and plating line control cabinets, ensuring stable operation in enclosed, high-heat environments.
Heavy paper mills: Used in rewinding and pulping systems, designed for high-humidity conditions with reliable moisture resistance.
Tobacco packaging plants: Used in high-speed sorting and coding lines, improving power distribution efficiency for compact control systems.
Troubleshooting
Module output voltage is zero (sensor power supply disconnected): First, measure the input voltage of the preceding stage. Although the module supports a wide voltage range, if the power supply is momentarily impacted by a high-power inductive load and drops below 18V DC, the module will activate undervoltage protection and cut off the 24V DC output.
Module surface temperature rises sharply or overheats: Check if the total current of the downstream load exceeds the limit. Each module supports a maximum output current of 3.0 A. If multiple high-power valves or sensors operate simultaneously, causing an overload, load shunting is necessary to prevent internal thermal overload from burning out protection components.
FAQ
Q: What is the nominal input voltage of the 5462-744 in volts DC?
A: The nominal input voltage is 24 VDC (input range: 18–36 VDC).
Q: What is the input current of the 5462-744 at nominal voltage?
A: The input current is 1.0 A.
Q: How much output current does each module of the 5462-744 support?
A: Output current is 3.0 A per module.
Q: What is the operating temperature range of the 5462-744?
A: Operating temperature range is -20°C to +60°C.
Q: What is the allowable humidity range for operation of the 5462-744?
A: Relative humidity range is 5%–95% RH (non-condensing).
