Overview
Place of Origin: |
USA |
Brand Name: |
Woodward |
Model Number: |
5461-644 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Model |
5461-644 |
|
Product Type |
Analog Output Module |
|
Dimensions |
22.6 × 19 × 1.8 cm |
|
Weight |
0.36 kg |
|
Input Voltage Range |
12–48 VDC |
|
Output Range |
0–10 VDC / 4–20 mA |
|
Resolution |
0.1% of full scale |
|
Accuracy |
±0.1% of full scale |
|
Load Capacity |
Up to 250 Ω |
|
Operating Temperature |
-40°C to +85°C |
|
Environmental Rating |
IP20 |
Description

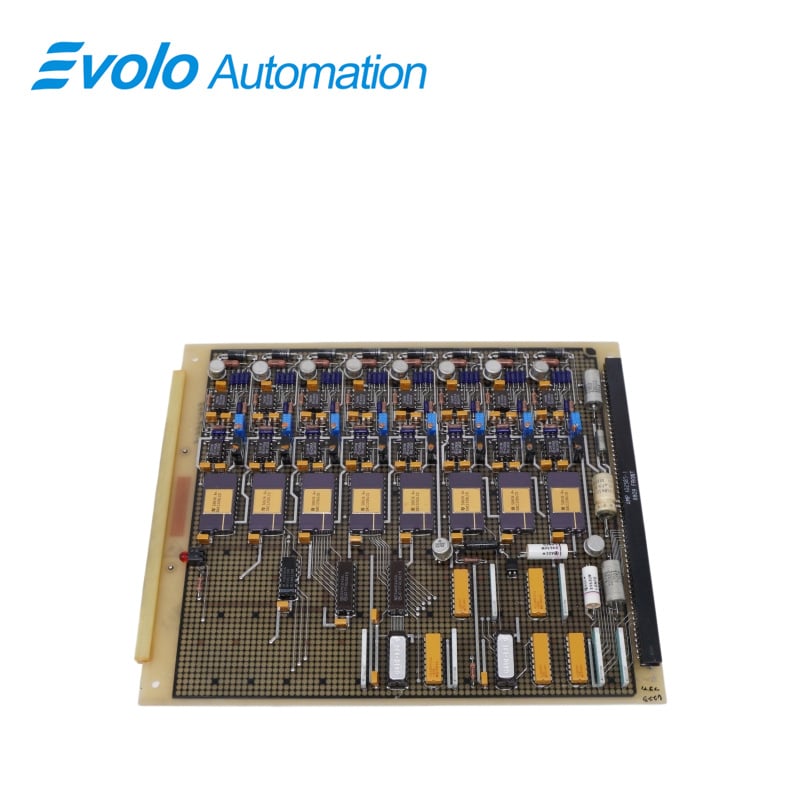

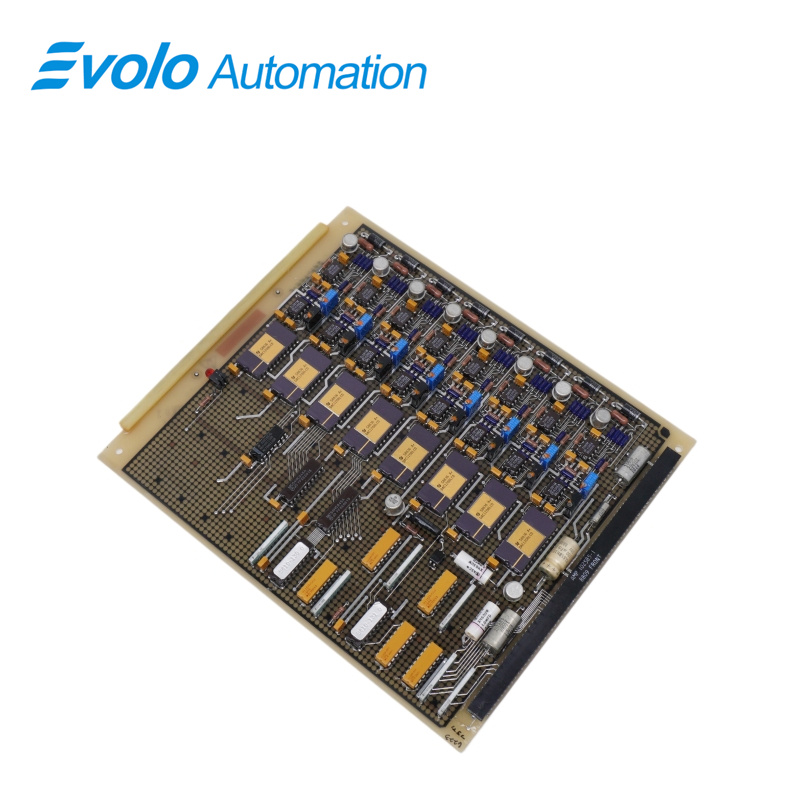

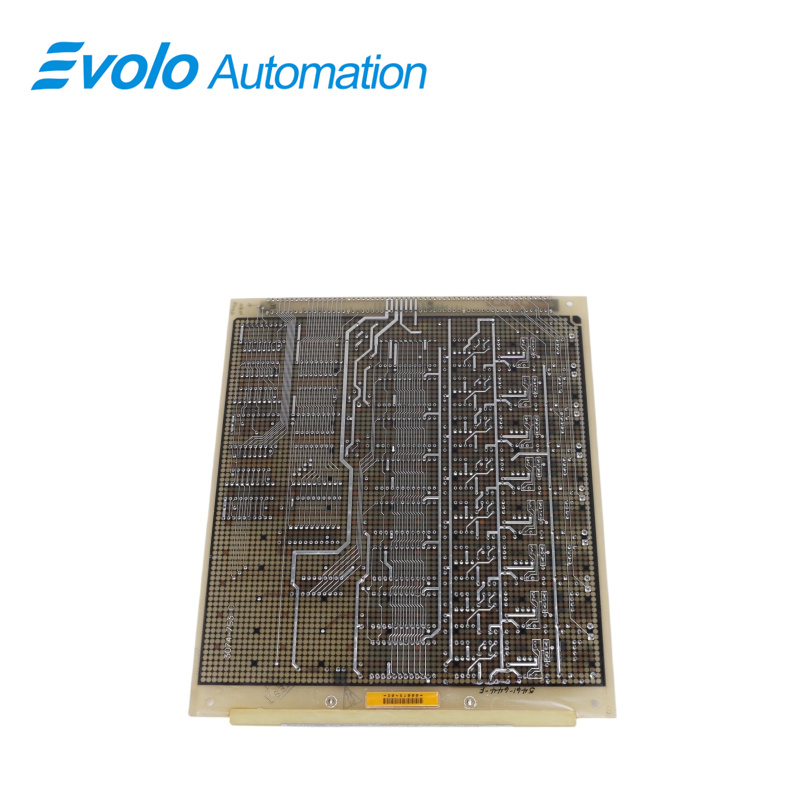

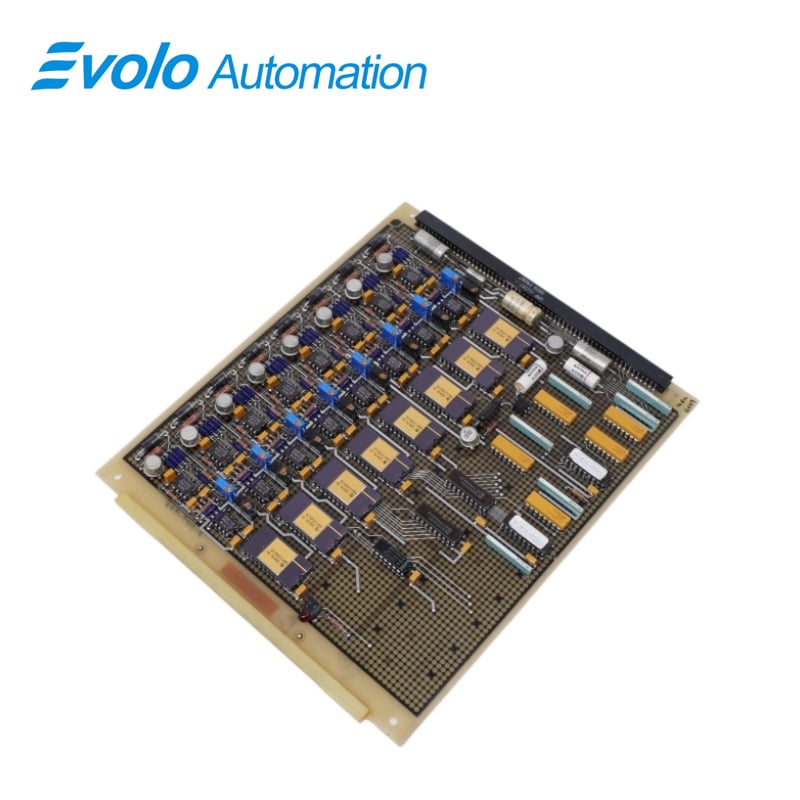

The Woodward 5461-644 is an analog output module. This module is widely used in power generation, turbine control, oil and gas, and heavy industrial process automation. It is often used in conjunction with Woodward's 505 turbine control system, Netcon systems, or other large PLC/DCS architectures.
Applications
Gas Turbine Plants: Provides analog control signals for fuel valves and servo systems under wide temperature conditions.
Petrochemical Hydrogenation Plants: Delivers high-precision control for gas pipeline pressure and flow regulation valves.
Thermal Power Plants: Converts DCS commands into stable output signals for fan and blower drive control.
Water Supply Pumping Plants: Supports long-distance actuator control for stable pipeline pressure and chemical dosing systems.
Product Attributes
DCS ll architecture: It is based on the DCS Il architecture, a modular and scalable control system architecture developed by Woodward that provides high performance and flexibility.
4-20 mA current output: The component is capable of providing a 4-20 mA current output signal, allowing it to control external devices or systems that require a current signal.
High accuracy and resolution: The product features high accuracy and resolution, ensuring precise control of external devices or systems.
Multiple output channels: It features multiple output channels, allowing it to control multiple external devices or systems simultaneously.
FAQ
Q: What input voltage range does 5461-644 support?
A: The input voltage range is 12–48 VDC.
Q: What is the output signal range of 5461-644?
A: The output range is 0–10 VDC or 4–20 mA.
Q: What is the resolution of 5461-644 relative to full scale?
A: The resolution is 0.1% of full scale.
Q: What is the maximum load capacity of 5461-644?
A: The maximum load capacity is up to 250 Ω.
Q: What is the protection rating of 5461-644?
A: The protection rating is IP20.
