Overview
Place of Origin: |
USA |
Brand Name: |
GE |
Model Number: |
531X306LCCBFM1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Product Name |
531X306LCCBFM1 |
|
Type |
Drive Display Card |
|
Dimensions |
28x21.4x3.8 cm |
|
Weight |
0.6 kg |
|
Display Type |
16-digit LED display; 16-slot LED faceplate |
|
Components |
Two black components |
|
Power Consumption |
Max 5 W |
|
Communication Protocol |
Ethernet/IP; Profinet; Modbus TCP |
|
Data Transfer Rate |
Up to 100 Mbps |
Description

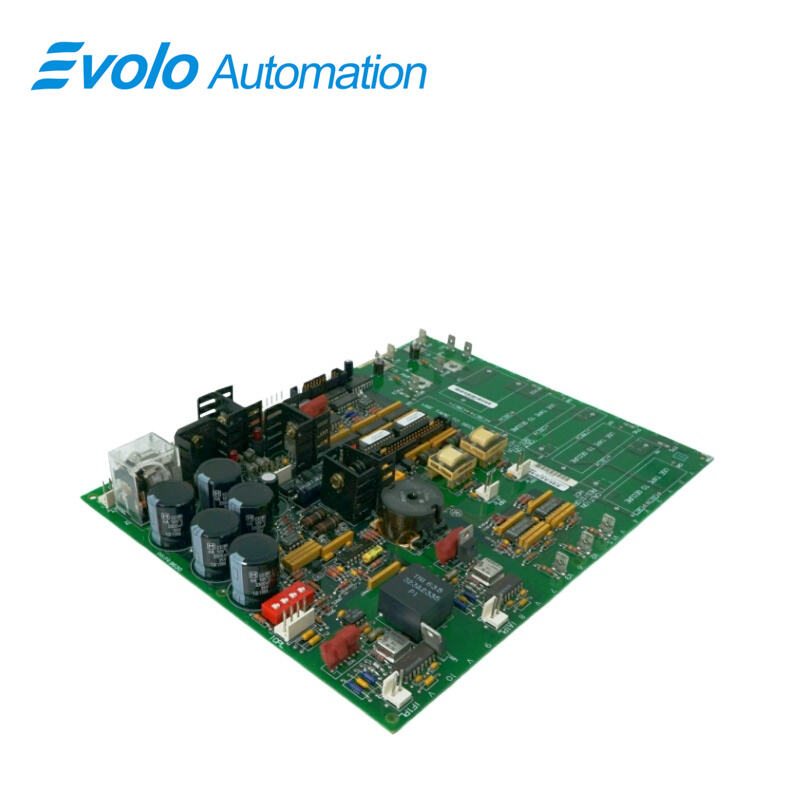

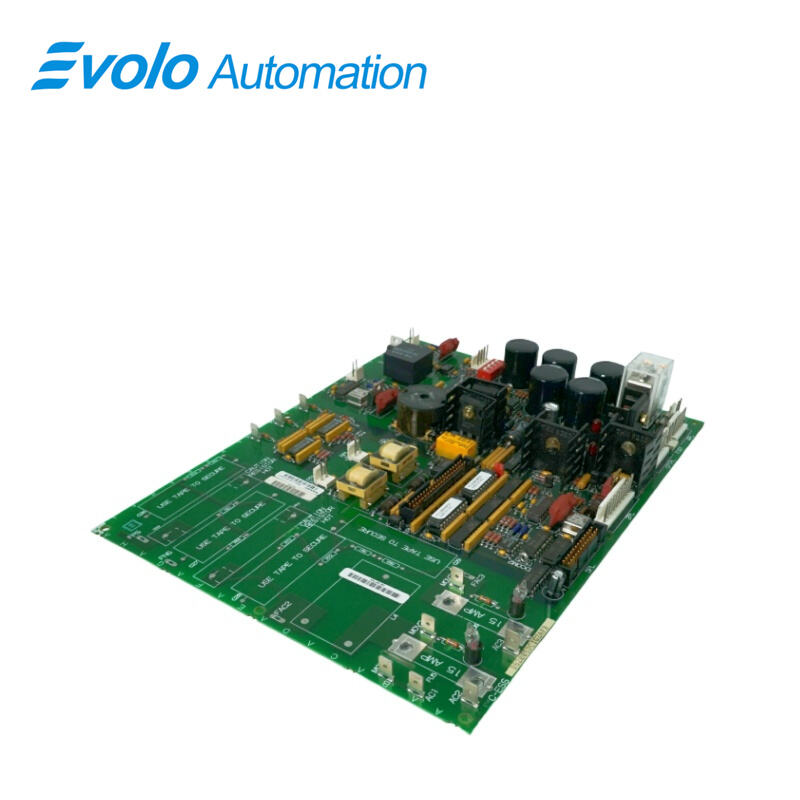

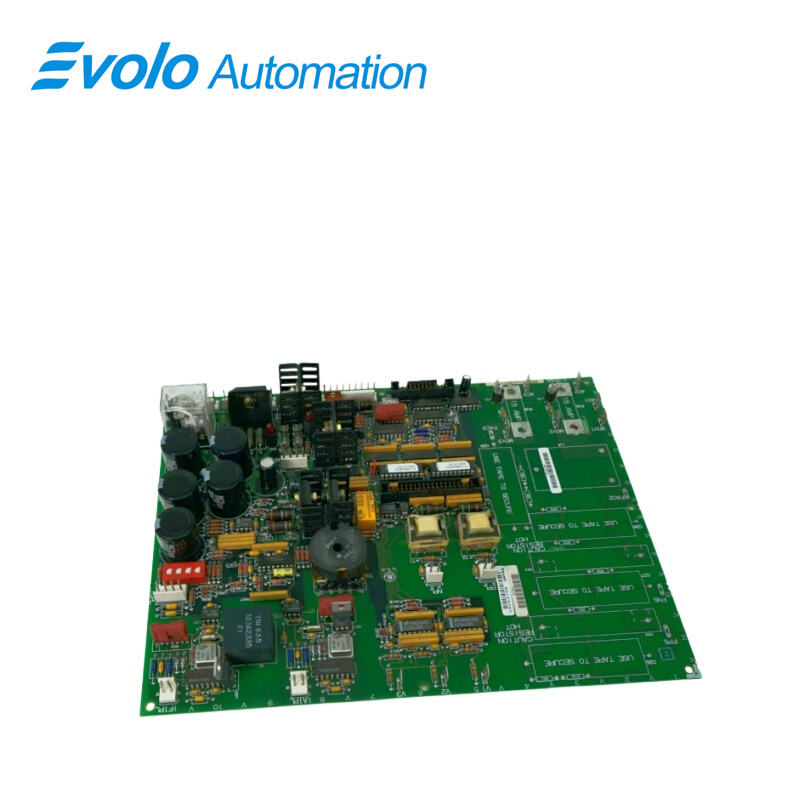

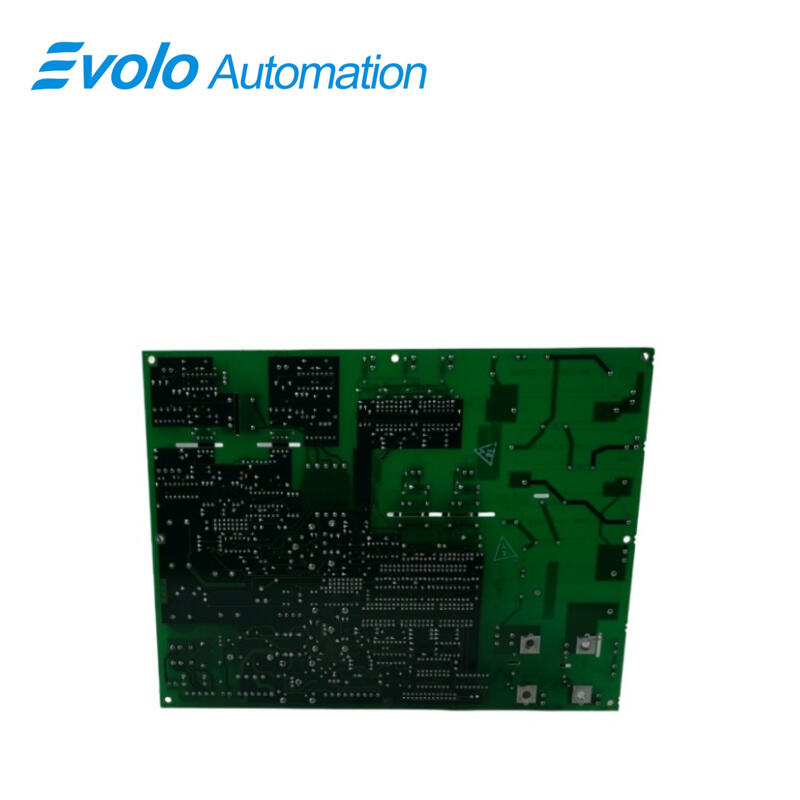

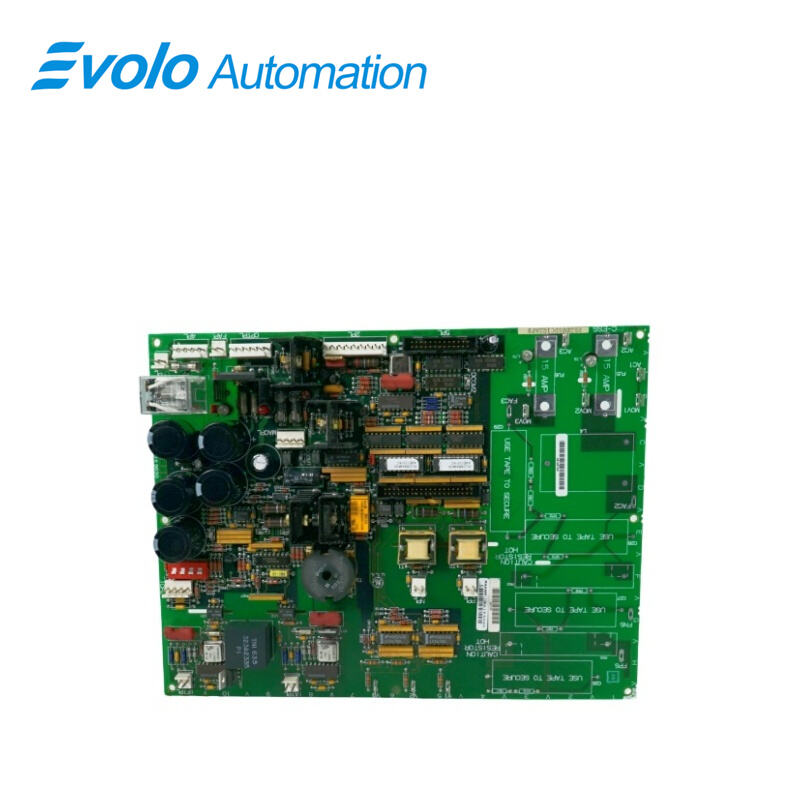

531X306LCCBFM1 is a Drive Display Card designed for use in drive systems. It provides a user interface for displaying drive status and operational parameters. The card is engineered for integration into existing systems and is designed to ensure reliable performance in industrial environments. It is a critical component for monitoring and controlling drive functions.
Applications
Intelligent Manufacturing Plant: Uses Ethernet for real-time production and drive monitoring.
Power Control Plant: Displays load status and fault alarms in distribution cabinets.
Oil Refining Plant: Integrates into distributed control systems through multi-protocol communication.
Large Paper Mill: Supports synchronized monitoring of paper machine drive systems.
Automated Warehousing Plant: Acts as a communication hub for real-time stacker crane feedback.
Maintenance and Troubleshooting
Troubleshooting: If the LED display screen is black, first check if the system power supply meets the 5W rated power consumption. If data refresh is slow, check the quality of the Ethernet cable and the network load of the communication protocol (such as Profinet).
Maintenance Recommendations: Regularly check the 16-slot panel for dirt accumulation to prevent affecting LED visibility. Due to its 100Mbps communication capability, it is recommended to use shielded Category 5 or Category 6 network cables, and ensure that the two black functional components operate smoothly.
FAQ
Q: What is the maximum supported operating temperature for the 531X306LCCBFM1?
A: It can operate up to 50°C.
Q: What humidity is acceptable when operating the 531X306LCCBFM1?
A: It supports up to 95% non-condensing humidity.
Q: Does the 531X306LCCBFM1 consume high power under full LED load?
A: No. Even with all LEDs on, power consumption stays within 5W.
Q: How can the two black components on the 531X306LCCBFM1 be used for local debugging?
A: They act as function/select keys for on-site display switching without a computer.
Q: What are the benefits of 100 Mbps data transmission in the 531X306LCCBFM1 system?
A: It enables low-latency transfer of real-time signals and alarms to improve response speed.
