Overview
Place of Origin: |
USA |
Brand Name: |
GE |
Model Number: |
531X135PRGAYM2 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Part Number |
531X135PRGAYM2 |
|
Product Type |
Programmer Board |
|
Dimensions |
13.8×10.8×0.5 cm |
|
Weight |
0.14 kg |
|
Mounting |
4 keyboard mounting holes |
|
Circuit Components |
1 small black transistor; 6 integrated circuits (program storage); 18 color-coded resistors |
Description

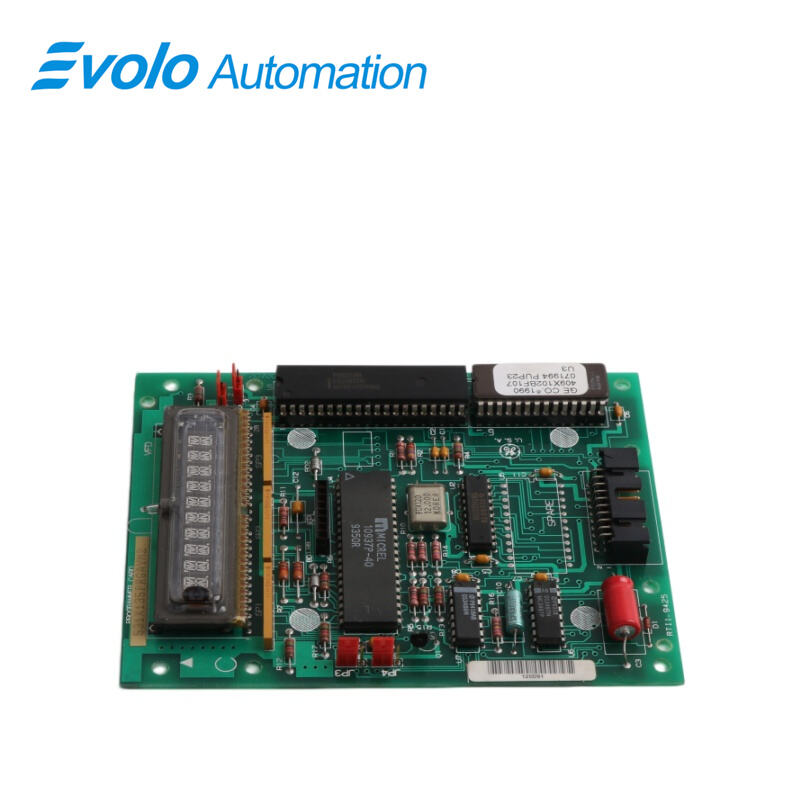

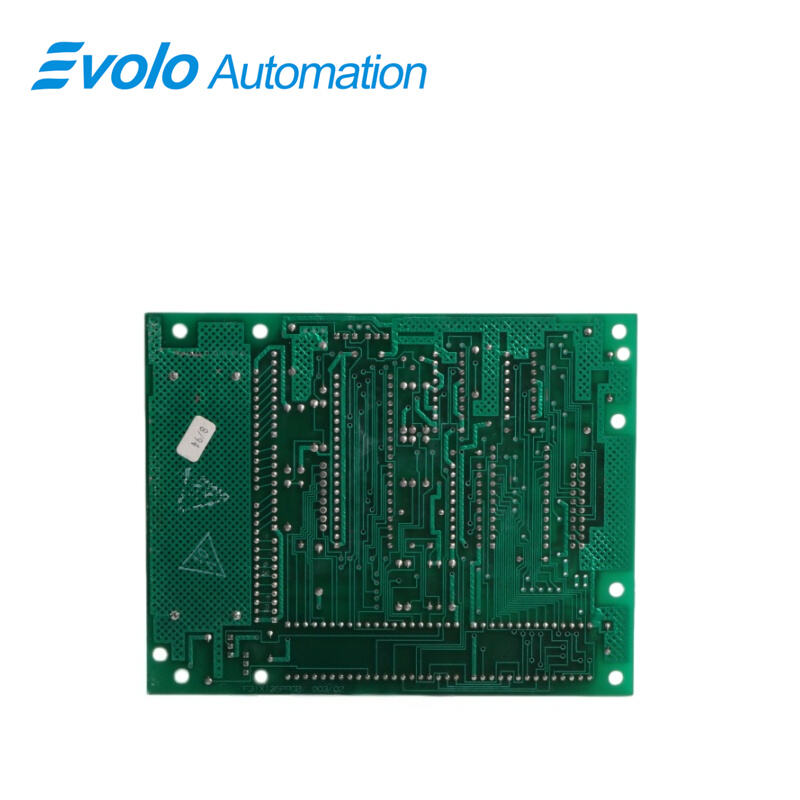

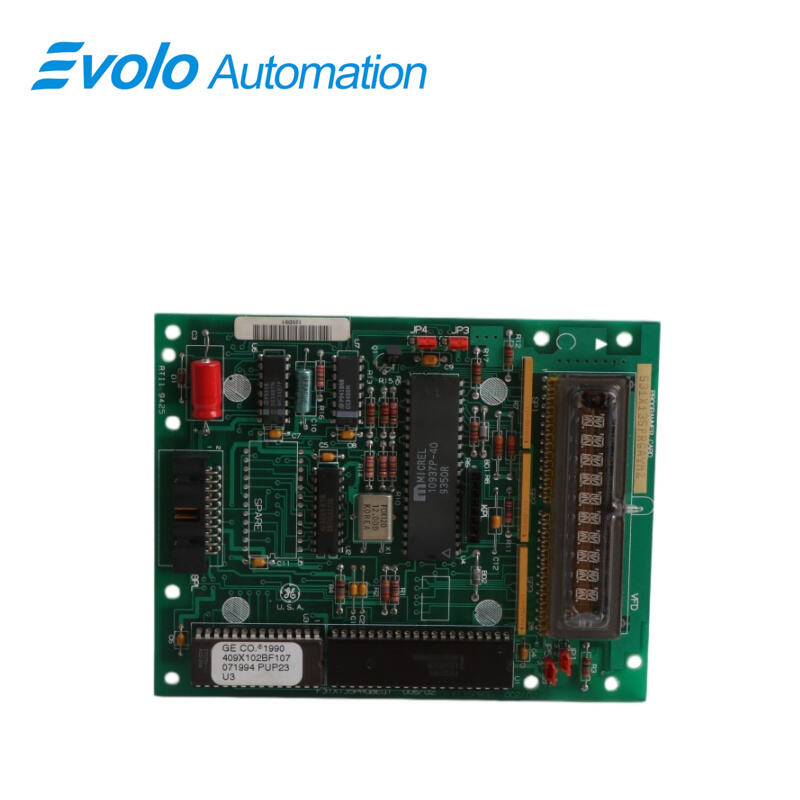

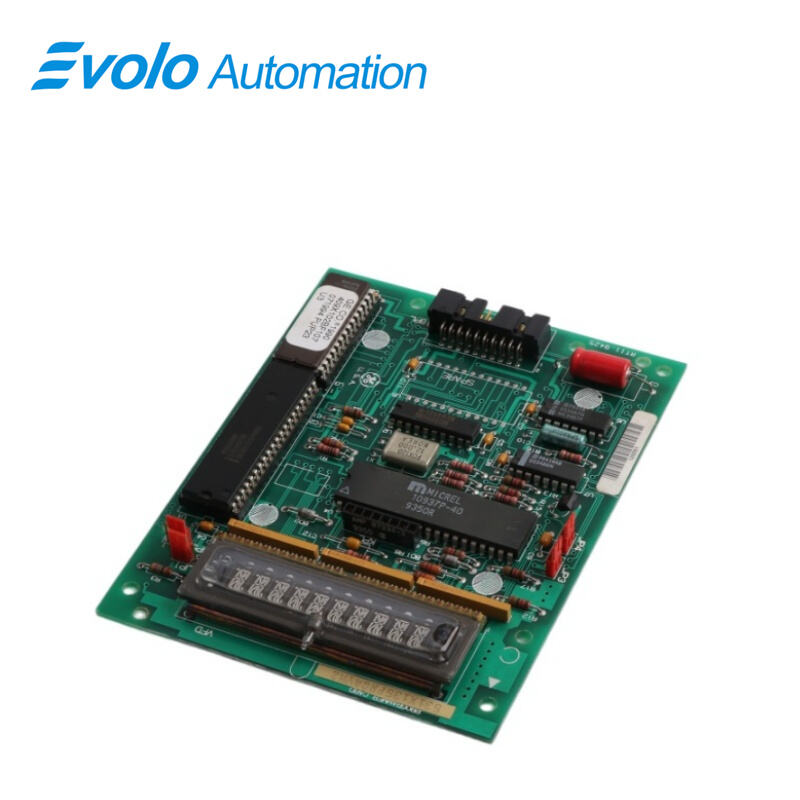

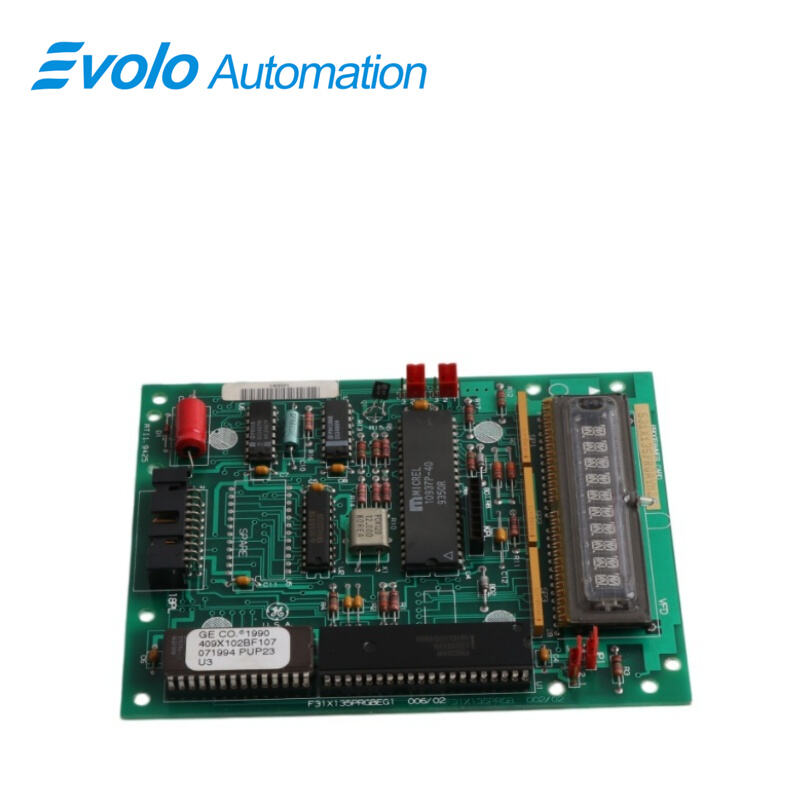

The General Electric 531X135PRGAYM2 Programmer Board is an essential component for managing industrial systems, featuring a high-precision crystal oscillator and versatile components designed for efficient system programming.
Applications
Automated equipment manufacturing plants: Used for pre-programming and configuring system parameters for control cabinet logic units.
Precision electronics assembly plants: Serves as the core control board for production line test benches, ensuring accurate writing of assembly programs.
Power equipment component plants: Integrated into power distribution monitoring systems, responsible for storing and retrieving critical operating protocols.
Large machine tool processing plants: Optimizes the logic processing capabilities of CNC systems, improving machine tool operating accuracy.
Petrochemical refineries: Acts as a data relay and instruction storage unit in complex distributed control systems (DCS).
Maintenance and Troubleshooting
Troubleshooting: If the system encounters a data read error, first check for oxidation or loosening of the pins of the onboard integrated circuits; regularly clean the dust around the 18 resistors to prevent short circuits.
Maintenance Recommendations: It is recommended to perform electrostatic dust removal quarterly and ensure the storage environment is dry and free of highly corrosive gases to extend transistor lifespan.
FAQ
Q: Is the 531X135PRGAYM2 needed for control systems?
A: No, it is an optional board for control systems.
Q: How can the 531X135PRGAYM2 be used with the control system?
A: It can be mounted on a control card or used as a handheld programmer.
Q: In high-temperature environments, do the 18 resistors on the 531X135PRGAYM2 have thermal stability?
A: Yes, they are industrial-grade components with good temperature drift control for stable resistance values.
Q: If signal transmission is interrupted on the 531X135PRGAYM2, how should the transistor be checked?
A: Measure the black transistor’s voltage with a multimeter to check for surge damage affecting signal amplification.
Q: Are the mounting holes of the 531X135PRGAYM2 compatible with standard control cabinet brackets?
A: Yes, its four-corner mounting design fits most industrial control cabinets and standard brackets.
