Overview

Place of Origin:	USA
Brand Name:	GE
Model Number:	531X133PRUALG1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Part Number	531X133PRUALG1
Product Type	Process Interface Board
Dimensions	14×14.2×2.2 cm
Weight	0.14 kg
Operating Temperature Range	0°C to +60°C
Storage Temperature Range	-20°C to +70°C
Humidity	5%–95% RH non-condensing
Power Consumption	10 W
Potentiometers	7 units
Resistor Networks	5 arrays
Resistors	Dozens of metal film resistors
Connectivity	RS-485 serial interface
Terminal Strip	Single 3-position terminal strip

Description

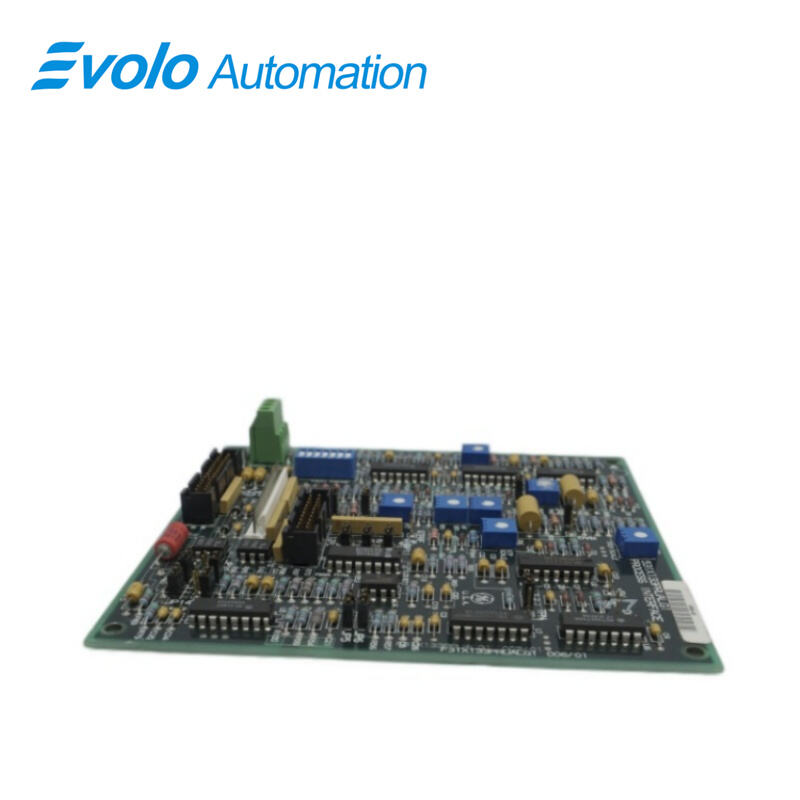

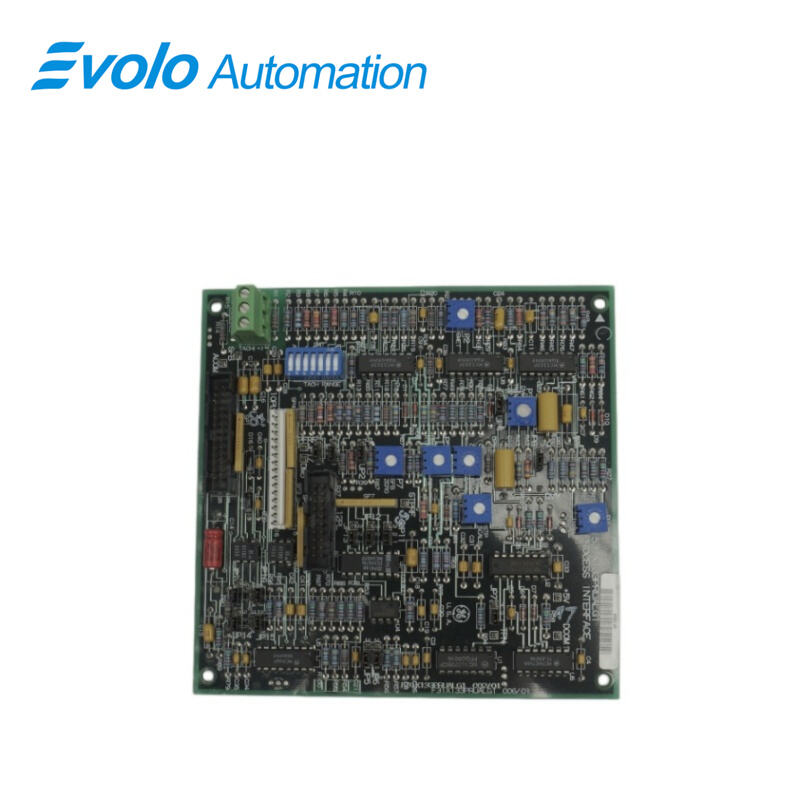

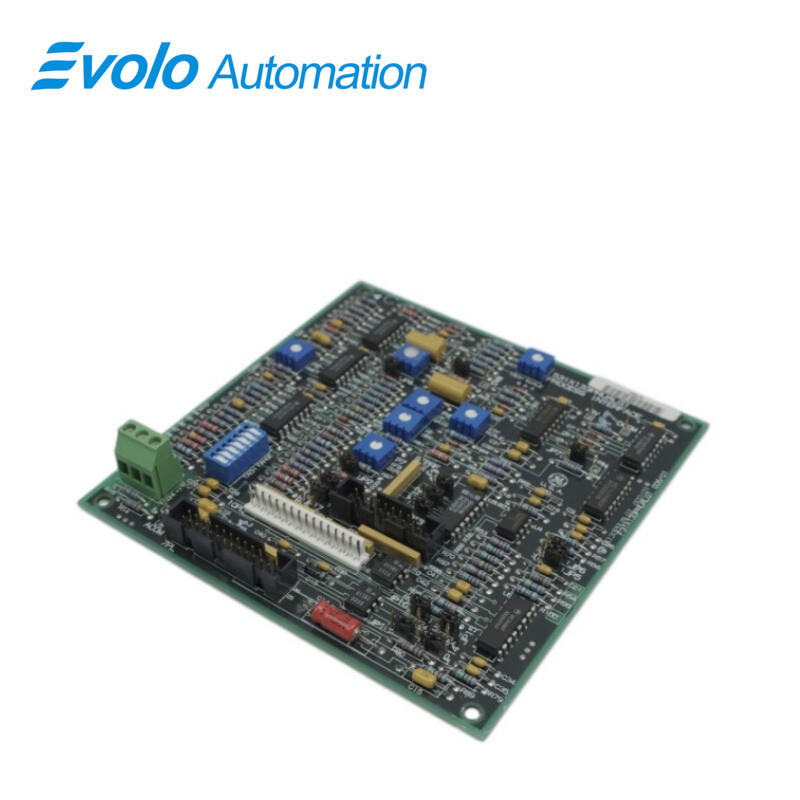

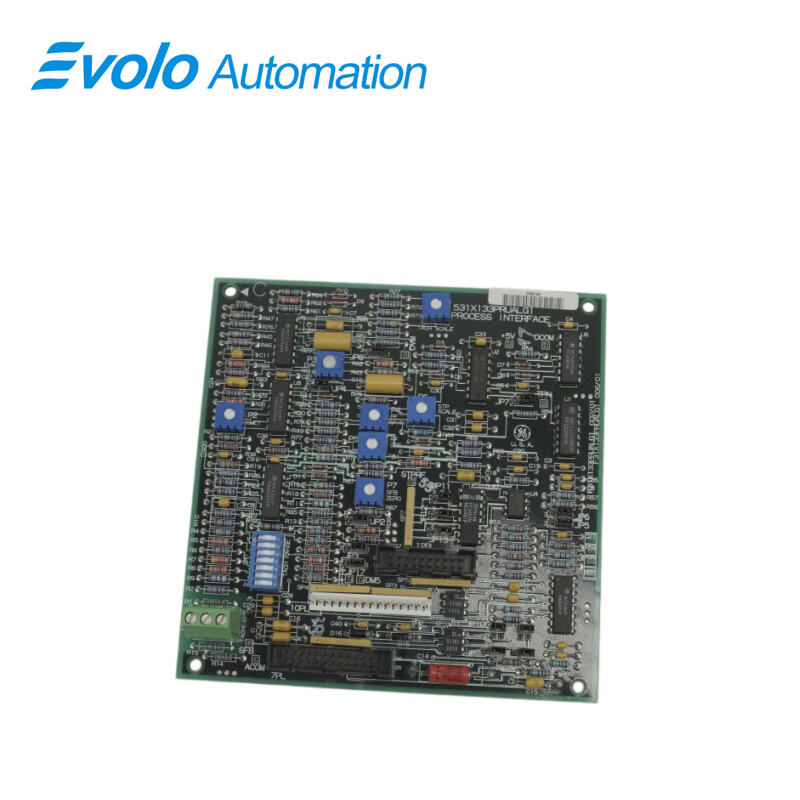

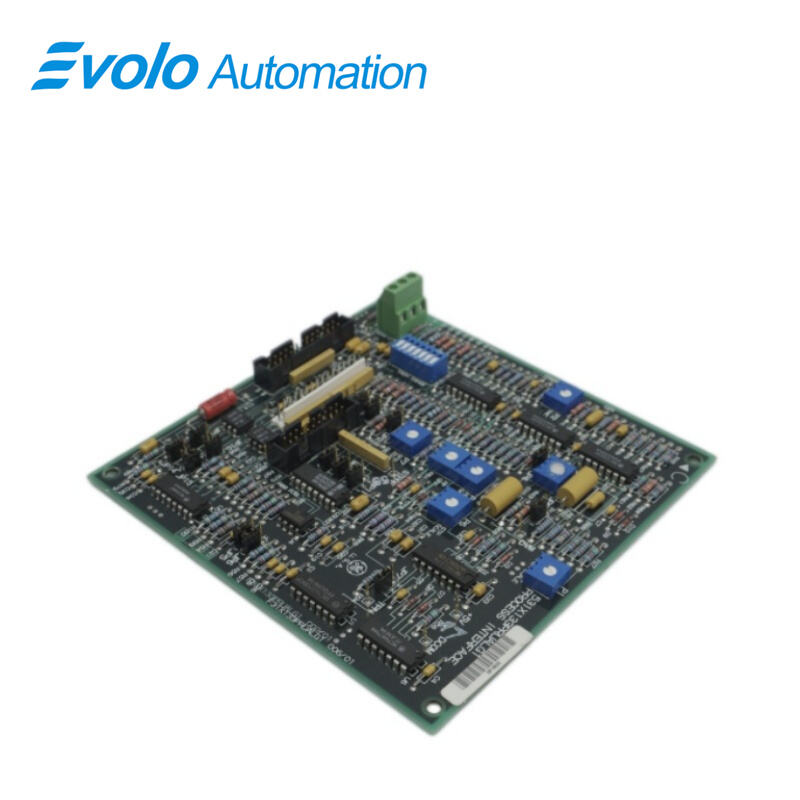

The 531X133PRUALG1 is a Process Interface Board from GE, designed to bridge control systems and field devices. It manages data processing and signal conversion, ensuring seamless communication between various system components. This board enhances system accuracy and efficiency by facilitating reliable data exchange and integration.

Applications

Precision strip mill: Serves as a signal interface in the rolling mill monitoring system, utilizing 7 sets of potentiometers for precise on-site calibration of tension feedback signals.

Petrochemical plant: Used in the remote control unit (RTU), transmitting field sensor data long distances to the central control room via an RS-485 interface.

Paper processing plant: Deployed as a process monitoring module in the paper machine drive system, utilizing a low-power 10W design to reduce heat buildup within enclosed cabinets.

Smart automated factory: Serves as a logic interface for automated storage systems; its 5% to 95% humidity adaptability ensures communication stability in varying environments.

Troubleshooting and Maintenance Recommendations

Troubleshooting: If RS-485 communication is interrupted, first check the tightness of the three-position terminal block; if the signal gain is off, it can be recalibrated using the 7 sets of potentiometers.

Maintenance Recommendations: It is recommended to regularly clean dust from the resistor network array to prevent signal noise caused by static electricity; when storing, ensure the temperature range is between -20°C and +70°C to avoid component performance degradation.

FAQ

Q: What type of remote communication interface does the 531X133PRUALG1 support?
A: It uses a standard RS-485 serial interface for long-distance, multi-point industrial communication.

Q: What is the main function of the 7 potentiometers on the 531X133PRUALG1 board?
A: They are used for signal fine-tuning, including gain adjustment and zero calibration.

Q: Does the 531X133PRUALG1 interface board require additional protection in high humidity environments?
A: It supports up to 95% non-condensing humidity, but a sealed cabinet is recommended in extreme conditions.

Q: Is the 531X133PRUALG1 power-intensive?
A: No, it consumes only about 10W, helping reduce overall system power load.

Q: What is the 531X133PRUALG1 used for?

A: The 531X133PRUALG1 is related to the input and output signals. The 531X133PRUALG1 has the ability to convert input signals into output signals, among other things.
