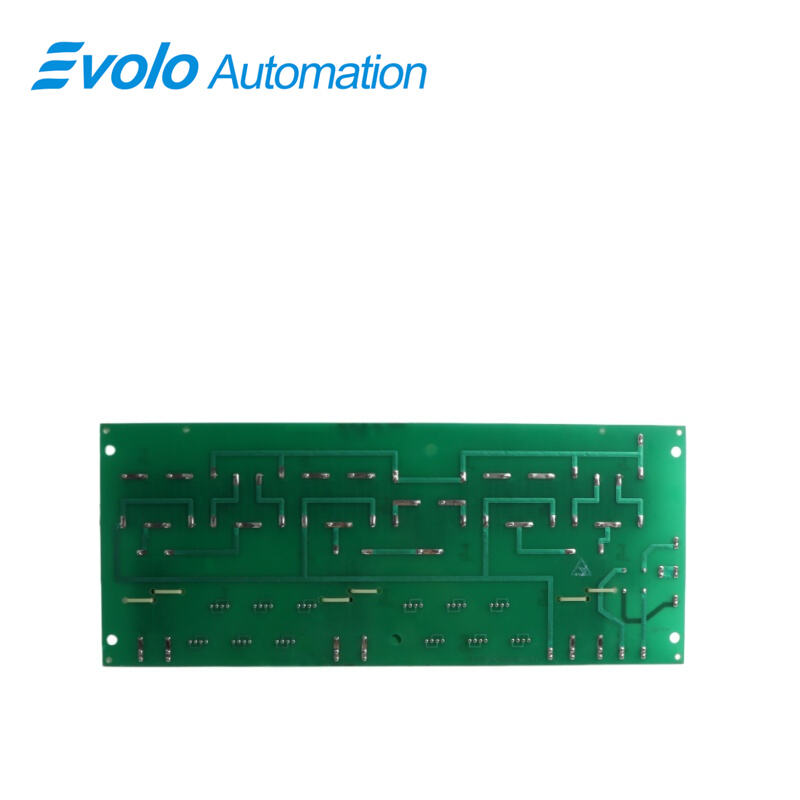

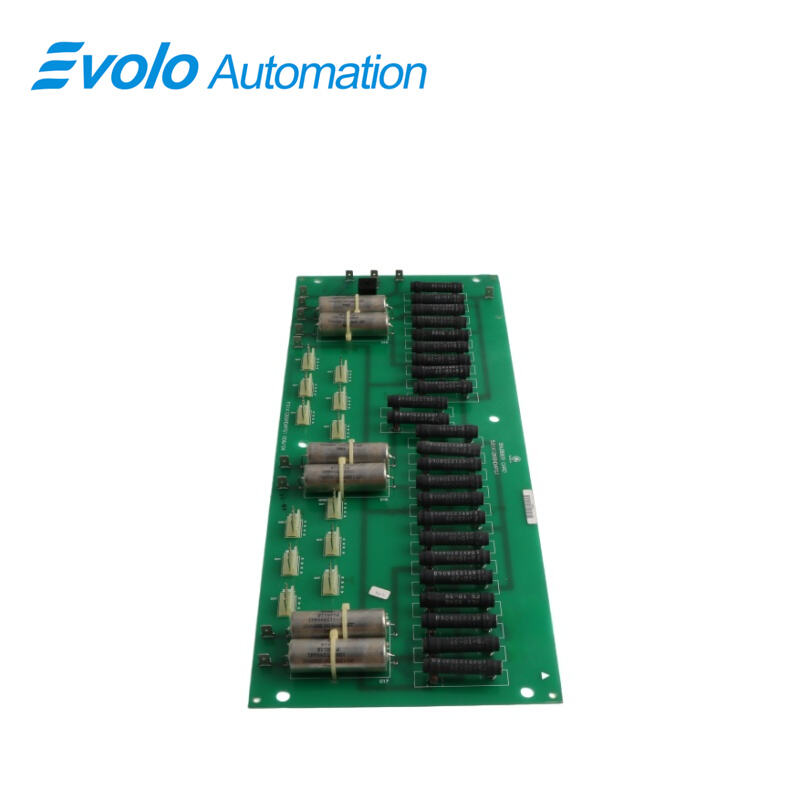

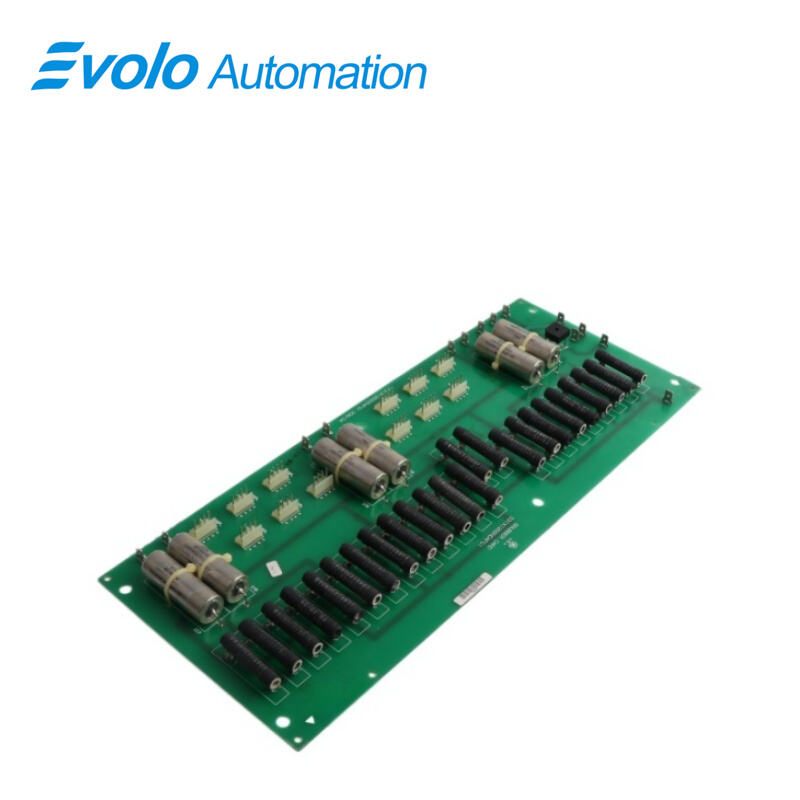

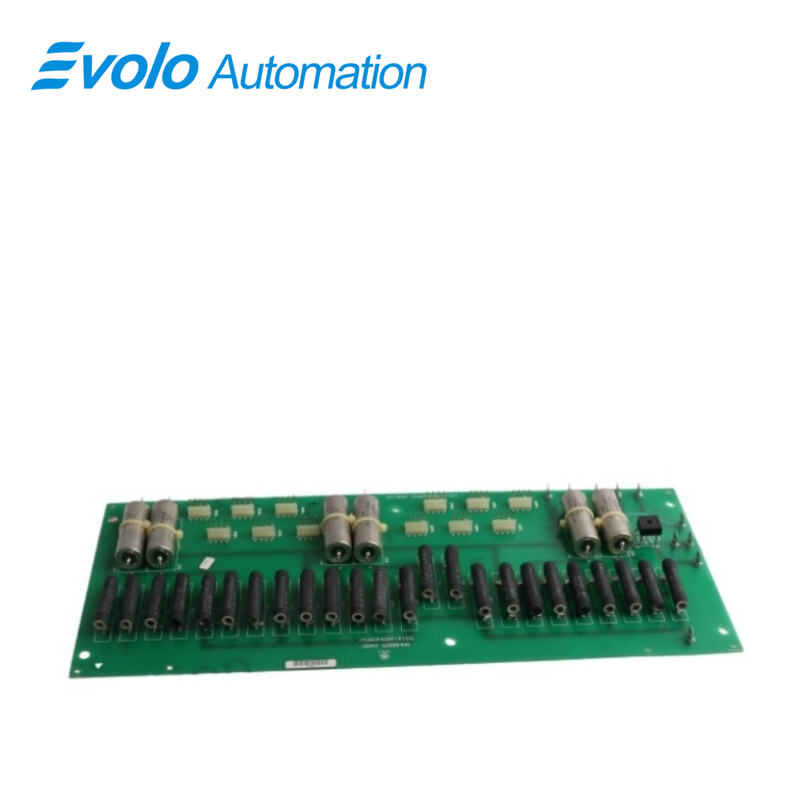

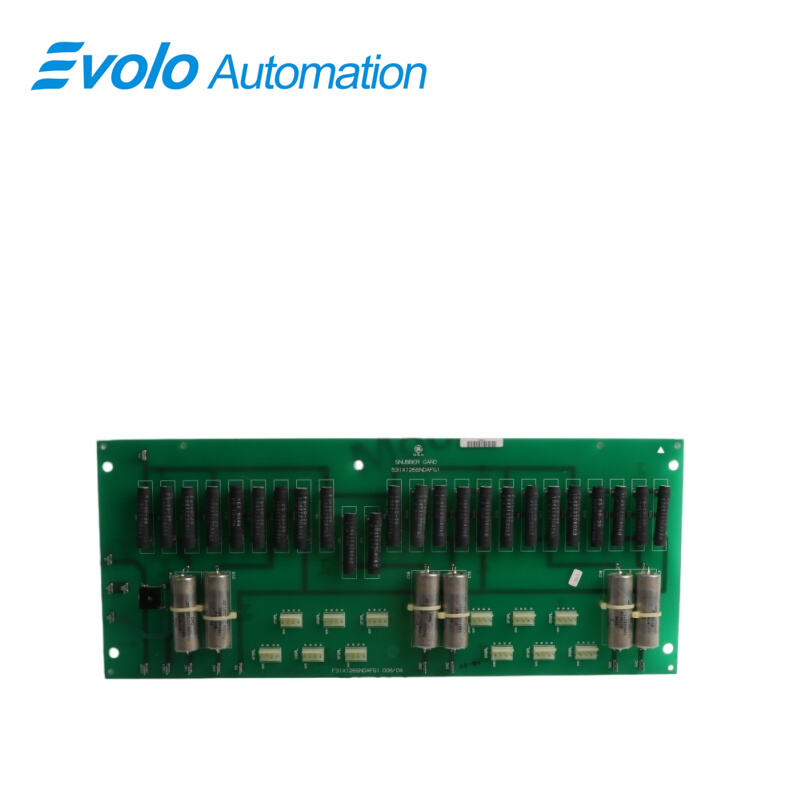

531X126SNDAFG1 Snubber Card

Overview

Place of Origin:	USA
Brand Name:	GE
Model Number:	531X126SNDAFG1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Description

531X126SNDAFG1 is a Snubber Card manufactured and designed by General Electric as part of the EX2100 Series used in GE Drive Control systems. It is an element used in drive control. It absorbs and dissipates excess electrical energy to maintain stable system operation. This board supports long-term reliability and component protection in demanding industrial environments.

Applications

Heavy machinery plants: Used in the power cabinets of large cranes or excavators to absorb the induced electromotive force generated by frequent motor starts and stops.

Precision strip steel plants: Utilizes in the rectifier units of rolling mills to prevent voltage spikes caused by high-speed switching from damaging sensitive control circuits.

Rail transit manufacturing plants: Deployed within the protection modules of traction inverters, leveraging their wide-temperature characteristics to ensure safe vehicle operation in extreme outdoor environments.

Non-ferrous metal smelting plants: Used in electrolytic cell control systems to stabilize the voltage waveform of the 125V DC circuit in strong magnetic environments.

Cement processing plants: Suitable for power protection units in large fan inverters, effectively suppressing power surges caused by fluctuations in contact resistance in dusty environments.

Key Features

Snubber Card Functionality: Suppresses voltage spikes and transient disturbances.

Drive Control Series Integration: Designed for use within GE drive control systems.

Transient Energy Dissipation: Protects sensitive circuits from electrical stress.

High DC Supply Compatibility: Designed for 125 VDC power systems.

FAQ

Q: Can the 125 V dc voltage rating of the 531X126SNDAFG1 be used in AC circuits?
A: This board is specifically designed for 125 V dc systems to absorb DC bus or switching surges at this voltage level.

Q: What is the lowest operating temperature that the 531X126SNDAFG1 can withstand?
A: It can operate normally in environments as low as -25°C, suitable for outdoor control cabinets in cold regions.

Q: Where is this Snubber Card installed in the system of the 531X126SNDAFG1?
A: It is typically mounted in a control cabinet near power switching devices like IGBTs or SCRs to minimize protection path length.

Q: What are the obvious symptoms if the 531X126SNDAFG1 fails?
A: Symptoms include capacitor bulging, resistor overheating or discoloration, and frequent voltage spike alarms.

Q: Is the 531X126SNDAFG1 reliable in a high-temperature factory environment of 65°C?
A: Yes, it is designed for up to 65°C and meets most industrial drive cabinet requirements.
