Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
51401497-100 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model |
51401497-100 |
|
Product Type |
Dual Node Power Supply Module |
|
Dimensions |
5.5 x 38.5 x 18 cm |
|
Weight |
1.98 kg |
|
Power Supply |
24 VDC |
|
Node Support |
2-node |
|
Compliance |
Non-CE |
|
Status Indicators |
PWR (power OK); CNTL (control status); ERROR (hardware fault) |
|
Front Panel Controls |
RESET button; H/N/L voltage trim switches |
|
Internal Output Voltages |
+5 VDC; +12 VDC; -12 VDC |
|
Output Ripple & Noise |
≤50 mV |
|
Operating Temperature Range |
0 °C to +60 °C |
|
Relative Humidity |
5–95% non-condensing |
Description

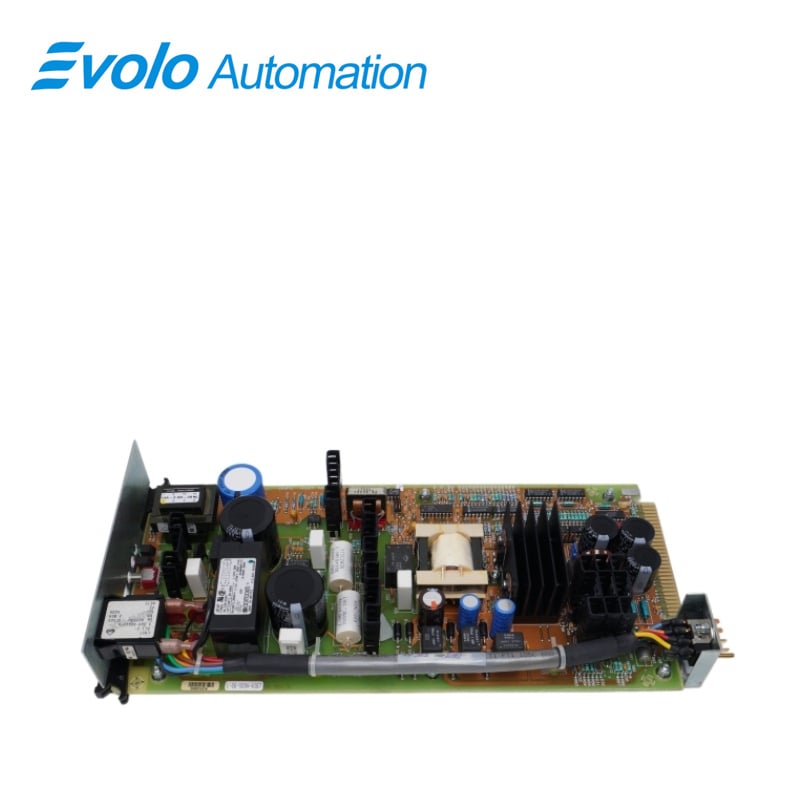

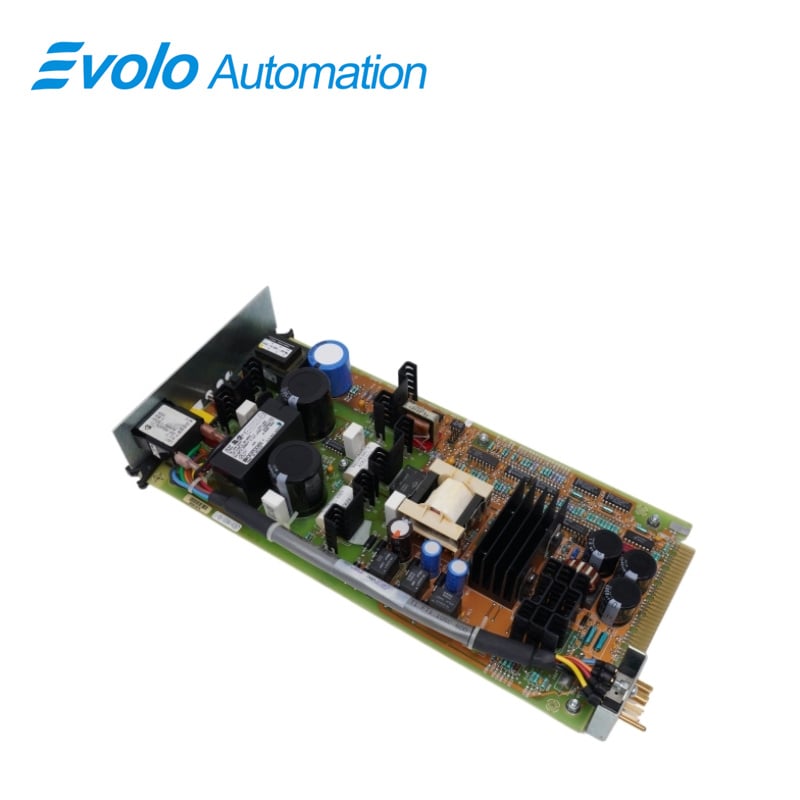

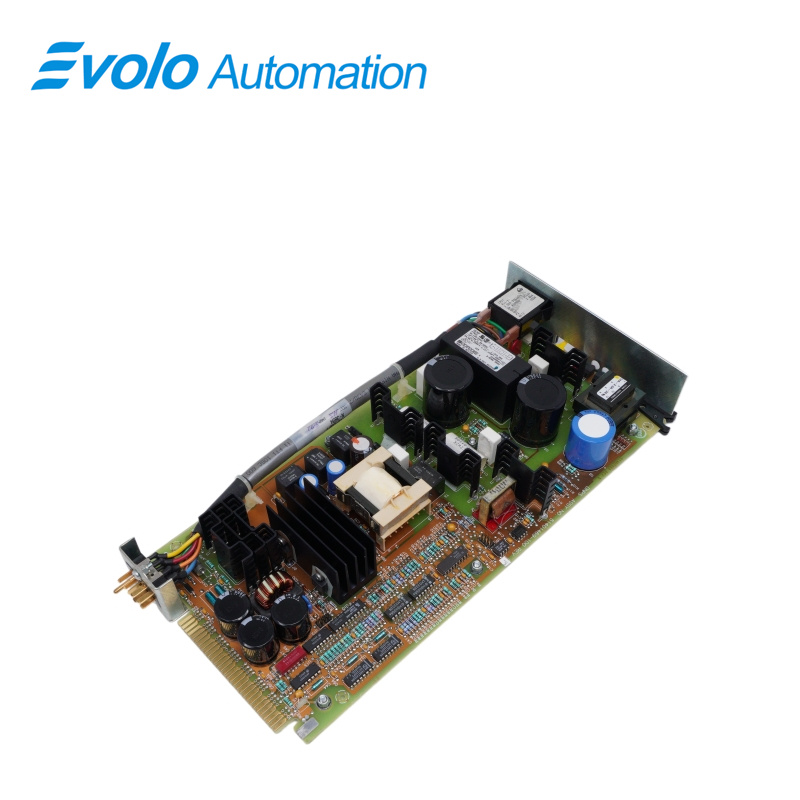

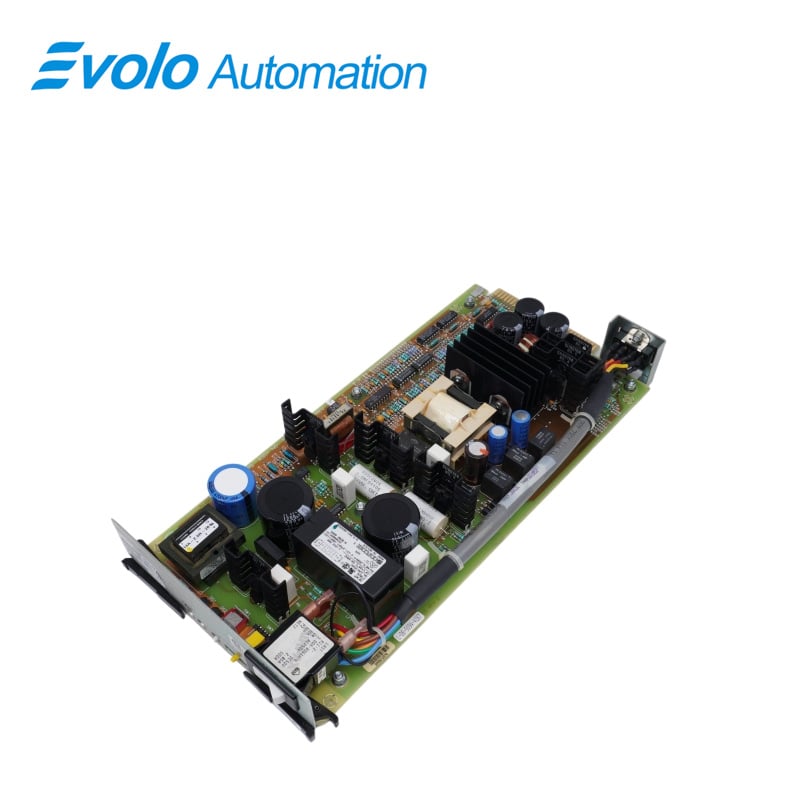

The 51401497-100 Dual Node Power Supply Module is an industrial power distribution unit used in distributed control system architectures to support dual-node chassis operation. It provides stable low-voltage power delivery to multiple control nodes within the same rack.
Applications
Petrochemical Plants: Control distillation and cracking systems.
Fertilizer Plants: Power ammonia and urea reaction lines.
Power Plants: Run boiler and turbine automation nodes.
Pharmaceutical Plants: Control fermentation and purification processes.
Steel Plants: Manage blast furnace and rolling operations.
Features
Dual-Node Physically Independent Power Supply: Supports two independent nodes in one rack, providing isolated DC power to a single node.
Non-CE Version: Indicates classic non-CE system component classification.
Clock Frequency Hardware Jumper Settings: Includes J1 jumper for INT/EXT clock selection. Default is INT internal clock; EXT enables SOE time synchronization with master nodes.
FAQ
Q: How many nodes does 51401497-100 support?
A: It supports 2 nodes.
Q: What controls are on the front panel of 51401497-100?
A: It includes a RESET button and H/N/L voltage adjustment switches.
Q: What internal output voltages does 51401497-100 provide?
A: +5 VDC, +12 VDC, and -12 VDC.
Q: What is the output ripple and noise of 51401497-100?
A: ≤ 50 mV.
Q: What is the operating relative humidity range of 51401497-100?
A: 5–95% non-condensing.
