Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
51306975-175 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model |
51306975-175 |
|
Product Type |
Digital Output Module |
|
Dimensions |
22 x 12 x 5.5 cm |
|
Weight |
0.26 kg |
|
Output Channels |
8 digital outputs |
|
Output Voltage |
24 VDC |
|
Output Current |
2 A per channel |
|
Accuracy |
±0.1% of full scale |
|
Resolution |
12-bit |
|
Programmable Functions |
Debounce time setting; filtering; output current limiting |
|
LED Status Indicators |
Yes (for troubleshooting and monitoring) |
|
Mounting Type |
DIN rail and wall mountable |
|
Enclosure |
IP30-rated metal housing |
|
Operating Temperature Range |
-10 °C to +60 °C |
|
Certifications |
CE; FCC; UL |
Description

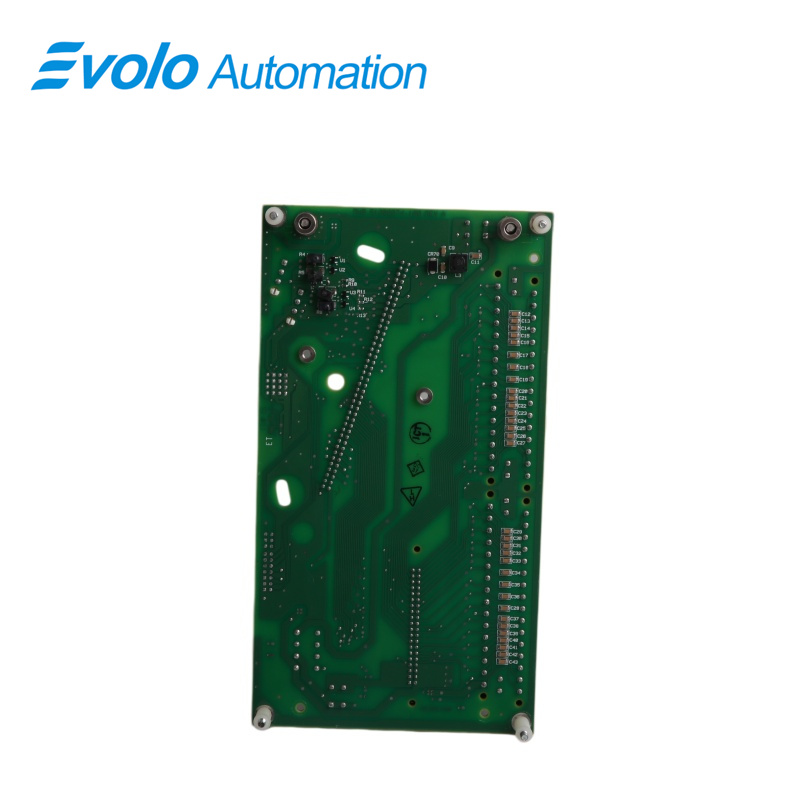

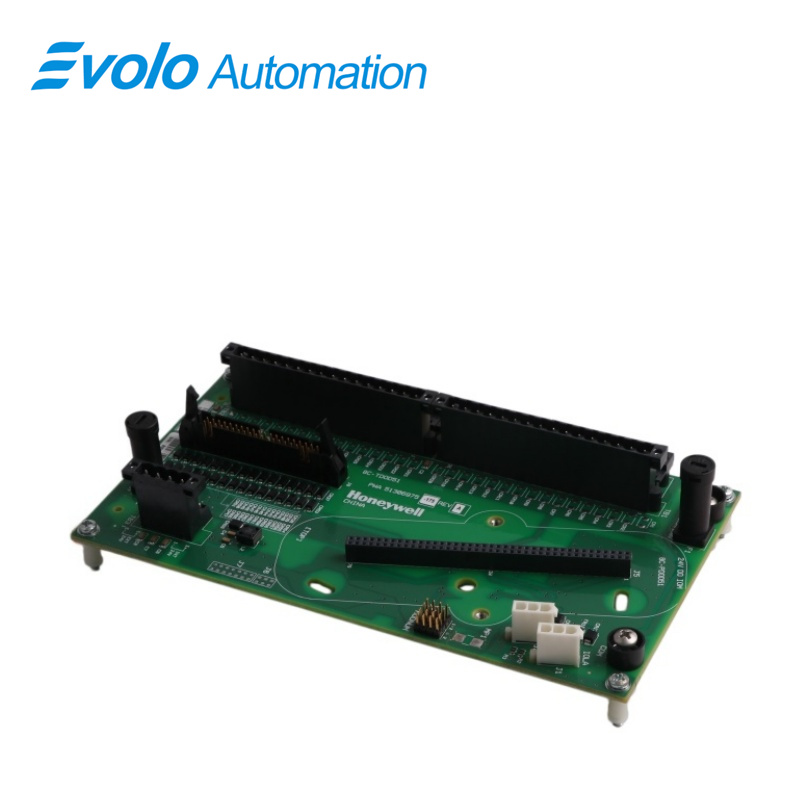

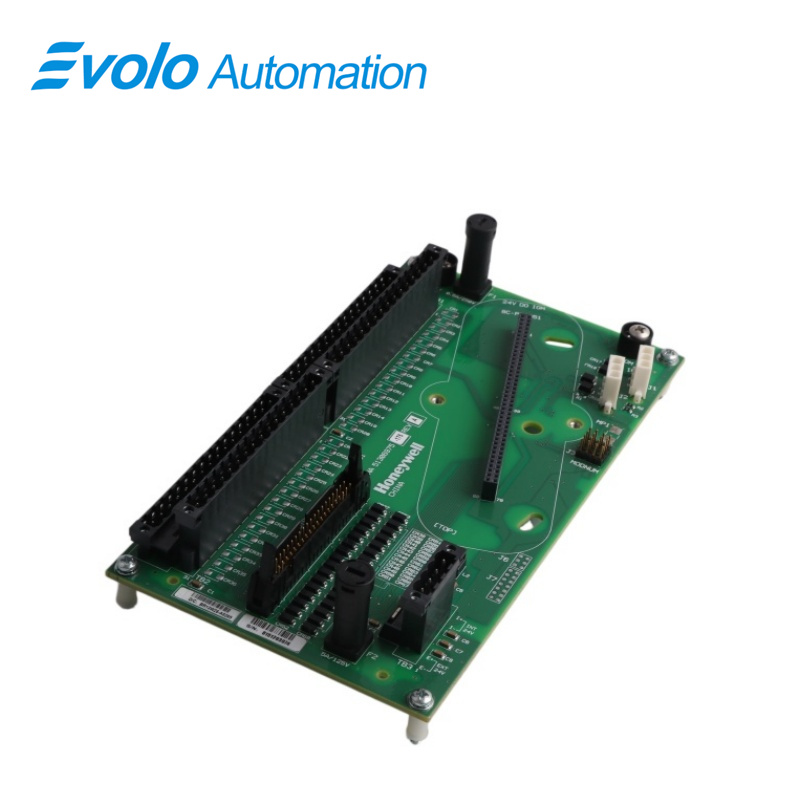

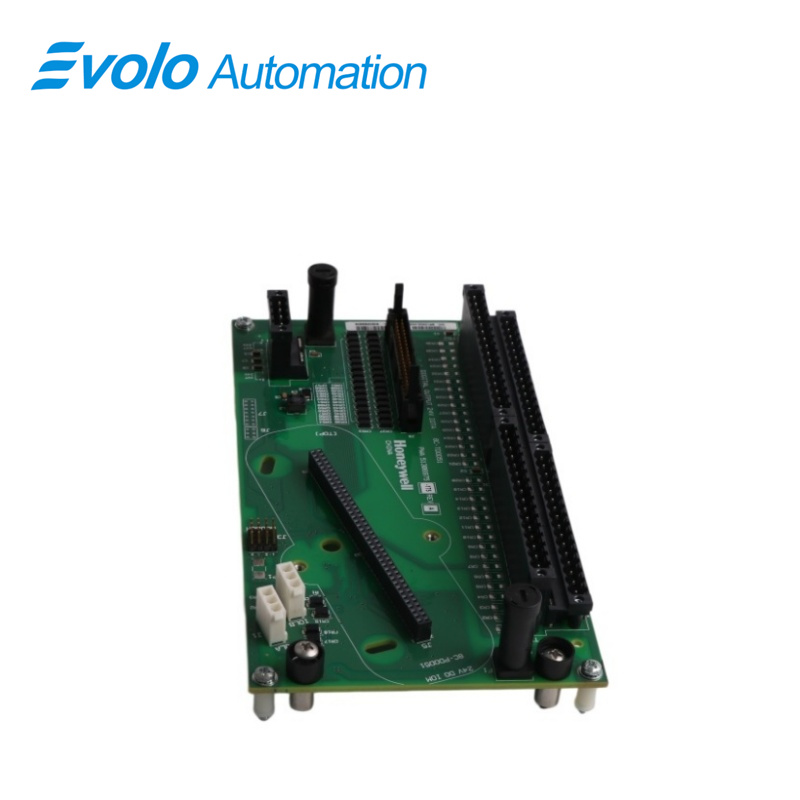

The Honeywell 51306975-175 is a 24V digital output module (DO IOTA) used in industrial automation to convert control signals into driving power. This module directly controls field devices such as solenoid valves, relays, and motors by amplifying electrical signals, while also providing status indications, performing timed power cut-off and restoration operations, and protecting the upstream control system when abnormal power consumption is detected.
Applications
Petrochemical Plants: Emergency control of shutoff and solenoid valves.
Power Plants: Control pumps, dampers, and alarm indicators.
Steel Plants: Sequence control for feeding and hydraulic valves.
Pharmaceutical Plants: Switch piping valves and pneumatic devices.
Cement Plants: Start/stop conveyors, diverters, and dust systems.
Features
Programmable Functions: Includes debounce time settings, filtering, and output current limiting for enhanced flexibility.
LED Status Indicators: Simplifies troubleshooting and system monitoring with clear visual feedback.
Durable Design: Built to withstand harsh industrial conditions
Seamless Integration: Designed for compatibility with Honeywell's C300 controller.
FAQ
Q: How many output channels does 51306975-175 have?
A: It provides 8 digital output channels.
Q: What is the per-channel output current of 51306975-175?
A: The output capability is 2 A per channel.
Q: What is the output resolution of 51306975-175?
A: Its output resolution is 12-bit.
Q: What housing material and protection rating does 51306975-175 use?
A: It uses a metal enclosure with IP30 protection.
Q: What is the operating temperature range of 51306975-175?
A: The operating ambient temperature range is -10°C to +60°C.
