Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
51306803-100 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model |
51306803-100 |
|
Product Type |
Enhanced AMR II Board |
|
PWA |
Yes |
|
Dimensions |
10 x 5 x 2.5 cm |
|
Number of Channels |
16 |
|
Input Voltage Range |
12–24 VDC |
|
Output Current Capacity |
1 A per channel |
|
Relay Contact Rating |
250 V AC/DC, 0.5 A |
|
Communication Interface |
Modbus RTU |
|
Protocol Compatibility |
IEC 61131-3; OPC-UA |
|
Power Consumption |
≤ 15 W |
|
Operating Temperature Range |
-40 °C to +70 °C |
|
Enclosure Type |
IP65 |
Description

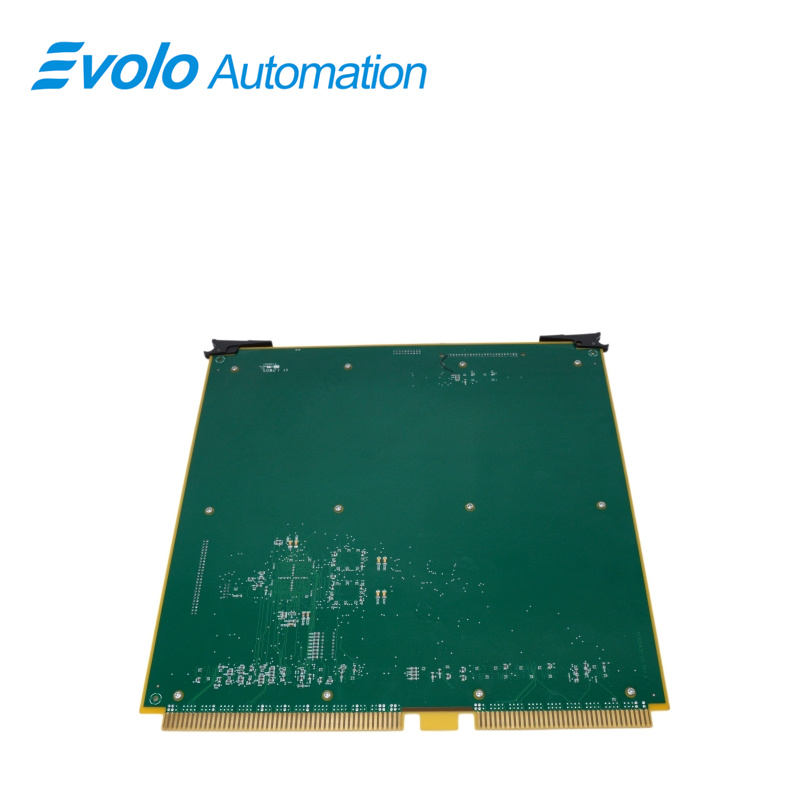

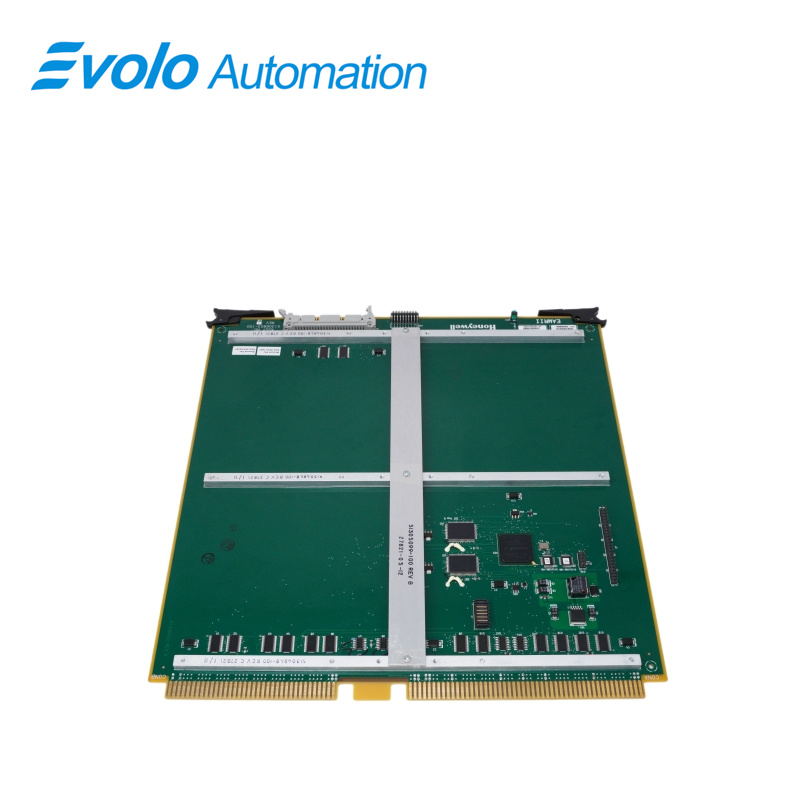

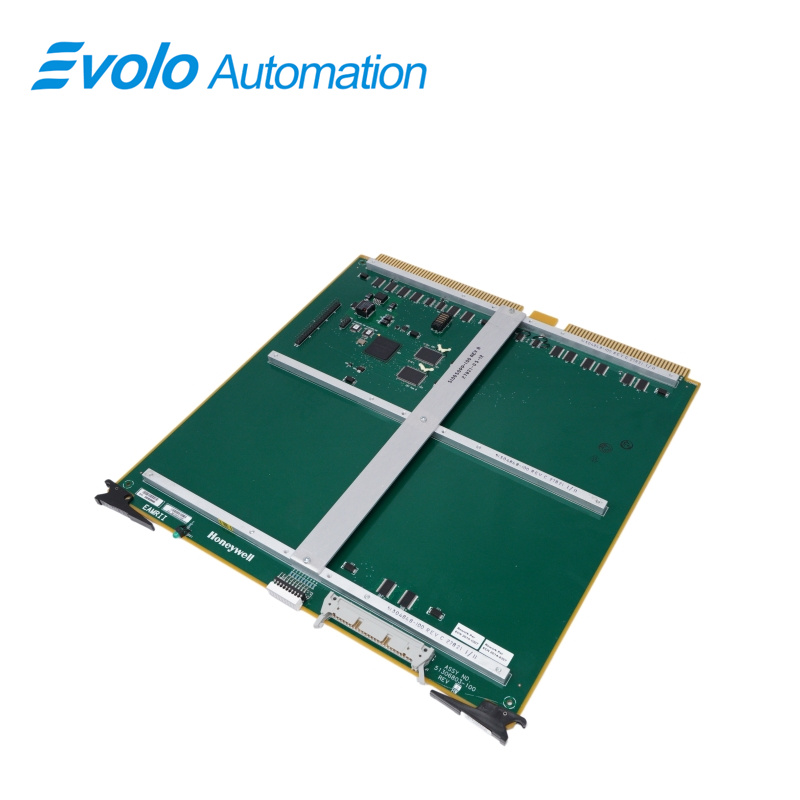

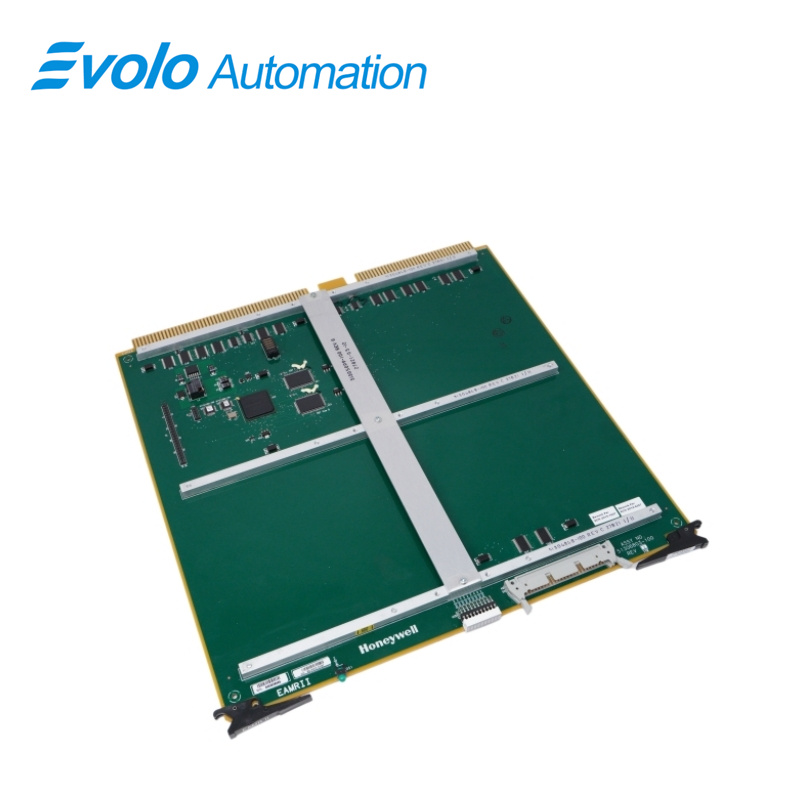

The Honeywell 51306803-100 is an Enhanced AMR II Board. It is responsible for transmitting data between the system control center and equipment such as valves, pumps, and motors on the production floor. This board converts electrical signals from field devices into information that the system can recognize, while simultaneously transmitting control commands back to the field devices to coordinate and direct machine operation, and is used to replace older circuit boards.
Applications
Thermal Power Plants: Monitor boiler and turbine parameters continuously.
Petrochemical Plants: Collect multi-point process data in hazardous areas.
Fine Chemical Plants: Track reaction parameters for compliance records.
Steel Plants: Record furnace and rolling line temperature data.
Pharmaceutical Plants: Monitor sterile environment and fermentation data.
Troubleshooting
Relay contacts stuck: Check if load exceeds 250V 0.5A; if overload occurs, add surge absorber or intermediate relay.
OPC-UA node unresponsive: Check 12V–24V supply fluctuation and verify protocol stack parameters match master station.
Enclosure moisture ingress: Even with IP65 protection, tighten housing screws evenly after maintenance to maintain sealing integrity.
FAQ
Q: How many channels does 51306803-100 have?
A: It provides 16 channels.
Q: What is the input voltage range of 51306803-100?
A: The input voltage range is 12–24 VDC.
Q: What is the relay contact rating of 51306803-100?
A: The relay contact rating is 250 V AC/DC, 0.5 A.
Q: What is the operating temperature range of 51306803-100?
A: The operating ambient temperature range is -40°C to +70°C.
Q: What is the enclosure protection rating of 51306803-100?
A: The enclosure protection rating is IP65.
