Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
51305863-175 MC-TAIH15 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model |
51305863-175 MC-TAIH15 |
|
Product Type |
High Level Analog Input Module |
|
Dimensions |
30.6 x 12 x 5 cm |
|
Weight |
0.42 kg |
|
Channels |
16 |
|
Input Signal |
4–20 mA / 1–5 V |
|
Communication Protocol |
HART supported |
|
Coating |
Conformal coating (corrosion protection) |
|
Mounting Type |
DIN rail |
|
A/D Conversion Resolution |
16-bit (high-precision signal acquisition) |
|
FTA Size Specification |
Size C |
|
External Interface 1 |
2 × 50-pin high-density connectors (to IOP) |
|
External Interface 2 |
Screw terminal blocks (field wiring connection) |
Description

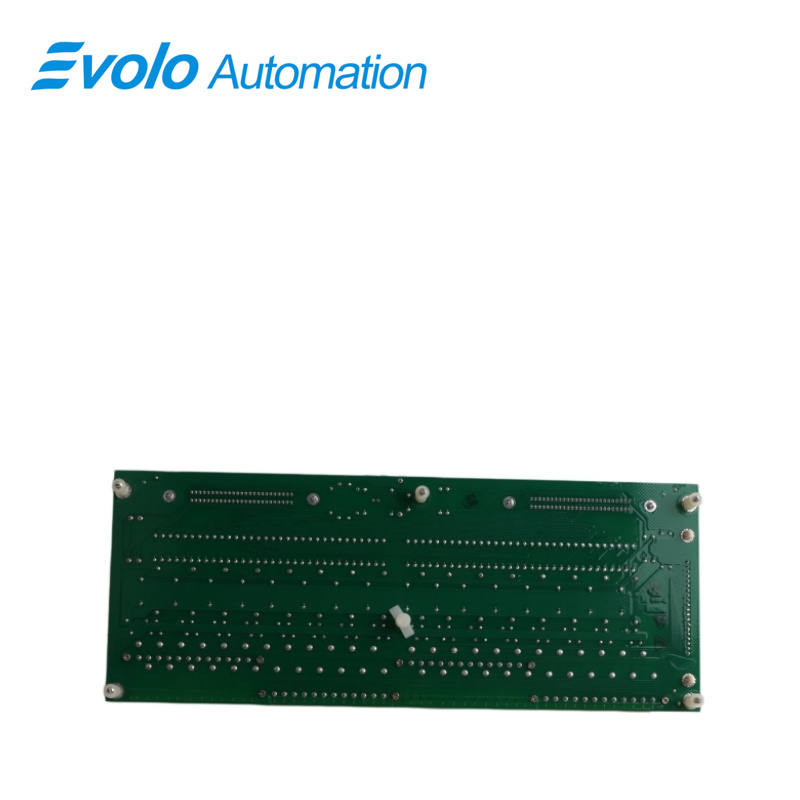

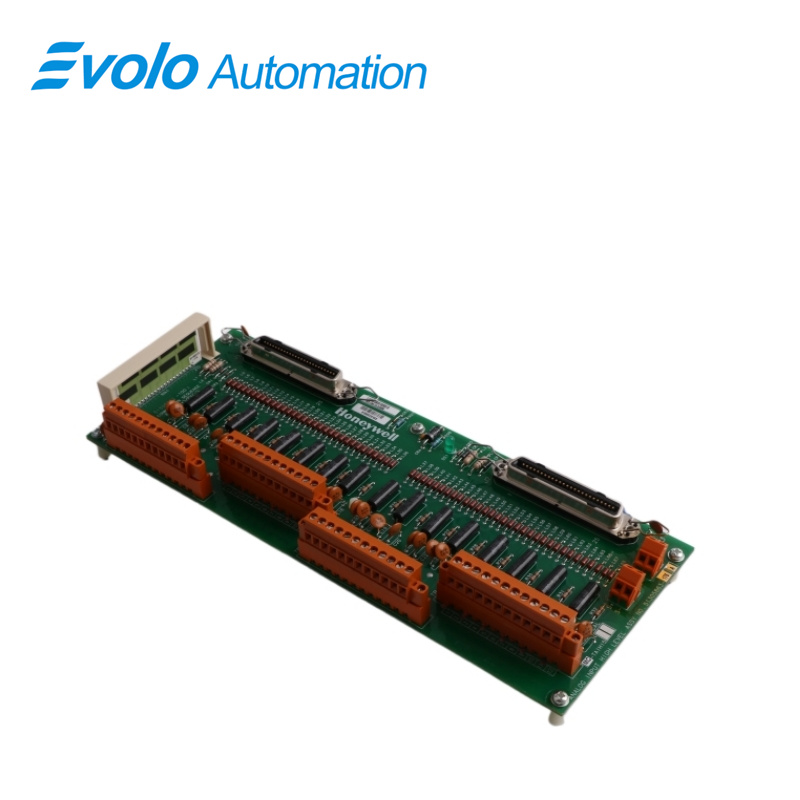

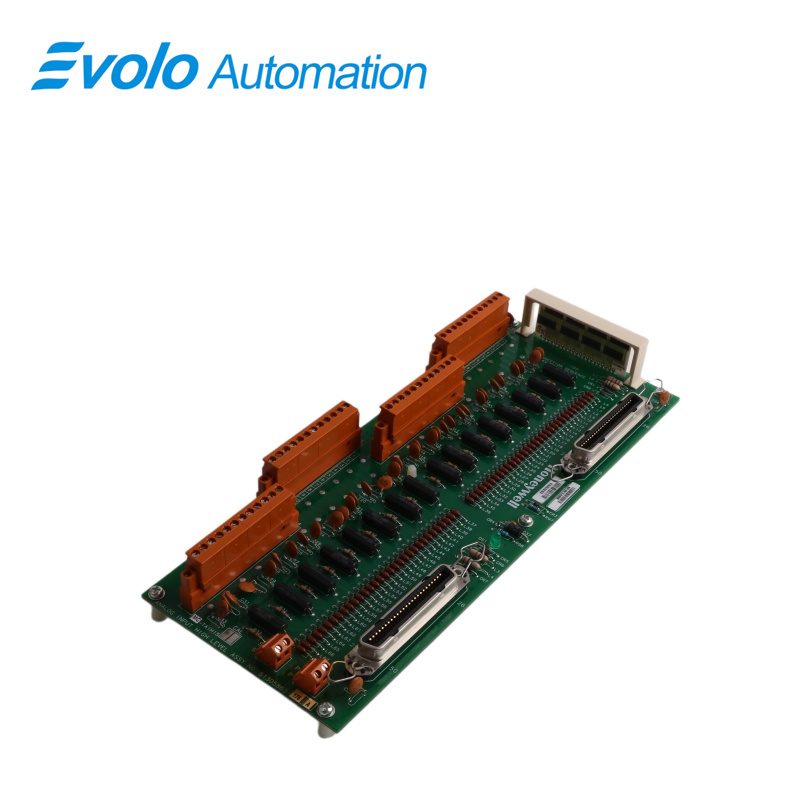

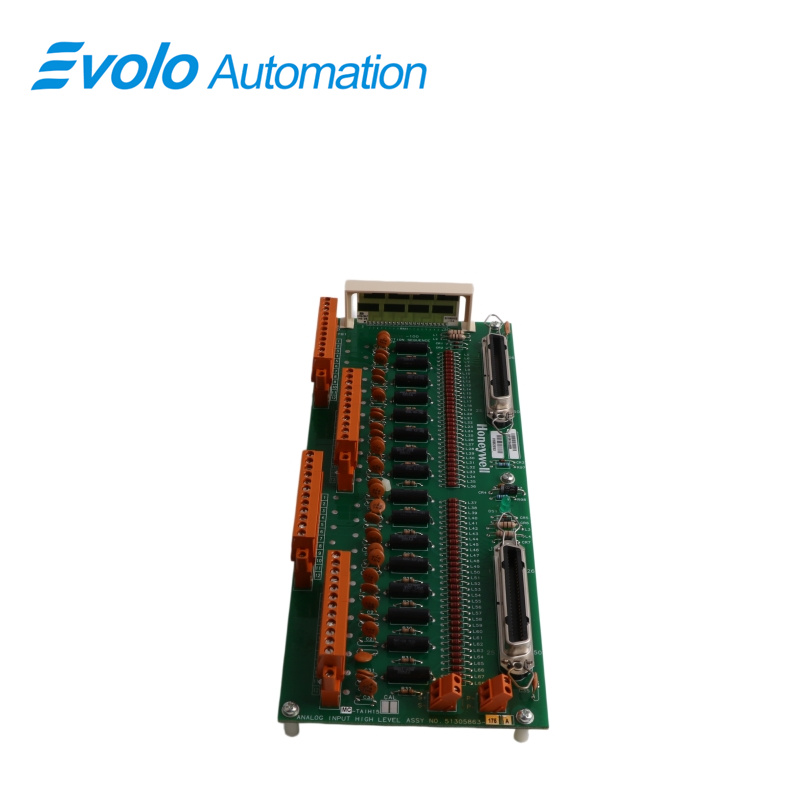

The Honeywell 51305863-175 MC-TAIH15 is a high-level analog input module designed for integration with Honeywell's Distributed Control Systems (DCS), such as TDC 3000 and Experion PKS. It is mainly responsible for connecting field transmitters, sensors and other equipment, and transmitting the acquired high-level analog signals to the system's input/output processor (IOP/IOM).
Applications
Refinery Plants: Monitor distillation temperature and pressure.
Chemical Plants: Track reactor level and flow data.
Power Plants: Transfer boiler airflow and turbine signals.
Metallurgy Plants: Monitor cooling water and ambient temperature.
Paper Plants: Collect pulp density and drying pressure.
Troubleshooting
Intermittent HART communication failure: Check 4–20mA loop impedance meets HART filter requirements; verify EMI from nearby high-voltage lines.
Single-channel value jump or over-range: Confirm sensor matches 4–20mA to 1–5V mapping; ensure shield is single-point grounded.
Channel damage (card burnout): Check FTA loop for short circuit or overvoltage; verify no leakage current from nearby high-power equipment.
FAQ
Q: How many channels does 51305863-175 MC-TAIH15 have?
A: It provides a total of 16 channels.
Q: What A/D conversion resolution does 51305863-175 MC-TAIH15 support?
A: It supports 16-bit analog-to-digital conversion resolution.
Q: What FTA size is 51305863-175 MC-TAIH15?
A: It is Size C.
Q: What mounting method does 51305863-175 MC-TAIH15 use?
A: It uses DIN rail mounting.
Q: What external interfaces does 51305863-175 MC-TAIH15 provide to IOP?
A: It provides two 50-pin high-density connectors.
