Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
51305430-100 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model |
51305430-100 |
|
Product Type |
Control Network Process Board |
|
Processor Type |
LCNP-4 |
|
System Compatibility |
Honeywell TDC 3000 / Experion Systems |
|
Slot Interface |
Standard workstation backplane compatible |
|
Power Supply |
24 VDC |
|
Operating Temperature Range |
0 °C to +60 °C |
|
Humidity |
95% RH non-condensing |
|
Storage temperature range |
–20°C to +85°C |
|
Central Processing Unit (CPU) |
33 MHz MC68040 processor |
|
Onboard Memory (DRAM) |
32 MB high-speed dynamic random access memory |
Description

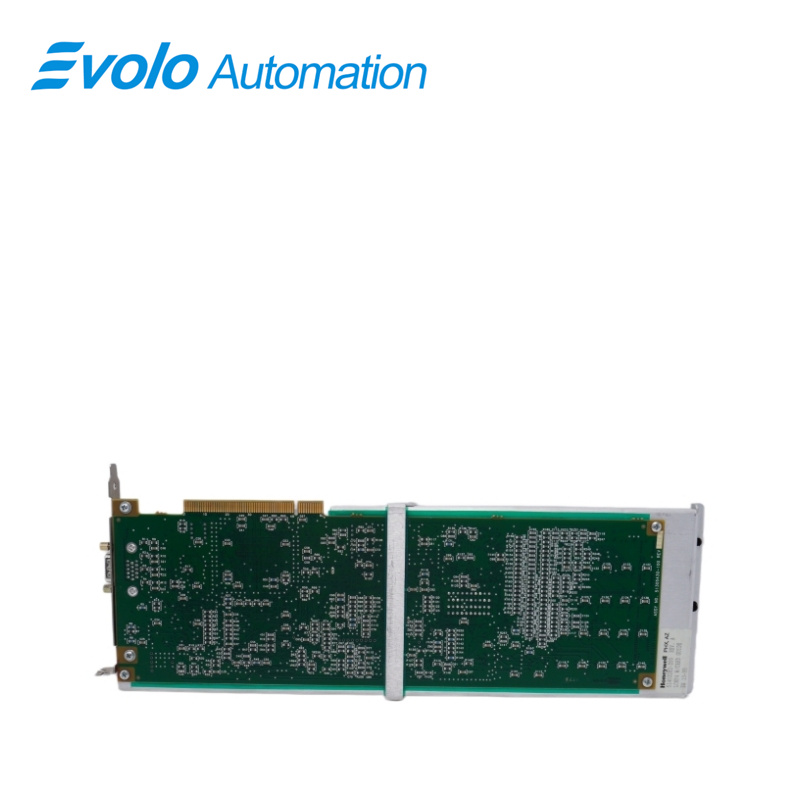

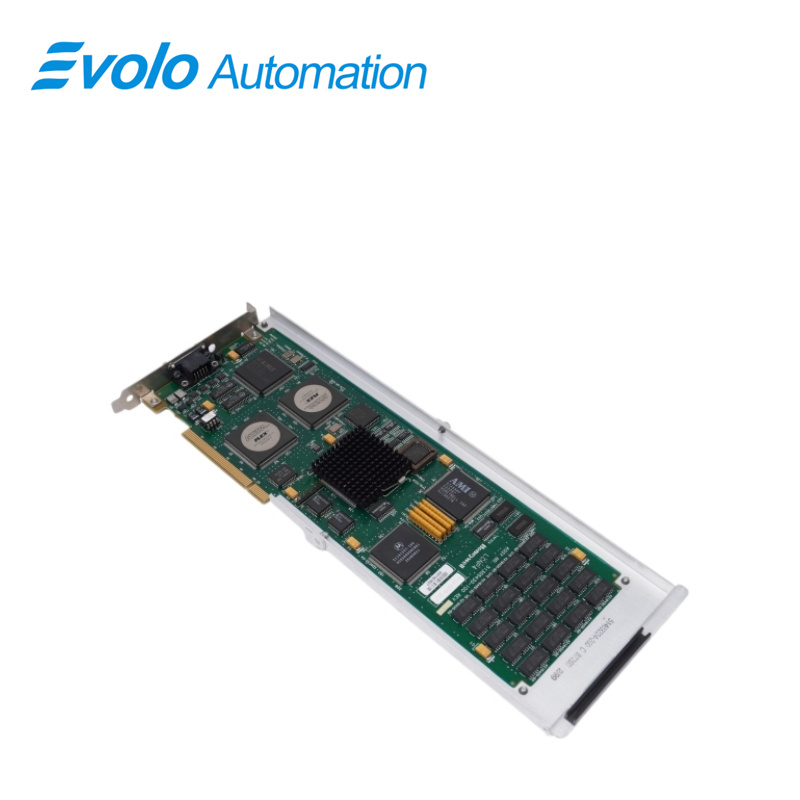

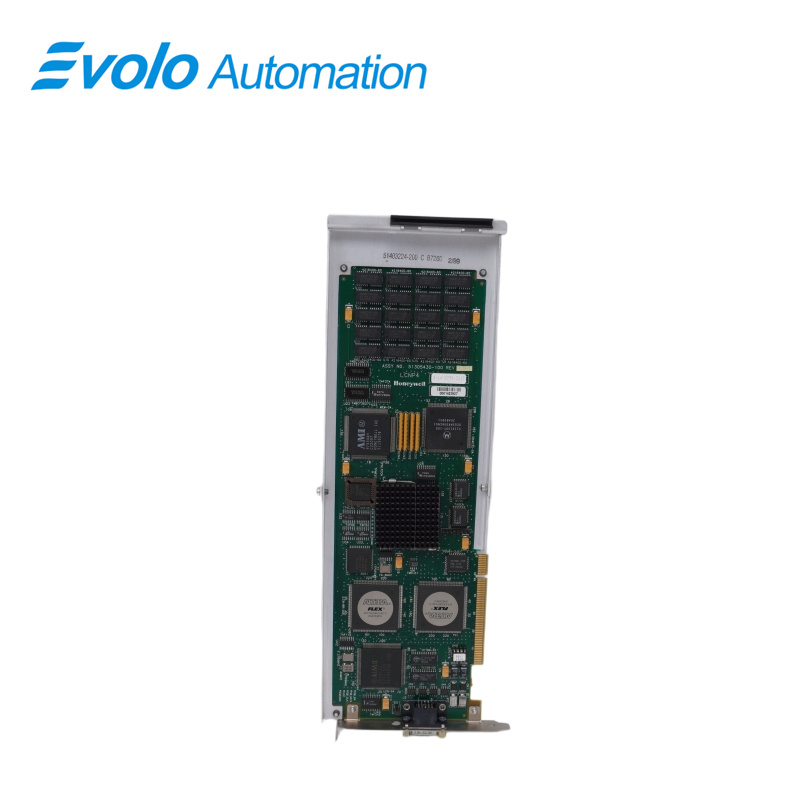

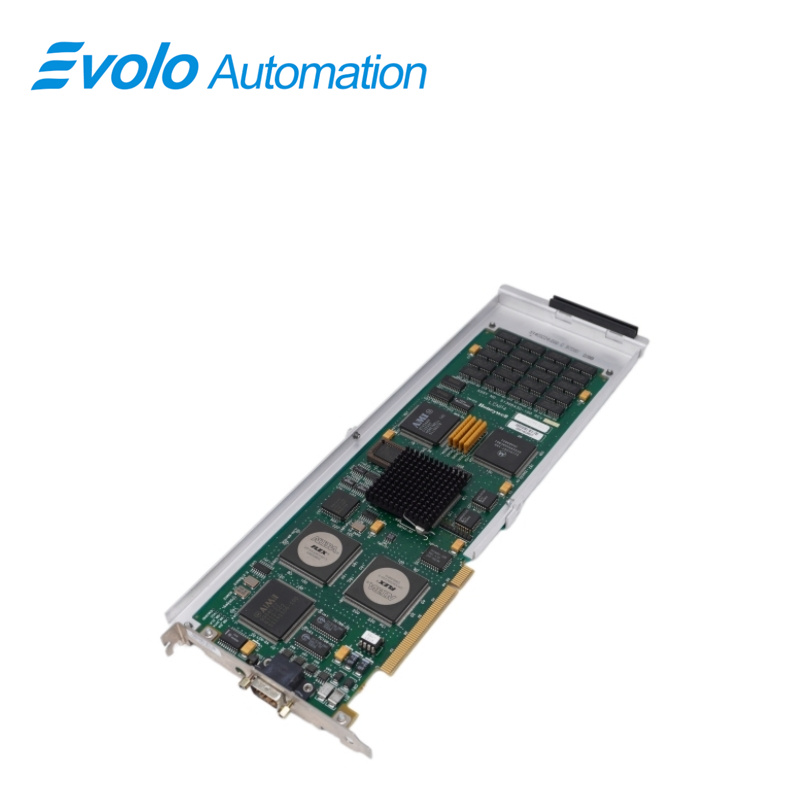

The Honeywell 51305430-100 is an LCNP-4 Control Network Process Board for industrial automation. It enables high-speed data communication and protocol conversion between host computer workstations (engineer workstations, operator workstations/GUS workstations, application modules, etc.) and the underlying Local Control Network (LCN) physical layer.
Applications
Chemical Plants: Monitor high-temperature cracking and material transfer.
Power Plants: Dispatch generators and ensure boiler safety.
Steel Plants: Control blast furnace, rolling, and batching lines.
Cement Plants: Automate kiln and raw mill control.
Paper Plants: Regulate pulp, machine speed, and drying temperature.
Competitive Advantage
Accelerates Network Throughput: Optimizes routing between controllers and HMIs for faster screen updates during alarms.
Reduces EMI Interference: Shielding and copper grounding improve signal integrity near drives and power supplies.
Simplifies Hot Insertion Maintenance: Gold-plated connectors resist oxidation for reliable rack contact.
Reduces Host CPU Load: Onboard processor manages protocol parsing and collision detection independently.
FAQ
Q: What CPU does 51305430-100 use?
A: It uses an MC68040 processor with a 33 MHz clock speed.
Q: What is the onboard DRAM capacity of 51305430-100?
A: It is equipped with 32 MB high-speed DRAM.
Q: What processor type is 51305430-100?
A: Its hardware processor type is LCNP-4.
Q: What is the rated power supply of 51305430-100?
A: Its rated power supply is 24 VDC.
Q: What is the operating temperature range of 51305430-100?
A: The operating ambient temperature range is 0°C to +60°C.
