Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
51304540-200 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model |
51304540-200 |
|
Product Type |
LCNE2 Paddle Board |
|
Dimensions |
2 x 13.5 x 23.8 cm |
|
Weight |
0.24 kg |
|
Network Compatibility |
Local Control Network (LCN) |
|
Communication Type |
Fiber-optic communication |
|
Power Supply Voltage |
24 VDC |
|
I/O Capacity |
16 inputs / 8 outputs |
|
Operating Temperature (Fiber-optic Module) |
-40 °C to +85 °C |
|
Operating Temperature (Paddle Board) |
-20 °C to +60 °C |
Description

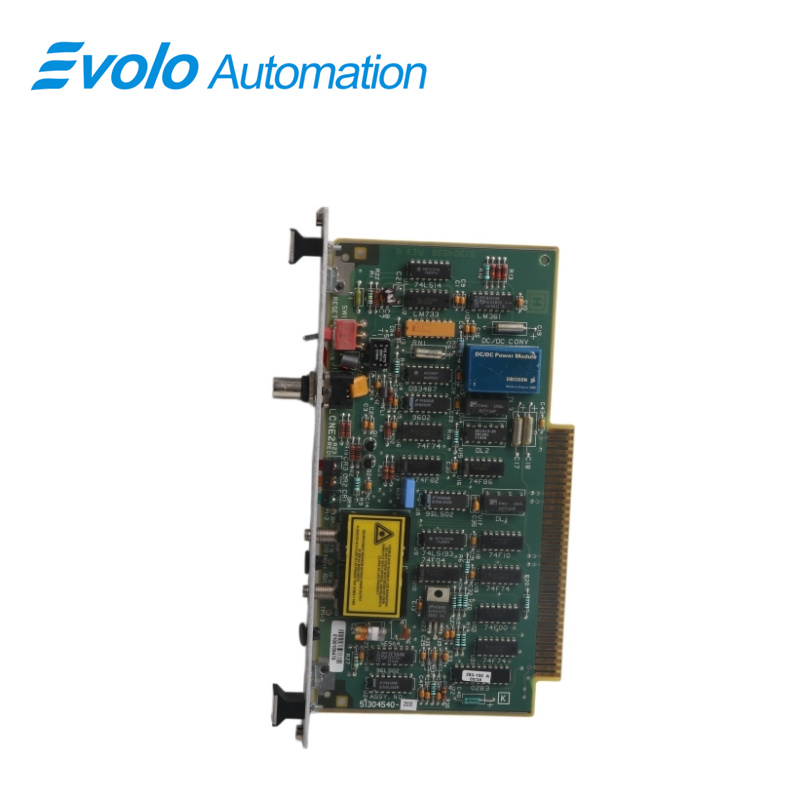

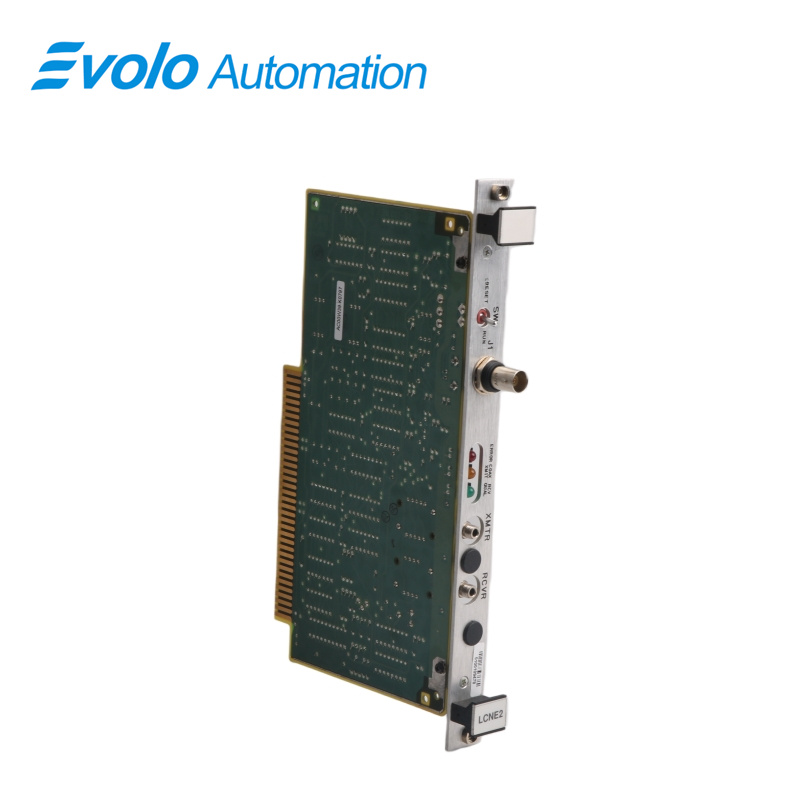

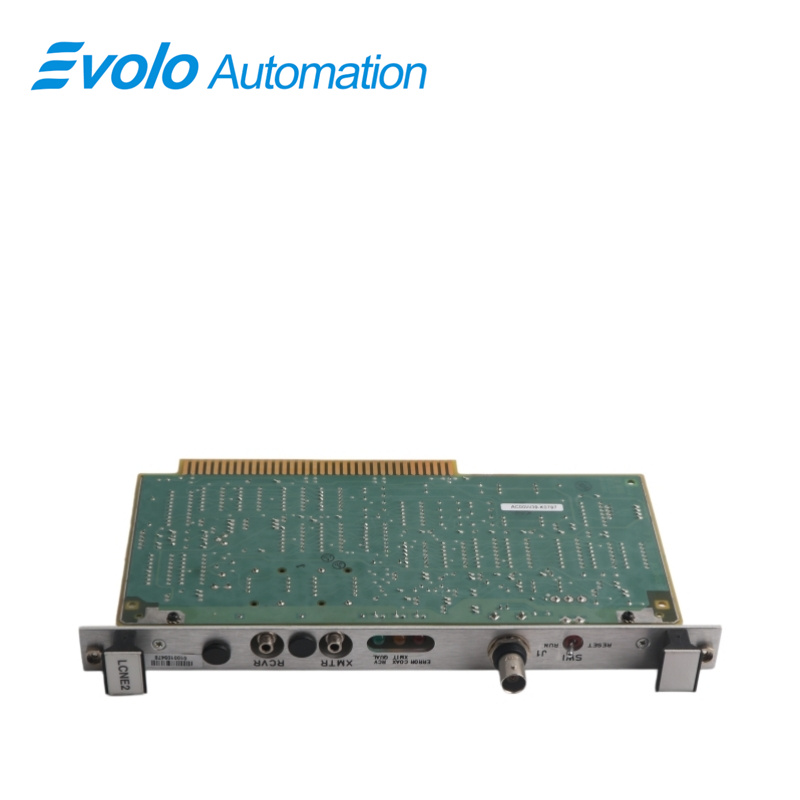

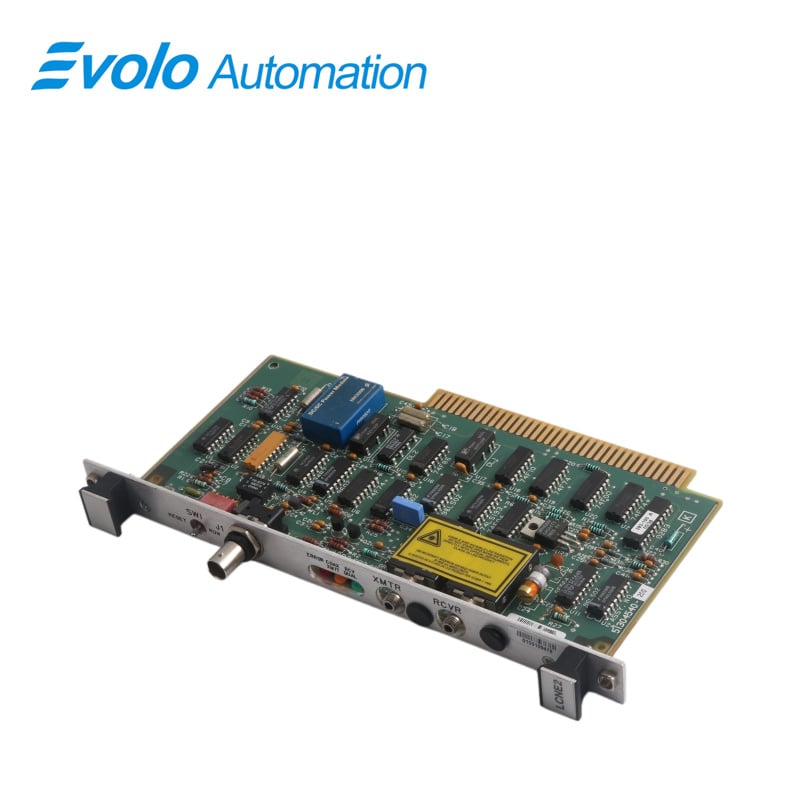

The Honeywell 51304540-200 is a LCNE2 Paddle Board for the TDC 3000 DCS, providing reliable high-speed data transmission over the Local Control Network(LCN) in industrial automation systems.
Applications
Oil & gas refinery: Links storage tank areas with central control via LCN fiber network.
Large thermal power plant: Ensures secure LCN communication near turbines and generators under strong EMI.
Coal handling and sampling plant: Provides signal linking and I/O control between dusty unloading docks and main control.
Fine chemical plant: Collects multi-point status signals from explosion-proof control boxes using instrument power supply.
Steel blast furnace plant: Transmits process data via fiber optics in high-temperature radiation zones.
Key physical characteristics of the -200 suffix
CE Compliance (CE Version): The -200 is an electrically redesigned, CE-marked, high-level adapter board. It features enhanced electromagnetic interference (EMI) immunity and low radiation characteristics, and maintains full backward compatibility with older, non-CE versions of the LCNE2.
FAQ
Q: What network environment is 51304540-200 designed for?
A: It is designed for a Local Control Network (LCN).
Q: What communication type does 51304540-200 use?
A: It uses fiber-optic communication.
Q: What is the power supply voltage of 51304540-200?
A: Its rated supply voltage is 24 VDC.
Q: What is the I/O capacity of 51304540-200?
A: It has 16 inputs and 8 outputs.
Q: What is the operating temperature range of the fiber module in 51304540-200?
A: The operating temperature range is -40°C to +85°C.
