Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
51304159-100 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model |
51304159-100 |
|
Product Type |
I/O Module (AM Redundancy) |
|
Dimensions |
22.3 × 14 × 2 cm |
|
Weight |
0.14 kg |
|
Voltage Range |
24 VDC |
|
Current Consumption |
0.1 A |
|
Number of Channels |
8 |
|
Operating Temperature Range |
-40°C to +85°C |
|
Protection Class |
IP67 |
Description

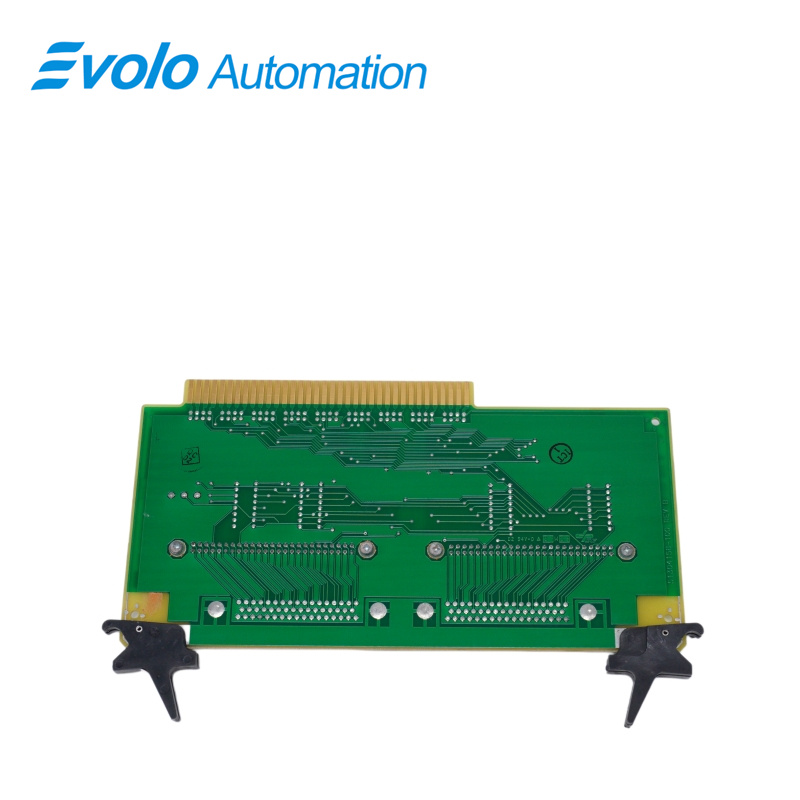

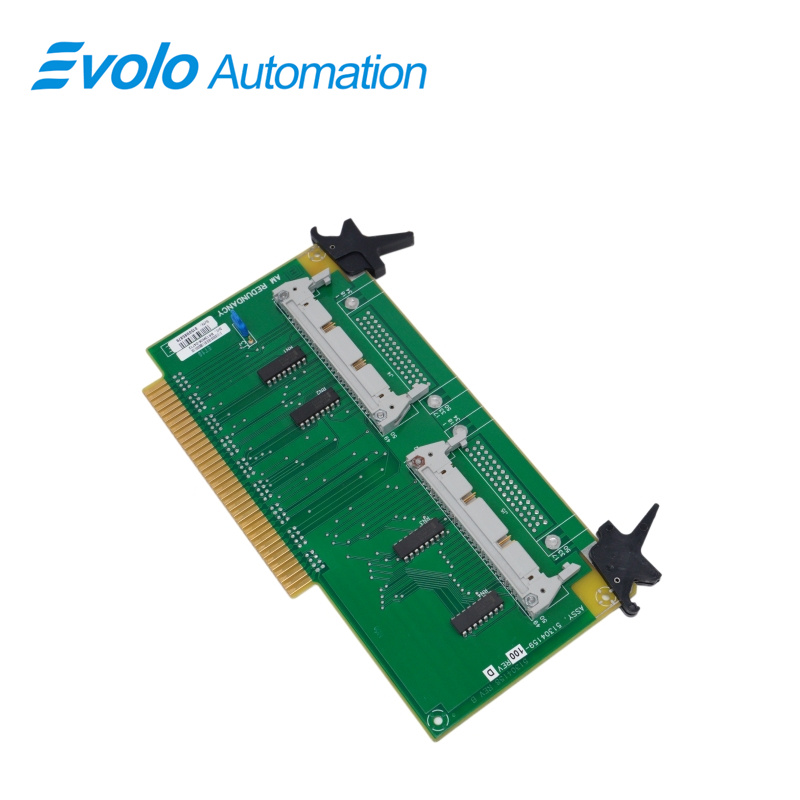

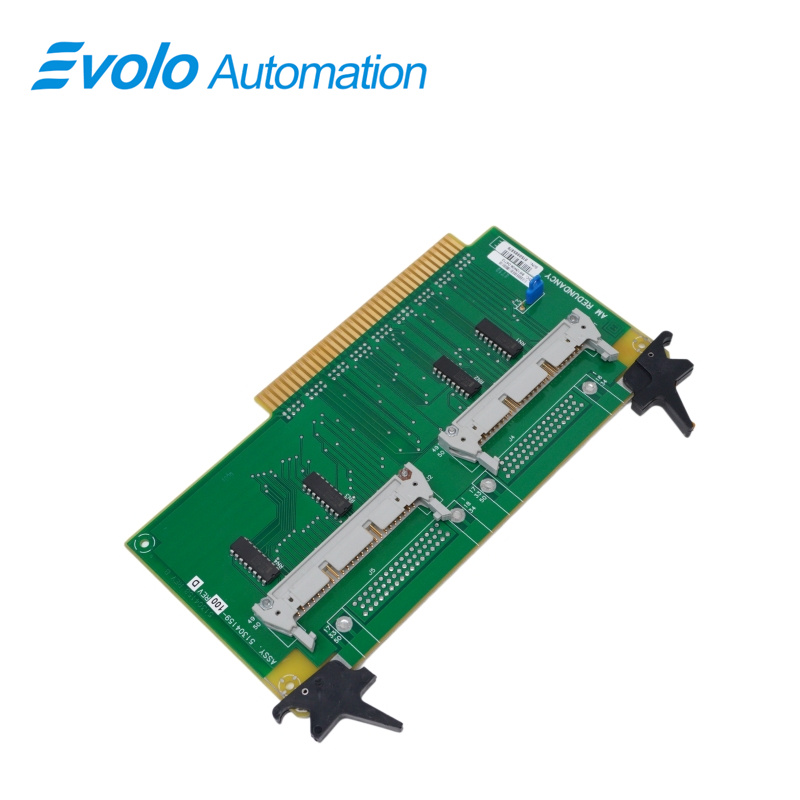

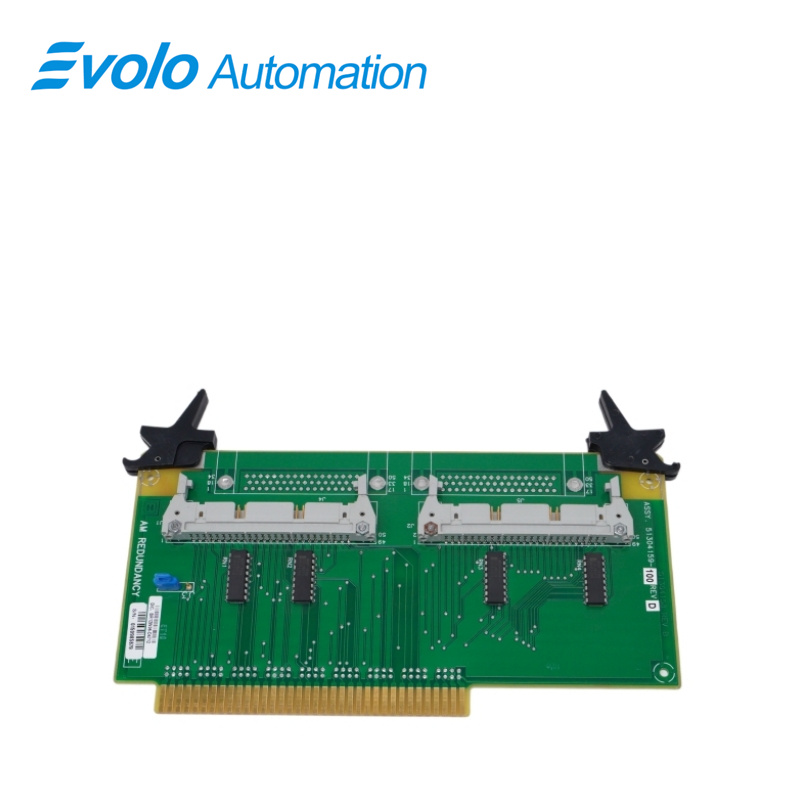

Honeywell's 51304159-100 is an I/O module. Its main function is to transmit data signals between the application processing box and the field input/output bus within the control network system. When the main operating board experiences a hardware power failure or signal interruption, it can automatically divert the signal to a backup channel to continue transmission, preventing data interruption on the production line.
Applications
Automotive Plants: Collect assembly line switch signals to control cylinders and indicators.
Semiconductor Plants: Receive micro-sensor signals to coordinate wafer handling robots.
Battery Plants: Monitor kiln temperature and pressure to control heating elements.
Chemical Plants: Read valve status in hazardous zones and drive solenoid switching.
Pharmaceutical Plants: Link tank level sensors to control material transfer pumps.
Troubleshooting
Redundancy Switching Issue: Check primary/backup links and heartbeat sync; clean interfaces.
Channel No Signal: Verify 24VDC input and tighten terminal connections.
Power Failure: Measure current vs 0.1A; if voltage is normal, internal power chip may be damaged.
FAQ
Q: What is the operating voltage range of 51304159-100?
A: Its normal operating voltage range is 24 VDC.
Q: What is the current consumption of 51304159-100?
A: Its normal operating current consumption is 0.1 A.
Q: How many channels does 51304159-100 have?
A: It is equipped with 8 channels.
Q: What is the operating temperature range of 51304159-100?
A: The operating ambient temperature range is -40°C to +85°C.
Q: What protection rating does 51304159-100 achieve?
A: Its enclosure protection rating is IP67.
