Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
51202343-001 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model |
51202343-001 |
|
Product Type |
Power Supply Status Indication Cable |
|
Dimensions |
24 × 24 × 3 cm |
|
Weight |
0.22 kg |
|
Length |
12 ft |
|
Material |
High-grade durable copper alloy |
|
Connector Type |
Industry-standard modular plug |
|
Operating Temperature Range |
-20°C to +60°C |
|
Rated Voltage |
300 V |
|
Standards |
UL AWM 2576 / CMG (flame-retardant industrial cable) |
|
Drop Points |
4 |
Description

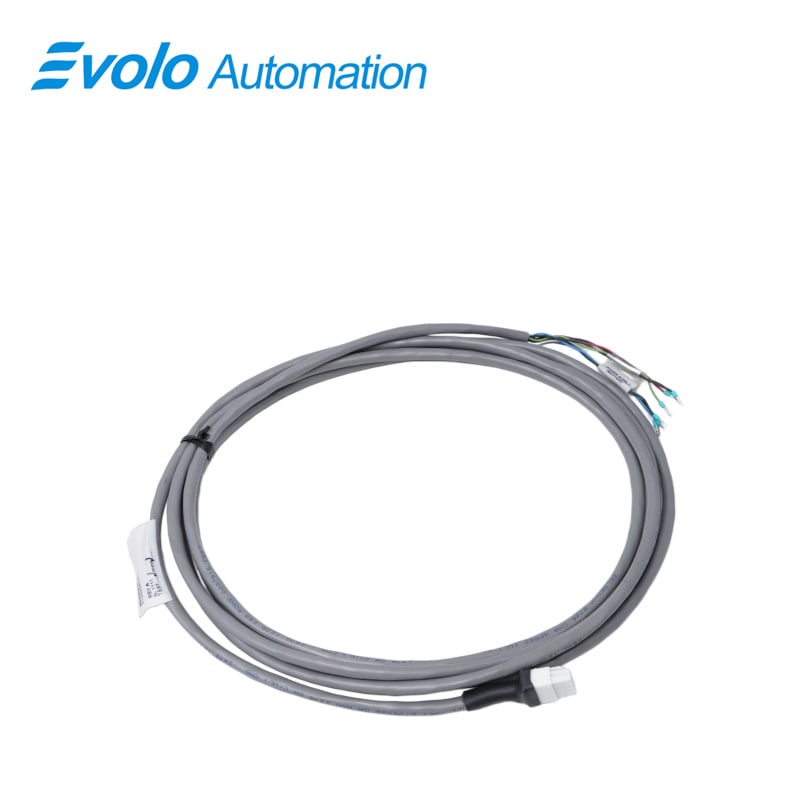

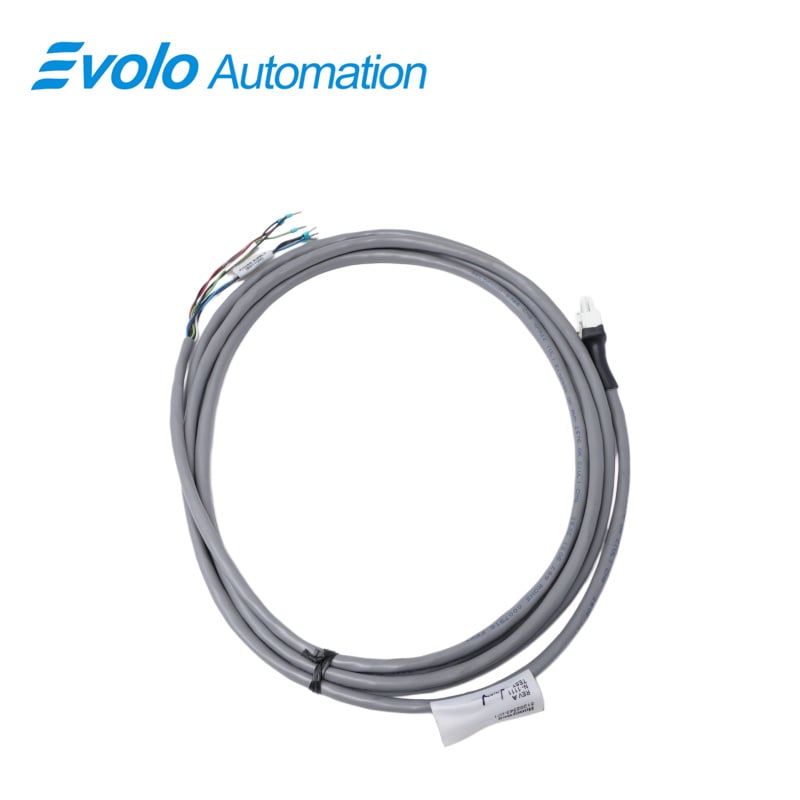

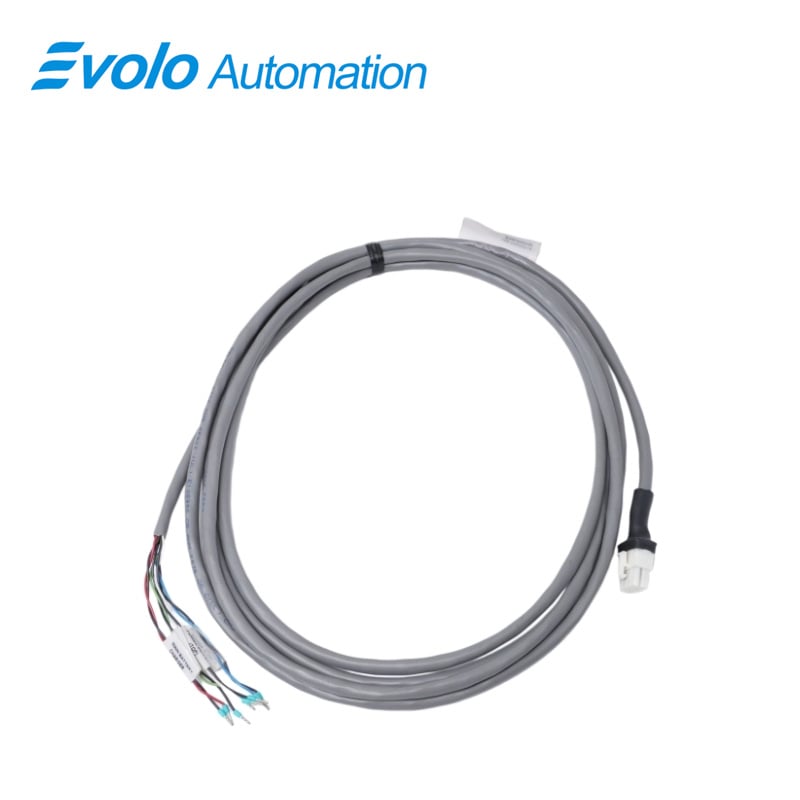

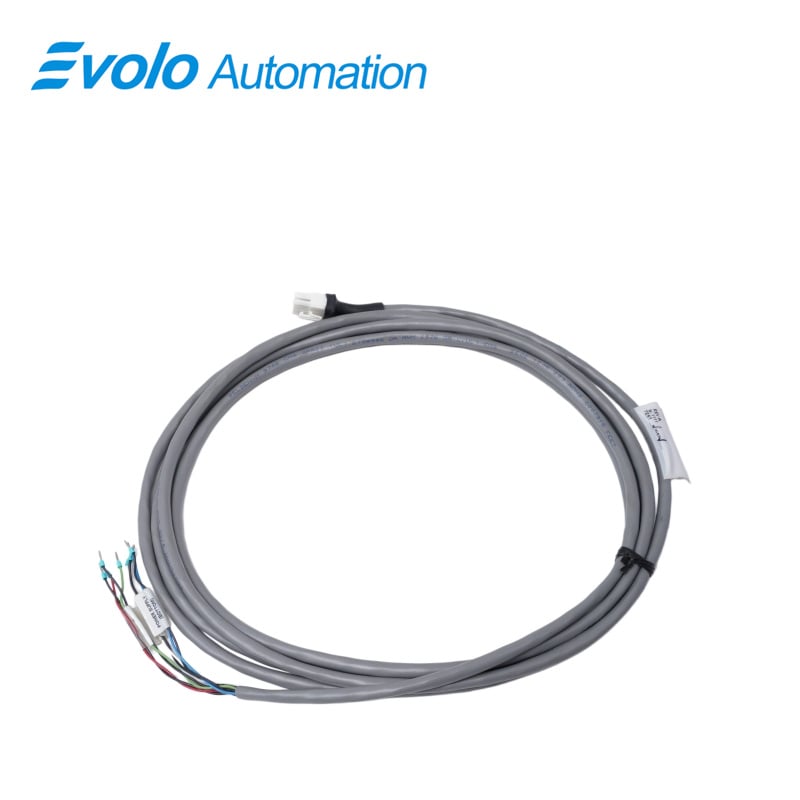

The Honeywell 51202343-001 is a Power Supply Status Indication Cable for the Experion PKS Series C system. This cable connects the fault alarm dry contacts (such as power failure, fan failure, over-temperature, etc.) of the DC power supply unit to the 24V DC digital input (DI) input/output module (IOM) of the Series C.
Applications
Semiconductor Plants: Provide high-voltage isolation to protect sensitive chip power systems from surge damage.
Automotive Electronics: Support long-distance signal transmission between overhead cabinets and PLC units.
Chemical Plants: Use flame-retardant multi-core materials for safe control room deployment.
Smart Warehousing: Enable vibration-resistant status feedback for high-speed conveyors and stackers.
Heavy Machinery: Use modular industrial connectors for fast plug-and-play maintenance.
Troubleshooting
Status Issues: Check modular plug for dust/oil; clean and secure clips.
Voltage Crosstalk: Inspect cable for damage; replace if insulation structure is compromised.
Cold-Start Failure: Ensure temperature is above -20°C to maintain proper contact performance.
FAQ
Q: What is the physical length of 51202343-001?
A: Its physical length specification is 12 feet (ft).
Q: What is the operating temperature range of 51202343-001?
A: The operating ambient temperature range is -20°C to +60°C.
Q: What is the rated voltage of 51202343-001?
A: Its rated voltage is 300 V.
Q: Which cable standards does 51202343-001 comply with?
A: It complies with UL AWM 2576 and CMG flame-retardant industrial cable standards.
Q: How many drop points does 51202343-001 have?
A: It has 4 drop points.
