Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
51202329-616 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model |
51202329-616 |
|
Product Type |
I/O Link Violet Header Cable |
|
Dimensions |
37 × 1.6 × 4 cm |
|
Weight |
0.08 kg |
|
Drops |
6 Drops |
|
Channels |
3 Channels / Ext IOL2 |
|
Color |
Violet (Yellow label, Cable A) |
|
Wire Gauge |
22 AWG |
|
Conductor Material |
High-grade copper |
|
Cable Type |
Twisted pair with foil shielding |
|
Shielding |
Braided copper shield + aluminum foil shielding |
|
Insulation Material |
PVC |
|
Operating Temperature Range |
-40°C to +70°C |
Description

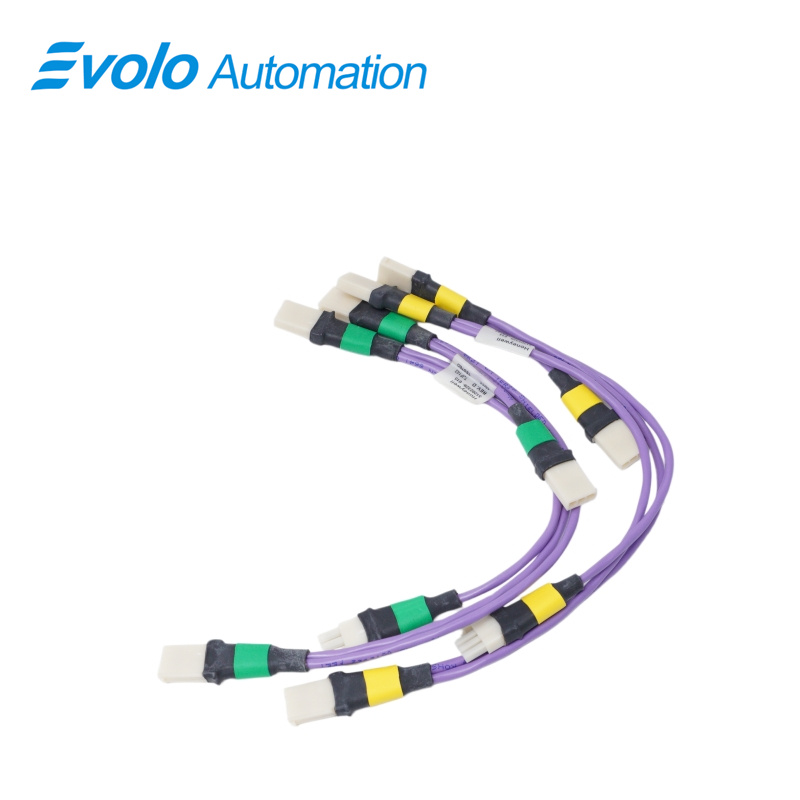

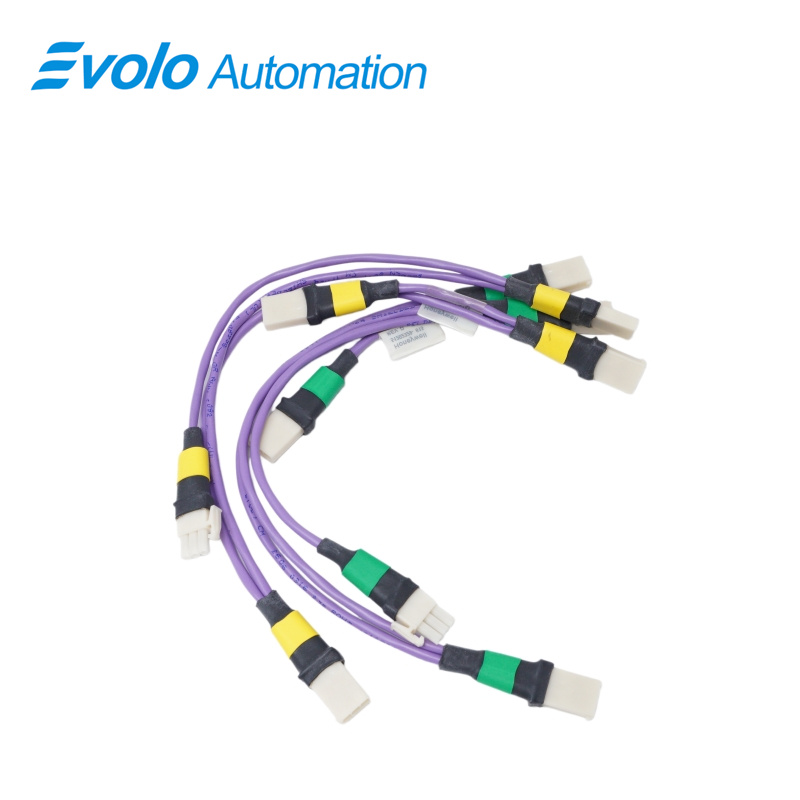

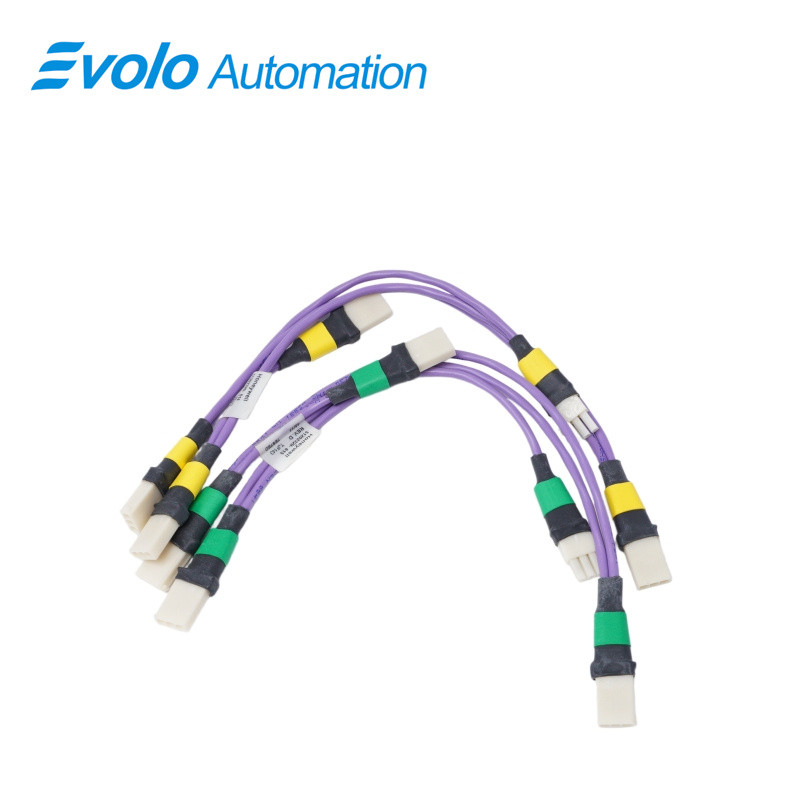

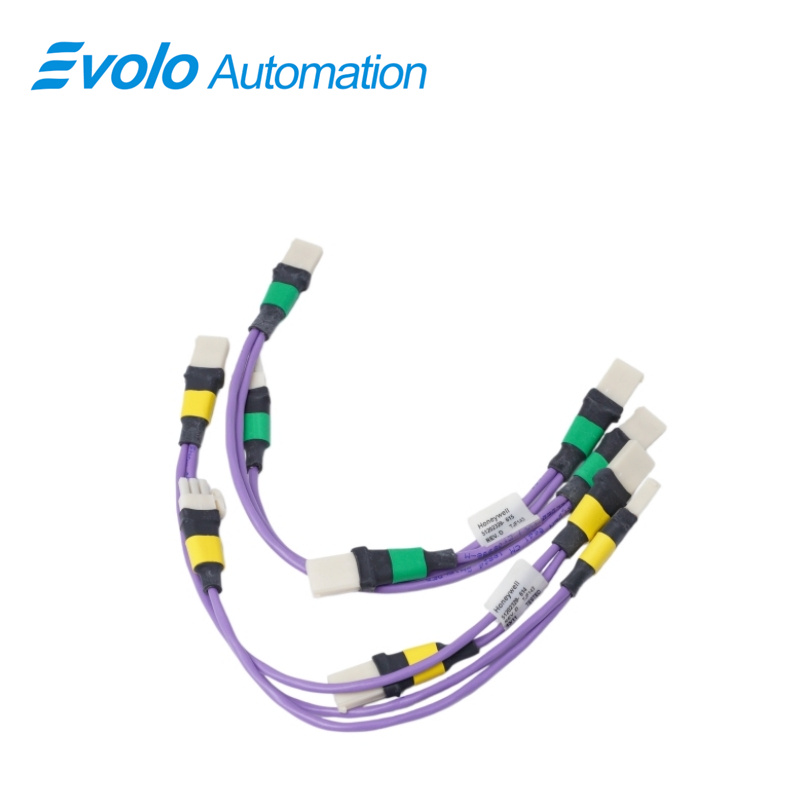

Honeywell 51202329-616 is an I/O Link Violet Header Cable, belonging to the second signal transmission cable package in the Series C system. Its main function is to connect the main controller to multiple input/output interface boards arranged horizontally in the mounting slot, allowing control signals and operational status data of various machines in the field to be transmitted back and forth between these electronic components. It can also be connected to other similar cables to extend the cabling range.
Applications
Textile & Dyeing Plants: Use color-coded cable jackets for easy identification and stable multi-station control.
Heavy Machinery Plants: Dual shielding protects signals from strong electromagnetic interference.
Paper & Printing Plants: Multi-drop design supports distributed multi-point automation systems.
Semiconductor Plants: Enables multi-channel signal acquisition for high-precision testing equipment.
Chemical & Fertilizer Plants: Durable industrial insulation resists corrosion and ensures stable operation in harsh environments.
Maintenance Recommendations
Branch Tension Check: Conduct regular inspections of the cabling at all 6 branches (drops) to ensure each node has sufficient stress relief margin to prevent joint deformation.
Label Clarity Maintenance: Regularly clean the yellow labels at the branches to ensure that markings such as "cable A" are clearly visible for easy maintenance and troubleshooting.
Ambient Temperature Monitoring: Ensure that the extreme temperature range of the cable deployment area does not exceed the rated range of -40°C to +70°C to prevent accelerated material aging.
FAQ
Q: How many drops does 51202329-616 have?
A: This model has 6 drop channels.
Q: How many channels does 51202329-616 have?
A: It has 3 channels (Extended IOL2).
Q: What is the wire gauge of 51202329-616?
A: It uses 22 AWG wire.
Q: What material is the conductor of 51202329-616 made from?
A: The conductor is made of high-grade copper.
Q: What is the operating temperature range of 51202329-616?
A: The operating temperature range is -40°C to +70°C.
