51201557-150 Standard I/O Link Extender Coupler, China 51201557-150 Standard I/O Link Extender Coupler Manufacturers, Suppliers, Factory

Overview

Place of Origin:	USA
Brand Name:	HONEYWELL
Model Number:	51201557-150
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Model	51201557-150
Product Type	Standard I/O Link Extender Coupler
Dimensions	3 × 11 × 11.2 cm
Weight	0.18 kg
Input Voltage	24 VDC
Input Current	500 mA
Output Voltage	24 VDC
Output Current	500 mA
Communication Interface	RS-485
Operating Temperature	-10°C to +60°C
Protection Class	IP20
Mounting Type	Panel Mount
Certifications	CE; RoHS
Coat	Conformal Coated
Interface	Fiber Optic

Description

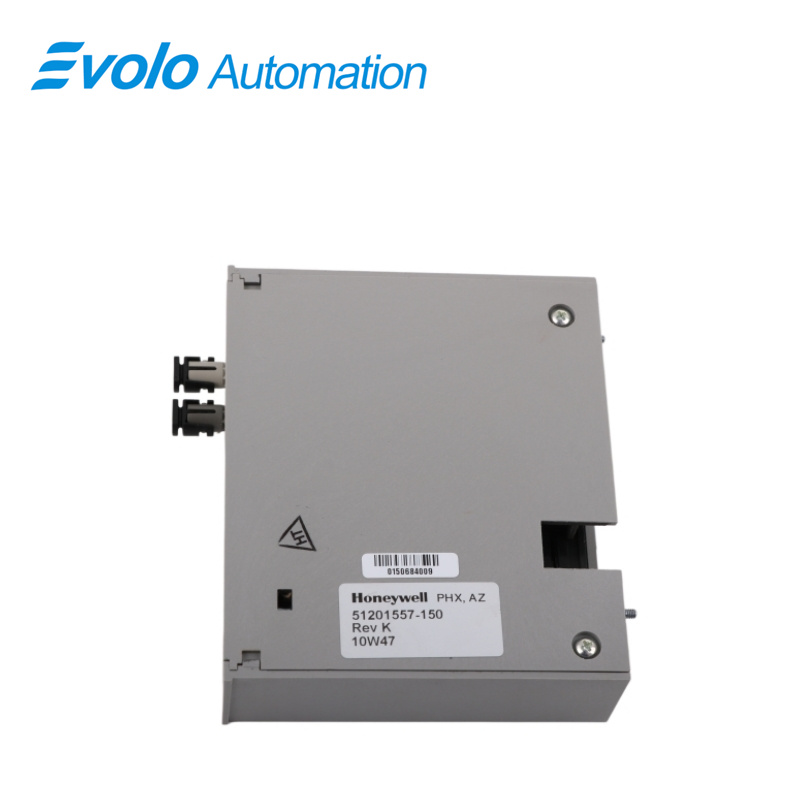

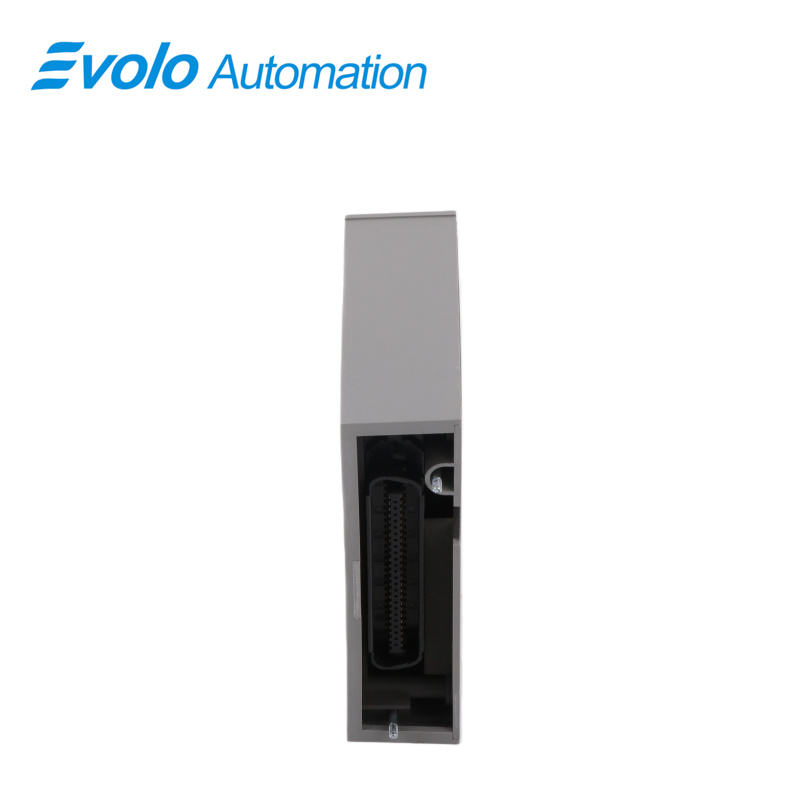

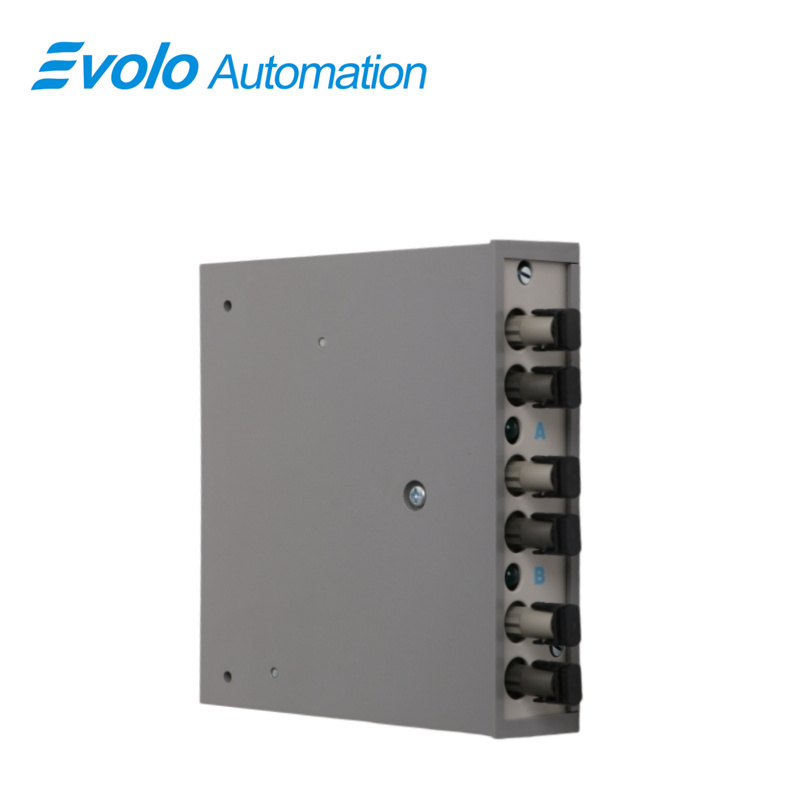

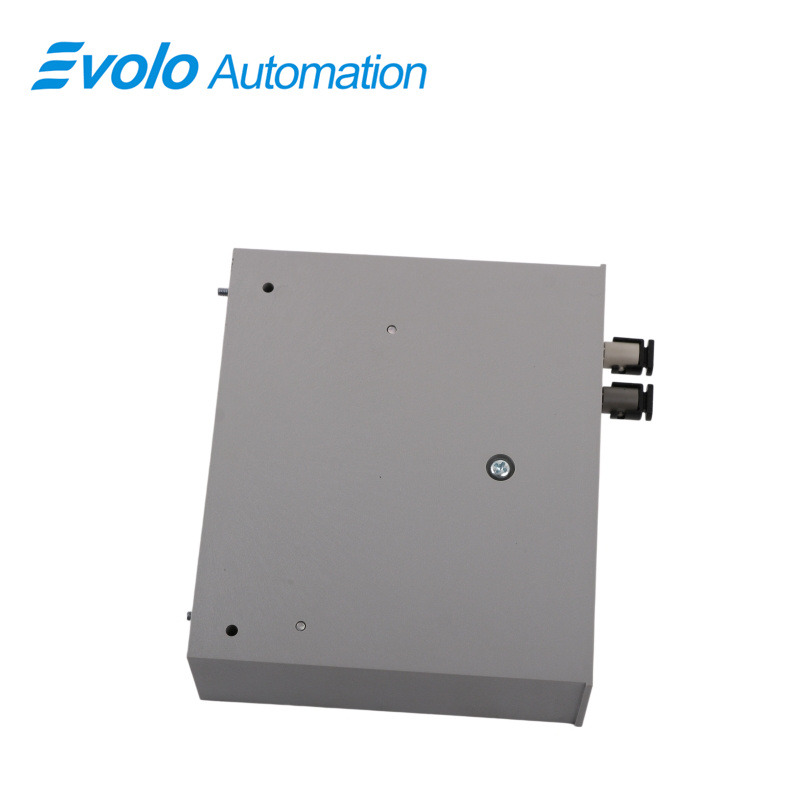

The 51201557-150 is a Standard I/O Link Extender Coupler. The coupler provides the ability to locate 7-Slot or 15-Slot IOP card files and associated FTAs up to 8 kilometers (5 miles) from the HPMM(s). The connection is made using a pair of fiber optic transmission cables, driven and terminated by a fiber optic coupler that mates with the connector located directly below the card file slot in which the I/O Link Extender card is installed.

Applications

Petrochemical Plants: Connect control room and remote cabinets with EMI-resistant fiber links.

Power Plants: Enable long-distance communication between control room and distributed I/O systems.

Steel Plants: Provide high-speed, interference-free fiber connections for furnace and casting areas.

Cement Plants: Extend signals between crushers, mills, and kiln control cabinets.

Pulp Plants: Ensure corrosion-resistant fiber communication in humid environments.

Features

1.Two I/O Link Extender cards and their associated Fiber Optic Coupler modules are required at each end of the I/O link extension, one for Link A and one for Link B.

2.This Fiber Optic Coupler module is Conformal Coated and provides attachment for one fiber optic set of cables at the local card file. A second Fiber Optic Coupler module terminates a single optic cable at the remote IOP card file.

3.There can be a mix of Standard and Long Distance I/O Link Extenders in a subsystem; however, both ends of the 'A' and 'B' links must be the same type.

FAQ

Q: What is the main function of the 51201557-150 I/O link module in industrial systems?
A: Combines extender and fiber optic coupling for long-distance I/O signal transmission.

Q: What is the power input requirement for the 51201557-150 module?
A: 24VDC supply with 500mA rated current.

Q: What mounting method does the 51201557-150 controller use?
A: Secure panel/door mount design for vibration-heavy environments.

Q: How does the 51201557-150 prevent data distortion in high EMI areas?
A: Uses fiber optic isolation to block electromagnetic interference at the physical layer.

Q: What are the output and operating conditions of the 51201557-150 link coupler?
A: 24VDC 500mA relay output, operating in a wide industrial temperature range.
