Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
51199929-100 SPS5710 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model |
51199929-100 SPS5710 |
|
Product Type |
Power Supply Module |
|
Dimensions |
5 × 16.5 × 34.2 cm |
|
Weight |
2.14 kg |
|
Input Voltage |
100–240 VAC (47–63 Hz) or 125 VDC (85–264 VAC / 90–300 VDC range) |
|
Output Voltage |
24 VDC (adjustable 22–28 VDC) |
|
Rated Power |
~750–1000 W |
|
Maximum Output Current |
~30–40 A (single module) |
|
Redundancy Mode |
N+1 redundant parallel operation with automatic current sharing |
|
Cooling Method |
Forced air cooling (built-in temperature-controlled fan) |
|
Operating Temperature |
0°C to +60°C |
|
Storage Temperature |
-40°C to +85°C |
|
Protection Class |
IP20 (cabinet installation) |
|
Status Indicators |
AC OK (Green); DC OK (Green); Fault (Red); Fan Fail (Yellow/Red) |
|
Alarm Output |
Form C relay output (optional) |
|
Certifications |
UL, CSA, CE, TÜV; IEC 61131-2; NEBS compliant |
|
Mounting Type |
19-inch rack modular (half-width or full-width, 3U/4U typical) |
Description

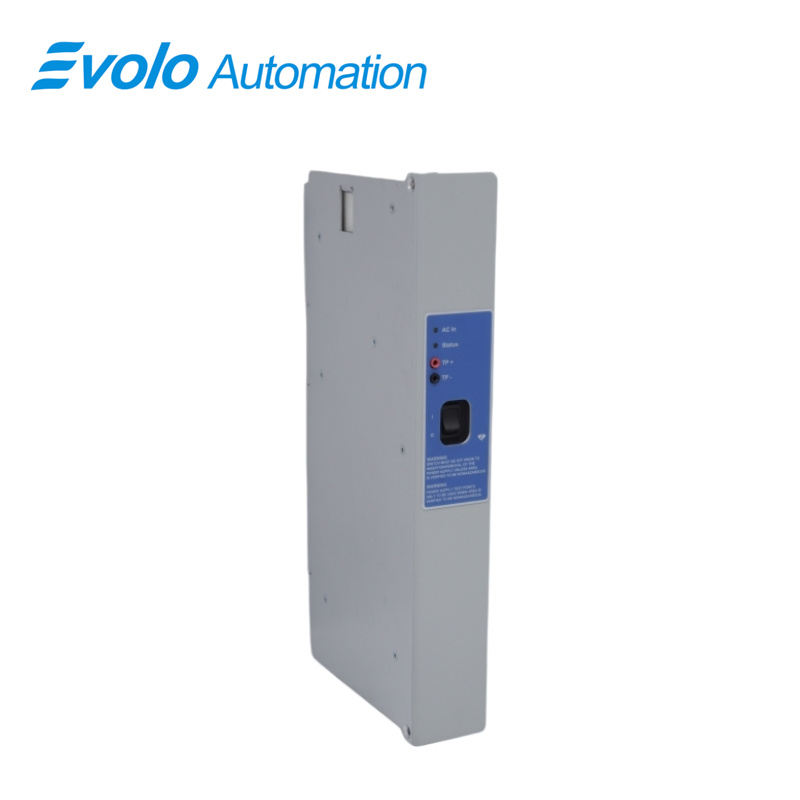

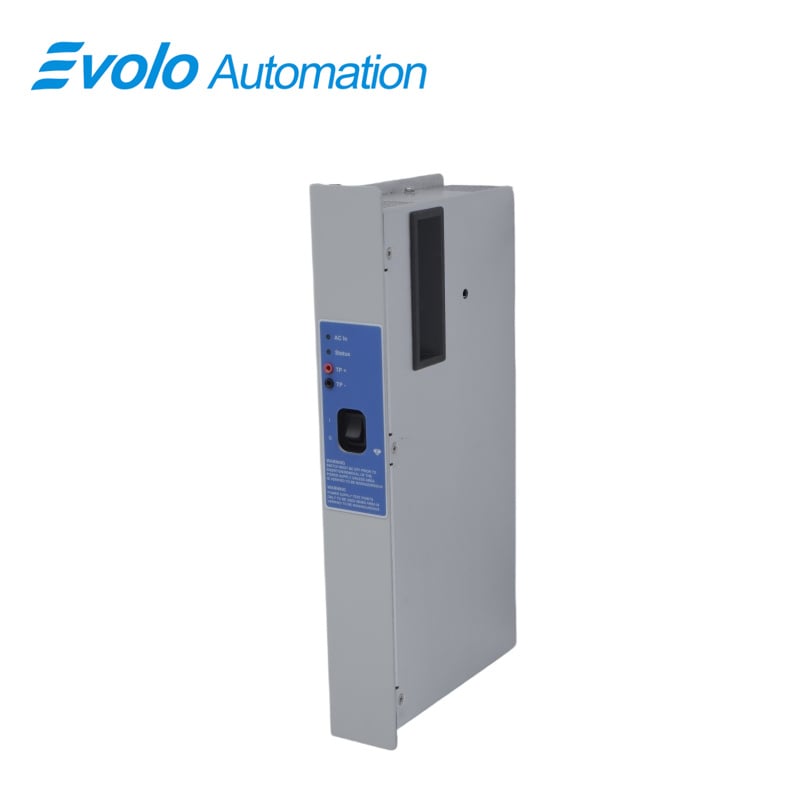

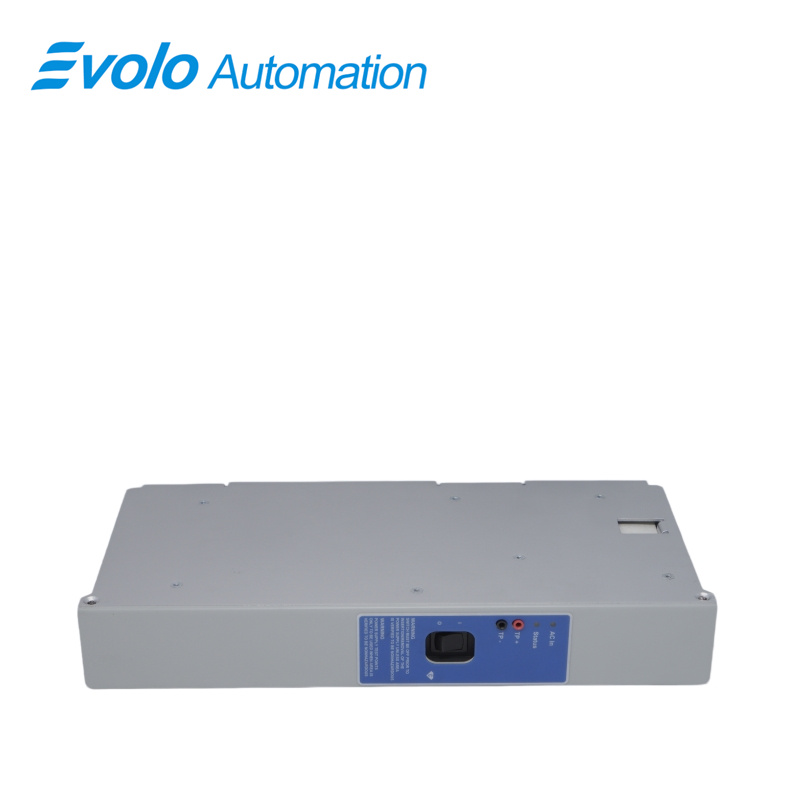

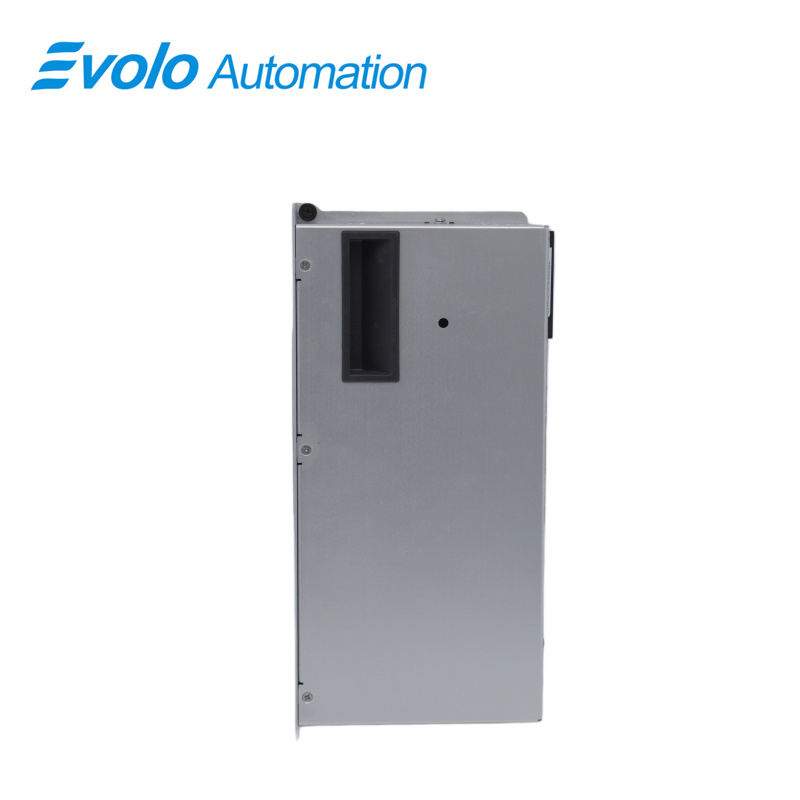

The 51199929-100 SPS5710 is a power supply module part of Honeywell's Series SPS power supply family. Its main function is to provide a stable and continuous power output to the various electronic components in the control box and the connected field instruments. It is connected to the external power grid and converts unusable electrical energy into low-voltage DC power required by the internal components.
Applications
Petrochemical Plants: Provide stable low-voltage DC power for DCS controllers and I/O modules.
Power Plants: Ensure continuous power for boiler and turbine control circuits in main cabinets.
Steel Plants: Supply reliable power for blast furnace and converter control modules in harsh cabinets.
Cement Plants: Provide isolated power for fieldbus gateways and processors in kiln control systems.
Features
Stable Dc output: Provides regulated 12.5 VDC for controllers and I/O modules
High Reliability: Industrial-grade design for continuous operation
Safety Certified: Meets UL and ULC standards for electrical safety
Compact Design: Fits into Honeywell C300 racks with ease
Industrial Applications: Power plants, petrochemical, refining, and manufacturing automation
Customer Value & Pain Points
Eliminate single-point failure, ensure continuity
In petrochemical and power industries, outages can cause major losses or safety risks. The 51199929-100 SPS5710 uses N+1 redundancy to remove single-point failure risk. Even if one module fails, the system keeps running with hot-swap support and high availability.
Wide voltage tolerance, stable under fluctuation
In weak grids, voltage instability often causes shutdowns. The 51199929-100 SPS5710 supports wide input range and strong surge resistance, maintaining stable output during dips or spikes and preventing resets.
FAQ
Q: What is the input voltage range of 51199929-100 SPS5710?
A: The input voltage supports 100–240 VAC (47–63 Hz) or 125 VDC (allowable range 85–264 VAC / 90–300 VDC).
Q: What is the output voltage of 51199929-100 SPS5710?
A: The rated output voltage is 24 VDC, adjustable between 22–28 VDC.
Q: What cooling method does 51199929-100 SPS5710 use?
A: It uses forced air cooling via a built-in temperature-controlled fan.
Q: What is the operating temperature range of 51199929-100 SPS5710?
A: The operating ambient temperature range is 0°C to +60°C.
Q: What mounting method does 51199929-100 SPS5710 use?
A: It uses 19-inch rack modular installation.
