3VTVZ590CD001 IS200ERBPG1ACA Exciter Regulator Backplane, China 3VTVZ590CD001 IS200ERBPG1ACA Exciter Regulator Backplane Manufacturers, Suppliers, Factory

Overview

Place of Origin:	USA
Brand Name:	GE
Model Number:	3VTVZ590CD001 IS200ERBPG1ACA
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Part Number	3VTVZ590CD001 IS200ERBPG1ACA
Product Type	Exciter Regulator Backplane
Dimensions	33.5×23.3×1.7 cm
Weight	0.54 kg
Channels	12 channels
Input Span	4–20 mA
Common Mode Voltage Range	±5 V
Maximum Lead Resistance	15 Ω
Analog Output Current	0–20 mA
Operating Temperature Range	-30°C to +65°C

Description

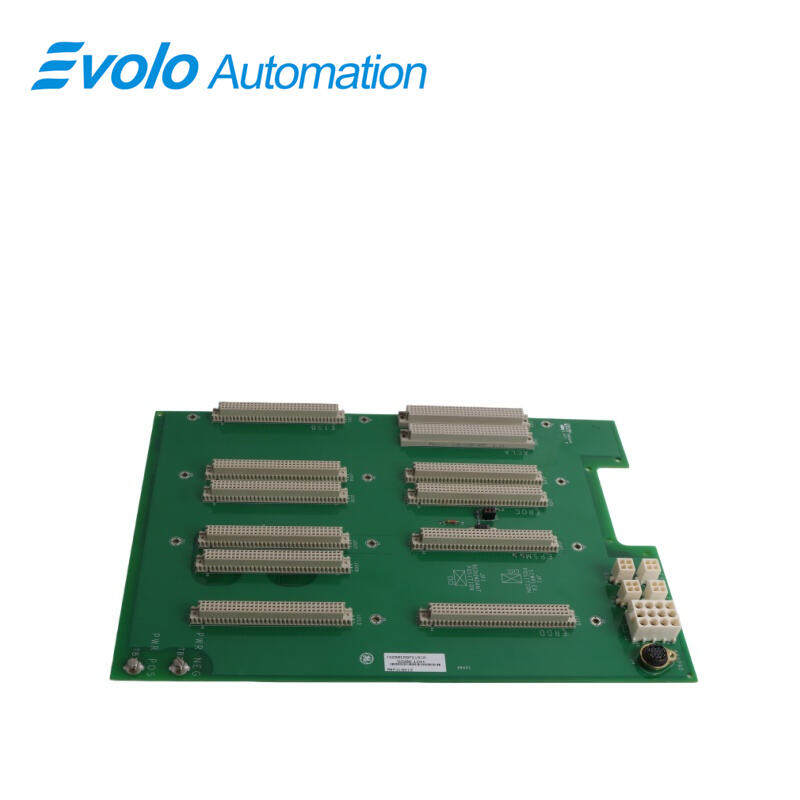

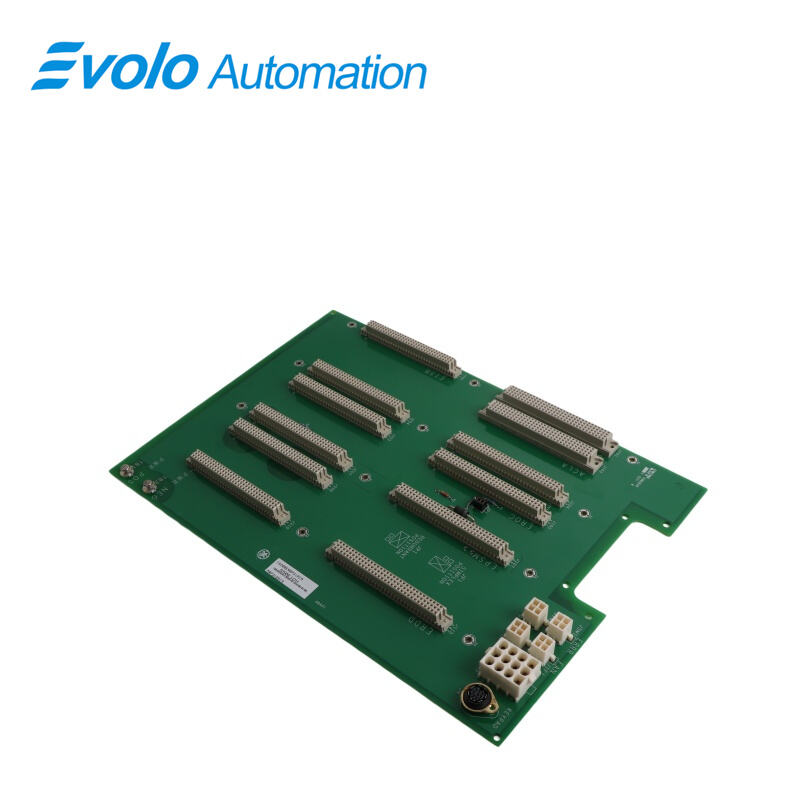

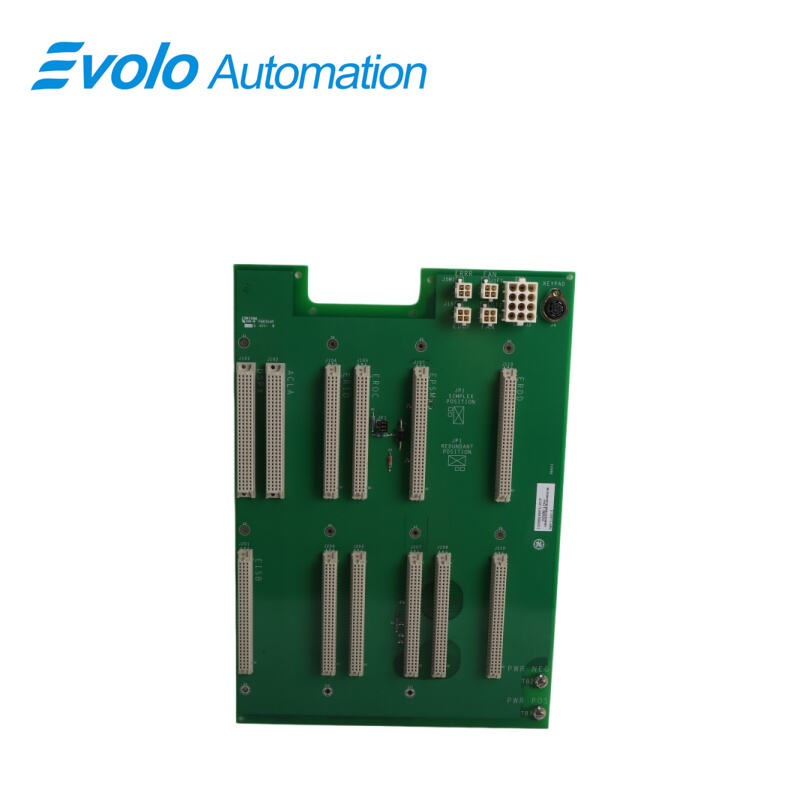

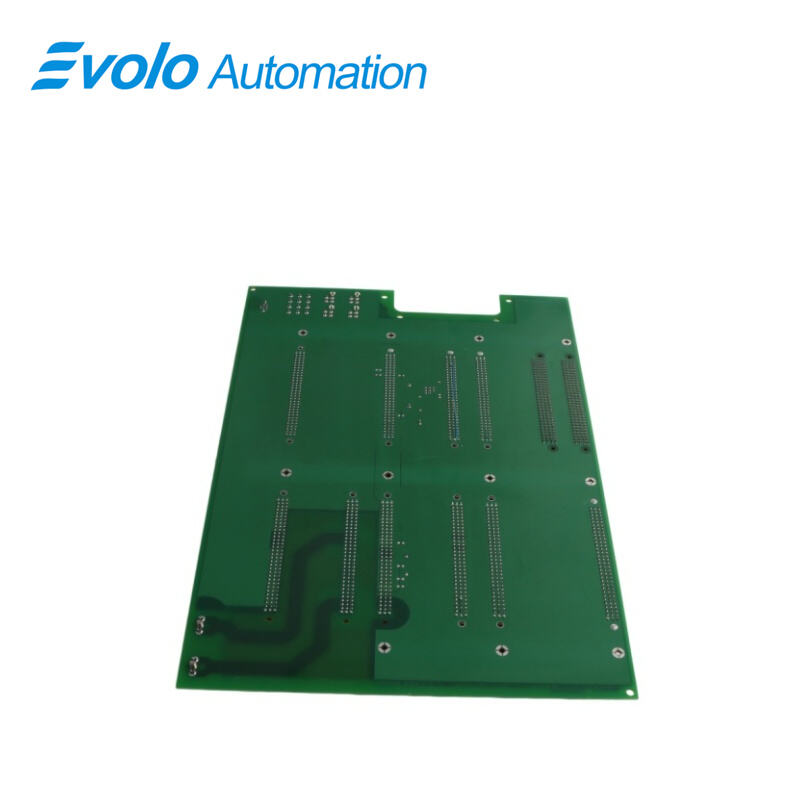

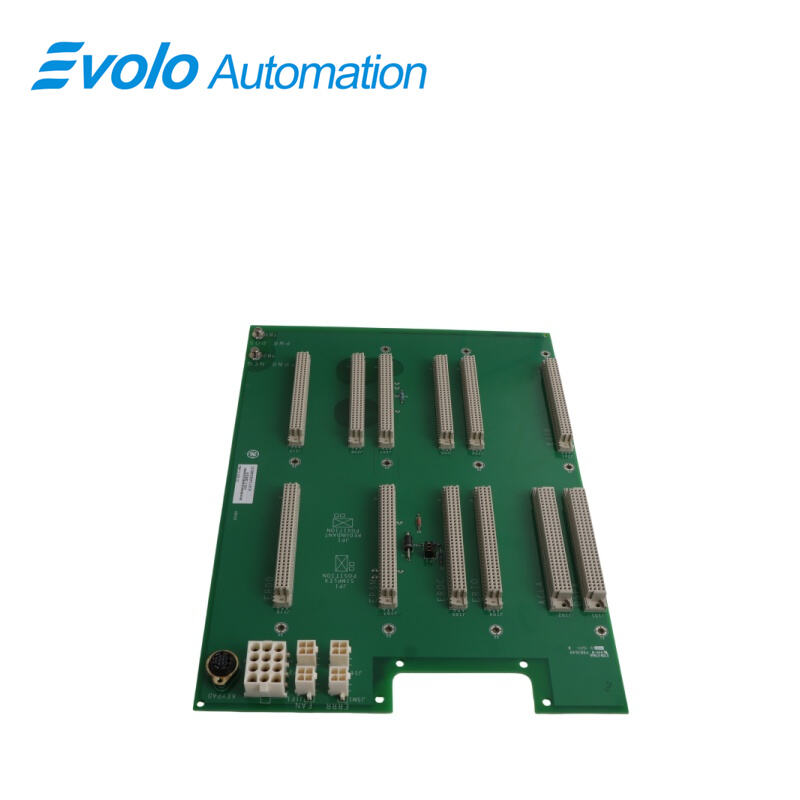

3VTVZ590CD001 IS200ERBPG1ACA is an Exciter Regulator Backplane manufactured and designed by General Electric as part of the EX2100 Series used in GE Excitation Control Systems. The ERBP provides connectivity between all printed circuit boards mounted within it.Power connectors are provided on the front for other external boards that it supports and for fan power output.

Applications

Thermal power plants: Deployed in the generator excitation control cabinet, responsible for collecting rotor current and voltage feedback signals, and achieving precise excitation regulation through 12 channels.

Heavy machinery manufacturing plants: Used in the excitation drive system of large synchronous motors, coordinating reactive power compensation during the start-up and shutdown of high-power loads.

Nuclear power plants: As a highly reliable component of the control system, utilizing high isolation performance to ensure data exchange in the excitation circuit under extremely stringent safety standards.

FEATURES

Control Interfaces: The backplane often includes various control interfaces such as analog inputs, digital inputs, and outputs to interface with external control systems or sensors.

Communication Ports: Modern backplanes may include communication ports such as RS-485, Ethernet, or Modbus for communication with supervisory control and data acquisition (SCADA) systems or other monitoring devices.

Power Supply: It typically includes a power supply section to provide power to the exciter system components and possibly auxiliary systems.

Protection Circuits: Backplanes often incorporate protection circuits to safeguard the exciter system and the generator from overvoltage, overcurrent, and other faults.

Monitoring and Diagnostics: Some backplanes feature built-in monitoring and diagnostic capabilities to allow operators to track the performance of the excitation system and diagnose any issues that may arise.

FAQ

Q: What is an exciter regulator backplane 3VTVZ590CD001 IS200ERBPG1ACA?

A: An exciter regulator backplane is a core component of a generator excitation system, serving as a central hub for control and regulation to ensure stable generator operation.

Q: What is the role of the exciter regulator backplane 3VTVZ590CD001 IS200ERBPG1ACA?

A: It connects system components, integrates control signals, distributes power, and provides protection plus monitoring and diagnostics functions.

Q: What components are typically found on an exciter regulator backplane 3VTVZ590CD001 IS200ERBPG1ACA?
A: It includes control interfaces, communication ports, power supplies, protection circuits, diagnostics, redundancy design, modular structure, compatibility features, remote control, and user interfaces.

Q: Why does the 3VTVZ590CD001 IS200ERBPG1ACA limit maximum lead resistance to 15Ω?
A: To avoid signal distortion caused by voltage drop in long-distance transmission, ensuring accurate 4–20 mA measurement stability.

Q: In cold regions, does the 3VTVZ590CD001 IS200ERBPG1ACA require preheating before winter operation?
A: No. It supports cold start and continuous operation down to -30°C, suitable for low-temperature excitation environments.
