Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
3500/92 136180-01+136188-02 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Product Name |
3500/92 136180-01 + 136188-02 |
|
Type |
Communication Gateway |
|
Dimensions |
2.5x25x24 cm |
|
Weight |
0.82 kg |
|
Operating Temperature |
-30°C to +65°C |
|
Storage Temperature |
-40°C to +85°C |
|
Humidity |
95% non-condensing |
|
Rack Space Requirement |
1 full-height rear slot |
|
Power Consumption (Modbus RS232/RS422) |
5.0 W typical (with RS232/RS422 I/O module) |
|
Power Consumption (Modbus RS485) |
5.6 W typical (with RS485 I/O module) |
|
Front Panel OK LED |
Indicates normal operation |
|
Front Panel TX/RX LED |
Indicates communication with 3500 rack modules |
|
BNCHost Protocol |
Ethernet TCP/IP communication with 3500 configuration and data acquisition software |
|
Modbus Protocol |
Based on AEG Modicon PI-MBUS-300; RTU transmission mode |
|
Ethernet Communication |
10 Mbps, IEEE 802.3 compliant |
|
Ethernet Protocol |
Ethernet TCP/IP and Modbus/TCP |
|
Ethernet Connector |
RJ-45 (10BASE-T) |
Description

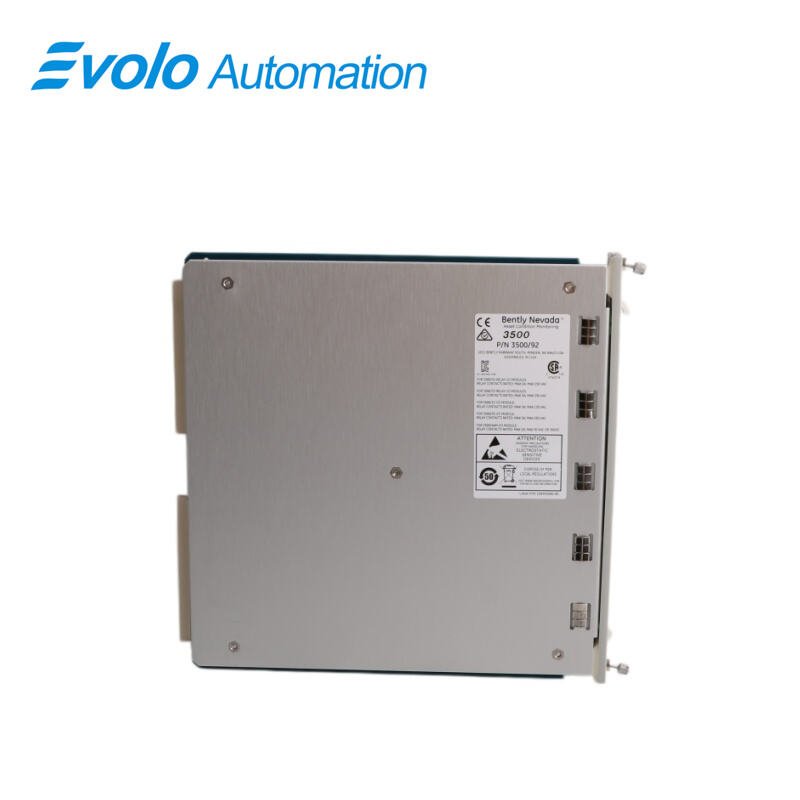

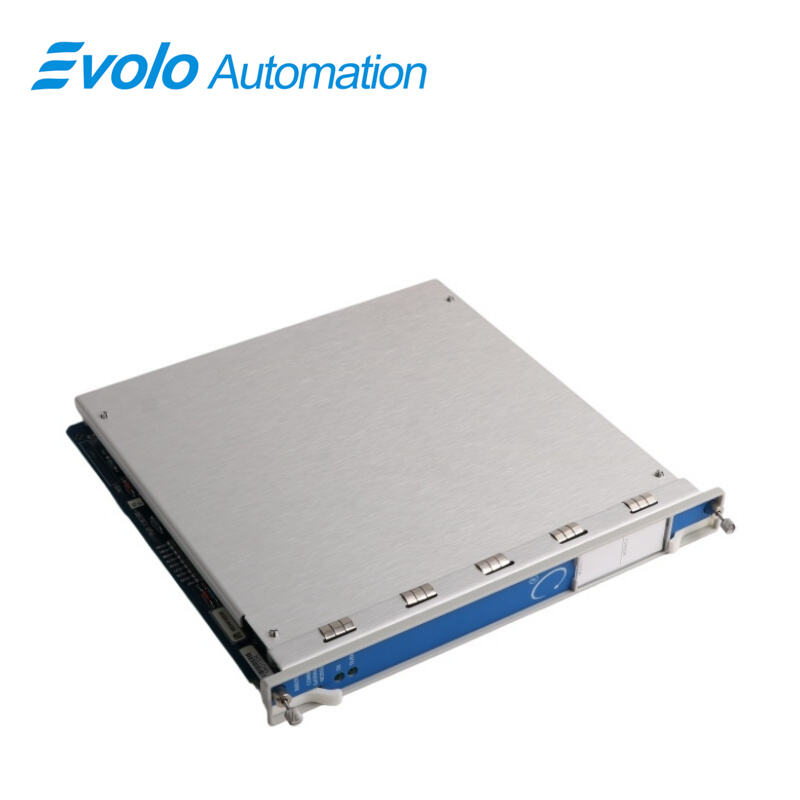

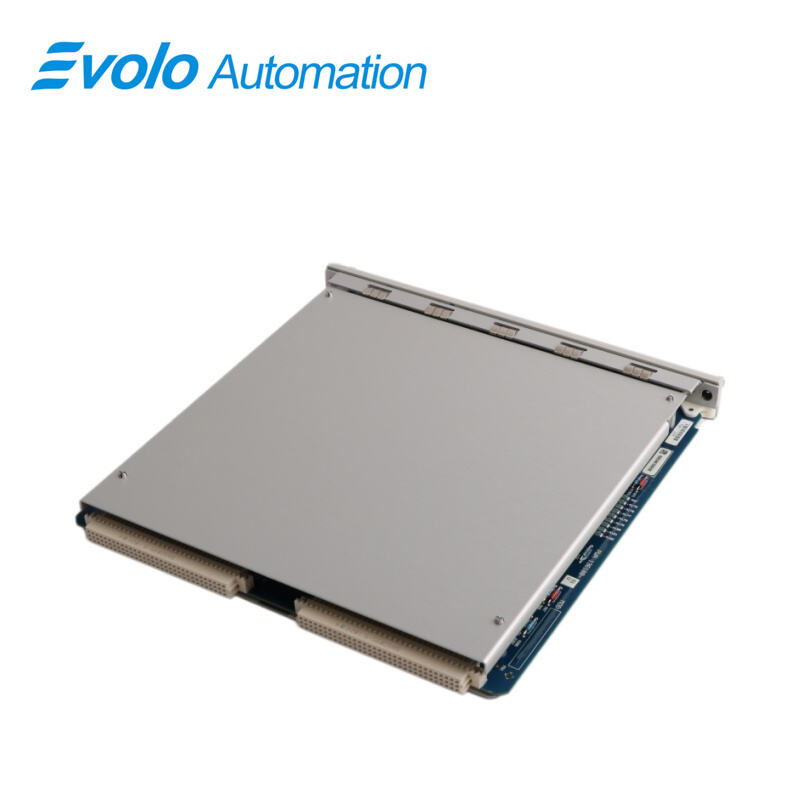

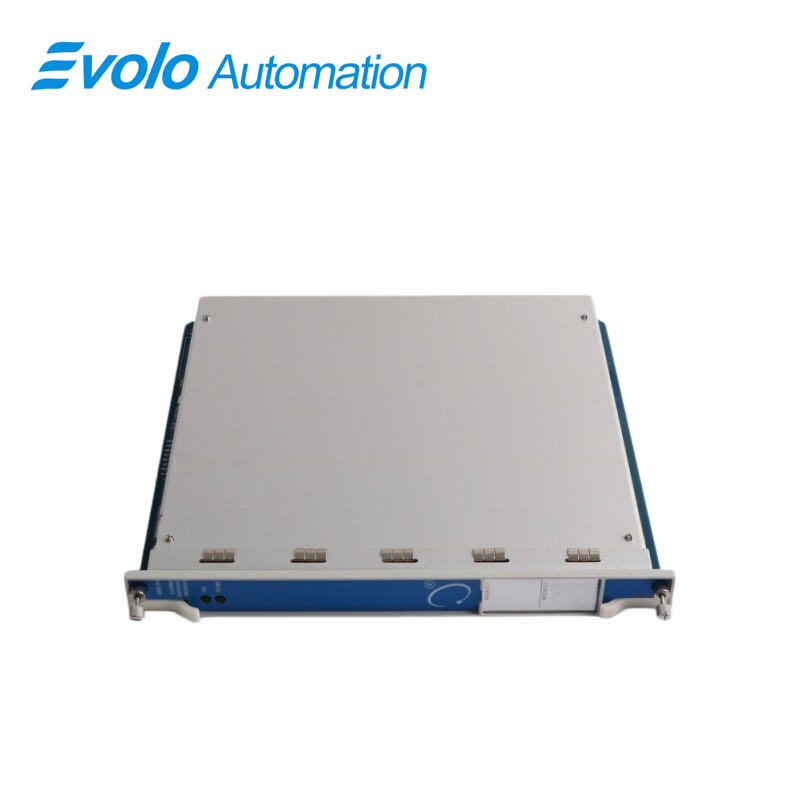

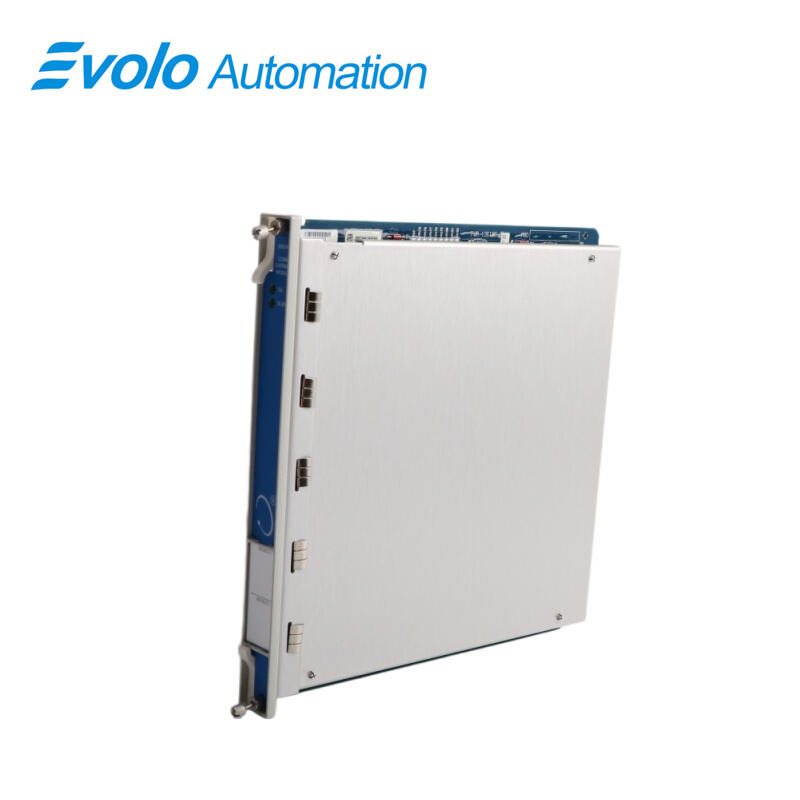

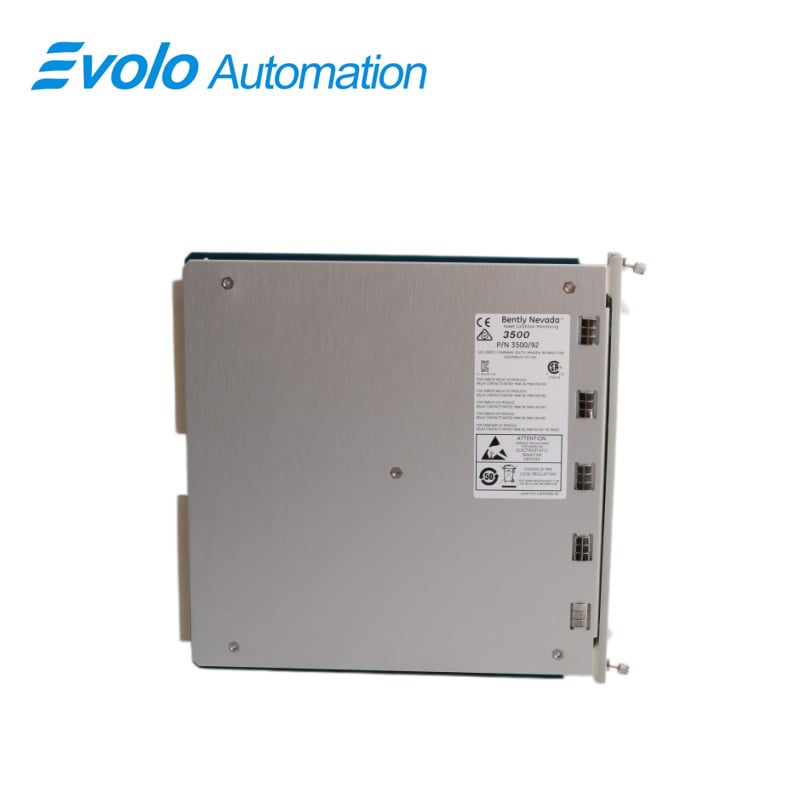

The Bently Nevada 3500/92 136180-01+136188-02 is a high-performance Communication Gateway designed specifically for 3500 machinery protection systems, responsible for integrating data to a DCS or PLC. This module supports Modbus serial and Ethernet protocols, possesses high interference immunity, and aims to achieve the digitization and informatization of rotating machinery condition monitoring.
Applications
Oil and Gas Refineries: Compressor vibration and displacement data collected by the 3500 frame are integrated into the central DCS system via Modbus/TCP protocol for plant-wide monitoring.
Coal Power Plants: Operate within the turbine monitoring architecture, uploading alarm and status information to the PLC control system for interlocking protection via a serial RS485 link.
Large Fertilizer Plants: Manage the data flow of the distributed 3500 frame, synchronizing real-time parameters of multiple key units to a remote diagnostic center via Ethernet interface.
Chemical Raw Material Plants: Applied to online monitoring of critical pump units, leveraging their wide-temperature operating characteristics to ensure communication link reliability in outdoor cabinets or high-temperature workshop environments.
Mining Processing Plants: Deployed in the monitoring system of heavy-duty hoists or crushers, serving as a key bridge between the 3500 hardware and the plant's information network (IIoT).
Features
Ethernet TCP/IP Capabilities
Serial (RS232/RS422/RS485) Communications Capabilities
RJ45 Ethernet Connection
Configurable Modbus Register Utility
FAQ
Q: What Modbus transmission modes does the 3500/92 136180-01+136188-02 module support?
A: It uses RTU (Remote Terminal Unit) mode for serial communication.
Q: How can remote configuration of the rack be achieved using the 3500/92 136180-01+136188-02?
A: Via BNCHost protocol, allowing Ethernet TCP/IP remote access through 3500 configuration software.
Q: What is the Ethernet interface speed of the 3500/92 136180-01+136188-02 I/O module?
A: It provides a 10 Mbps IEEE 802.3-compliant link using RJ-45 (10BASE-T).
Q: If OK LED is normal but no communication, what should be checked on the 3500/92 136180-01+136188-02?
A: Verify jumper settings (RS232/RS422/RS485), baud rate, device ID, and register addresses.
Q: Does the 3500/92 136180-01+136188-02 require heating in -30°C environments?
A: No. It operates stably from -30°C to +65°C without additional heating.
