3500/70M 176449-09 Recip Impulse Velocity Monitor, China 3500/70M 176449-09 Recip Impulse Velocity Monitor Manufacturers, Suppliers, Factory

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	3500/70M 176449-09
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Signal Inputs	Accepts 1 to 4 proximity probe signals
Input Impedance – Acceleration	10 kΩ
Input Impedance – Velocity	>1 MΩ
Special Inhibit	Contact closure, 5 Vdc @ 390 μA typical
Power Consumption	7.7 W nominal
Input Sensitivity – Impulse Acceleration	0.51 – 11.72 mV/(m/s²), 5 – 115 mV/g
Input Sensitivity – Acceleration 2	0.51 – 11.72 mV/(m/s²), 5 – 115 mV/g
Input Sensitivity – Reciprocal Velocity	3.54 – 22.64 mV/(mm/s), 90 – 575 mV/(in/s)
Input Sensitivity – Low Frequency Reciprocal Velocity	3.54 – 22.64 mV/(mm/s)
Rack Space Requirement – Monitor Module	1 full-height front slot
Rack Space Requirement – I/O Modules	1 full-height rear slot
Front Panel Buffered Outputs	One coaxial connector per channel, short-circuit protected
Output Impedance	550 Ω typical
Recorder Outputs	+4 to +20 mA proportional to monitor full-scale
Recorder Selection	One static data value per channel for recorder output
Voltage Compliance	+12 Vdc maximum
Load Resistance	600 Ω maximum
Resolution	0.3662 µA maximum
Update Rate	<100 ms
Accuracy	±0.05 mA typical, ±0.14 mA over temperature range
Dimension:	2.5x25.6x24cm
Weight:	0.82kg

Description

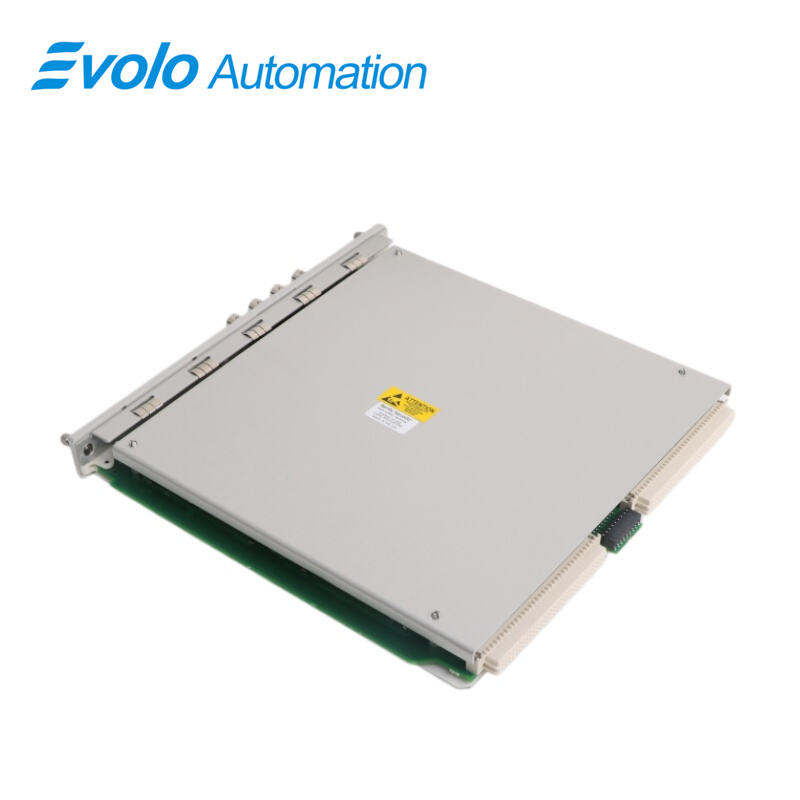

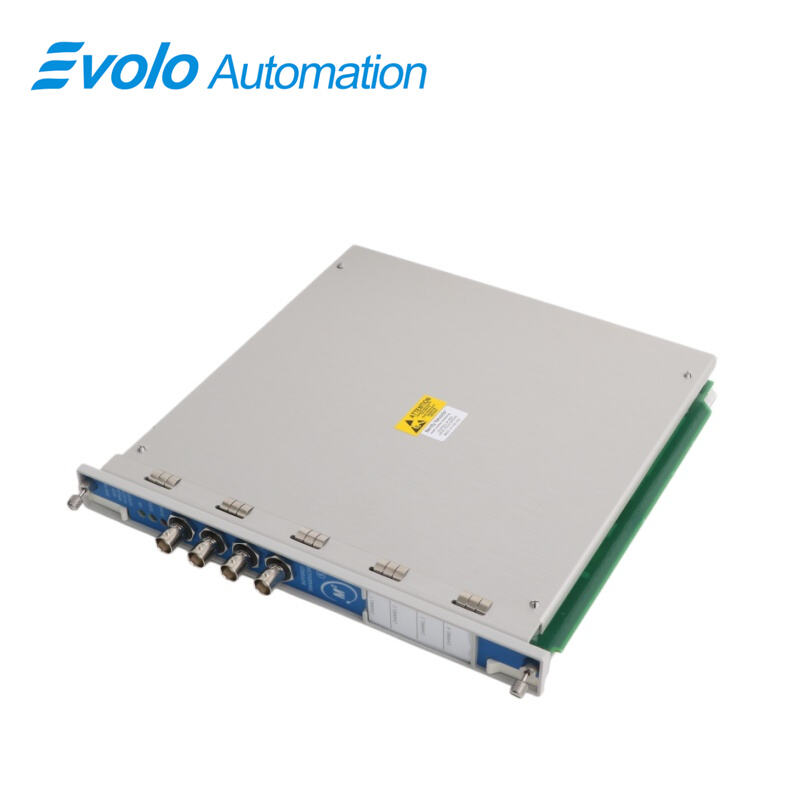

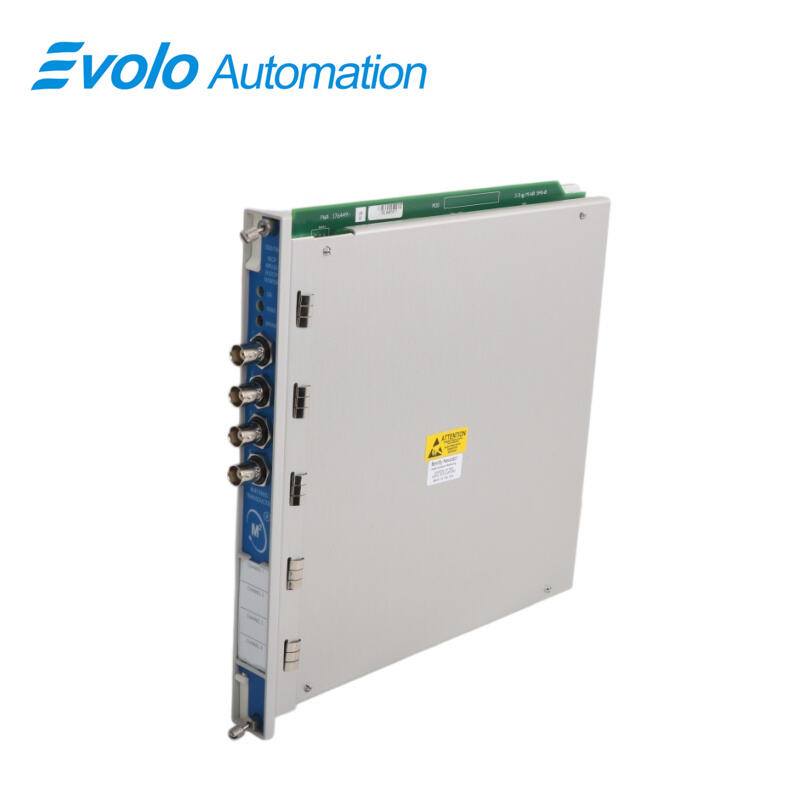

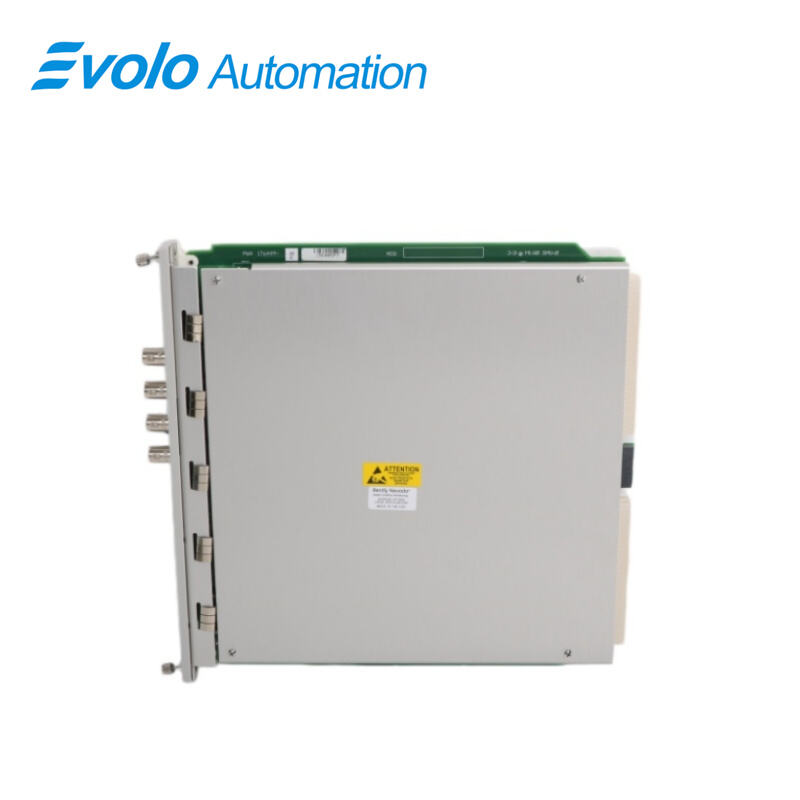

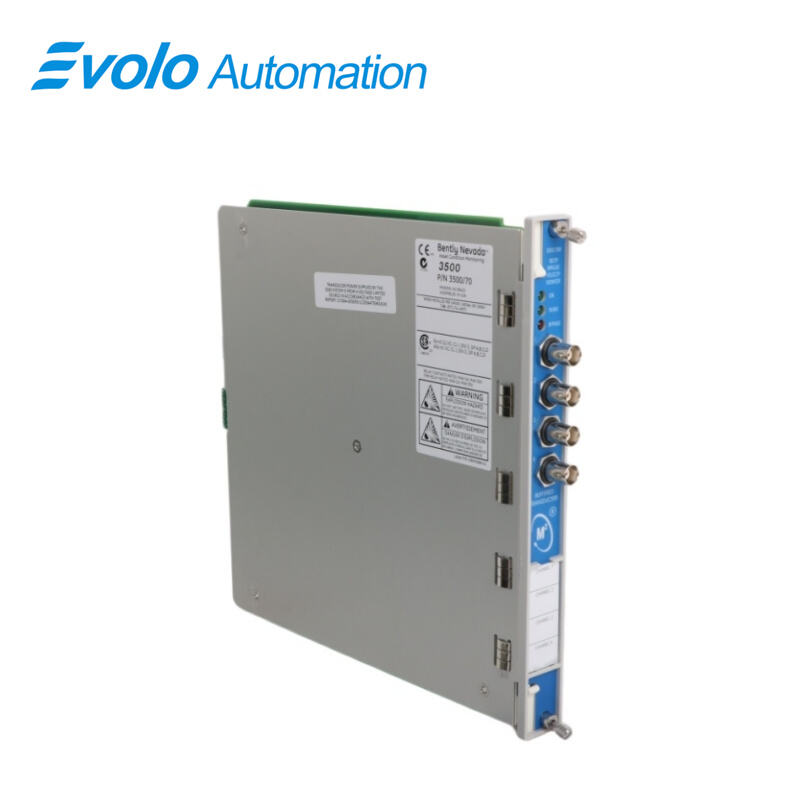

The 3500/70M 176449-09 Recip Impulse Velocity Monitor is a 4-channel module designed for monitoring reciprocating compressor crankcase and crosshead vibration. Each 3500/70M 176449-09 channel accepts 1–4 proximity probe signals, with input impedance of 10 kΩ for acceleration and >1 MΩ for velocity. The monitor conditions signals to generate impulse acceleration (0.51–11.72 mV/(m/s²)), Acceleration 2, reciprocal velocity (3.54–22.64 mV/(mm/s)), and low-frequency reciprocal velocity. Configurable alert (1–60 s) and danger (0.1–60 s) setpoints allow continuous protection by triggering alarms when monitored parameters exceed set thresholds. The 3500/70M 176449-09 provides proportional recorder outputs (+4 to +20 mA) for each channel, operates at 7.7 W nominal power, fits 1 front and 1 rear full-height rack slot, and delivers update rates below 100 ms for fast automation integration in compressor monitoring systems.

Applications

Detect Crankcase Abnormal Vibration using the 3500/70M 176449-09 to monitor signals from 1–4 proximity probes with input impedance of 10 kΩ for acceleration and >1 MΩ for velocity, identifying early mechanical issues.

Measure Crosshead Vibration with the 3500/70M 176449-09 by generating impulse acceleration signals from 0.51–11.72 mV/(m/s²) to prevent component wear and reduce unplanned downtime.

Analyze Low-Frequency Reciprocal Velocity using the 3500/70M 176449-09 (3.54–22.64 mV/(mm/s)) to guide compressor operating adjustments and optimize machine performance.

Provide Recorder Outputs with the 3500/70M 176449-09 (+4 to +20 mA, ±0.05 mA typical) for SCADA or DCS integration, allowing continuous performance tracking.

Set Alert and Danger Thresholds using the 3500/70M 176449-09 with configurable delays (alert 1–60 s, danger 0.1–60 s) to quickly notify operators of abnormal vibration conditions.

Specifications

Impulse Acceleration Accuracy	±0.33% of full-scale typical, ±1% maximum (exclusive of filters)
Band Start	0 to 359°, 1° resolution
Band Duration	1 to 360°, 1° resolution
Frequency Response – Bias Filter	-3 dB at 0.01 Hz, 1-pole
Frequency Response – Low-Pass Not OK Filter	-3 dB at 2400 Hz, 1-pole
Frequency Response – Static Values Smoothing Filter	8-revolution average
Filter Quality – High-Pass	4-pole, 80 dB per decade, 24 dB per octave
Filter Quality – Low-Pass	4-pole, 80 dB per decade, 24 dB per octave
Alarm Time Delay – Alert	1 to 60 s, 1 s increments
Alarm Time Delay – Danger	0.1 s nominal or 1 to 60 s, 1 s increments

Competitive Advantage

Enable Continuous Compressor Protection by the 3500/70M 176449-09, comparing measured impulse acceleration (0.51–11.72 mV/(m/s²)) and reciprocal velocity (3.54–22.64 mV/(mm/s)) against programmed setpoints.

Support Multi-Channel Monitoring with the 3500/70M 176449-09, accurately processing 1–4 proximity probe signals simultaneously to detect deviations in vibration patterns.

Provide Fast Automation Response with the 3500/70M 176449-09 using <100 ms update rate, ensuring immediate alarm activation and operational intervention.

Simplify Installation and Integration with the 3500/70M 176449-09, fitting standard 1 front and 1 rear full-height rack slots in existing monitoring systems.

Deliver Accurate Recorder Signals through the 3500/70M 176449-09 (+4 to +20 mA, ±0.14 mA over temperature) for real-time analysis and operational control decisions.
