3500/53 133388-01 Electronic Overspeed Detection System

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	3500/53 133388-01
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

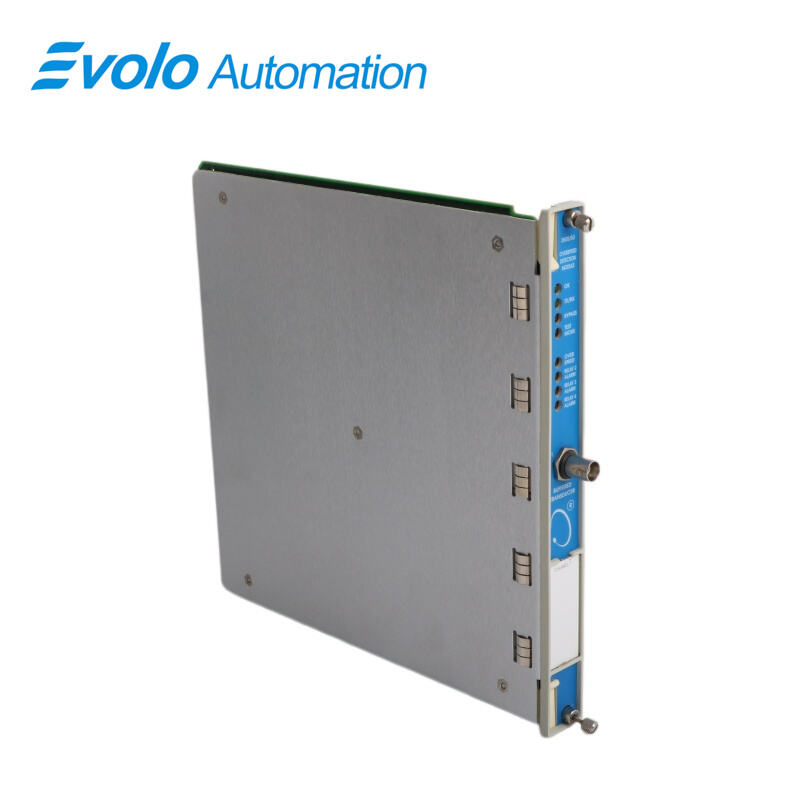

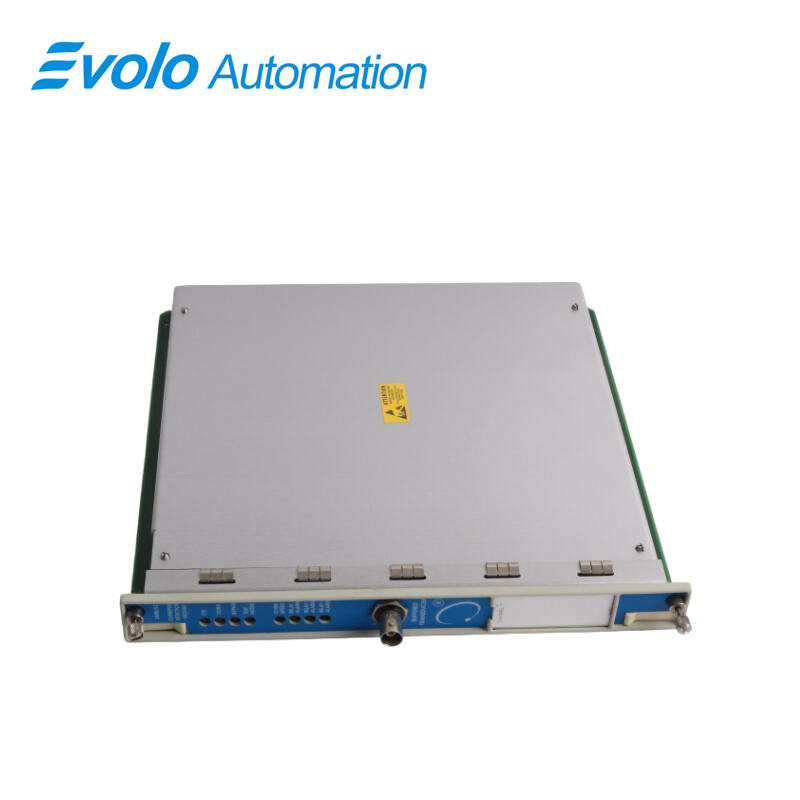

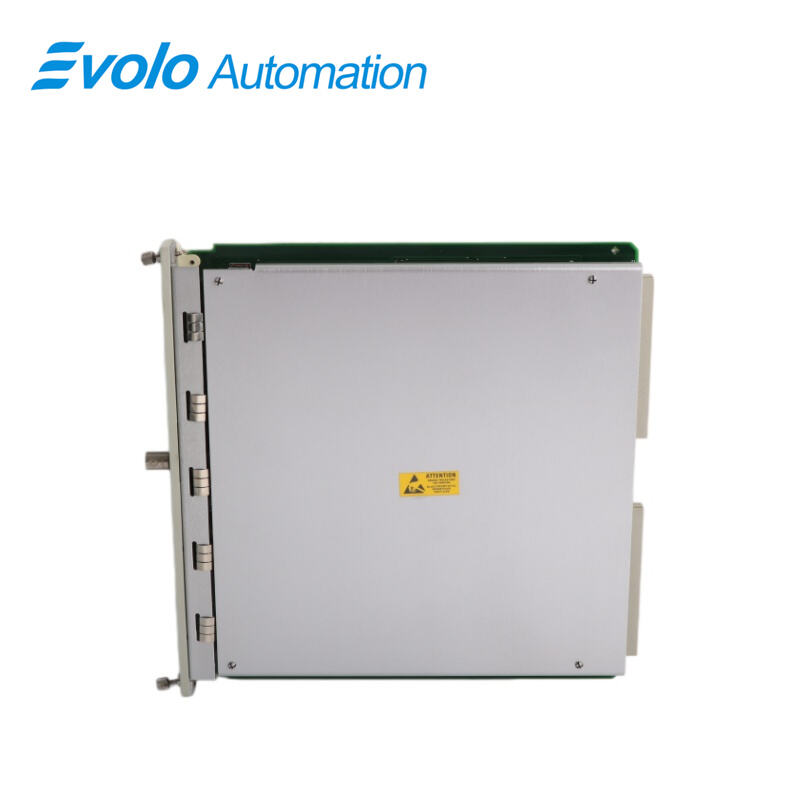

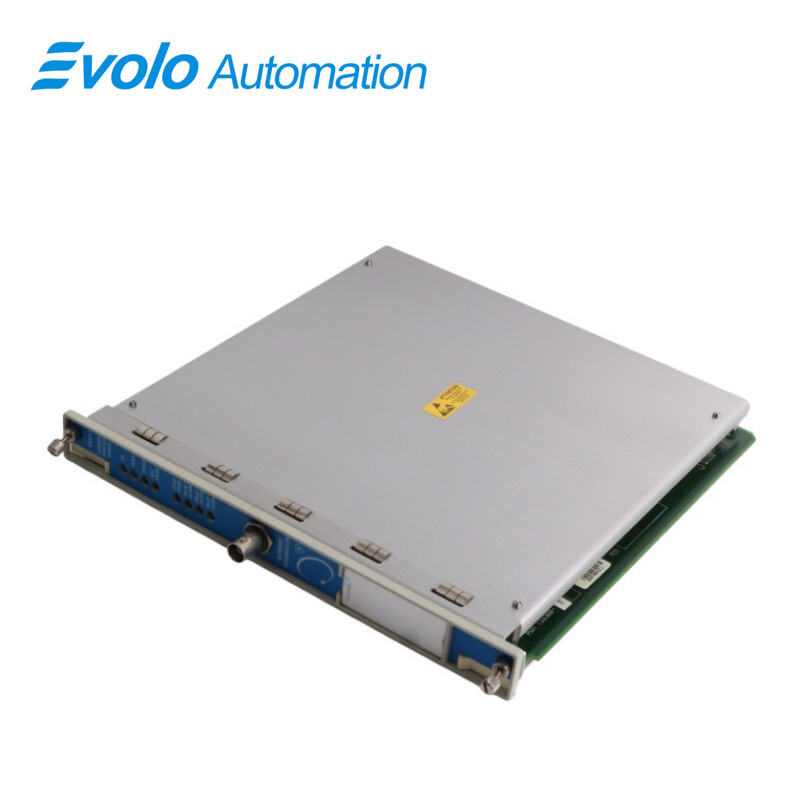

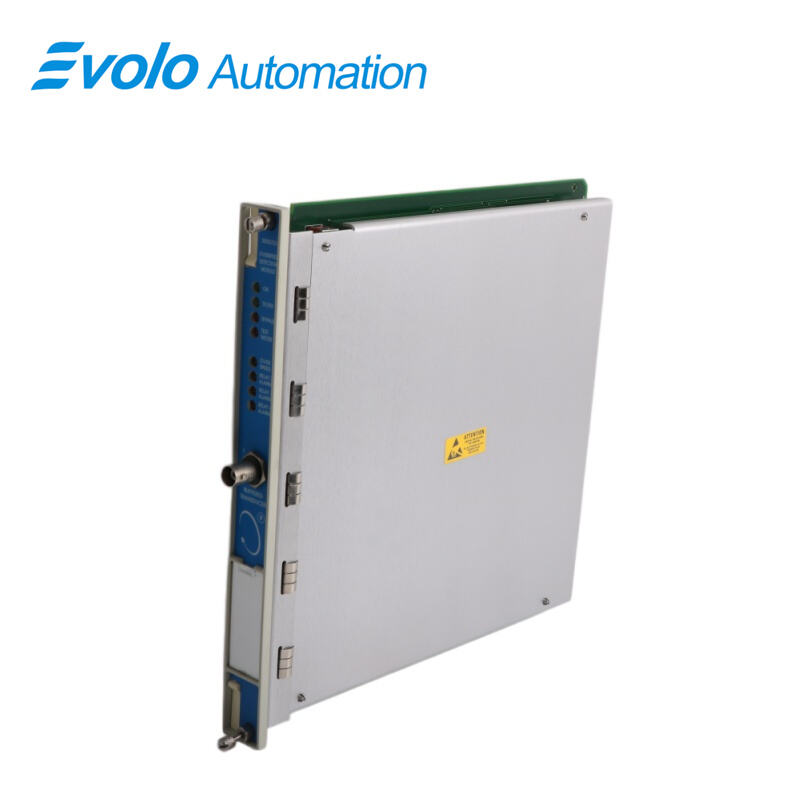

The 3500/53 133388-01 Electronic Overspeed Detection System is engineered for precise overspeed monitoring in automated machinery. Part of the Bently Nevada 3500 Series, the 3500/53 133388-01 accepts a single transducer signal from proximity probes or magnetic pickups, with an input range of +10 V to -24 V and 20 kΩ impedance. Typical power consumption is 8 W. The 3500/53 133388-01 provides 4–20 mA recorder output proportional to full-scale speed (rpm), with a resolution of 0.3662 µA per bit and update rate near 100 ms. SPDT relays support under-alert, over-alert, and danger (overspeed) setpoints adjustable via software, with alarm response under 30 ms above 300 Hz. Transducer supply delivers -24 Vdc at 40 mA, and output impedance is 550 Ω. Front panel LEDs indicate module status, bypass, test mode, and alarms. Operating range spans -30°C to +65°C, with 95% non-condensing humidity. Multiple 3500/53 133388-01 modules can form 2-of-2 or 2-of-3 voting configurations in a 3500 rack with redundant power. Designed for direct integration into automated overspeed protection systems, the 3500/53 133388-01 ensures precise, rapid detection critical for high-speed machinery control.

Applications

High-Speed Turbine Overspeed Monitoring
The 3500/53 133388-01 monitors turbine shaft speed using proximity probes or magnetic pickups. It provides 4–20 mA output proportional to full-scale rpm, allowing automated shutdown or alert when speed exceeds configured thresholds.

Compressor and Pump Overspeed Protection
In automated pump and compressor systems, the 3500/53 133388-01 triggers SPDT relay alarms under over-alert and danger conditions. Alarm response occurs in less than 30 ms above 300 Hz, ensuring rapid protection for rotating equipment.

Automated Machinery Voting Systems
Multiple 3500/53 133388-01 modules can form 2-of-2 or 2-of-3 voting configurations in a 3500 rack with redundant power supplies, enabling automated decision-making for critical overspeed shutdown operations.

Recorder and Data Logging for Control Systems
The 3500/53 133388-01 provides high-resolution recorder outputs (0.3662 µA per bit) updated every 100 ms, facilitating integration into SCADA or DCS systems for automated speed monitoring and logging.

Specifications

Competitive Advantage

Rapid Overspeed Detection
With alarm time delay below 30 ms above 300 Hz and configurable alarm setpoints, the 3500/53 133388-01 enables immediate automated shutdown to prevent machinery damage.

Direct Integration with Automated Racks
The 3500/53 133388-01 fits directly into Bently Nevada 3500 racks with redundant power, allowing easy installation in automated machinery protection systems.

Flexible Transducer Support
Supports multiple transducers including 3300 8 mm/16 mm Proximitor, 7200 series Proximitor, and magnetic pickups, allowing operators to use existing sensors without additional modifications.

Accurate Signal Output for Control Systems
High-resolution 4–20 mA output and precise update rate allow automated controllers and SCADA systems to monitor speed accurately, supporting reliable automated control actions.

Front Panel Operation and Diagnostics
LED indicators for OK, bypass, test, and alarm conditions enable operators to perform visual checks and automated diagnostics quickly without disrupting operations.
