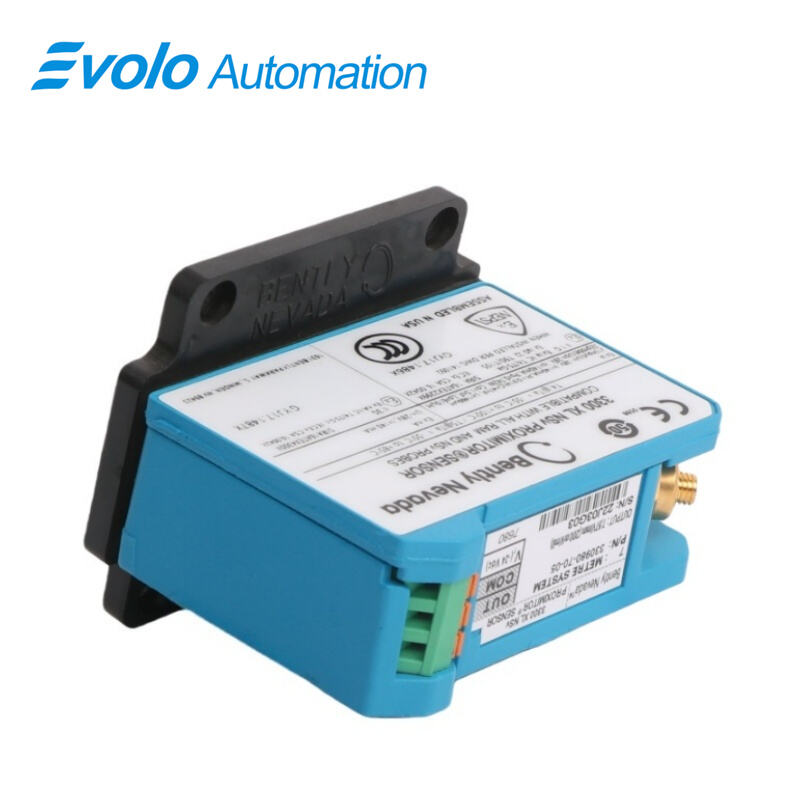

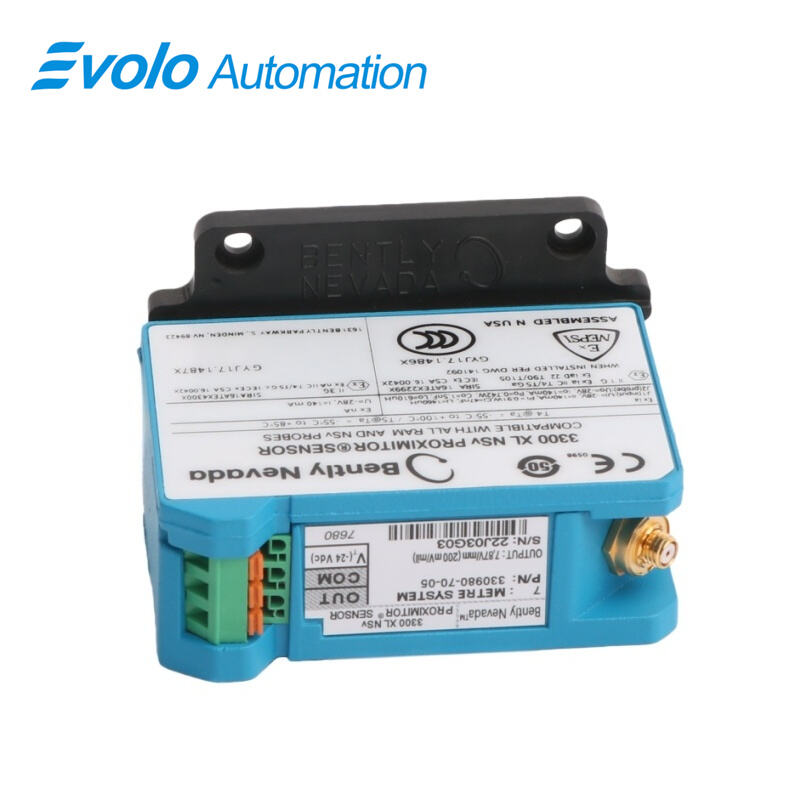

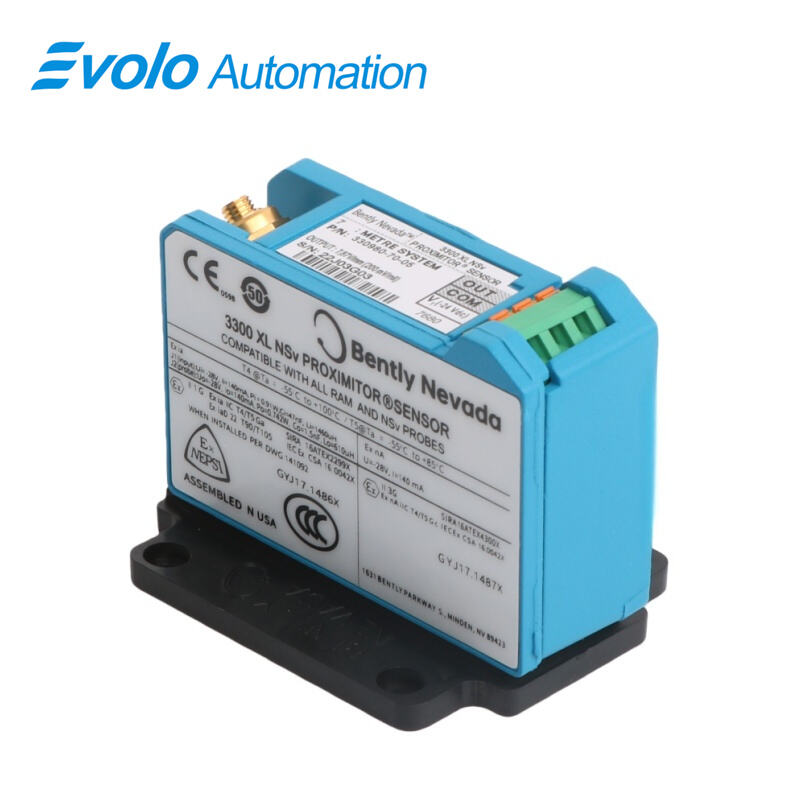

330980-70-00 3300 XL NSv Proximitor Sensor

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330980-70-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330980-70-00 3300 XL NSv Proximitor Sensor supports precise vibration and position measurements in applications with tight installation spaces, such as centrifugal air compressors, refrigeration compressors, and process gas compressors. Designed for 7.0 meters (23.0 feet) system length and DIN mount installations, the 330980-70-00 3300 XL NSv Proximitor Sensor accepts one noncontacting 3300 NSv or 3300 RAM Proximity Probe and Extension Cable. Its linear range of 1.5 mm (60 mils) and average scale factor of 7.87 V/mm (200 mV/mil) deliver accurate signal outputs while monitoring small shafts under 51 mm (2 in) or flat targets smaller than 15 mm (0.6 in). Operating from -52°C to +100°C and storing safely up to +105°C, the 330980-70-00 3300 XL NSv Proximitor Sensor maintains reliable performance even in condensing environments when connectors are protected. Constructed from A380 aluminum and paired with mechanically and electrically compatible ClickLoc connectors, the 330980-70-00 3300 XL NSv Proximitor Sensor ensures secure probe connections with 220 N pull strength using patented CableLoc and TipLoc designs. Its field wiring accommodates 0.2 to 1.5 mm² cables, providing seamless integration with existing monitoring systems while preventing signal interference in challenging industrial conditions.

Applications

Radial Vibration Measurement on Small Shafts
The 330980-70-00 3300 XL NSv Proximitor Sensor measures radial vibration on shafts smaller than 51 mm (2 in), providing real-time monitoring of centrifugal air compressors, refrigeration compressors, and other compact machines. Its 1.5 mm linear range and 7.87 V/mm scale factor ensure accurate vibration tracking in tight installations.

Axial (Thrust) Position Monitoring
Use the 330980-70-00 3300 XL NSv Proximitor Sensor to monitor axial displacement on fluid-film bearing machines. The DIN-mount 7-meter system with 0.2–1.5 mm² wiring allows precise measurement of thrust position, enabling machine clearance management and reducing mechanical wear.

Tachometer and Zero Speed Detection
The 330980-70-00 3300 XL NSv Proximitor Sensor outputs Keyphasor signals for accurate speed measurement and phase tracking. Its integration with existing 3300 NSv or 3300 RAM probes ensures seamless measurement of zero-speed conditions in process compressors.

Small Target Monitoring
For applications with flat targets smaller than 15 mm (0.6 in), the 330980-70-00 3300 XL NSv Proximitor Sensor provides reliable displacement readings. Its A380 aluminum probe and IP67-rated connectors maintain accurate signals in constrained or side-view installations.

Specifications

Competitive Advantage

Sideview and Rearview Installation Flexibility
The 330980-70-00 3300 XL NSv Proximitor Sensor supports side-view, rear-view, and counterbore applications, allowing installation in machines with limited clearance while maintaining precise measurement.

High-Accuracy Signal Output
With 1.5 mm linear range and 7.87 V/mm output, the 330980-70-00 3300 XL NSv Proximitor Sensor delivers consistent and precise radial and axial readings, facilitating better vibration and position control.

Secure Connector and Cable Attachment
The 330980-70-00 3300 XL NSv Proximitor Sensor features ClickLoc connectors and patented TipLoc and CableLoc designs, providing 220 N pull strength, preventing probe or cable disconnection in demanding industrial environments.

System Upgrade Compatibility
Mechanically and electrically compatible with previous 3300 RAM and 3000/7000-series 190 systems, the 330980-70-00 3300 XL NSv Proximitor Sensor allows easy replacement and integration without major redesign of existing monitoring setups.
