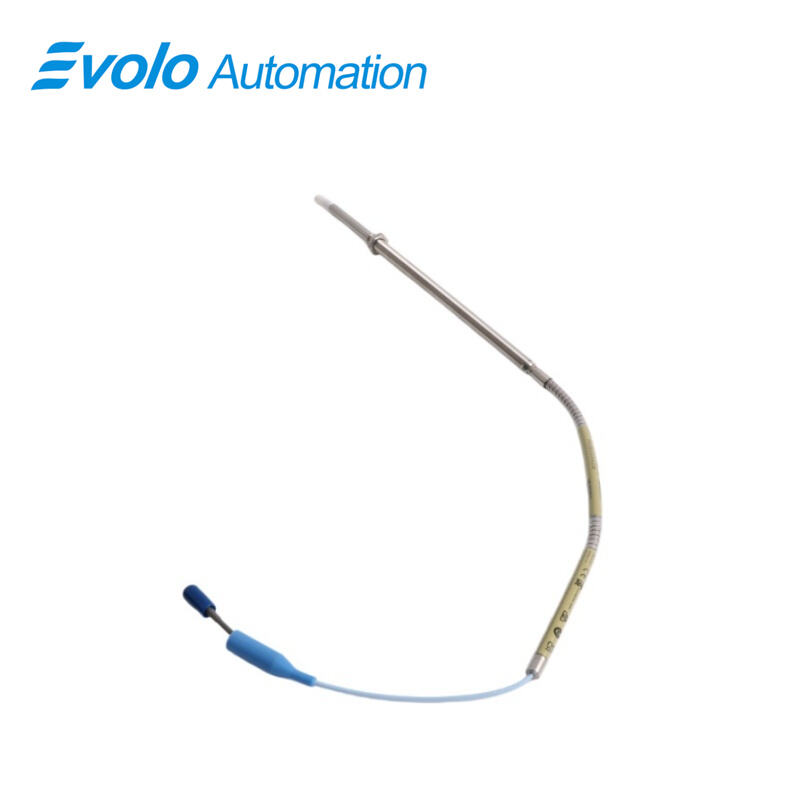

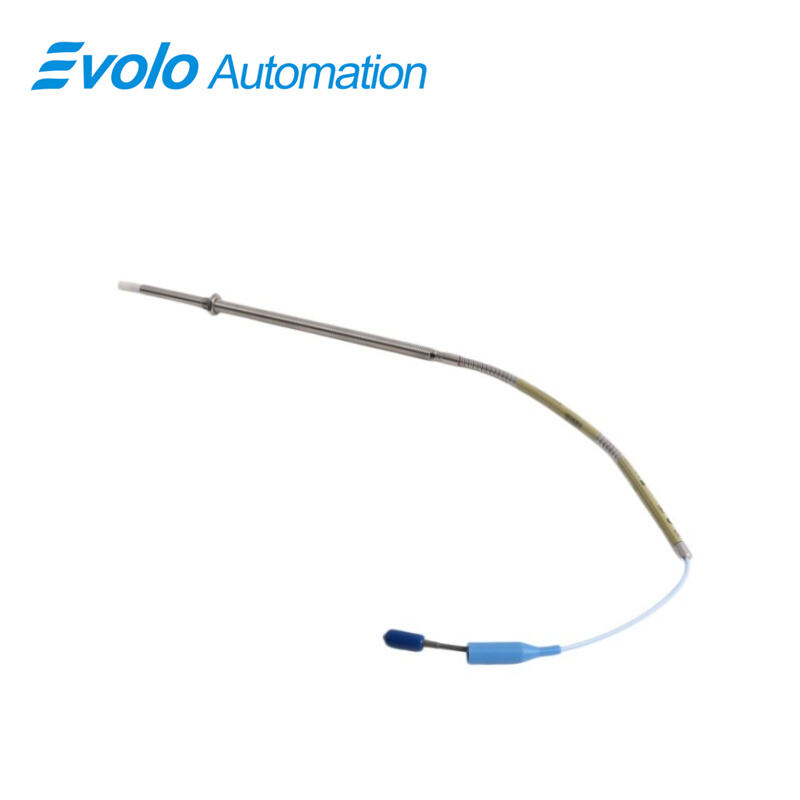

330910-07-23-10-02-00 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330910-07-23-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330910-07-23-10-02-00 3300 NSv Proximity Probe is an eddy-current displacement sensor used in rotating equipment monitoring and automation shutdown systems. The 330910-07-23-10-02-00 3300 NSv Proximity Probe has a 230 mm overall length with a 70 mm unthreaded section and M10×1 thread, allowing installation through thick bearing housings and brackets. With a 1.5 mm linear measuring range and recommended 1.0 mm gap, the 330910-07-23-10-02-00 3300 NSv Proximity Probe detects shaft radial vibration and axial movement.

The 330910-07-23-10-02-00 3300 NSv Proximity Probe uses a PPS probe tip and AISI 304 stainless steel case suitable for −52 °C to +177 °C machine areas. A 1.0 m cable and miniature ClickLoc connector support 0.2–1.5 mm² wiring directly to PLC or DCS cards. With 50 Ω output resistance and less than 2 mV/V supply influence, the 330910-07-23-10-02-00 3300 NSv Proximity Probe provides displacement signal, phase reference pulse, and rotor position input for compressor and turbine protection panels.

Applications

Mount 330910-07-23-10-02-00 3300 NSv Proximity Probe through deep compressor bearings
The 230 mm overall length of 330910-07-23-10-02-00 3300 NSv Proximity Probe with a 70 mm unthreaded section allows installation in deep housings. The 1.5 mm linear range and 1.0 mm gap provide accurate radial vibration measurement for monitoring modules.

Measure axial thrust on turbine rotors
Facing the thrust collar, 330910-07-23-10-02-00 3300 NSv Proximity Probe converts axial displacement into voltage output. The 50 Ω output resistance allows direct wiring to PLC or DCS input cards.

Track vibration on small pump shafts
The M10×1 threaded stainless case of 330910-07-23-10-02-00 3300 NSv Proximity Probe fits compact pump brackets. The probe sends displacement voltage to DCS modules for continuous vibration tracking.

Specifications

Competitive Advantage

Reach recessed measurement points without machining
The 230 mm case length lets 330910-07-23-10-02-00 3300 NSv Proximity Probe access shafts in deep bearing housings, allowing installation without modifying machine casings.

Deliver accurate displacement voltage under supply variation
Supply sensitivity under 2 mV/V ensures 330910-07-23-10-02-00 3300 NSv Proximity Probe maintains consistent output to monitoring modules even with input voltage changes.

Operate in high-temperature machine areas
With a −52 °C to +177 °C temperature range and stainless steel case, 330910-07-23-10-02-00 3300 NSv Proximity Probe can monitor compressors and turbines exposed to hot bearing surfaces.

Secure cable in vibrating equipment
The miniature coaxial ClickLoc connector locks the cable to the probe, keeping 330910-07-23-10-02-00 3300 NSv Proximity Probe connected during continuous rotor vibration.

Direct connection to standard monitoring systems
The 7.87 V/mm scale factor allows 330910-07-23-10-02-00 3300 NSv Proximity Probe to feed displacement data into existing Bently racks without recalibration.
