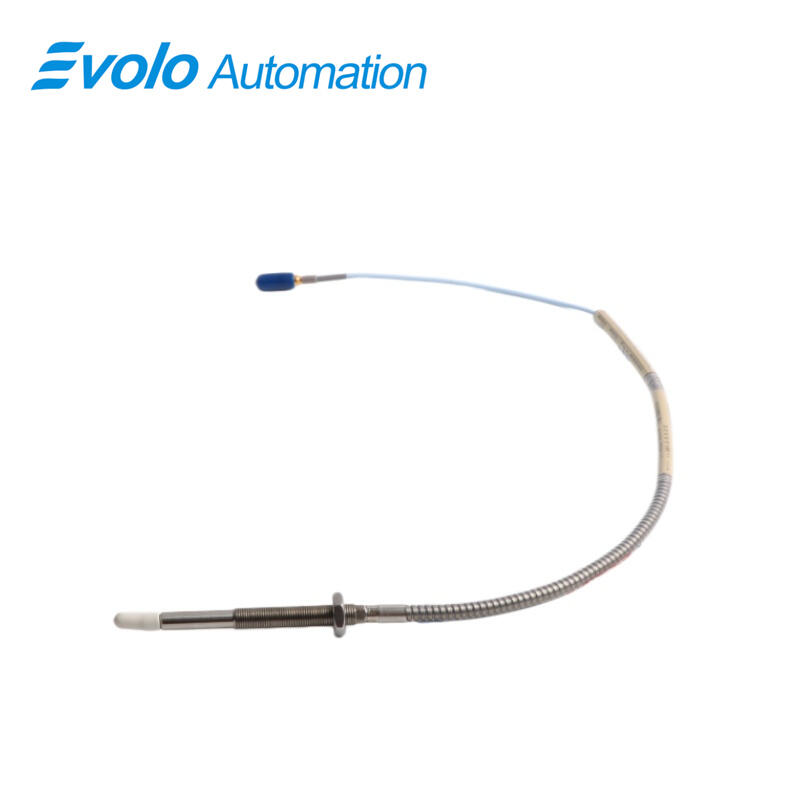

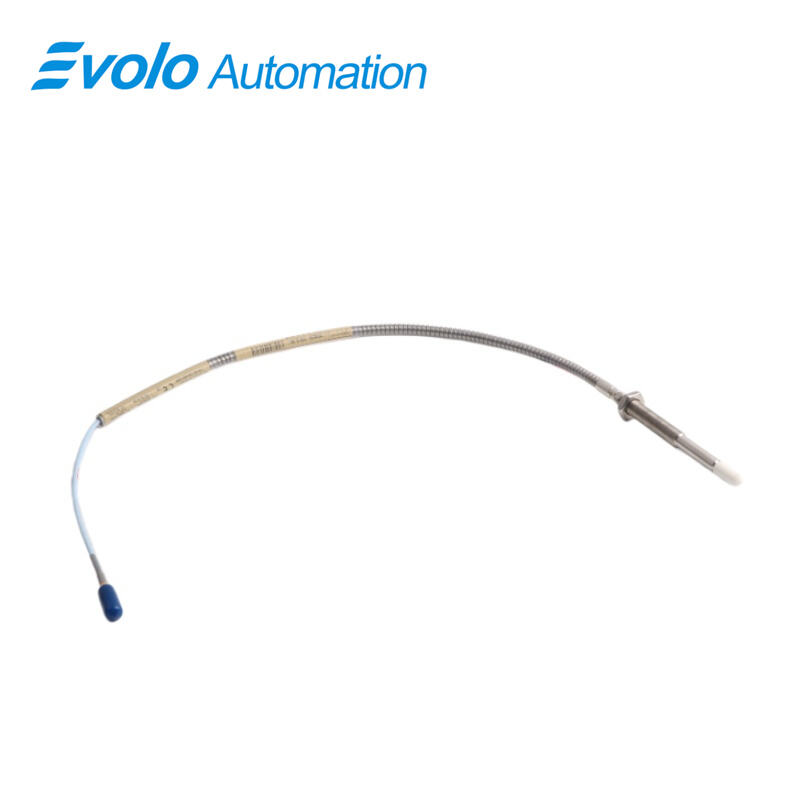

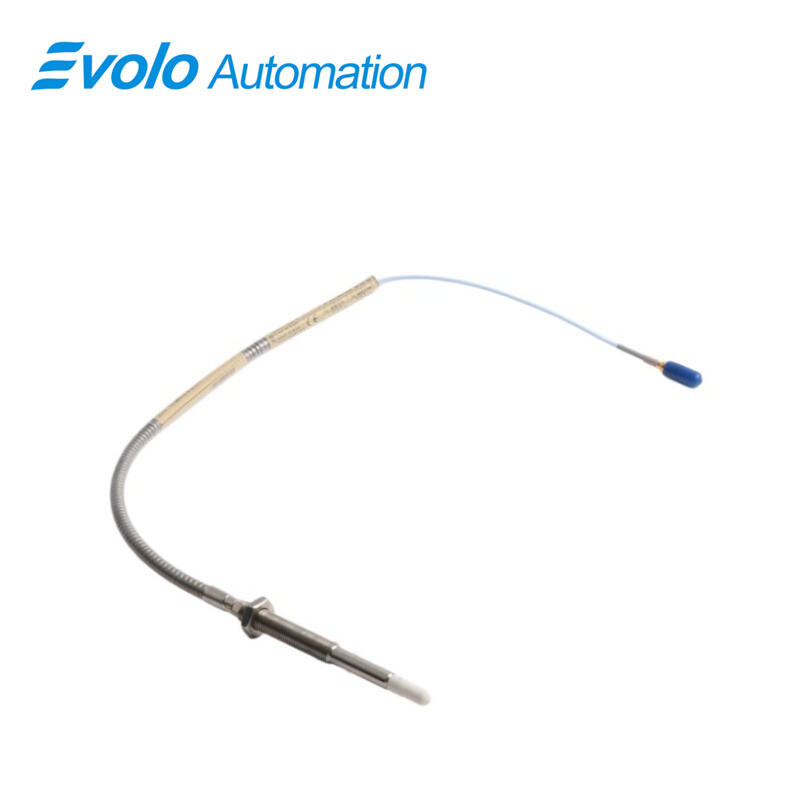

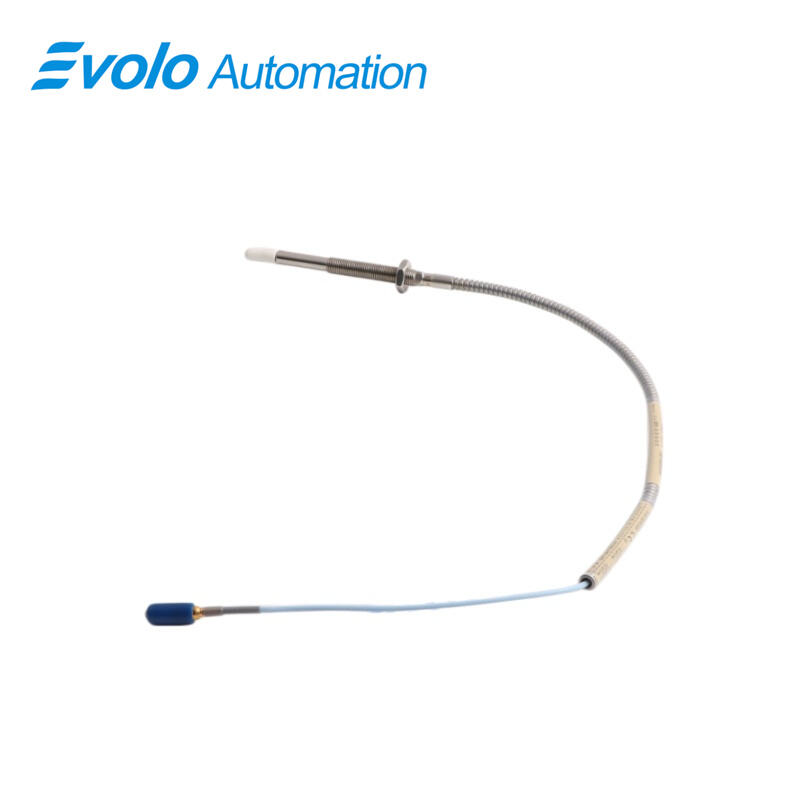

330910-03-09-05-02-00 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330910-03-09-05-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330910-03-09-05-02-00 3300 NSv Proximity Probe is designed for centrifugal, refrigeration, and process gas compressors with tight installation spaces. The 330910-03-09-05-02-00 3300 NSv Proximity Probe features a 1.5 mm linear range, 1.0 mm recommended gap, 90 mm overall case length, 30 mm unthreaded length, and M10X1 threads. Its PPS tip and AISI 304 stainless steel case allow operation from -52 °C to +177 °C. With a 0.5 m miniature coaxial ClickLoc cable, 50 Ω output resistance, and less than 2 mV per volt supply sensitivity, the 330910-03-09-05-02-00 3300 NSv Proximity Probe measures radial vibration, axial position, and Keyphasor signals in fluid-filmed bearing machines. Connector torque ratings of 7.5 N·m recommended and 22.6 N·m maximum secure the installation. The 330910-03-09-05-02-00 3300 NSv Proximity Probe directly replaces 3300 RAM and 3000/7000-series probes, supporting automated monitoring in restricted spaces.

Applications

Measure Radial Vibration on Small Shafts

The 330910-03-09-05-02-00 3300 NSv Proximity Probe captures radial vibration on shafts smaller than 51 mm, using a 1.5 mm linear range and 1.0 mm recommended gap, providing precise automation monitoring for centrifugal and refrigeration compressors.

Track Axial (Thrust) Shaft Movement

With PPS tip and 90 mm overall length, the 330910-03-09-05-02-00 3300 NSv Proximity Probe measures axial displacement on flat targets smaller than 15 mm, supporting automated position monitoring on fluid-filmed bearing machines.

Provide Phase Reference (Keyphasor) Signals

The 330910-03-09-05-02-00 3300 NSv Proximity Probe outputs Keyphasor signals for tachometer and zero-speed monitoring, integrating directly with automated rotor tracking systems.

Replace 3300 RAM and 3000/7000-Series Probes

The 330910-03-09-05-02-00 3300 NSv Proximity Probe is mechanically and electrically compatible with older 3300 RAM and 3000/7000-series probes, allowing upgrades without modifying existing monitors or extension cables.

Install in Sideview or Rearview Restricted Spaces

Equipped with M10X1 threads and a 0.5 m miniature coaxial ClickLoc cable, the 330910-03-09-05-02-00 3300 NSv Proximity Probe fits tight compressor areas, enabling precise gap adjustment and alignment.

Specifications

Competitive Advantage

Operate Across Wide Temperature Range

The 330910-03-09-05-02-00 3300 NSv Proximity Probe functions from -52 °C to +177 °C, ensuring accurate automated measurements in extreme process environments.

Deliver Consistent Linear Output

With 50 Ω output resistance and supply sensitivity under 2 mV per volt, the 330910-03-09-05-02-00 3300 NSv Proximity Probe provides reliable linear signals for automated monitoring systems.

Chemical and Mechanical Protection

The PPS tip and AISI 304 stainless steel case of the 330910-03-09-05-02-00 3300 NSv Proximity Probe resist chemical exposure and mechanical wear, suitable for harsh compressor installations.

Secure Connections with ClickLoc and TipLoc

Gold-plated ClickLoc connectors and TipLoc molded tips on the 330910-03-09-05-02-00 3300 NSv Proximity Probe provide 220 N pull strength and prevent loosening, ensuring reliable automated data collection.

Enable Fast Field Wiring

Supporting 0.2–1.5 mm² wire (16–24 AWG), the 330910-03-09-05-02-00 3300 NSv Proximity Probe allows quick installation while maintaining accurate signal transmission for automated systems.
