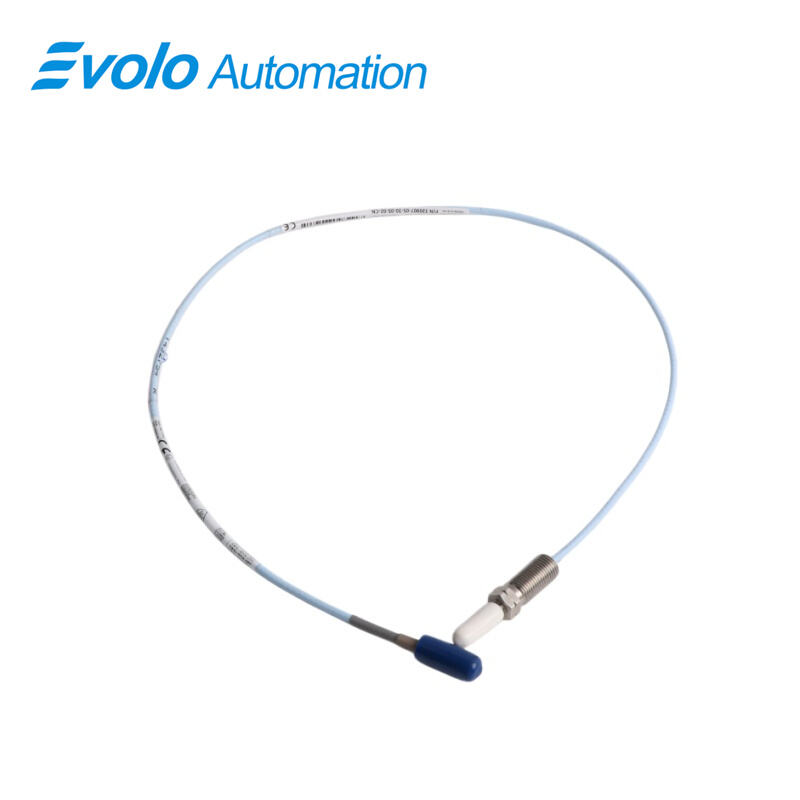

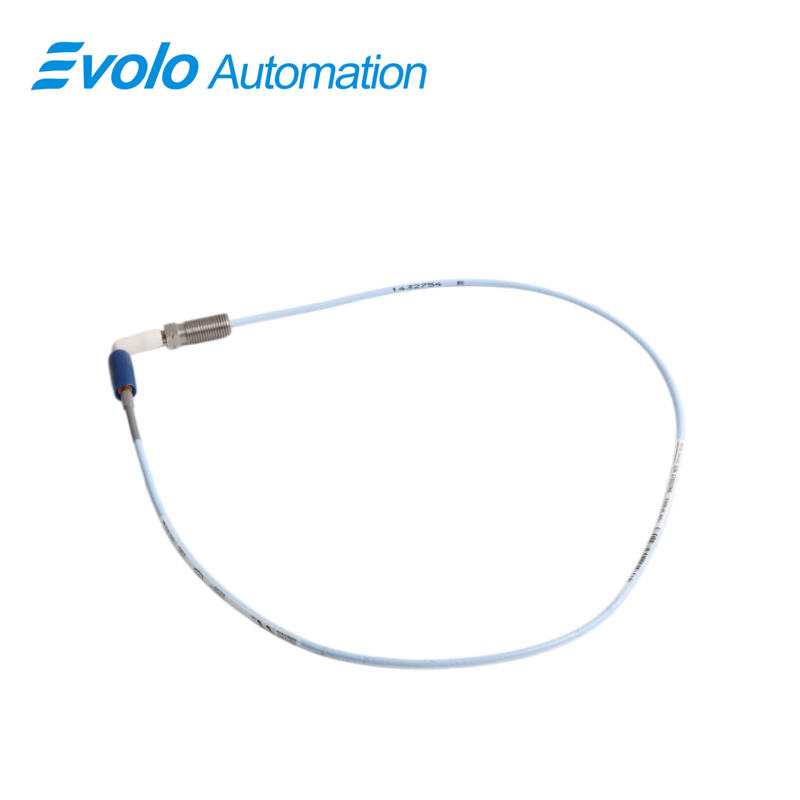

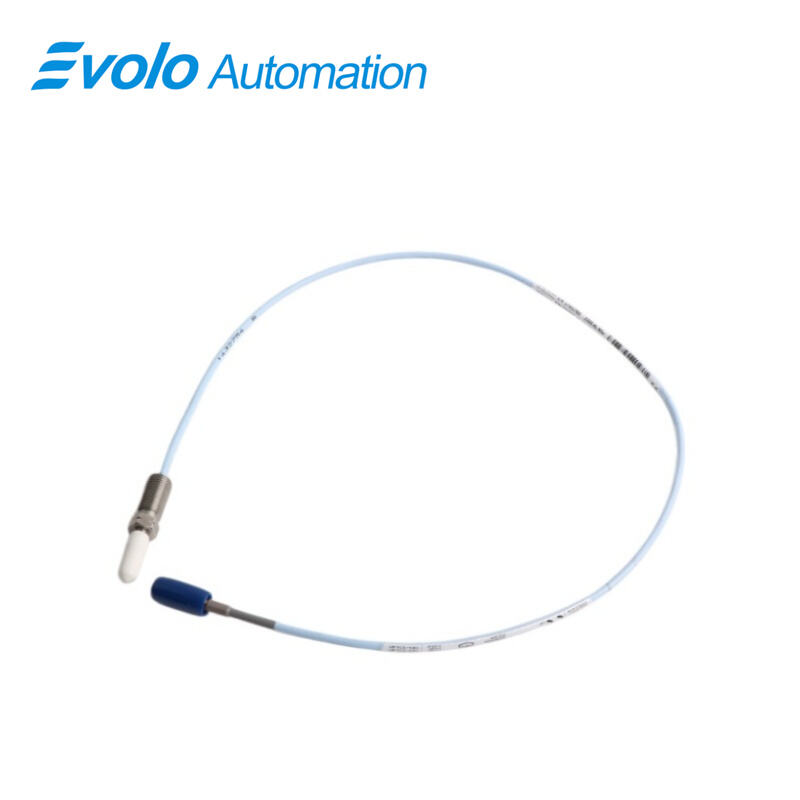

330907-05-30-05-02-CN 3300 NSv Reverse Mount Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330907-05-30-05-02-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330907-05-30-05-02-CN 3300 NSv Reverse Mount Probe is a compact transducer system for centrifugal and refrigeration compressors, ideal for rearview or sideview restricted installations. The 330907-05-30-05-02-CN 3300 NSv Reverse Mount Probe features a 1.5 mm linear range, 1.0 mm recommended gap, AISI 304 stainless steel case with PPS tip, M10X1 threads, 0.5 m total length, and miniature coaxial ClickLoc connector. Operating from -52 °C to +177 °C, with 50 Ω output resistance and supply sensitivity below 2 mV per volt, the 330907-05-30-05-02-CN 3300 NSv Reverse Mount Probe captures radial vibration, axial position, and Keyphasor signals. Connector torque ratings of 7.5 N·m recommended and 22.6 N·m maximum ensure secure installation. The 330907-05-30-05-02-CN 3300 NSv Reverse Mount Probe directly replaces 3300 RAM or 3000/7000-series probes and supports automated shaft monitoring in tight compressor environments.

Applications

Measure Radial Vibration on Small Shafts

The 330907-05-30-05-02-CN 3300 NSv Reverse Mount Probe captures radial vibration on shafts smaller than 51 mm using a 1.5 mm linear range and 1.0 mm recommended gap, providing precise automation monitoring for centrifugal and refrigeration compressors.

Track Axial (Thrust) Shaft Movement

With PPS tip and 0.5 m total length, the 330907-05-30-05-02-CN 3300 NSv Reverse Mount Probe measures axial displacement on flat targets smaller than 15 mm, delivering accurate position data for fluid-filmed bearing machines.

Replace Legacy 3300 RAM and 3000/7000-Series Probes

The 330907-05-30-05-02-CN 3300 NSv Reverse Mount Probe is mechanically and electrically compatible with older 3300 RAM and 3000/7000-series probes, enabling automated system upgrades without replacing existing monitors.

Install in Rearview or Side-View Restricted Spaces

With M10X1 threads, miniature coaxial ClickLoc connector, and 0.5 m cable, the 330907-05-30-05-02-CN 3300 NSv Reverse Mount Probe fits tight compressor areas, allowing precise gap setting and probe alignment.

Specifications

Competitive Advantage

Operate in High and Low Temperature Ranges

The 330907-05-30-05-02-CN 3300 NSv Reverse Mount Probe functions from -52 °C to +177 °C, ensuring accurate measurements in extreme process conditions.

Maintain Accurate Electrical Output

With 50 Ω output resistance and supply sensitivity below 2 mV per volt, the 330907-05-30-05-02-CN 3300 NSv Reverse Mount Probe provides consistent linear signals for automation systems.

Chemical and Mechanical Durability

The PPS probe tip and AISI 304 stainless steel case of the 330907-05-30-05-02-CN 3300 NSv Reverse Mount Probe resist chemical exposure and mechanical wear in tight compressor installations.

Secure Connections with ClickLoc and TipLoc

Gold-plated ClickLoc connectors and TipLoc molded probe tips on the 330907-05-30-05-02-CN 3300 NSv Reverse Mount Probe provide 220 N pull strength and prevent loosening, ensuring reliable automated data collection.

Support Flexible Field Wiring

The 330907-05-30-05-02-CN 3300 NSv Reverse Mount Probe accommodates 0.2–1.5 mm² wire (16–24 AWG), enabling fast installation and accurate signal transmission in automated shaft monitoring systems.
