330905-06-14-10-02-00 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330905-06-14-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

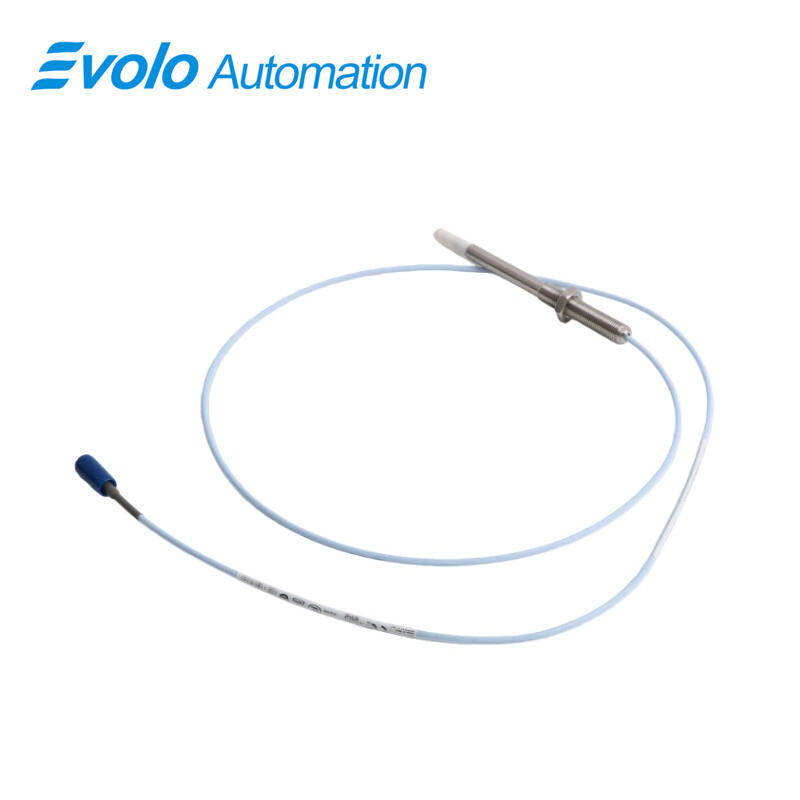

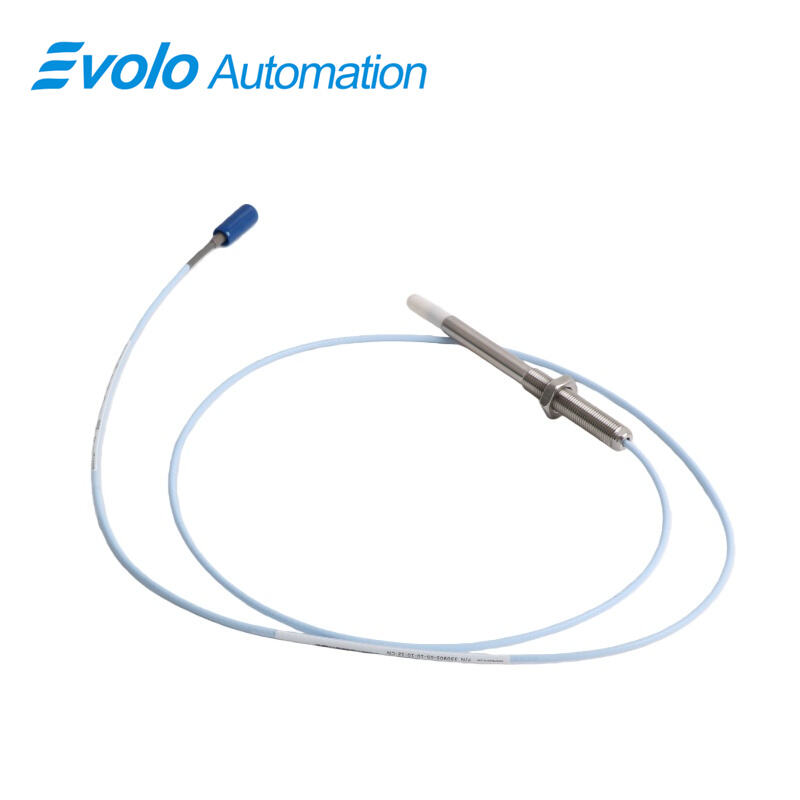

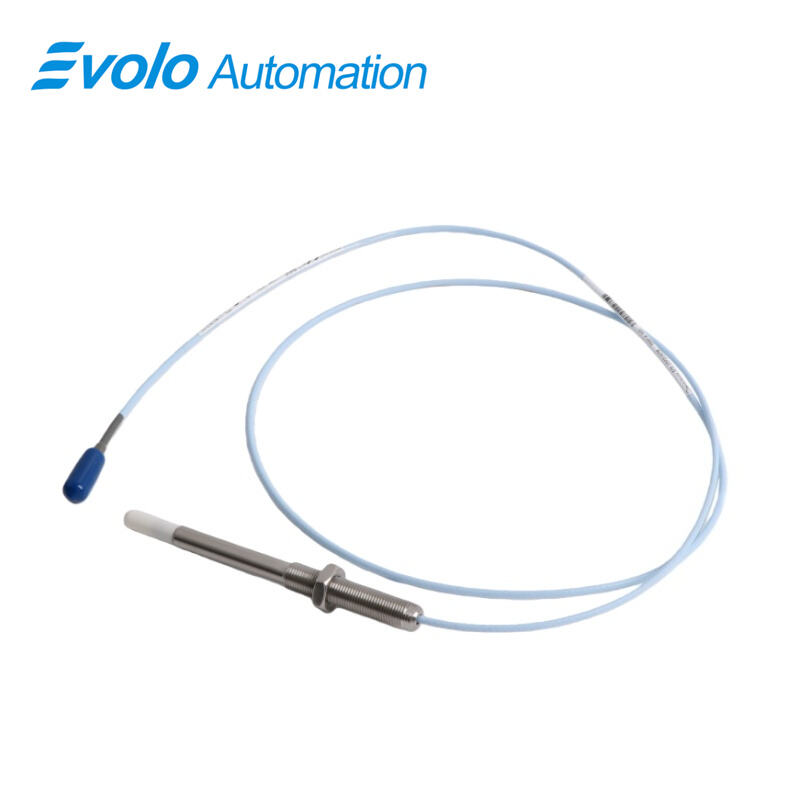

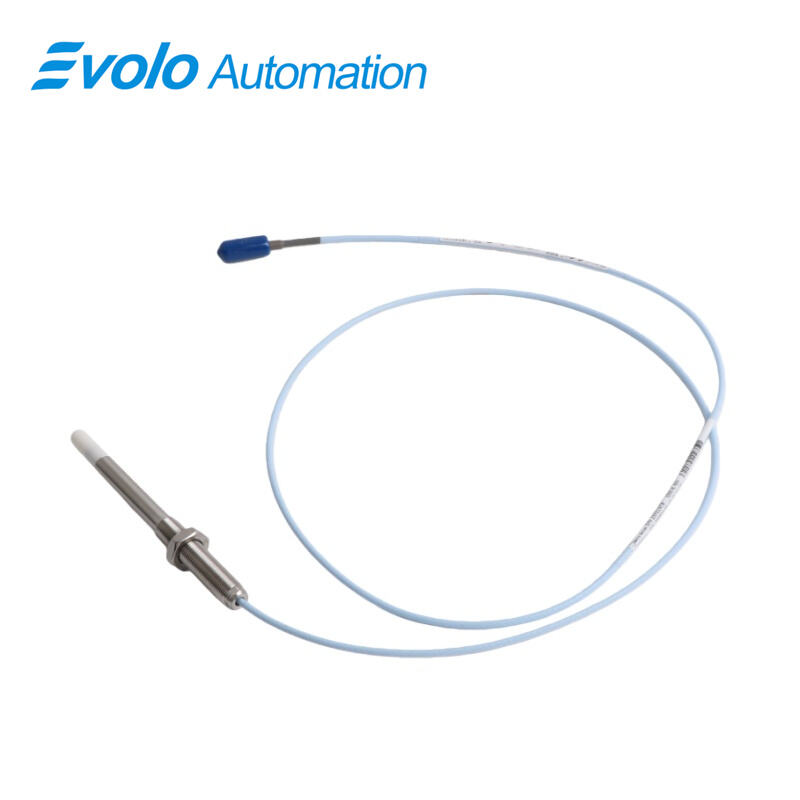

The 330905-06-14-10-02-00 3300 NSv Proximity Probe is a compact transducer system for centrifugal and refrigeration compressors, measuring radial vibration, axial position, and providing Keyphasor signals. The 330905-06-14-10-02-00 3300 NSv Proximity Probe features a 1.5 mm linear range, 1.0 mm recommended gap, AISI 304 stainless steel case with PPS tip, threaded M10X1, 140 mm overall length, and 1 m standard coaxial ClickLoc cable. It operates from -52 °C to +177 °C, output resistance is 50 Ω, and supply sensitivity is less than 2 mV per volt. The 330905-06-14-10-02-00 3300 NSv Proximity Probe supports automated shaft monitoring in tight side-view or small target applications, directly replacing 3300 RAM or 3000/7000-series probes, with ClickLoc connectors and TipLoc molding for secure, high-strength connections.

Applications

Measure Radial Vibration on Small Shafts

The 330905-06-14-10-02-00 3300 NSv Proximity Probe captures radial vibration on shafts smaller than 51 mm, with 1.5 mm linear range and 1.0 mm recommended gap, providing precise rotor monitoring for centrifugal and refrigeration compressors.

Monitor Axial (Thrust) Position

Using its PPS tip and 140 mm overall length, the 330905-06-14-10-02-00 3300 NSv Proximity Probe measures axial displacement on flat targets smaller than 15 mm, delivering reliable automation data in fluid-filmed bearing machines.

Replace Legacy 3300 RAM and 3000/7000-Series Probes

The 330905-06-14-10-02-00 3300 NSv Proximity Probe is mechanically and electrically compatible with prior 3300 RAM and 3000/7000-series probes, enabling automated system upgrades with existing monitors and extension cables.

Install in Sideview or Rearview Restricted Spaces

With its M10X1 threaded probe, miniature coaxial ClickLoc connector, and 1 m cable, the 330905-06-14-10-02-00 3300 NSv Proximity Probe fits tight spaces where standard 3300 XL probes cannot, facilitating precise gap settings in constrained environments.

Specifications

Competitive Advantage

High-Temperature Operation

The 330905-06-14-10-02-00 3300 NSv Proximity Probe operates from -52 °C to +177 °C and can be stored at the same range, ensuring accurate readings in extreme process environments.

Robust Electrical Performance

Output resistance of 50 Ω and supply sensitivity below 2 mV per volt allows the 330905-06-14-10-02-00 3300 NSv Proximity Probe to deliver reliable linear signals for automated shaft monitoring.

Chemical and Mechanical Durability

The 330905-06-14-10-02-00 3300 NSv Proximity Probe uses PPS tip and AISI 304 stainless steel case, providing chemical resistance for compressor applications and mechanical protection in tight mounting areas.

Secure Connection with ClickLoc and TipLoc

Gold-plated ClickLoc connectors and TipLoc molding on the 330905-06-14-10-02-00 3300 NSv Proximity Probe ensure high pull strength and prevent signal loss, reducing downtime during installation.

Flexible Field Wiring

Supports 0.2–1.5 mm² wire (16–24 AWG), allowing technicians to install the 330905-06-14-10-02-00 3300 NSv Proximity Probe quickly while maintaining accurate signal transmission for automation systems.
