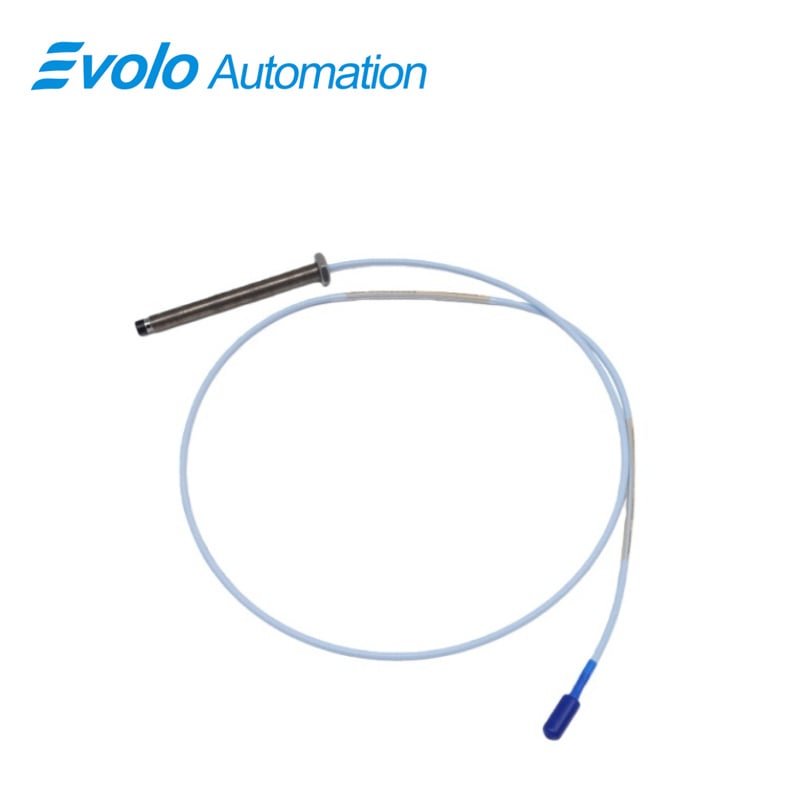

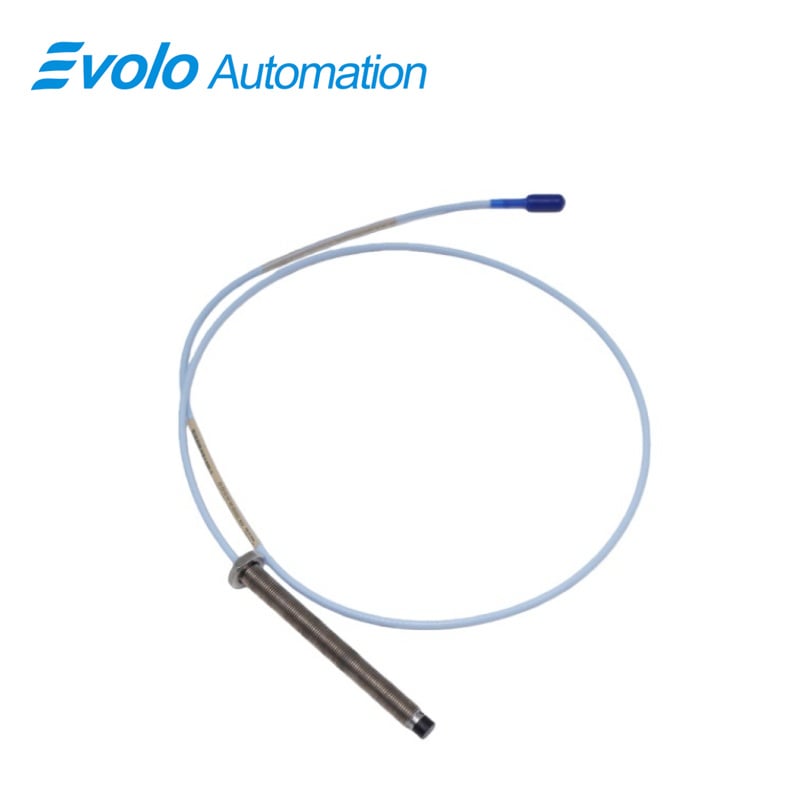

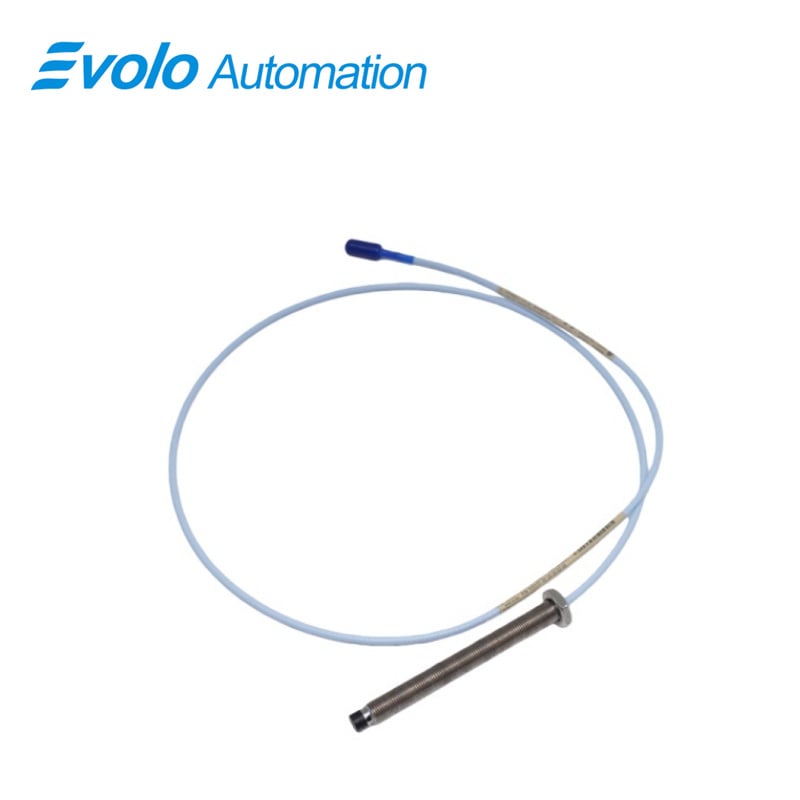

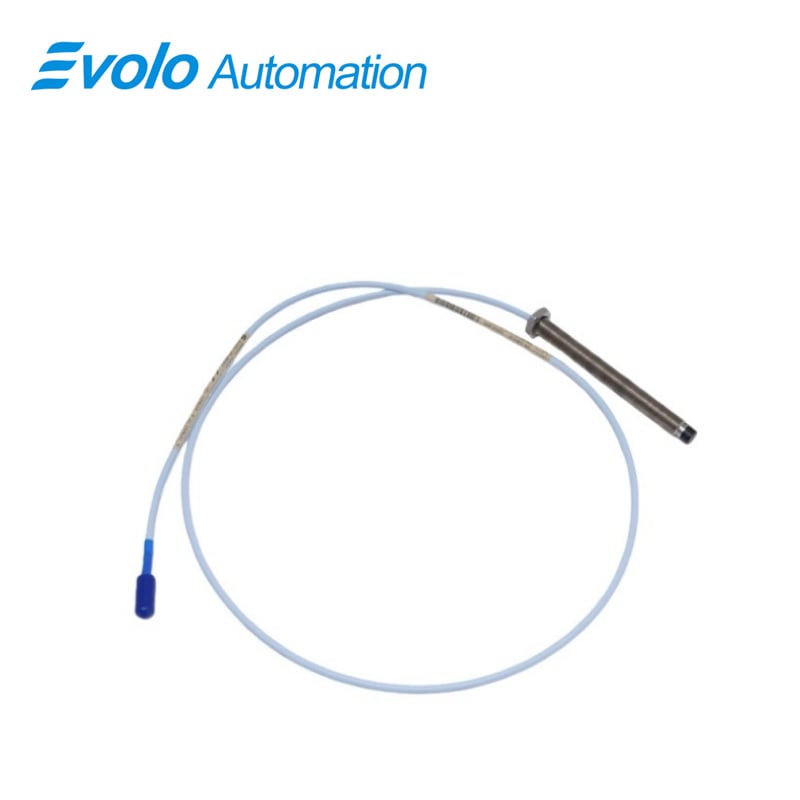

330103-00-10-10-12-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-10-10-12-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-10-10-12-05 3300 XL 8 mm Proximity Probe is engineered for high-precision non-contact displacement and vibration measurements in industrial automation systems. Featuring an M10x1 threaded probe case with 15 mm maximum thread engagement and an overall length of 100 mm, this probe ensures secure installation in confined and standard mounting locations. It comes equipped with a 1.0-meter miniature coaxial ClickLoc cable with optional FluidLoc design, which prevents oil or other fluids from leaking out of machinery. Designed for extreme conditions, the probe operates reliably from -52°C to +177°C (-62°F to +350°F) and is compatible with CSA, ATEX, and IECEx approvals for hazardous areas. With a linear range of 2 mm (80 mils), supply sensitivity under 2 mV per volt, and an output resistance of 50 Ω, the 3300 XL 8 mm Proximity Probe delivers accurate and stable readings for both static position and dynamic vibration monitoring. Its TipLoc molding method strengthens the bond between probe tip and body, while the CableLoc design provides 330 N (75 lbf) pull strength, ensuring robust cable attachment. Fully backward-compatible with non-XL 3300 series probes, this probe integrates seamlessly into existing 3300 XL systems, complying with API 670 standards for mechanical configuration, linearity, and temperature stability.

Applications

Vibration Monitoring on Fluid-Film Bearings
Ideal for measuring vibration amplitudes on turbines, compressors, and pumps, enabling predictive maintenance and reducing unexpected downtime.

Static Position Measurements
Accurately detects rotor axial displacement and position changes, ensuring alignment and safe operation of rotating machinery.

Keyphasor Signal Generation
Provides precise phase reference signals for high-speed rotating equipment, facilitating accurate speed and synchronization control in automated systems.

Harsh Environment Deployment
Rated for -52°C to +177°C and compatible with hazardous area approvals, suitable for extreme industrial conditions including chemical, oil, and gas facilities.

Flexible Installation with Compact Dimensions
With a 100 mm case length and M10x1 thread, the probe fits in tight or standard machine housings, allowing retrofits without major modifications.

Specifications

Competitive Advantage

Superior Cable Retention
The patented CableLoc design with 330 N pull strength ensures reliable connection even under high vibration or mechanical stress.

Enhanced Probe Tip Bonding
The TipLoc molding method strengthens the mechanical connection between probe tip and body, increasing durability in high-load environments.

Extreme Temperature Capability
Operates effectively across a wide range of -52°C to +177°C, outperforming standard probes in high-heat or cold applications.

Backward Compatibility
Fully compatible with non-XL 3300 series components, simplifying upgrades and system integration without reconfiguring the entire measurement system.

Fluid Protection Option
Optional FluidLoc cable prevents leakage of oil or liquids, enhancing reliability in lubrication-rich machinery and minimizing contamination risks.
