330905-00-05-05-02-05 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330905-00-05-05-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

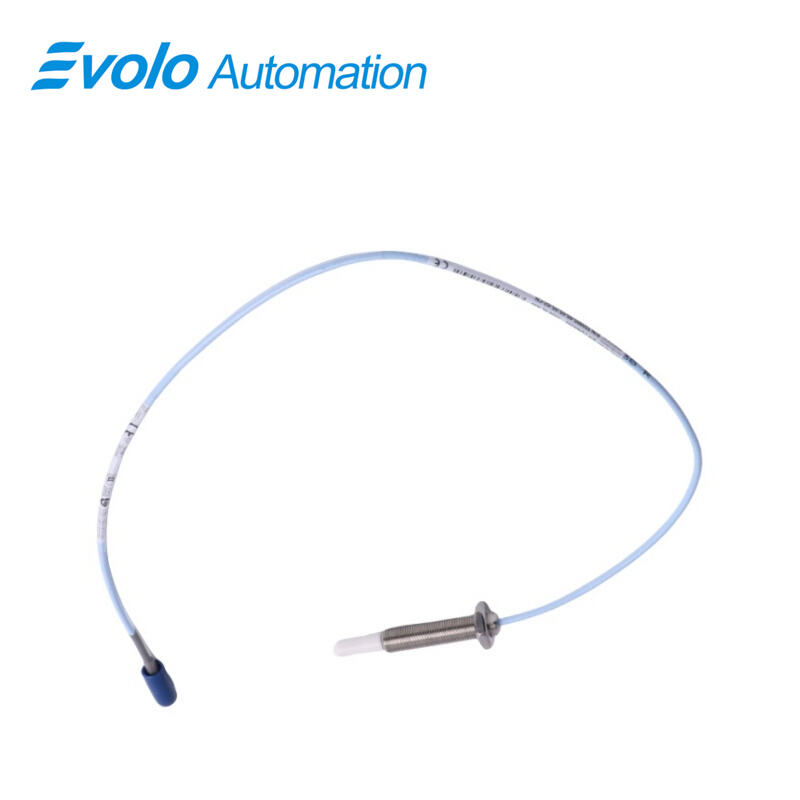

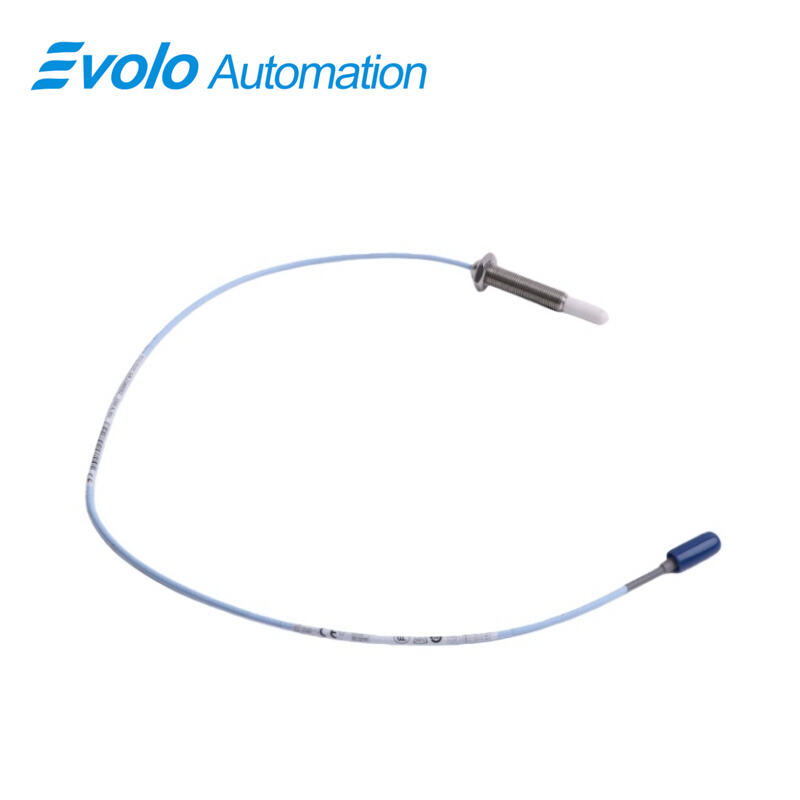

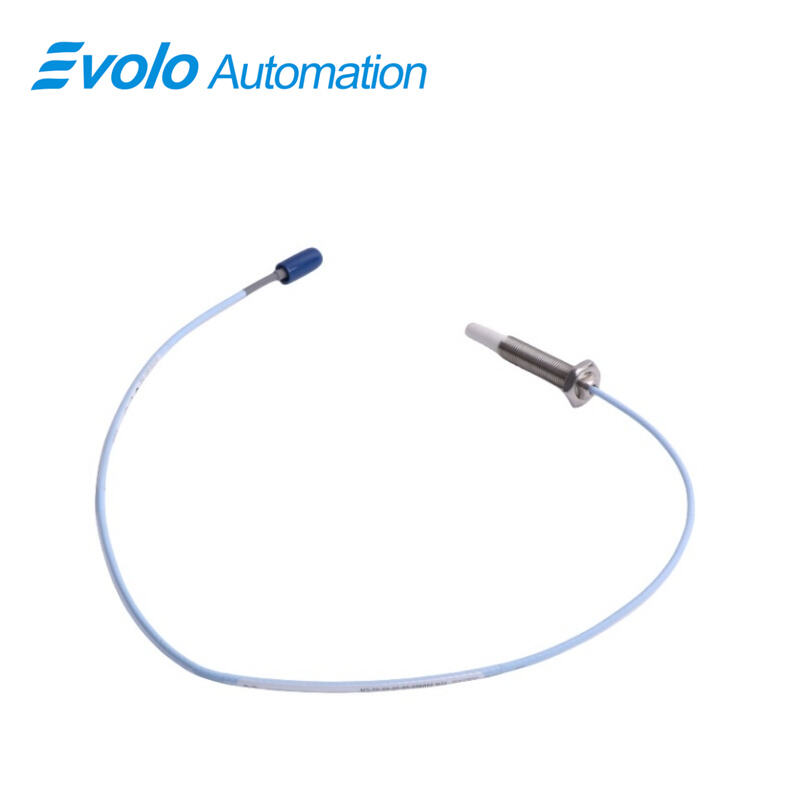

The 330905-00-05-05-02-05 3300 NSv Proximity Probe is a miniature eddy current sensor designed for compact installations in centrifugal air compressors, refrigeration compressors, and process gas compressors. With a 50 mm overall case length, M8X1 threaded probe, and 0.5 meter cable, the 330905-00-05-05-02-05 3300 NSv Proximity Probe accurately measures radial vibration on shafts smaller than 51 mm and axial positions on flat targets under 15 mm. Its 1.5 mm linear range, 7.87 V/mm output, and 1.0 mm recommended gap ensure precise monitoring of dynamic and static machine motion.

The 330905-00-05-05-02-05 3300 NSv Proximity Probe features a PPS tip and AISI 304 stainless steel case with IP67 environmental protection, and gold-plated ClickLoc connectors paired with CableLoc design offering 220 N pull strength. The probe is compatible with 3300 RAM and 3000/7000-series 190 transducer systems for upgrades or replacements. Its compact sideview design, robust materials, and short linear range enable installation where counter bore, rearview, or sideview restrictions exist, maintaining accurate Keyphasor signals, tachometer readings, and vibration measurements in fluid-film bearing machines.

Applications

Measure Radial Vibration on Small Shafts
Use the 330905-00-05-05-02-05 3300 NSv Proximity Probe to measure radial vibration on shafts smaller than 51 mm (2 in) in centrifugal air compressors or refrigeration compressors. Its 1.5 mm linear range and 7.87 V/mm output provide precise displacement readings for fluid-film bearing machines.

Track Axial (Thrust) Position on Flat Targets
The 330905-00-05-05-02-05 3300 NSv Proximity Probe monitors axial positions on targets under 15 mm width, giving accurate static and dynamic measurements in process gas compressors or tight side-view installations.

Provide Tachometer and Zero Speed Signals
Deploy the 330905-00-05-05-02-05 3300 NSv Proximity Probe to generate Keyphasor signals for tachometer and zero-speed detection, using its 0.5-meter cable and ClickLoc connector for secure installation.

Generate Phase Reference Signals for High-Speed Machines
The 330905-00-05-05-02-05 3300 NSv Proximity Probe supplies phase reference outputs for synchronization of high-speed compressors, leveraging its IP67-rated case and PPS tip for durable operation in harsh industrial environments.

Specifications

Competitive Advantage

Install in Tight Side-View or Rearview Spaces
The 330905-00-05-05-02-05 3300 NSv Proximity Probe fits counter bore, side-view, or rearview restricted areas where standard 3300 XL probes cannot be mounted, thanks to its compact 50 mm overall case length and M8X1 probe thread.

Resist Chemicals in Process Environments
Made with AISI 304 stainless steel and a PPS probe tip, the 330905-00-05-05-02-05 3300 NSv Proximity Probe withstands chemical exposure in refrigeration and process gas compressors.

Secure Cable-to-Probe Connection
The 330905-00-05-05-02-05 3300 NSv Proximity Probe uses gold-plated ClickLoc connectors and a CableLoc design with 220 N pull strength, ensuring the 0.5-meter cable stays firmly connected during operation.

Measure Small Target Positions Accurately
With a 1.0 mm recommended gap and 1.5 mm linear range, the 330905-00-05-05-02-05 3300 NSv Proximity Probe provides precise measurements for compact shafts and narrow targets in machines with limited installation space.
