330904-04-14-05-02-00 3300 NSv Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330904-04-14-05-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

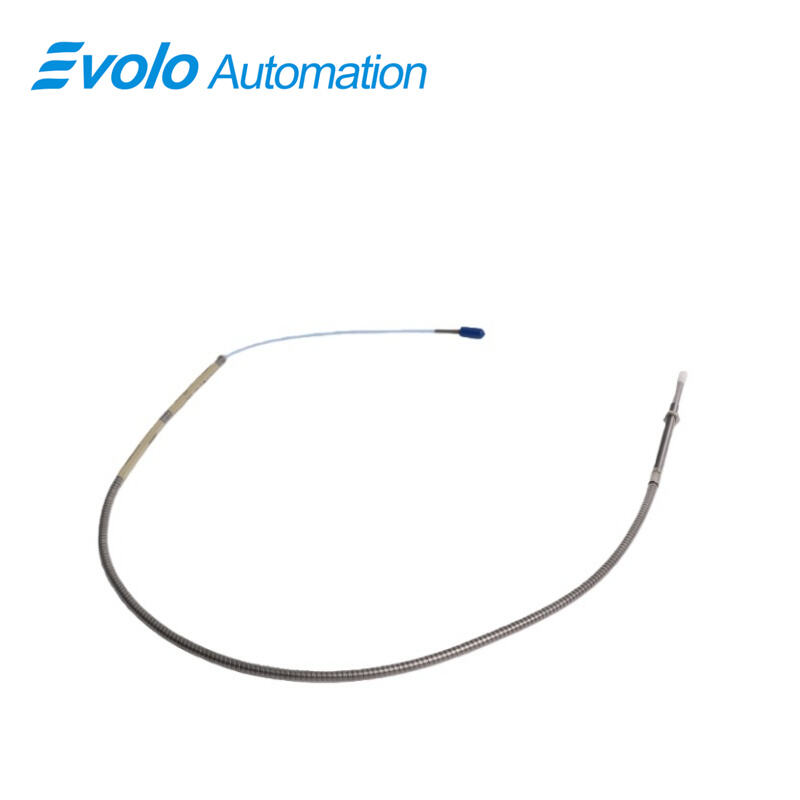

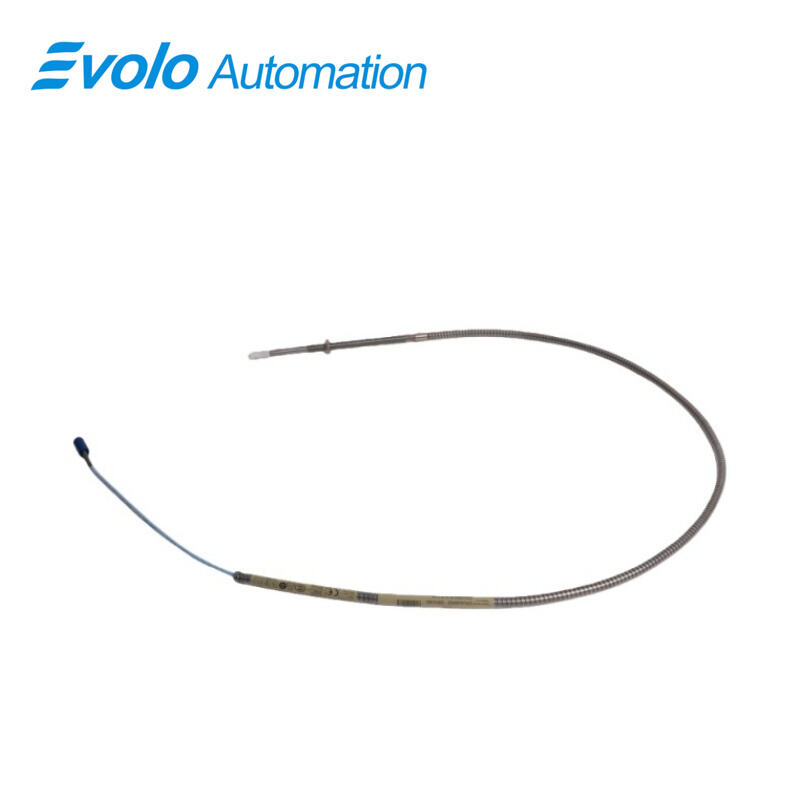

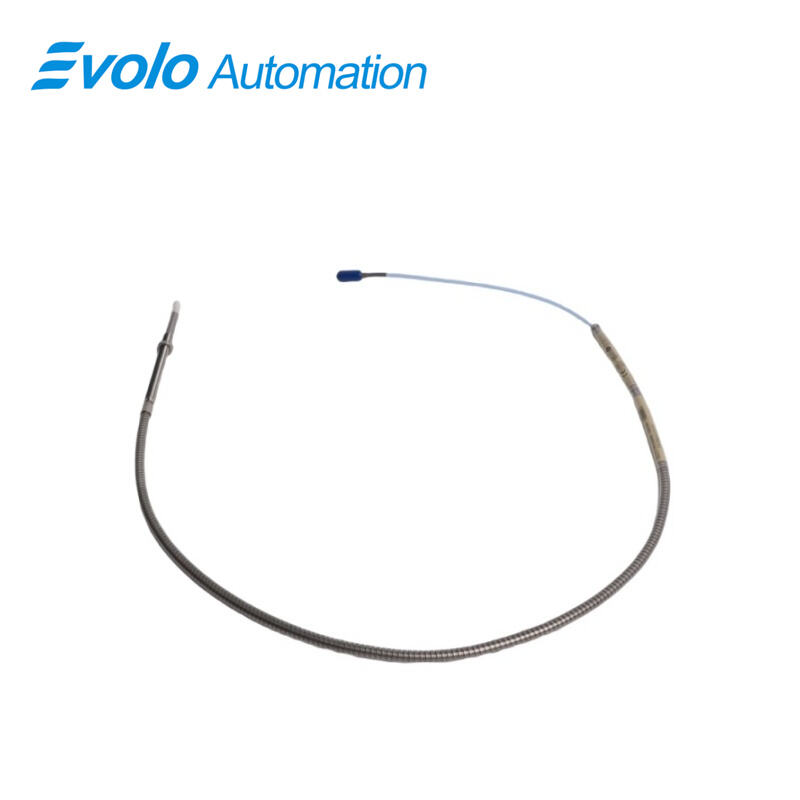

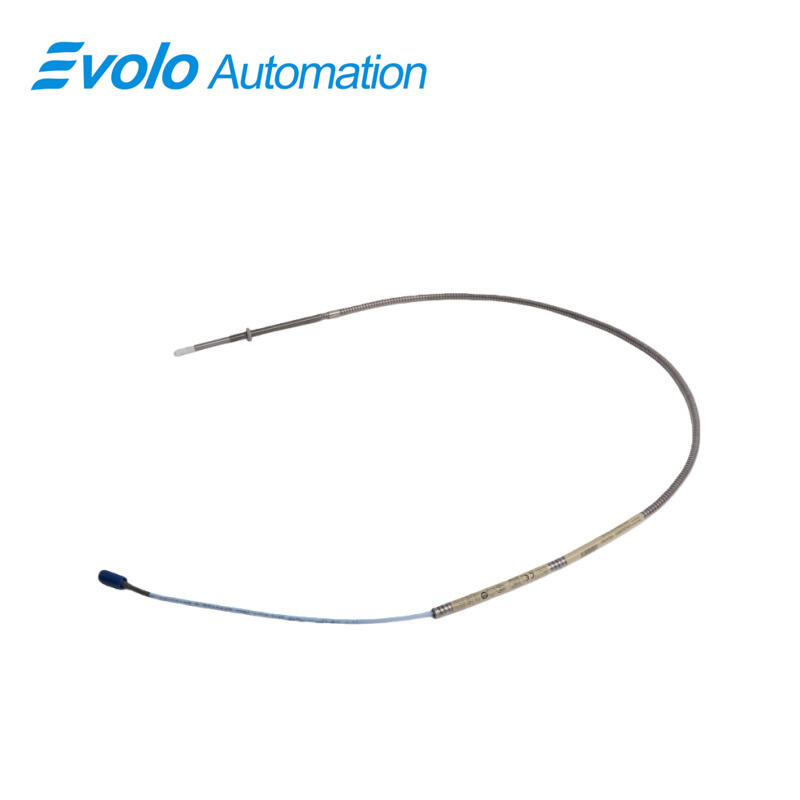

The 330904-04-14-05-02-00 3300 NSv Proximity Probe features a 140 mm overall case length and 0.5 m cable with a miniature coaxial ClickLoc connector and optional connector protector. Designed for automated systems, the 3300 NSv Proximity Probe measures radial vibration on shafts smaller than 51 mm (2 in) and axial positions on targets under 15 mm (0.6 in), with a linear range of 1.5 mm and recommended gap of 1.0 mm. The probe case uses M8X1 threading with a 12 mm maximum thread engagement, while the tip is PPS and the body is AISI 304 stainless steel, supporting temperature ranges from -52°C to +177°C (-62°F to +351°F). With 50 Ω output resistance and supply sensitivity under 2 mV per volt, the 3300 NSv Proximity Probe ensures accurate signal output for centrifugal, refrigeration, and process gas compressors. Field wiring supports 0.2–1.5 mm² (16–24 AWG), with ferrule options 0.25–0.75 mm² (18–23 AWG). The 3300 NSv Proximity Probe enables precise radial and axial measurements, tachometer readings, and Keyphasor signal generation in automation, replacing 3300 RAM or 3000/7000-series probes without altering the existing extension cable or Proximitor system.

Applications

Radial Vibration Monitoring on Small Shafts
The 330904-04-14-05-02-00 3300 NSv Proximity Probe measures radial vibration on shafts smaller than 51 mm (2 in) using its 1.5 mm linear range and 1.0 mm recommended gap. Its PPS tip and 304 stainless steel case ensure accurate readings under -52°C to +177°C (-62°F to +351°F) conditions.

Axial (Thrust) Position Measurements
Using the 12 mm maximum thread engagement and M8X1 probe case, the 330904-04-14-05-02-00 3300 NSv Proximity Probe captures axial movement on flat targets smaller than 15 mm (0.6 in), providing precise displacement signals for process compressors and automation machinery.

Tachometer and Zero-Speed Detection
The 330904-04-14-05-02-00 3300 NSv Proximity Probe outputs 50 Ω resistance signals with less than 2 mV per volt supply sensitivity change, enabling reliable tachometer and zero-speed measurements in automated centrifugal or refrigeration compressors.

Phase Reference (Keyphasor) Signals
Equipped with a miniature coaxial ClickLoc connector, the 330904-04-14-05-02-00 3300 NSv Proximity Probe generates high-fidelity Keyphasor signals for automation systems that require rotor phase synchronization.

Specifications

Competitive Advantage

Direct Upgrade from 3300 RAM or 3000/7000 Series
The 330904-04-14-05-02-00 3300 NSv Proximity Probe can replace older 3300 RAM or 3000/7000-series probes without changing extension cables or Proximitor sensors, reducing retrofit downtime.

Chemical Resistance for Harsh Process Environments
With a PPS probe tip and AISI 304 stainless steel case, the 330904-04-14-05-02-00 3300 NSv Proximity Probe withstands chemical exposure in compressors and automated process equipment.

Enhanced Side-View and Small Target Measurement
The 330904-04-14-05-02-00 3300 NSv Proximity Probe captures accurate readings in tight spaces or with reduced side-view, allowing installation where standard probes cannot fit.

Secure Mechanical and Electrical Connections
The gold-plated ClickLoc connector on the 330904-04-14-05-02-00 3300 NSv Proximity Probe locks firmly into place. CableLoc attachment supports 220 N (50 lb) pull, preventing signal loss in automated systems.

Optimized Signal Output for Automation
The 330904-04-14-05-02-00 3300 NSv Proximity Probe delivers consistent 7.87 V/mm (200 mV/mil) scale factor signals, ensuring accurate integration with monitoring and control systems.
