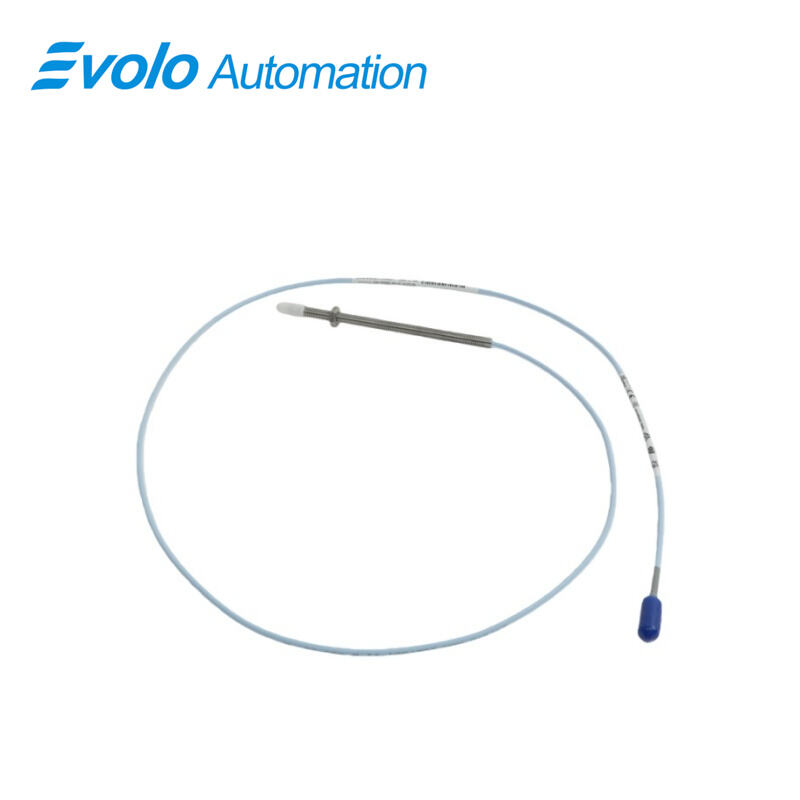

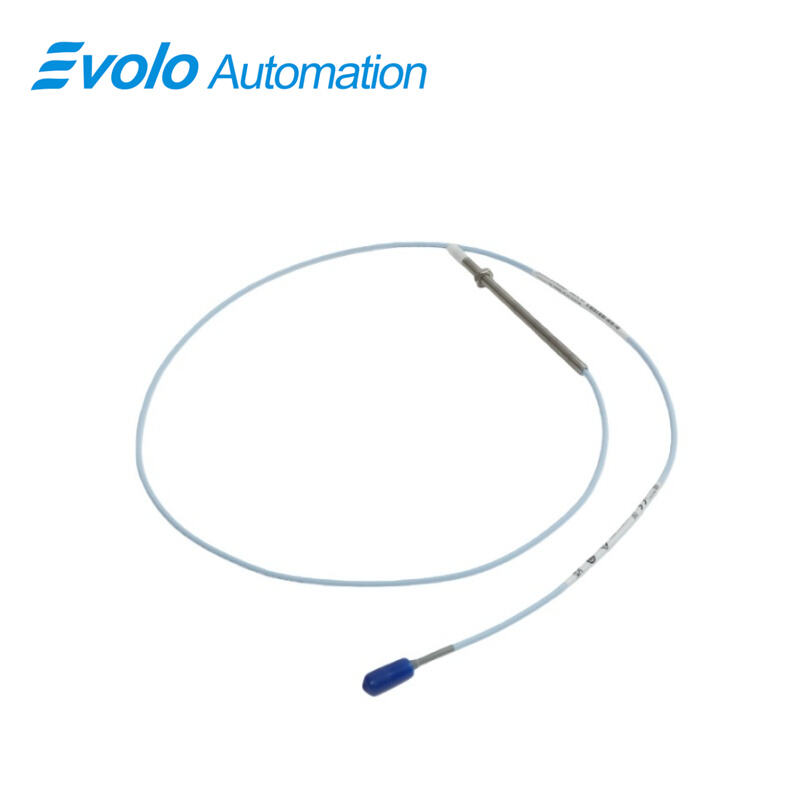

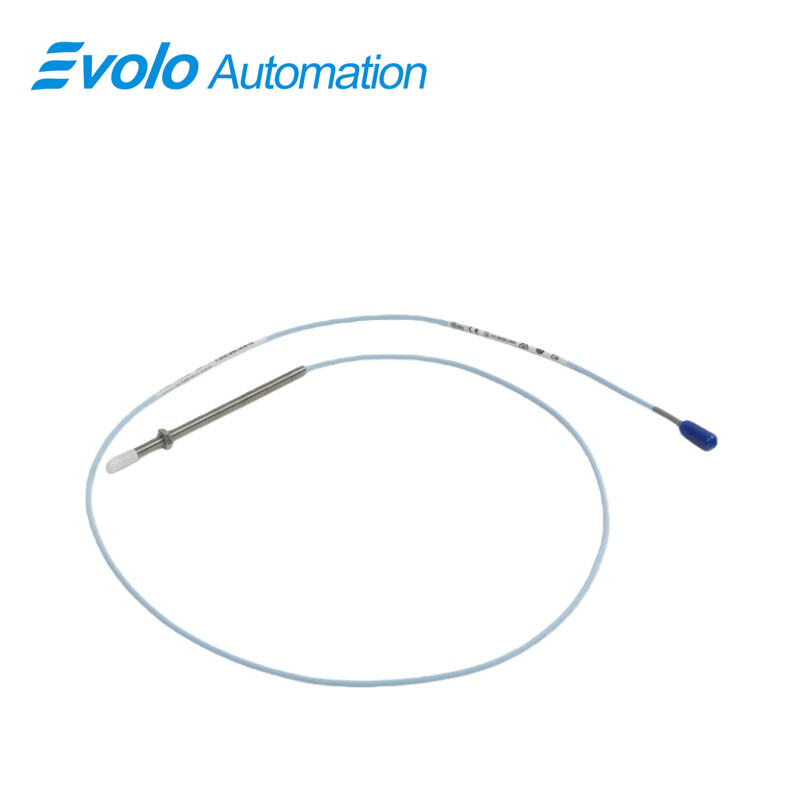

330901-00-40-05-02-00 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330901-00-40-05-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330901-00-40-05-02-00 3300 NSv Proximity Probe delivers precise non-contact vibration and position measurements for fluid-film bearing machines, centrifugal air compressors, refrigeration compressors, and process gas compressors. Featuring a 1.5 mm linear range and a 7.87 V/mm scale factor, the 330901-00-40-05-02-00 3300 NSv Proximity Probe accurately monitors radial vibration, axial (thrust) position, and Keyphasor speed signals in tight installation spaces. The probe has a 4.0 in stainless steel case, a PPS tip, and a 0.5-meter cable with a miniature coaxial ClickLoc connector, providing robust connections and resistance to chemical and temperature extremes from -52°C to +177°C (-62°F to +351°F). The 1/4-28 UNF threaded case with 0.375 in engagement enables secure mounting for small shafts or flat targets under 15 mm. The 330901-00-40-05-02-00 3300 NSv Proximity Probe is compatible with 3300 RAM extension cables and Proximitor sensors, supporting straightforward upgrades and reliable automation monitoring. Connector protectors and the patented TipLoc/CableLoc design maintain signal integrity in demanding industrial environments, while side-view accessibility allows operation where standard 3300 XL probes cannot fit.

Applications

Measure Radial Vibration on Small Shafts
The 330901-00-40-05-02-00 3300 NSv Proximity Probe uses its 1.5 mm linear range and 7.87 V/mm output to detect radial vibration on shafts smaller than 51 mm (2 in), enabling precise monitoring in centrifugal air compressors and fluid-film bearing machines.

Monitor Axial (Thrust) Position
With a PPS probe tip and 4.0 in AISI 304 stainless steel case, the 330901-00-40-05-02-00 3300 NSv Proximity Probe provides accurate axial position readings for flat targets as small as 15 mm (0.6 in), supporting axial movement analysis on process gas compressors.

Detect Shaft Speed and Phase Reference
Integrated with Keyphasor signals, the 330901-00-40-05-02-00 3300 NSv Proximity Probe outputs precise tachometer and zero-speed measurements, making it suitable for automation monitoring in refrigeration compressors.

Enable Tight-Space Installation
The 1/4-28 UNF threaded case with 0.375 in maximum thread engagement allows installation where counterbore, side-view, or rear-view constraints exist, giving the 330901-00-40-05-02-00 3300 NSv Proximity Probe a clear advantage in compact industrial setups.

Specifications

Competitive Advantage

Chemical and Temperature Resistance
Operating from -52°C to +177°C (-62°F to +351°F) and constructed from AISI 304 stainless steel with a PPS tip, the 330901-00-40-05-02-00 3300 NSv Proximity Probe withstands harsh industrial environments while maintaining accurate measurements.

Enhanced Side-View Access
The short 4.0 in probe case allows the 330901-00-40-05-02-00 3300 NSv Proximity Probe to reach areas inaccessible to standard 3300 XL probes, enabling precise gap setting and small-target monitoring.

Secure Electrical Connections
Equipped with miniature coaxial ClickLoc connectors and patented CableLoc design, the 330901-00-40-05-02-00 3300 NSv Proximity Probe maintains strong probe-to-cable connections with 220 N pull strength, reducing signal interruptions.
