330851-08-000-064-10-01-05 3300 XL 25 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330851-08-000-064-10-01-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

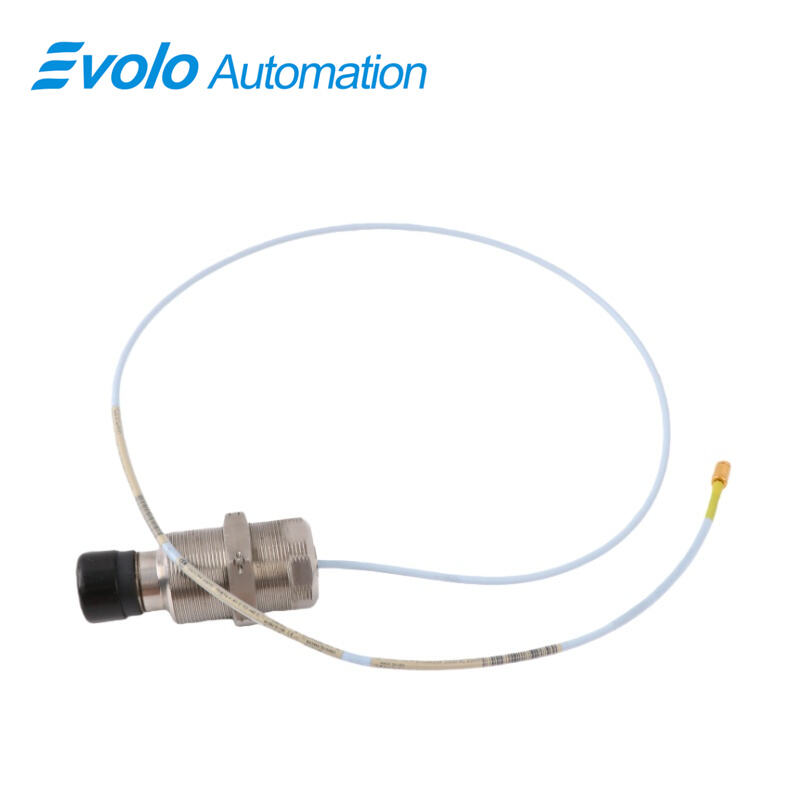

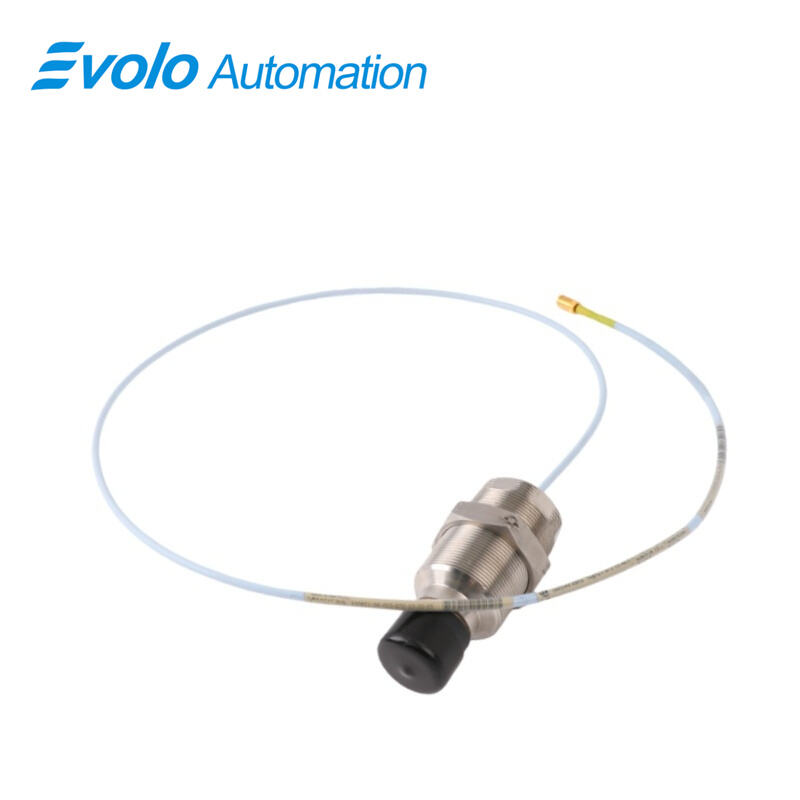

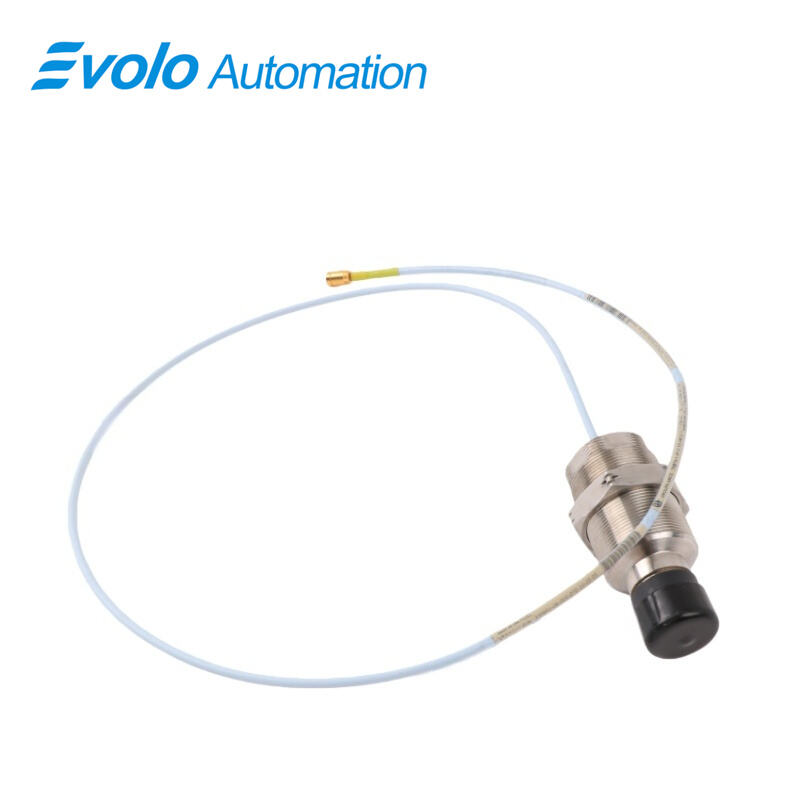

The 330851-08-000-064-10-01-05 3300 XL 25 mm Proximity Probe features a smooth 1.5 in diameter side-exit case with a 64 mm overall length and 1.0 metre extension cable, equipped with SST armor. Its 0.787 V/mm (20 mV/mil) output provides a 12.7 mm linear range, enabling precise measurement of differential expansion (DE) in midsize to large steam turbines. The 330851-08-000-064-10-01-05 3300 XL 25 mm Proximity Probe operates continuously from -35°C to +200°C and tolerates short-term temperatures up to +250°C. With a 25.4 mm probe adapter vertical adjustment and PEEK tip, it monitors rotor-to-stator axial movement and supplies real-time data to automation systems. The probe’s front and rear seals, combined with high-temperature ClickLoc connectors, ensure reliable signal integrity while routing cables through tight turbine spaces. Designed to replace legacy 7200 and 3300 XL 25 mm transducer systems, the 330851-08-000-064-10-01-05 3300 XL 25 mm Proximity Probe supports seamless upgrades and accurate DE measurement without changes to existing monitor configurations.

Applications

Differential Expansion Measurement on Steam Turbines
The 330851-08-000-064-10-01-05 3300 XL 25 mm Proximity Probe measures rotor-to-stator growth differences in midsize to large steam turbines. Its 12.7 mm linear range and 0.787 V/mm output allow precise tracking of axial movement between collars and ramps, providing accurate DE data for automation systems.

Rotor Position Monitoring in Turbine Generators
With a 25.4 mm vertical adjustment and 1.0-metre cable, the 330851-08-000-064-10-01-05 3300 XL 25 mm Proximity Probe captures rotor motion in real time. Automation systems use this data to control shaft alignment and prevent mechanical contact.

High-Temperature Operational Feedback
The 330851-08-000-064-10-01-05 3300 XL 25 mm Proximity Probe operates continuously up to +200°C and withstands short-term peaks of +250°C, enabling it to feed thermal expansion data into predictive maintenance programs in steam turbine environments.

Retrofit for Legacy 7200 Systems
The 330851-08-000-064-10-01-05 3300 XL 25 mm Proximity Probe physically replaces older 7200 25 mm or 35 mm DE transducer systems. Automation systems can upgrade to modern 3300 XL sensors without reconfiguring monitor setups, reducing downtime.

Specifications

Competitive Advantage

Armor-Protected Signal Integrity
The 330851-08-000-064-10-01-05 3300 XL 25 mm Proximity Probe features SST armor and PEEK probe tip, preventing moisture ingress and maintaining linear output, ensuring accurate DE data for automated monitoring.

Flexible Installation Options
With a smooth 1.5 in diameter side-exit case and 1.0-metre cable, the 330851-08-000-064-10-01-05 3300 XL 25 mm Proximity Probe fits tight turbine spaces while allowing vertical probe adjustment, simplifying integration into existing automation layouts.

High-Temperature Operation
Operating from -35°C to +200°C and surviving short-term +250°C conditions, the 330851-08-000-064-10-01-05 3300 XL 25 mm Proximity Probe provides reliable DE readings in extreme environments, feeding critical data into turbine control systems.

Seamless System Upgrade
The 330851-08-000-064-10-01-05 3300 XL 25 mm Proximity Probe matches the output of older 7200 and DE Integral systems, enabling automation system upgrades without monitor reconfiguration, reducing installation complexity.

Connector Protection and Cable Routing
Equipped with front and rear seals and ClickLoc connectors, the 330851-08-000-064-10-01-05 3300 XL 25 mm Proximity Probe maintains clean signal paths and simplifies cable routing in automation systems, supporting accurate real-time measurements.
