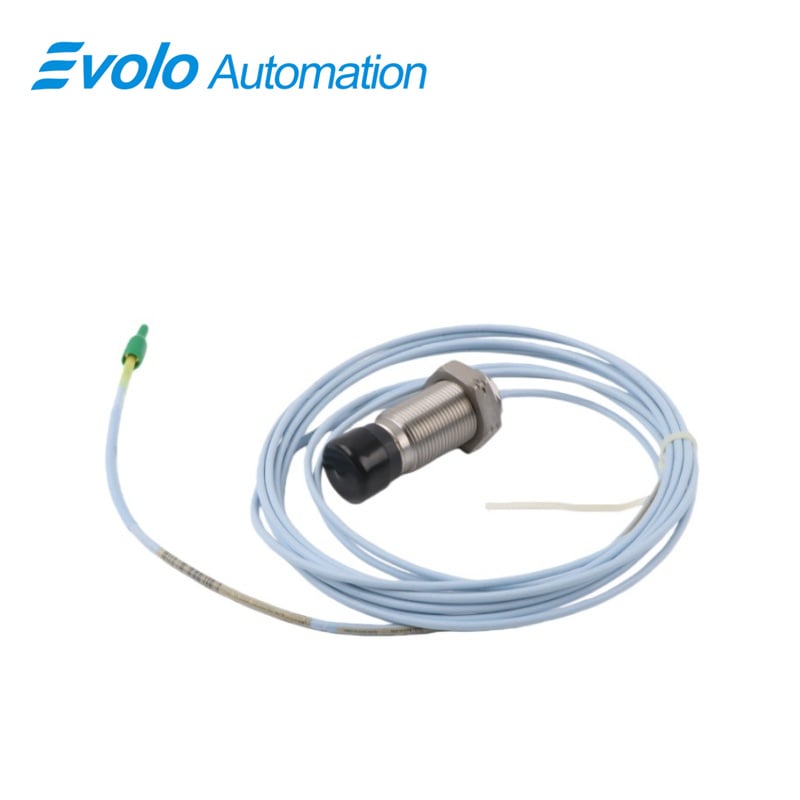

330851-02-000-060-50-00-CN 3300 XL 25 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330851-02-000-060-50-00-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330851-02-000-060-50-00-CN 3300 XL 25 mm Proximity Probe is a high-precision transducer designed for automated monitoring of differential expansion in midsize to large steam turbine generators. Featuring a 60 mm overall case length, M30x2 threaded housing, and a 25.4 mm vertical probe adapter adjustment, the 330851-02-000-060-50-00-CN 3300 XL 25 mm Proximity Probe provides a linear output of 0.787 V/mm over a 12.7 mm range. Constructed with AISI 304 stainless steel and a PEEK tip, this probe operates continuously from -35°C to +200°C and handles short-term spikes up to 250°C. With a 5.0 metre total length and optional flexible SST/PFA armored extension cable, the 330851-02-000-060-50-00-CN 3300 XL 25 mm Proximity Probe supports installation in long-distance monitoring applications. Its front and rear seals, combined with high-temperature ClickLoc connectors, prevent moisture ingress and facilitate routing through tight turbine clearances. Compatible with 3300 XL Proximitor Sensors, this probe integrates seamlessly into automated condition monitoring systems and can replace legacy 7200 DE probes without reconfiguring monitors, ensuring precise rotor-to-stator axial displacement tracking in steam turbines.

Applications

Measure Differential Expansion on Steam Turbines
Use the 330851-02-000-060-50-00-CN 3300 XL 25 mm Proximity Probe to monitor axial displacement between turbine rotor and stator, tracking differential expansion with a linear range of 12.7 mm.

Install in Long-Distance Monitoring Systems
The 5.0 metre cable length of the 330851-02-000-060-50-00-CN 3300 XL 25 mm Proximity Probe enables installation in remote turbine locations without signal degradation.

Upgrade Legacy 7200 DE Probes
The 330851-02-000-060-50-00-CN 3300 XL 25 mm Proximity Probe fits existing 7200 DE probe mountings, providing precise measurements without modifying monitor configurations.

High-Temperature Rotor Monitoring
Deploy the 330851-02-000-060-50-00-CN 3300 XL 25 mm Proximity Probe in environments up to 200°C, ensuring accurate readings near turbine thrust bearings.

Specifications

Competitive Advantage

Extended Linear Range Measurement
The 12.7 mm linear output of the 330851-02-000-060-50-00-CN 3300 XL 25 mm Proximity Probe enables accurate differential expansion tracking across wide rotor movements.

Durable Construction for Harsh Environments
With AISI 304 stainless steel housing, PEEK tip, and optional SST/PFA armor, the 330851-02-000-060-50-00-CN 3300 XL 25 mm Proximity Probe withstands high temperatures and turbine debris.

Easy Installation and Cable Routing
Front and rear seals plus ClickLoc connectors allow the 330851-02-000-060-50-00-CN 3300 XL 25 mm Proximity Probe to be installed in tight spaces and maintain moisture protection.

Seamless Integration with 3300 XL Sensors
The 330851-02-000-060-50-00-CN 3300 XL 25 mm Proximity Probe works with 3300 XL Proximitor Sensors, enabling automated DE monitoring without modifying existing control or monitoring systems.

Reduces Downtime During Upgrades
By matching legacy 7200 DE probe outputs, the 330851-02-000-060-50-00-CN 3300 XL 25 mm Proximity Probe minimizes plant downtime when upgrading measurement systems.
