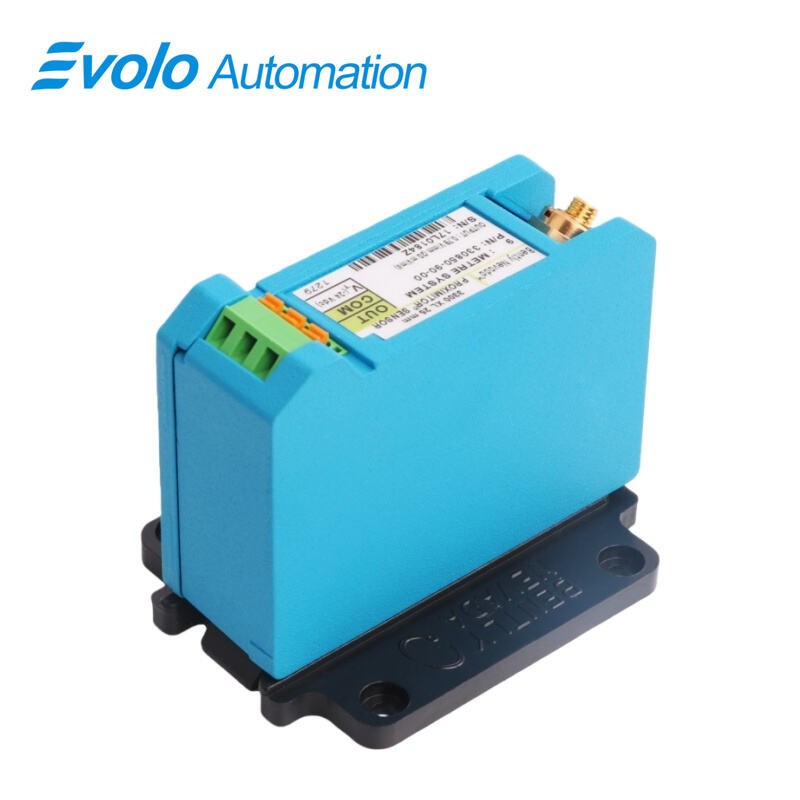

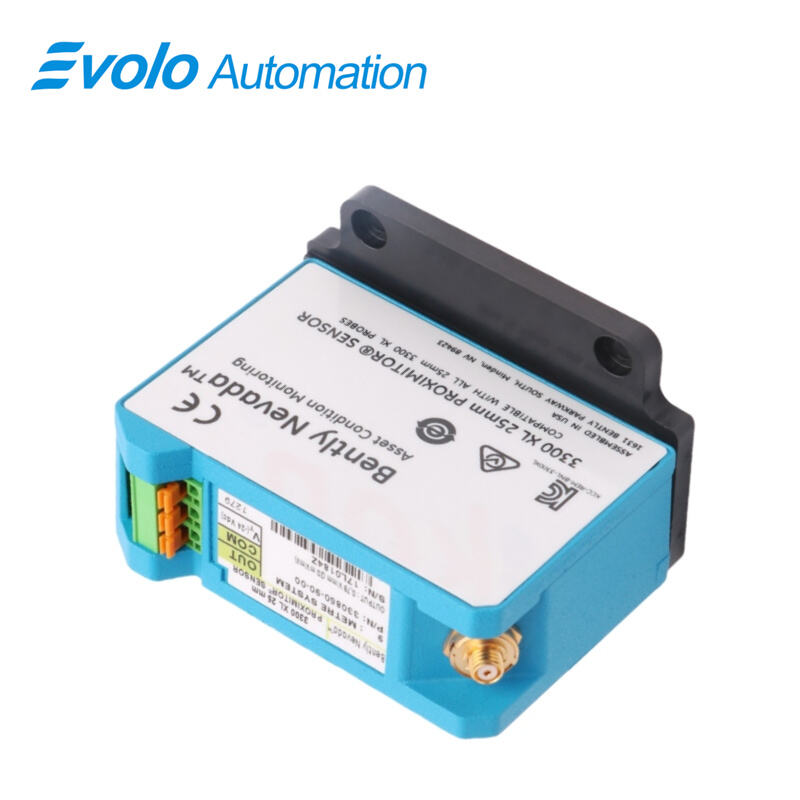

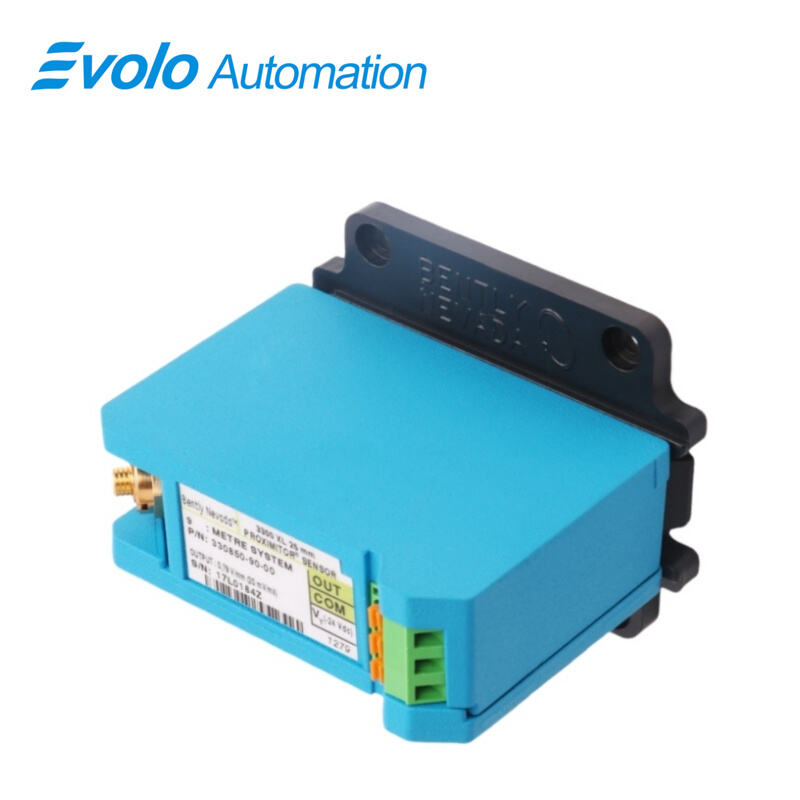

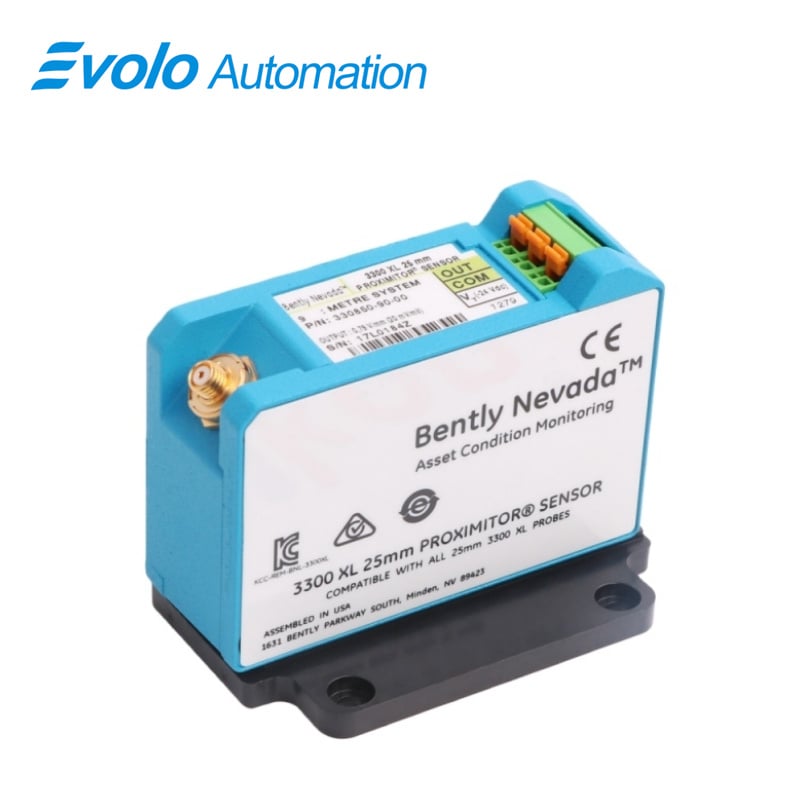

330850-90-00 3300 XL 25 mm Proximitor Sensor

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330850-90-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330850-90-00 3300 XL 25 mm Proximitor Sensor is engineered for industrial automation systems requiring precise non-contact signal processing from rotating machinery. The 330850-90-00 3300 XL 25 mm Proximitor Sensor accepts one 3300 XL 25 mm Proximity Probe and extension cable, delivering high-fidelity displacement signals with less than 2 mV change per volt of input variation. Operating from -17.5 Vdc to -26 Vdc without barriers (and -23 Vdc to -26 Vdc with barriers), the 330850-90-00 3303 XL 25 mm Proximitor Sensor maintains accurate output within its linear range. Built from A380 aluminum, the 330850-90-00 3300 XL 25 mm Proximitor Sensor operates from -51°C to +100°C and withstands 100% condensing humidity when connectors are protected. With a 50 Ω output resistance and a 9.0-meter panel-mountable system length, the 330850-90-00 3300 XL 25 mm Proximitor Sensor integrates seamlessly into automated turbine, compressor, and pump monitoring systems.

Applications

Shaft vibration monitoring in turbines
The 330850-90-00 3300 XL 25 mm Proximitor Sensor converts radial displacement from the 25 mm probe into precise voltage outputs for real-time turbine vibration monitoring. With a supply sensitivity of less than 2 mV per volt and a 50 Ω output resistance, the 330850-90-00 3300 XL 25 mm Proximitor Sensor delivers consistent signals over the full 9.0-meter system length, ensuring accurate vibration data for automation control systems.

Axial position measurement in compressors
The 330850-90-00 3300 XL 25 mm Proximitor Sensor tracks axial shaft movement in compressors, using the panel-mount design and A380 aluminum housing to maintain probe alignment under operational stress. The 330850-90-00 3300 XL 25 mm Proximitor Sensor supports operation from -51°C to +100°C, allowing accurate axial displacement measurement in high-temperature compressor environments.

Bearing clearance monitoring in pumps
The 330850-90-00 3300 XL 25 mm Proximitor Sensor monitors fluid-film bearing clearance, converting small radial motion into proportional voltage outputs. With 100% condensing humidity tolerance and low supply sensitivity, the 330850-90-00 3300 XL 25 mm Proximitor Sensor ensures reliable readings in pump automation systems under challenging conditions.

Remote machinery diagnostics
The 330850-90-00 3300 XL 25 mm Proximitor Sensor provides high-fidelity output over a 9.0-meter system length, enabling remote monitoring and automated control in turbine, compressor, and pump systems. Its operating range (-51°C to +100°C) and A380 aluminum construction allow the 330850-90-00 3300 XL 25 mm Proximitor Sensor to deliver consistent data even in harsh industrial environments.

Specifications

Competitive Advantage

High-precision signal capture
The 330850-90-00 3300 XL 25 mm Proximitor Sensor offers less than 2 mV per volt supply sensitivity and a 50 Ω output resistance, ensuring accurate displacement measurement in automation systems.

Wide temperature and humidity operation
Operating from -51°C to +100°C and surviving 100% condensing humidity, the 330850-90-00 3300 XL 25 mm Proximitor Sensor can be installed in extreme industrial environments.

Panel-mountable design for compact installations
The 330850-90-00 3300 XL 25 mm Proximitor Sensor supports a 9.0-meter system length, enabling integration into dense control panels and machinery racks.

Durable aluminum housing
Constructed from A380 aluminum, the 330850-90-00 3300 XL 25 mm Proximitor Sensor resists mechanical stress and prolongs operational life in heavy-duty industrial automation applications.
