Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330730-080-12-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Cable Length Option: |
8.0 meters (26.2 feet) |
|
Connector and Cable Option: |
FluidLoc cable with connector protector |
|
Agency Approval Option: |
Not required |
|
Dimension: |
21x2.7x20.5cm |
|
Weight: |
0.3kg |
Description

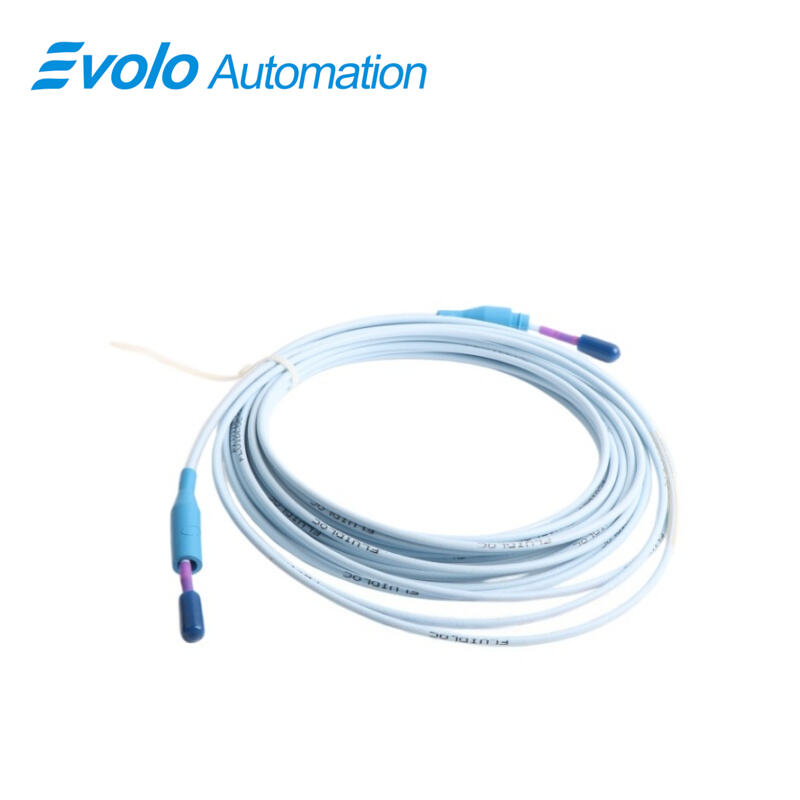

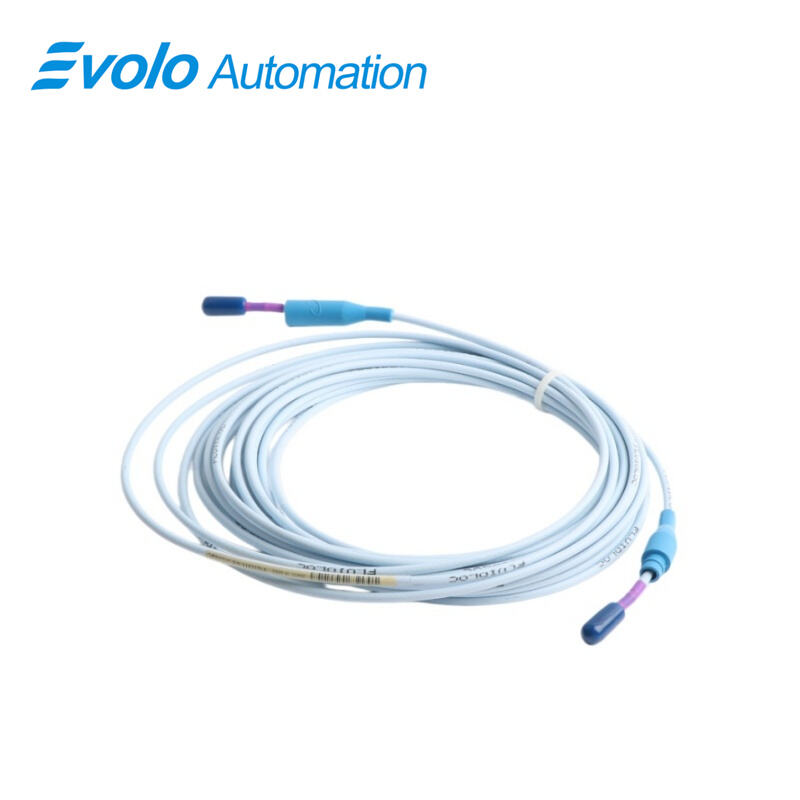

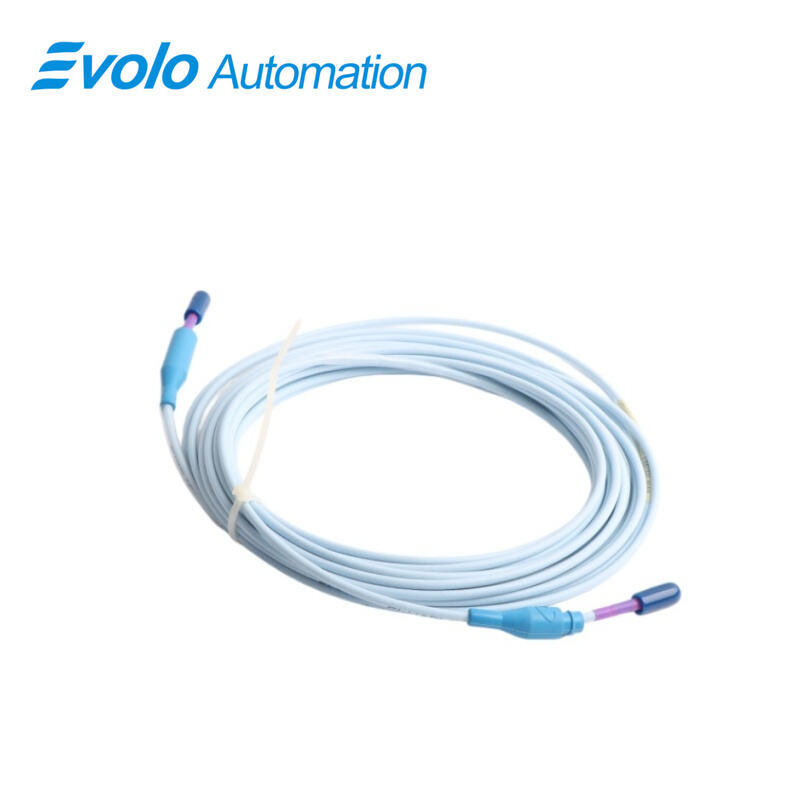

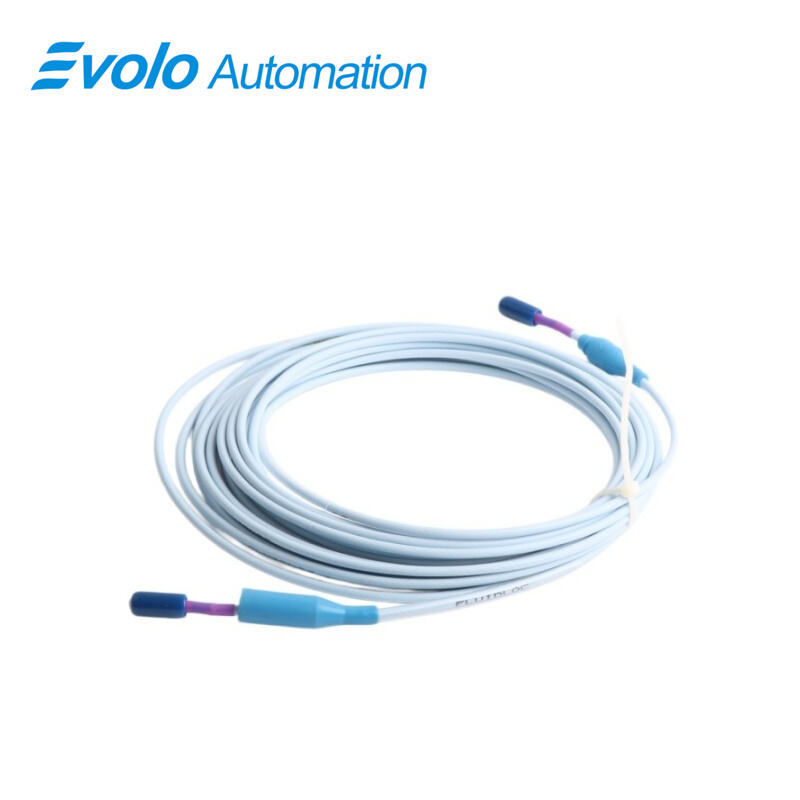

The 330730-080-12-00 3300 XL 11 mm Extension Cable provides precise signal transmission for industrial automation systems. Measuring 8.0 meters (26.2 ft), this FluidLoc cable with connector protector ensures 50 Ω output resistance and <2 mV supply sensitivity per volt input change. Its 75 Ω triaxial FEP insulation and flexible AISI 302 SST armor with FEP jacket allow operation from –52°C to +177°C (–62°F to +351°F). 330730-080-12-00 supports field wiring from 0.2 to 1.5 mm² (16–24 AWG) and connects securely with Bently Nevada™ 3300 XL 11 mm probes and Proximitor sensors using ClickLoc connectors rated for 330 N pull strength. The 330730-080-12-00 transmits accurate vibration, displacement, axial position, differential expansion, rod position, and Keyphasor signals for automated monitoring on fluid film bearing machines. Its armored design and connector protection prevent fluid ingress, maintaining precise 3.94 V/mm (100 mV/mil) output for industrial machinery measurements.
Applications
Measure Axial Position on Steam Turbines
The 330730-080-12-00 transmits probe signals to measure thrust bearing displacement. Its 8.0-meter length and 50 Ω output maintain precise 3.94 V/mm readings for automated turbine monitoring.
Track Rod Position in Reciprocating Compressors
Connect 330730-080-12-00 to Proximitor sensors to monitor rod drop. The cable supports 0.2–1.5 mm² wiring and operates in –52°C to +177°C for extreme compressor conditions.
Capture Tachometer and Zero Speed Signals
The 330730-080-12-00 provides rotor speed signals with supply sensitivity below 2 mV/V. ClickLoc connectors ensure secure 330 N connections for continuous automation data acquisition.
Monitor Differential Expansion in Rotors
Install 330730-080-12-00 to measure ramp expansion in multi-stage turbines. Flexible SST armor and FEP jacket handle mechanical stress and high temperatures without affecting 3.94 V/mm output.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +351°F) |
|
Extension Cable Material: |
75 Ω triaxial, fluoroethylene propylene (FEP) insulated |
|
Extension Cable Armor(optional): |
Flexible AISI 302 SST with FEP outer jacket |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) [0.25 to 0.75 mm2 (18 to 23 AWG) with ferrules] |
|
Output resistance: |
50 Ω |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
Competitive Advantage
Easy Integration with 3300 XL Systems
The 330730-080-12-00 connects directly to 3300 XL 11 mm probes and Proximitor sensors, using 8.0-meter length and 75 Ω triaxial FEP cable to maintain precise signal transmission.
High Pull Strength Connection
ClickLoc connectors on 330730-080-12-00 provide 330 N pull strength, preventing disconnections under vibration while preserving 50 Ω output resistance.
Prevent Fluid and Contaminant Entry
The FluidLoc design and connector protector of 330730-080-12-00 block oil, water, and debris, ensuring accurate 3.94 V/mm readings in humid or wet environments.
Rugged Construction for Extreme Conditions
Flexible AISI 302 SST armor with FEP jacket allows 330730-080-12-00 to operate from –52°C to +177°C without affecting supply sensitivity or signal integrity.
Flexible Wiring for Multiple Probe Types
330730-080-12-00 supports 0.2–1.5 mm² (16–24 AWG) field wiring, enabling rapid deployment across various automation probe configurations.
