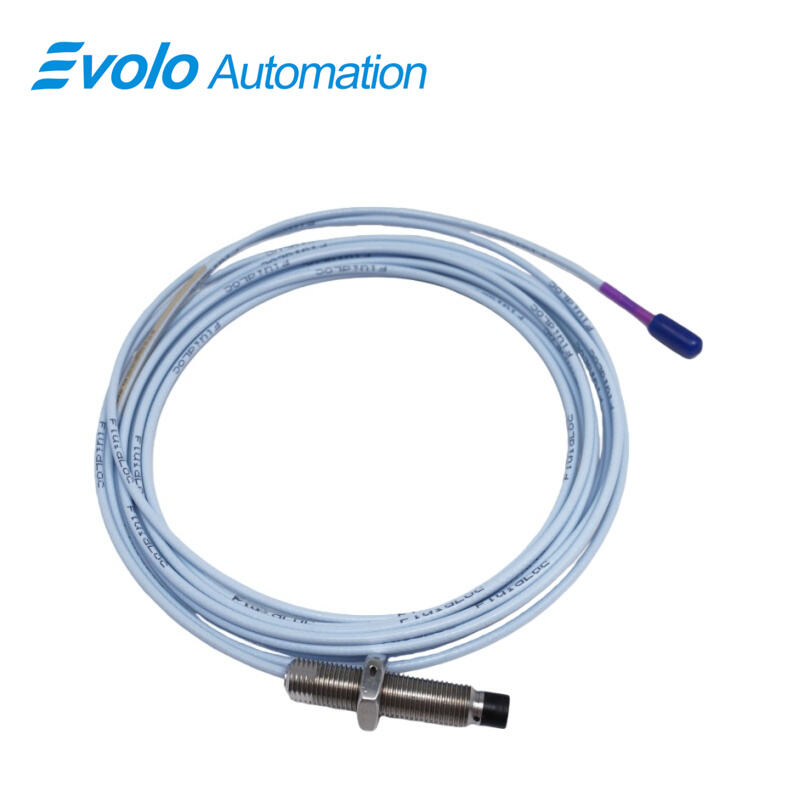

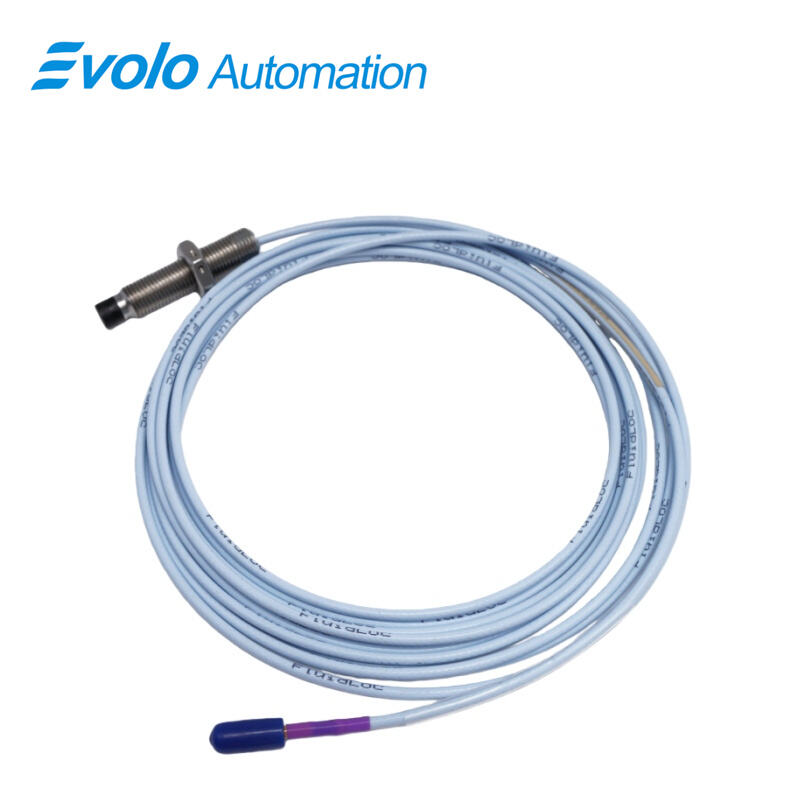

330703-000-060-50-02-05 3300 XL 11 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330703-000-060-50-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330703-000-060-50-02-05 3300 XL 11 mm Proximity Probe provides a 3.94 V/mm (100 mV/mil) output for precise non-contacting vibration and displacement measurements on fluid-film bearing machines. Its 11 mm probe tip offers a longer linear range than standard 8 mm probes, supporting axial (thrust) position monitoring, ramp differential expansion measurement on steam turbines, rod position tracking on reciprocating compressors, and Keyphasor or tachometer signal generation. The 330703-000-060-50-02-05 3300 XL 11 mm Proximity Probe comes with a 5.0-meter (16.4 ft) cable, M14 x 1.5 threaded case, miniature coaxial ClickLoc connector, and gold-plated brass terminals for reliable electrical connections. Operating from -40°C to +85°C, it withstands industrial environments with IP67 dust and water resistance. The probe features patented TipLoc molding and CableLoc designs, providing 330 N (75 lb) pull strength and secure probe-to-cable bonding. Optional FluidLoc cables and connector protectors prevent oil or moisture ingress, maintaining accurate signal transmission. The 330703-000-060-50-02-05 3300 XL 11 mm Proximity Probe replaces 7200-series 11 mm and 14 mm transducers, enabling straightforward system upgrades with consistent output performance.

Applications

Axial Position Monitoring on Steam Turbines
Use the 330703-000-060-50-02-05 3300 XL 11 mm Proximity Probe to measure axial (thrust) movement on steam turbine rotors with precision up to 3.94 V/mm. The probe’s 11 mm tip allows accurate monitoring of rotor-casing differential expansion.

Ramp Differential Expansion Measurement
Install the 330703-000-060-50-02-05 3300 XL 11 mm Proximity Probe on turbine ramps to detect rotor growth differences relative to the stator, with a linear range of 2 mm and high-temperature operation up to 85°C.

Rod Position Tracking on Reciprocating Compressors
The 330703-000-060-50-02-05 3300 XL 11 mm Proximity Probe monitors rod motion on reciprocating compressors. The 5-meter cable and ClickLoc connector provide reliable signal transmission in industrial environments.

Tachometer and Zero-Speed Detection
Use the 330703-000-060-50-02-05 3300 XL 11 mm Proximity Probe for rotational speed measurements, supporting Keyphasor signals for synchronization and phase reference in automation systems.

Specifications

Competitive Advantage

High Linear Range for Large Targets
The 11 mm tip of the 330703-000-060-50-02-05 3300 XL 11 mm Proximity Probe delivers a 2 mm linear range, exceeding standard 8 mm probes, enabling accurate measurement of rotor and stator movements in steam turbines and compressors.

Robust Mechanical and Electrical Connection
Patented TipLoc molding and CableLoc designs on the 330703-000-060-50-02-05 3300 XL 11 mm Proximity Probe provide 330 N (75 lb) pull strength and secure bonding between probe and cable.

Environmental Protection for Harsh Industrial Use
The 330703-000-060-50-02-05 3300 XL 11 mm Proximity Probe offers IP67 dust and water resistance, optional FluidLoc cables, and connector protectors to maintain signal integrity in humid, oily, or dusty conditions.

Direct Replacement for Older Systems
The 330703-000-060-50-02-05 3300 XL 11 mm Proximity Probe replaces 7200-series 11 mm and 14 mm transducers with identical output, simplifying upgrades without changes to monitor configurations.
