330702-00-10-10-01-00 3300 XL 11 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330702-00-10-10-01-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

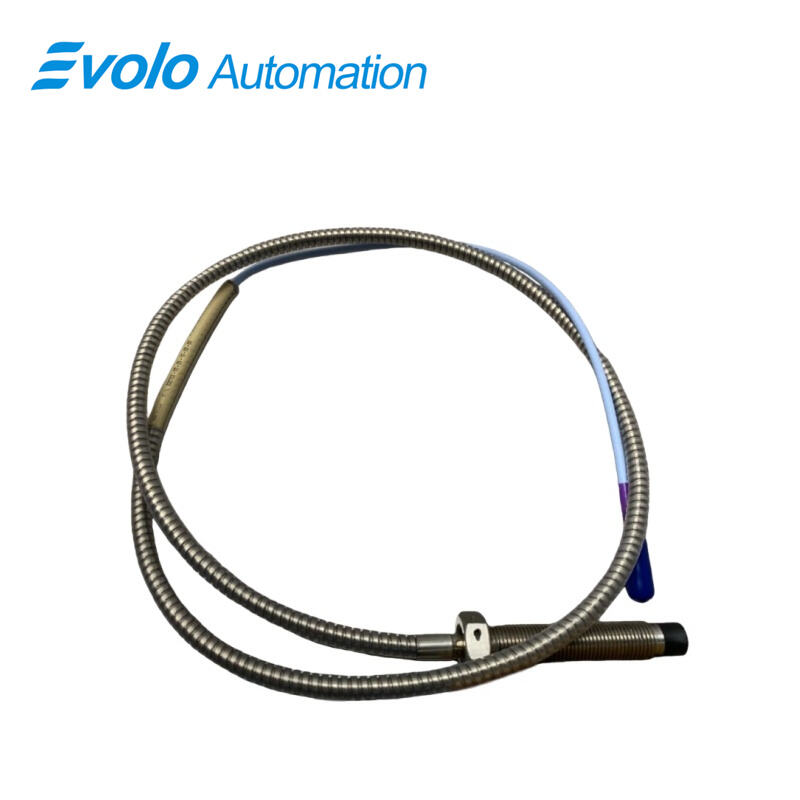

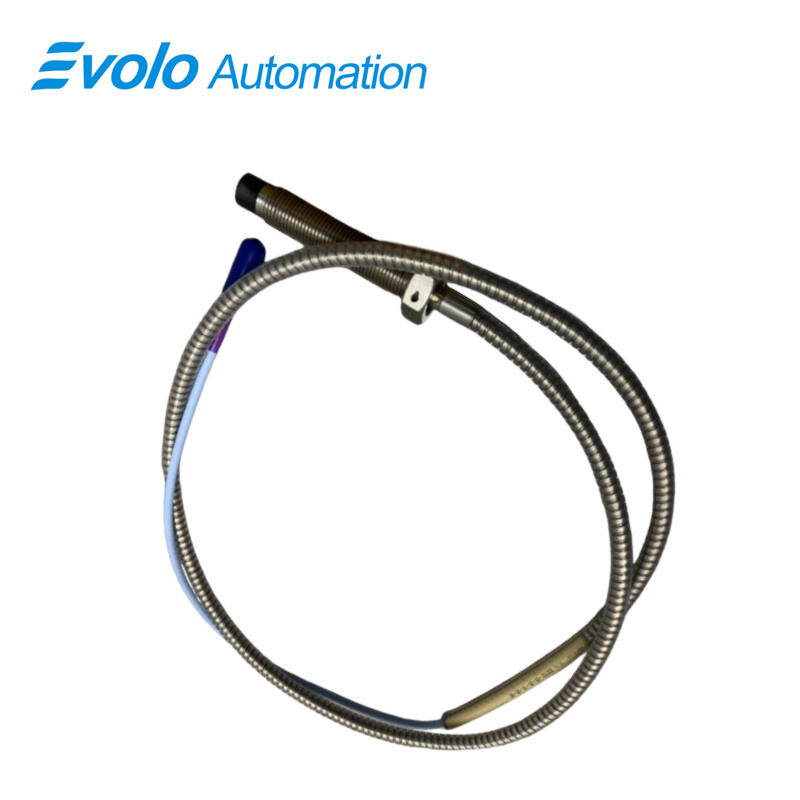

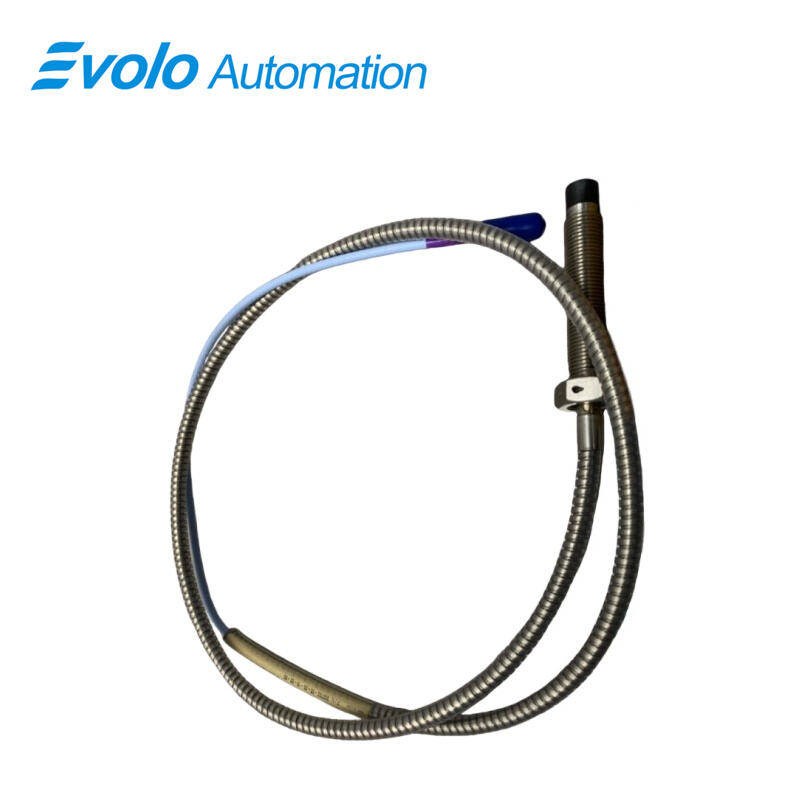

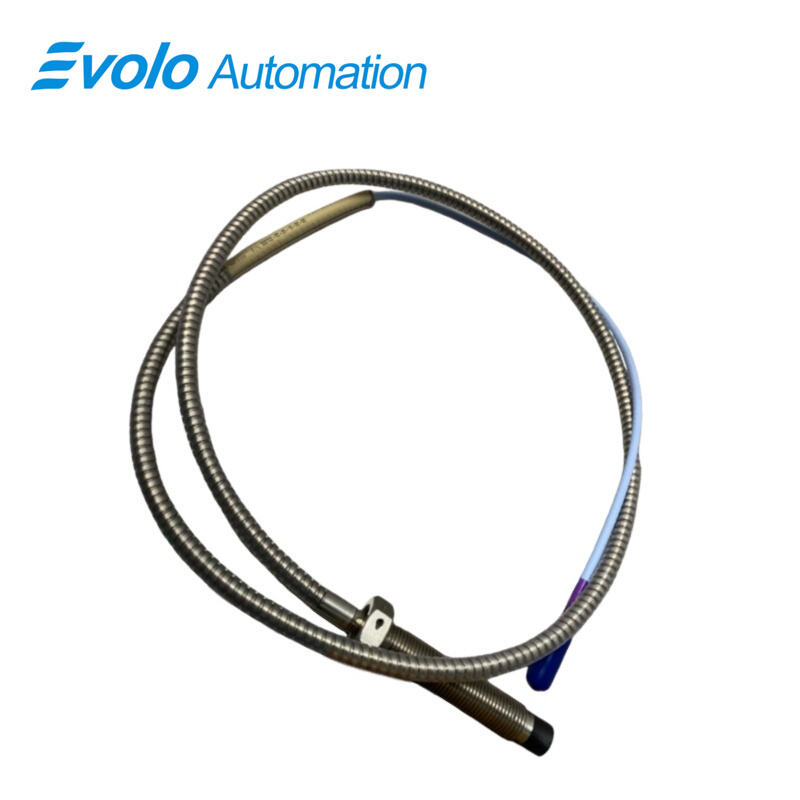

The 330702-00-10-10-01-00 3300 XL 11 mm Proximity Probe features a 1.0-inch case and 1.0-meter standard cable with 5/8-18 UNF thread for non-contact vibration and displacement measurement on fluid-film bearing machines. The 330702-00-10-10-01-00 3300 XL probe delivers 3.94 V/mm output, 99.9% braided copper shielding, and operates from -40°C to +85°C. Equipped with Miniature coaxial ClickLoc connector and connector protector, the 330702-00-10-10-01-00 3300 XL probe provides secure attachment with 330 N pull strength via CableLoc design and TipLoc molding. The large 11 mm probe tip extends the linear range for axial (thrust) position, rod drop measurements, ramp differential expansion, and Keyphasor signal capture. The 330702-00-10-10-01-00 3300 XL probe can be upgraded from legacy 7200-series systems with complete replacement of probe, extension cable, and Proximitor sensor.

Applications

Measure Axial (Thrust) Position
The 330702-00-10-10-01-00 3300 XL probe measures thrust positions on turbine and compressor shafts using its 11 mm tip and 3.94 V/mm output. With 1.0-meter standard cable and 5/8-18 UNF thread, the 330702-00-10-10-01-00 3300 XL probe captures accurate axial movement in tight industrial installations.

Monitor Rod Position and Rod Drop
The 330702-00-10-10-01-00 3300 XL probe tracks rod position or rod drop on reciprocating compressors. Its extended linear range and 330 N CableLoc pull strength allow the 330702-00-10-10-01-00 3300 XL probe to maintain consistent readings even under vibration or movement.

Record Ramp Differential Expansion on Steam Turbines
The 330702-00-10-10-01-00 3300 XL probe captures shaft expansion on steam turbines with high precision. Its 3.94 V/mm output and 99.9% copper braided shielding allow the 330702-00-10-10-01-00 3300 XL probe to measure differential expansion for operational planning and maintenance scheduling.

Provide Keyphasor and Zero-Speed Signals
The 330702-00-10-10-01-00 3300 XL probe generates Keyphasor and zero-speed signals using Miniature coaxial ClickLoc connectors. The connector protector ensures the 330702-00-10-10-01-00 3300 XL probe maintains signal quality in humid or wet environments.

Specifications

Competitive Advantage

Extended Linear Range for Larger Movements
The 330702-00-10-10-01-00 3300 XL probe’s 11 mm tip provides a longer linear range than 8 mm probes, enabling measurement of larger shaft excursions without losing accuracy.

Operate in Wide Temperature Range
The 330702-00-10-10-01-00 3300 XL probe functions from -40°C to +85°C and is IP67 rated. These specifications allow the 330702-00-10-10-01-00 3300 XL probe to deliver accurate data in harsh industrial conditions.

Secure Cable and Probe Connection
The 330702-00-10-10-01-00 3300 XL probe employs TipLoc molding and CableLoc design with 330 N pull strength, and ClickLoc connectors with connector protectors, ensuring the 330702-00-10-10-01-00 3300 XL probe remains connected and prevents fluid ingress.

Enable Accurate Measurement for Turbines and Compressors
With 3.94 V/mm output, 99.9% braided copper shielding, and 5/8-18 UNF thread, the 330702-00-10-10-01-00 3300 XL probe captures precise readings for axial, rod, and Keyphasor measurements on steam turbines, reciprocating compressors, and fluid-film bearing machines.
