330190-040-01-CN 3300 XL Extended Temperature Range (ETR) Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330190-040-01-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

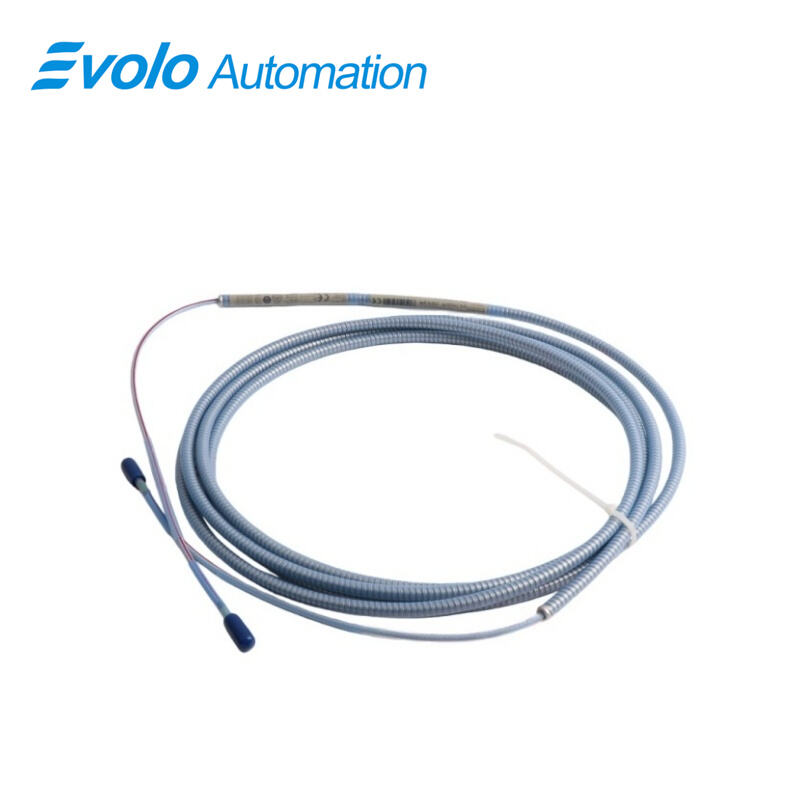

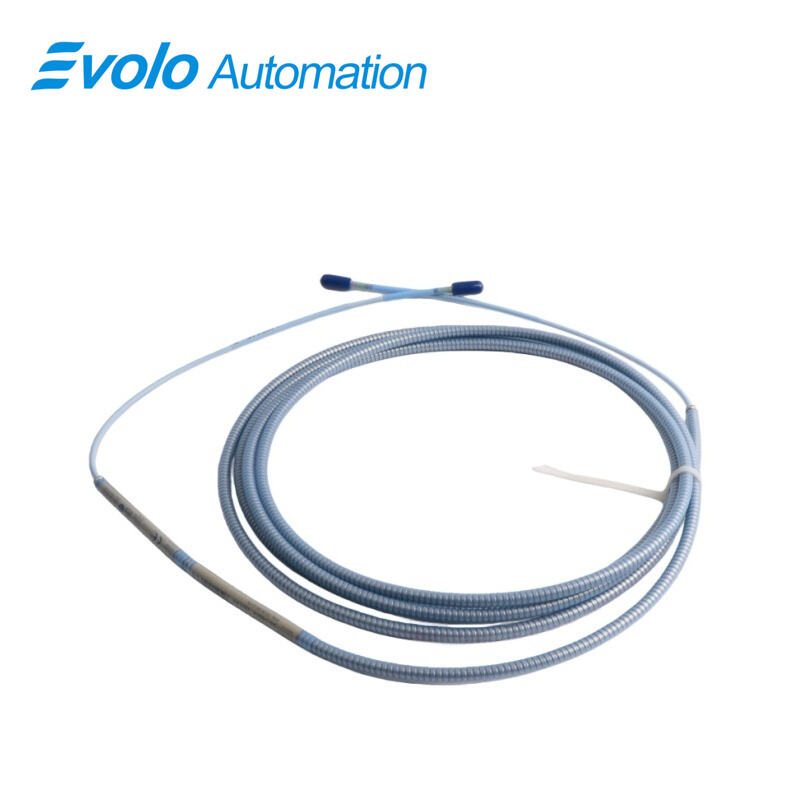

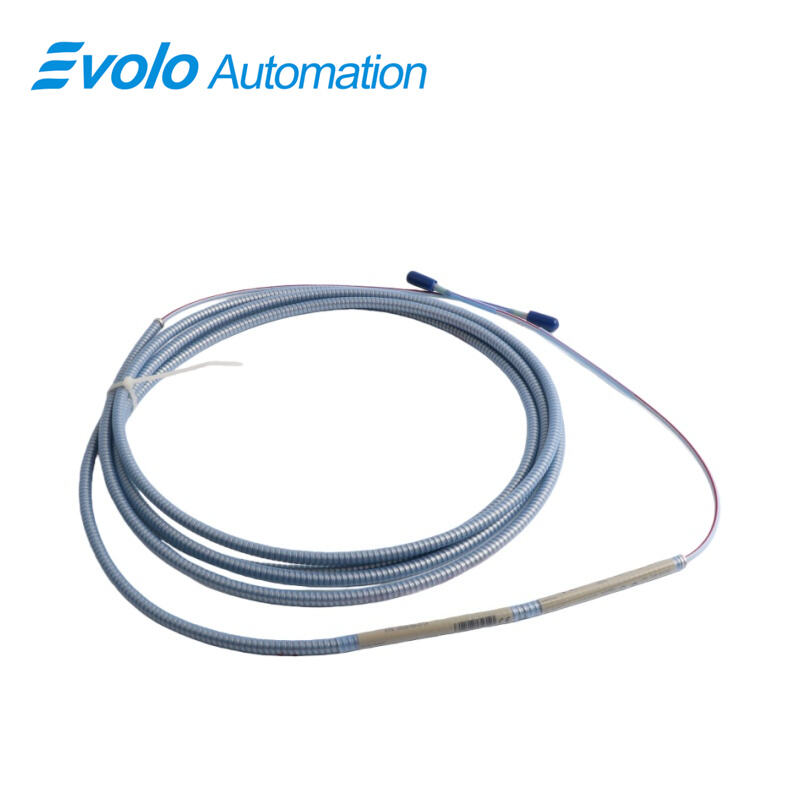

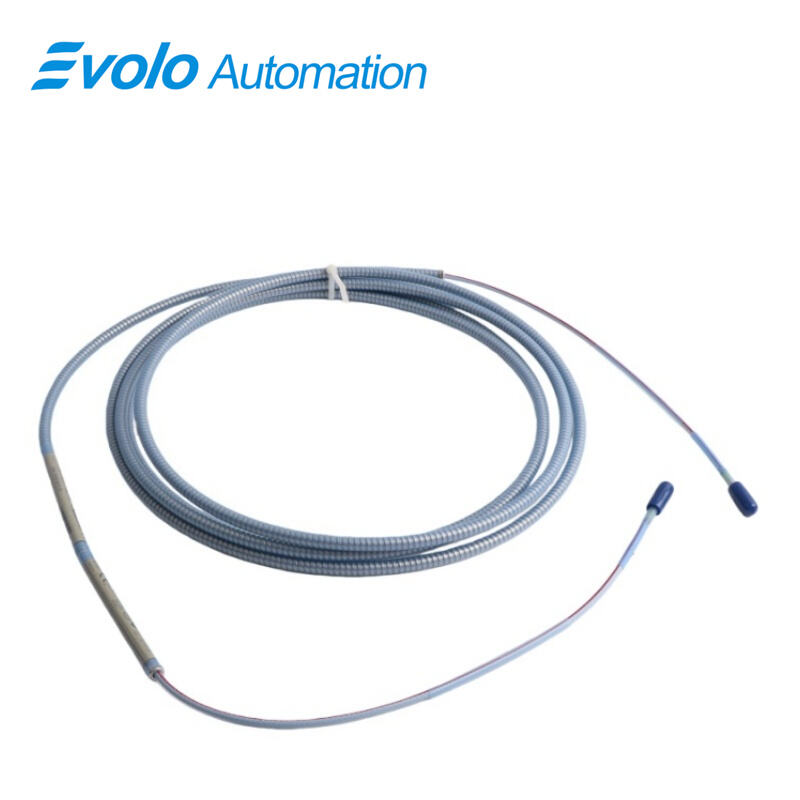

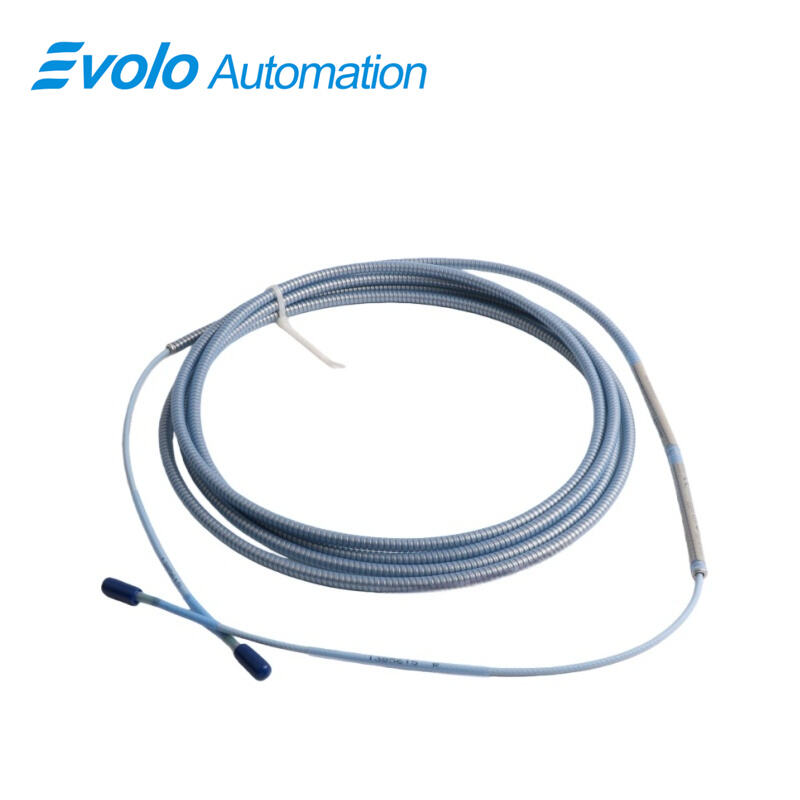

The 330190-040-01-CN 3300 XL Extended Temperature Range (ETR) Extension Cable is 4.0 meters long with armored 75Ω triaxial PFA insulation, supporting industrial automation applications at temperatures from -52°C to +260°C (-62°F to +500°F). Certified with CSA, ATEX, and IECEx approvals, the 330190-040-01-CN 3300 XL Extended Temperature Range cable maintains 50 Ω output resistance and less than 2 mV change per volt supply variation. Capacitance is 69.9 pF/m, and field wiring accommodates 0.2–1.5 mm² (16–24 AWG). Compatible with 3300-series 5 mm and 3300 XL 8 mm probes, the 330190-040-01-CN 3300 XL Extended Temperature Range enables accurate static and dynamic shaft position or vibration measurements with a 2 mm linear range, 0–10 kHz frequency response, and minimum 15.2 mm target detection. Patented CableLoc design provides 330 N pull strength to secure probe connections, and optional FluidLoc prevents oil leakage through the cable. The 330190-040-01-CN 3300 XL Extended Temperature Range integrates seamlessly with standard 3300 XL Proximitor Sensors, enabling extended-temperature automation monitoring for turbines, compressors, and high-temperature industrial equipment.

Applications

Measure Shaft Vibration in High-Temperature Equipment
The 330190-040-01-CN 3300 XL Extended Temperature Range supports 0–10 kHz frequency response and a 2 mm linear range, allowing precise detection of vibration in turbines, compressors, and pumps operating up to 260°C. Its 75Ω PFA-insulated armored cable ensures signal integrity even under extreme heat.

Track Shaft Position in Extreme Conditions
Using 3300-series 5 mm or 3300 XL 8 mm probes, the 330190-040-01-CN 3300 XL Extended Temperature Range provides static and dynamic shaft displacement readings with output resistance of 50 Ω and supply sensitivity below 2 mV per volt, ensuring accurate Keyphasor reference and speed monitoring.

Install in High-Temperature Panels
The 330190-040-01-CN 3300 XL Extended Temperature Range 4.0-meter armored cable allows safe routing in control panels exposed to heat while maintaining extension cable capacitance at 69.9 pF/m, supporting up to 305 meters of field wiring without signal degradation.

Specifications

Competitive Advantage

High Pull-Strength Cable Connection
The patented CableLoc on the 330190-040-01-CN 3300 XL Extended Temperature Range provides 330 N pull strength, securing probe and cable in automated systems with minimal risk of accidental disconnection.

Long-Distance Signal Transmission
Supports up to 305 meters of field wiring while maintaining less than 2 mV change per volt input, enabling the 330190-040-01-CN 3300 XL Extended Temperature Range to deliver accurate readings from remote control rooms.

Detect Small Targets in Hot Environments
The 330190-040-01-CN 3300 XL Extended Temperature Range can detect flat targets as small as 15.2 mm diameter while operating up to 260°C, ideal for compact or high-precision industrial equipment.

Operate Without Shielded Conduits
High RFI/EMI immunity of the 330190-040-01-CN 3300 XL Extended Temperature Range cable allows installation in fiberglass or non-metallic housings without additional shielding, reducing complexity and installation time.
