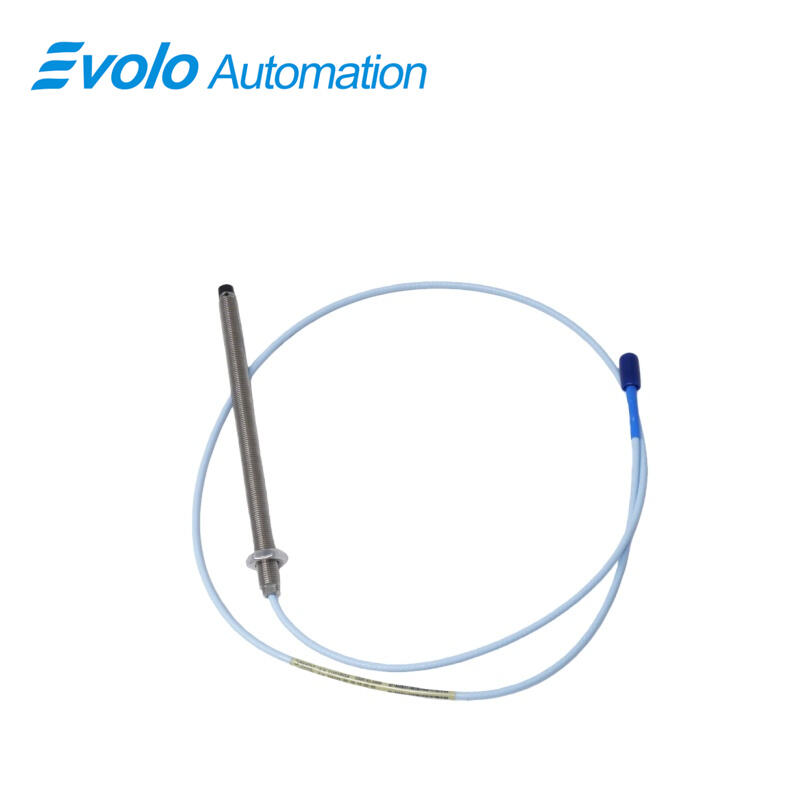

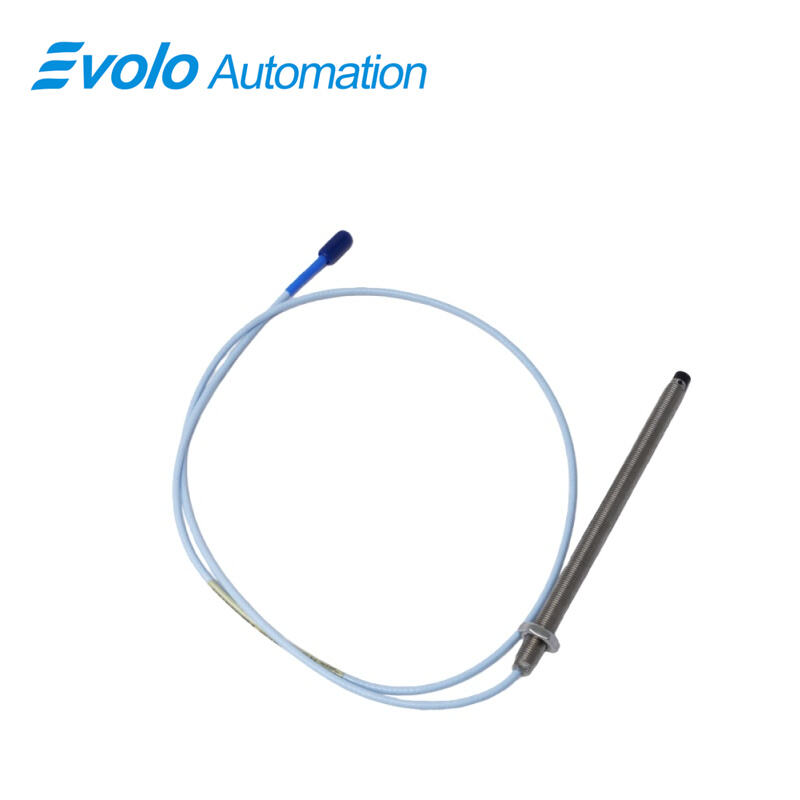

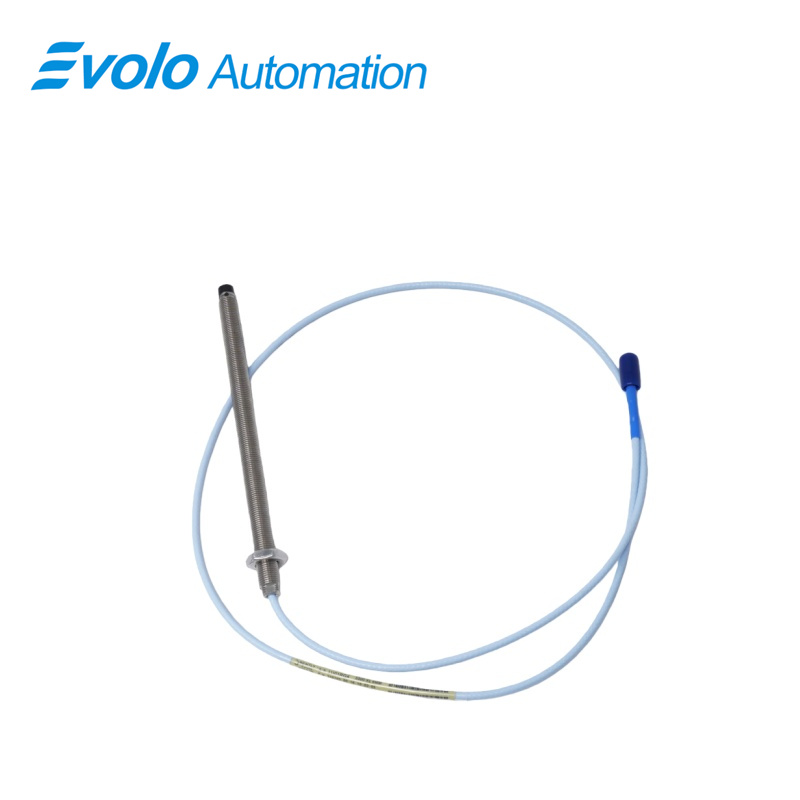

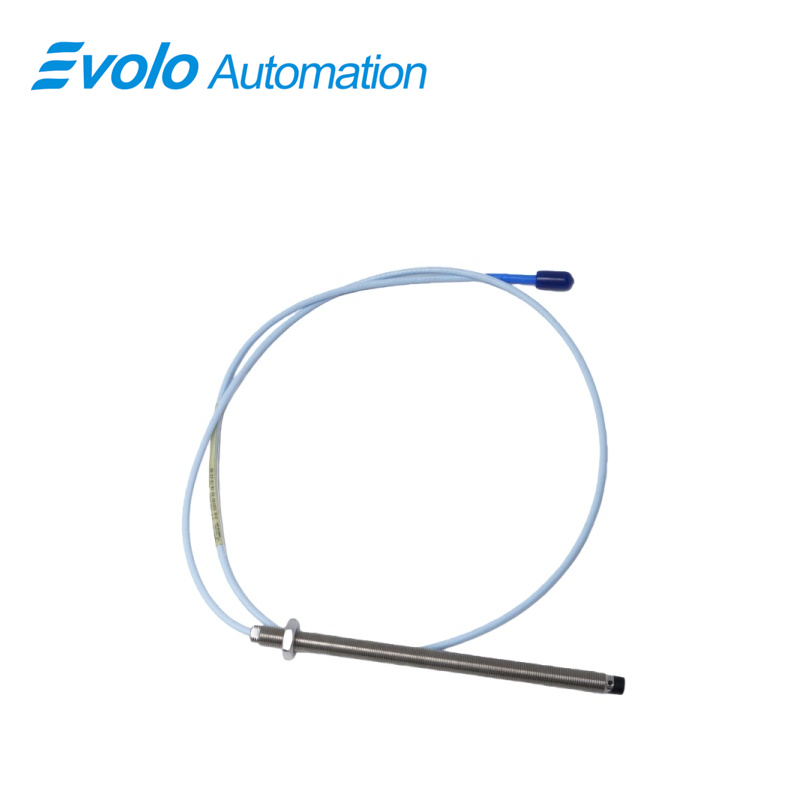

330103-00-13-10-12-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-13-10-12-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-13-10-12-05 3300 XL 8 mm Proximity Probes are high-precision, non-contact eddy current sensors developed for continuous machinery protection and condition monitoring in demanding and regulated industrial environments. As a certified member of the proven 3300 XL 8 mm Proximity Probes family, this model is engineered to deliver accurate, repeatable measurements of shaft vibration, radial displacement, axial position, and phase reference for critical rotating equipment. The 330103-00-13-10-12-05 configuration is particularly suited for applications requiring global hazardous-area approvals, compact installation geometry, and long-term signal stability.

This 3300 XL 8 mm Proximity Probe features a 1.0 meter (3.3 feet) total length combined with a miniature coaxial ClickLoc connector and standard cable, ensuring secure, vibration-resistant electrical connections and consistent signal transmission. The 0 mm unthreaded length and 130 mm overall case length provide excellent mechanical compatibility with a wide range of bearing housings and probe mounting brackets, allowing precise probe positioning without additional spacers or adapters. Its slim physical profile and lightweight design of approximately 0.06 kg minimize mechanical loading on mounting structures, supporting stable operation during continuous monitoring.

Applications

The 330103-00-13-10-12-05 3300 XL 8 mm Proximity Probes are widely used for continuous radial vibration and shaft displacement monitoring on turbines, compressors, pumps, and motors operating in hazardous or regulated industrial areas, enabling early detection of imbalance, misalignment, and bearing degradation.

In axial thrust position monitoring applications, these 3300 XL 8 mm Proximity Probes measure the clearance between the probe tip and shaft thrust surfaces, ensuring the rotor remains within safe axial limits and protecting thrust bearings and stationary components from mechanical damage.

The probe is suitable for phase reference and speed measurement applications, where it detects keyways or notches on rotating shafts to provide stable timing signals for phase analysis, dynamic balancing, and overspeed protection in critical rotating machinery.

Specifications

Competitive Advantage

1. Certified Hazardous-Area Compliance

Factory-issued CSA, ATEX, and IECEx approvals allow the 330103-00-13-10-12-05 3300 XL 8 mm Proximity Probes to be installed directly in hazardous locations, reducing compliance risk, engineering effort, and total project cost in regulated industries.

2. Optimized Mechanical Geometry for Installation Flexibility

The 130 mm overall case length and 0 mm unthreaded design provide broad compatibility with standard probe mounting arrangements, simplifying installation and reducing the need for custom mechanical modifications.

3. Stable Measurement Performance in Harsh Conditions

With a 50 Ω output resistance, low supply sensitivity, and durable PPS and stainless steel construction, this 3300 XL 8 mm Proximity Probe delivers consistent, low-noise displacement data under temperature variation, vibration, and chemical exposure, supporting reliable long-term condition monitoring.
