Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330180-X1-CN MOD 145004-47 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Total Length and Mounting Option: |
1.0 meter (3.3 feet) system length, no mounting hardware |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Proximitor Sensor Input: |
Accepts one non-contacting 3300-series 5 mm, 3300 XL 8 mm Proximity Probe and Extension Cable |
|
Power: |
-17.5 Vdc to -26 Vdc |
|
Proximitor Sensor Material: |
A308 aluminum |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Dimension: |
8.6x3.5x7cm |
|
Weight: |
0.2kg |
Description

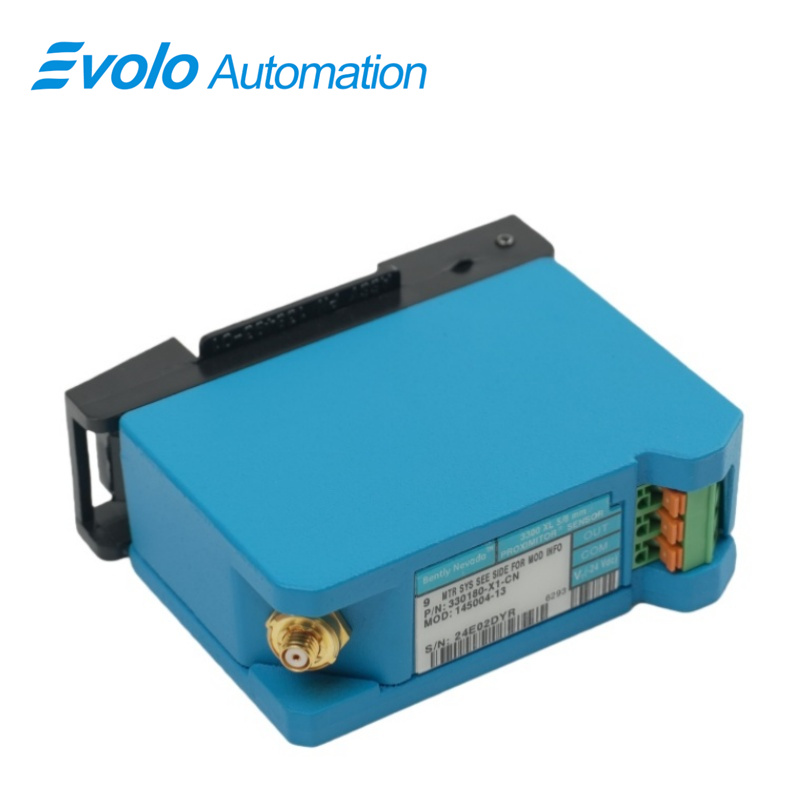

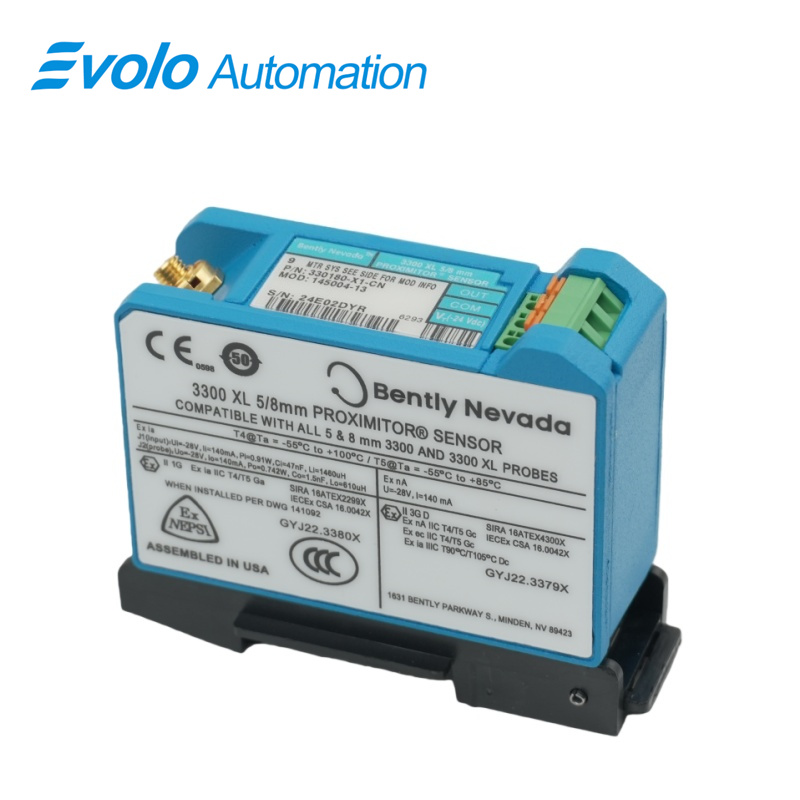

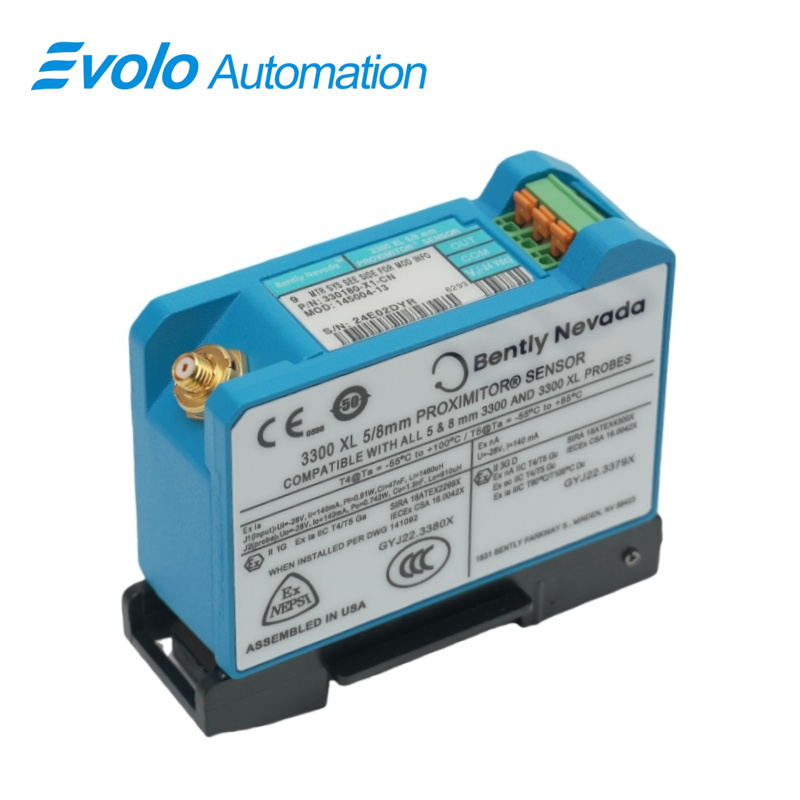

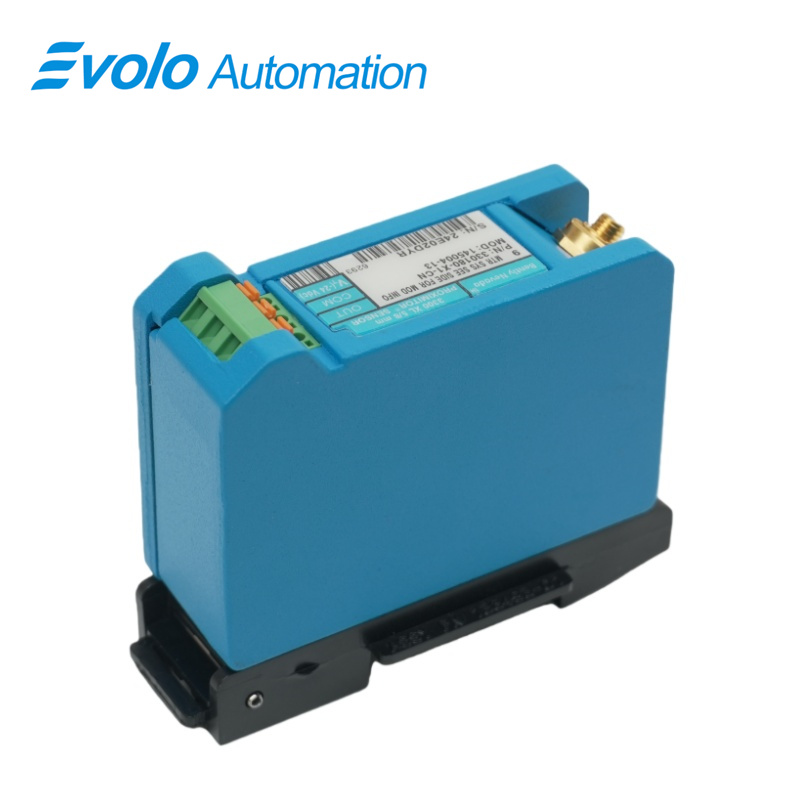

The 330180-X1-CN MOD 145004-47 3300 XL Proximitor Sensor converts signals from 3300-series 5 mm or 3300 XL 8 mm Proximity Probes into precise voltage outputs for automated monitoring systems. The 330180-X1-CN MOD 145004-47 supports system lengths up to 1.0 meter (3.3 feet) and can operate with field wiring up to 305 meters (1000 feet) while maintaining frequency response from 0 to 10 kHz.
The 330180-X1-CN MOD 145004-47 features an A308 aluminum housing with no mounting hardware, allowing compact installation in control panels or automated racks. Its SpringLoc terminal strips allow fast wiring of 16–24 AWG conductors without special tools. Operating from –52°C to +100°C and storing up to +105°C, the 330180-X1-CN MOD 145004-47 maintains less than 2 mV change in output voltage per volt of input, ensuring precise signal conversion for automated systems.
Output voltages scale with probe-to-target gap: 0.0247 mV pp/Gauss at 10 mil, 0.0323 at 50 mil, and 0.0348 at 90 mil, enabling accurate Keyphasor speed reference, vibration monitoring, and shaft position measurement. CSA, ATEX, and IECEx approvals allow the 330180-X1-CN MOD 145004-47 to operate safely in hazardous-area automation applications while simplifying installation.
Applications
Convert 3300 XL Probe Signals to Voltage for Automation
The 330180-X1-CN MOD 145004-47 accepts input from 3300-series 5 mm or 3300 XL 8 mm Proximity Probes and converts probe-to-target distance into precise voltage outputs. Its 0–10 kHz frequency response and ability to operate with up to 305 meters (1000 feet) of field wiring make the 330180-X1-CN MOD 145004-47 ideal for real-time monitoring of shafts, turbines, and pump systems in automated machinery.
Generate Keyphasor Speed Reference Pulses
The 330180-X1-CN MOD 145004-47 calculates Keyphasor signals using the probe-to-target gap. Output voltage data—0.0247 mV pp/Gauss at 10 mil, 0.0323 at 50 mil, 0.0348 at 90 mil—enables the 330180-X1-CN MOD 145004-47 to provide accurate speed input for PLC or DCS control systems in industrial automation.
Quick Panel or Rack Installation
The 330180-X1-CN MOD 145004-47 features a compact 1.0 meter system length and no mounting hardware, allowing flexible installation in control panels or automation racks. SpringLoc terminal strips support fast wiring of 16–24 AWG conductors without tools, facilitating efficient deployment of multiple sensors.
Specifications
|
Output Resistance: |
50 Ω |
|
Operating Temperature: |
-52°C to +100°C (-62°F to +212°F) |
|
Storage Temperature: |
-52°C to +105°C (-62°F to +221°F) |
|
Frequency Response: |
(0 to 10 kHz), +0, -3 dB, with up to 305 meters (1000 feet) of field wiring |
|
Minimum Target Size: |
15.2 mm (0.6 in) diameter (flat target) |
|
Output Voltage in Mil pp/Gauss(9 meter Proximitor Sensor): |
0.0247 (Gap: 10) |
|
Output Voltage in Mil pp/Gauss(9 meter Proximitor Sensor): |
0.0323 (Gap: 50) |
|
Output Voltage in Mil pp/Gauss(9 meter Proximitor Sensor): |
0.0348 (Gap: 90) |
Competitive Advantage
Long Field Wiring with Accurate Output
The 330180-X1-CN MOD 145004-47 supports field wiring up to 305 meters (1000 feet) while maintaining less than 2 mV change in output voltage per volt of input. This allows the 330180-X1-CN MOD 145004-47 to deliver precise shaft position, vibration, and Keyphasor signals across long-distance automation installations without signal degradation.
Operate Across Wide Temperature Range
The 330180-X1-CN MOD 145004-47 functions reliably from –52°C to +100°C and can store safely up to +105°C. This range enables the 330180-X1-CN MOD 145004-47 to monitor high-temperature machinery and control panels while preserving voltage output accuracy.
Quick Field Wiring with SpringLoc Terminals
The SpringLoc terminal strips of the 330180-X1-CN MOD 145004-47 allow rapid installation of 16–24 AWG field wiring without screw-type clamps. This enables multiple 330180-X1-CN MOD 145004-47 sensors to be installed efficiently in high-density automation racks or panels.
Compact Design for Panel and Rack Installations
The 330180-X1-CN MOD 145004-47 has a compact 1.0 meter system length with no mounting hardware, allowing tight installation in automated control panels or DIN racks. Its design supports deployment of multiple 330180-X1-CN MOD 145004-47 sensors in confined spaces while maintaining precise voltage signal outputs for automated monitoring.
